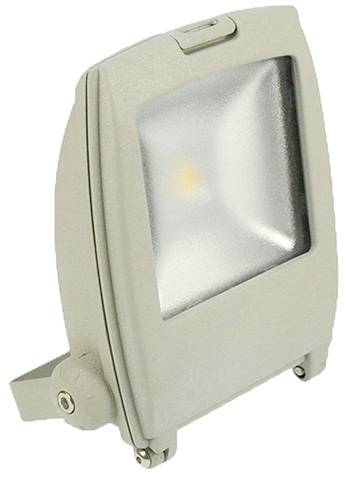

Scharnberg & Hasenbein 39165 39165 Display light 50 W Colours (LEDs): Warm white
EAN:
Part number:
Item no:
Highlights & Details
Scharnberger+Hasenbein LED display spotlight 100-240VAC 3000K120° 39165
- Power= 50 W
- Total luminous flux= 3350 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Suitable for panel mounting: No.
- Suitable for wall mounting: Yes
- With motion detector: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Version: Other
- Material of housing: Aluminium
- Housing color: Grey
- Voltage type AC
- Nominal voltage 100..240 V
- Operating device: Not required
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Reflector: High-gloss
- Light distributor: Other
- Light distribution: Symmetric
- Radiation angle: Greater than 80° - extremely wide radiation
- Light emission: Direct
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Suitable for lamp power 50..0 W
- Max. System power 50 W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 70-79
- Rated light current according to IEC 62722-2-1: 3350 lm
- Power factor 0.9
- Length: 420 mm
- Width 320 mm
- Height/depth 107 mm
- Type of wiring: Finish
- Color consistency (McAdam ellipse): SDCM6
- Product type
Display light
- Operating voltage
100 V
240
- Bulb type
LED (monochrome)
50 W
3000 K
- Colour
Warm white
- Total luminous flux
3350 lm
- Factory colour
Grey
- Material
Aluminium
- Dim
(L x W) 420 mm x 320 mm
n.rel.
- Width
320 mm
- Length
420 mm
- Depth
107 mm
- LEDs
1
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795873 Scharnberg & Hasenbein 39165 39165 Display light 50 W Colours (LEDs): Warm white
Description
LED designer 50x1W multi-chip LED 420 x 320x107mm Efficient and energy-saving LED technology in robust housing in an attractive design. Energy efficiency: EOL, mercury content (mg): 0 switching cycles: 25000 ignition time/start time (s): 0.0 Lumen maintenance: 0.70
