Schlegel BZL5_439 Contact 2 breakers, 2 makers 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Technical specifications
- Series: Contact encoder B..._439
- Protection class front IP00
- Operating temperature: -30°C ... 70°C without illumination; -30°C ... 65°C with LED illumination; -30°C ... 55°C with light bulb illumination
- RATED OPERATING VOLTAGE IEC/EN 60947-5-1:60 V/AC
- RATED OPERATING CURRENT IEC/EN 60947-5-1: 3 A/AC INDUCTIVE;5 A/DC;4 A/DC;3 A/DC;1 A/DC
- Mechanical life 1,000,000 switching cycles
- Lighting: No.
- Bulb: T5,5K lamp socket
- Product type
Contact
- Connection
CEE 7/16 CEE plug

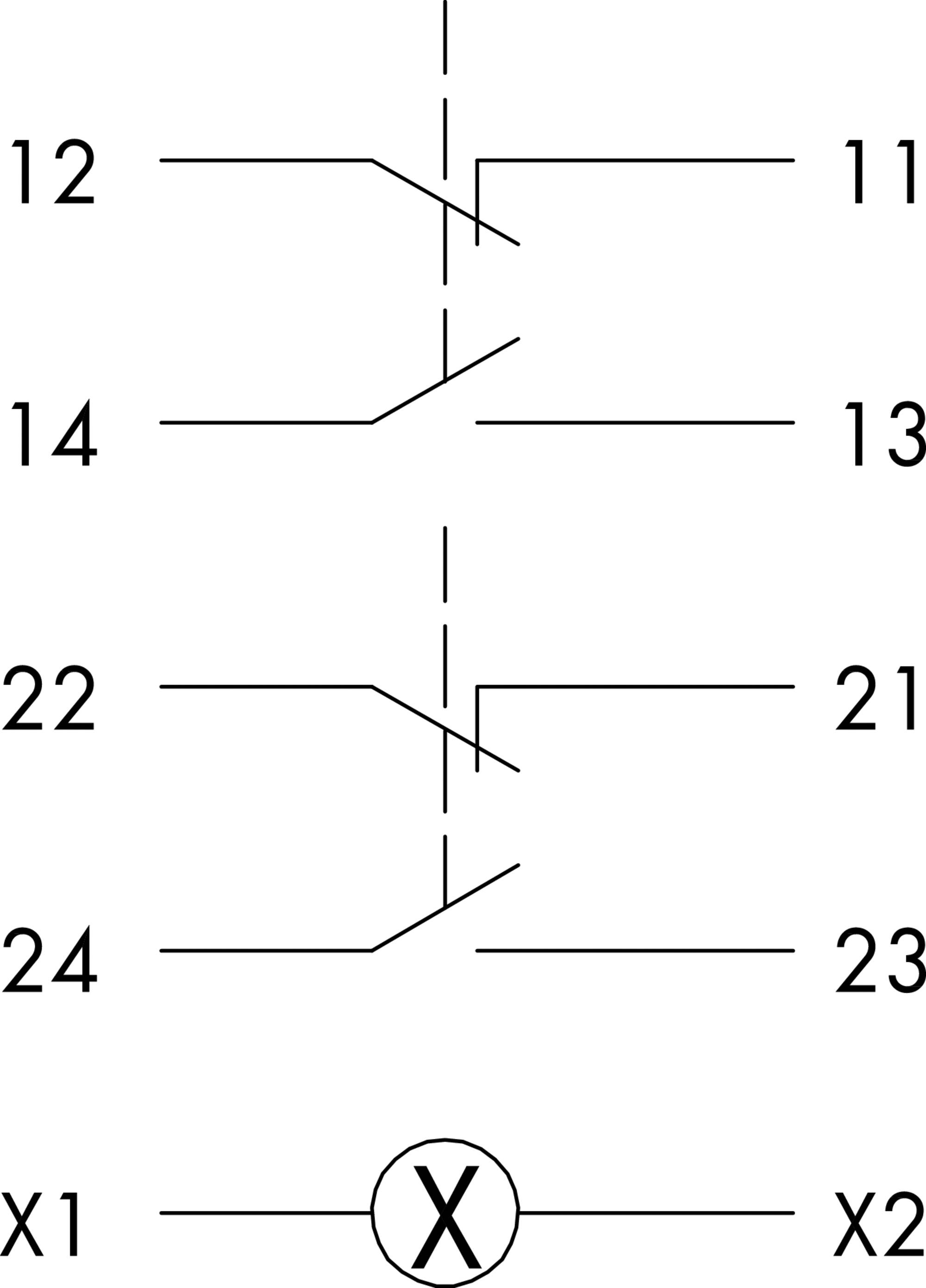

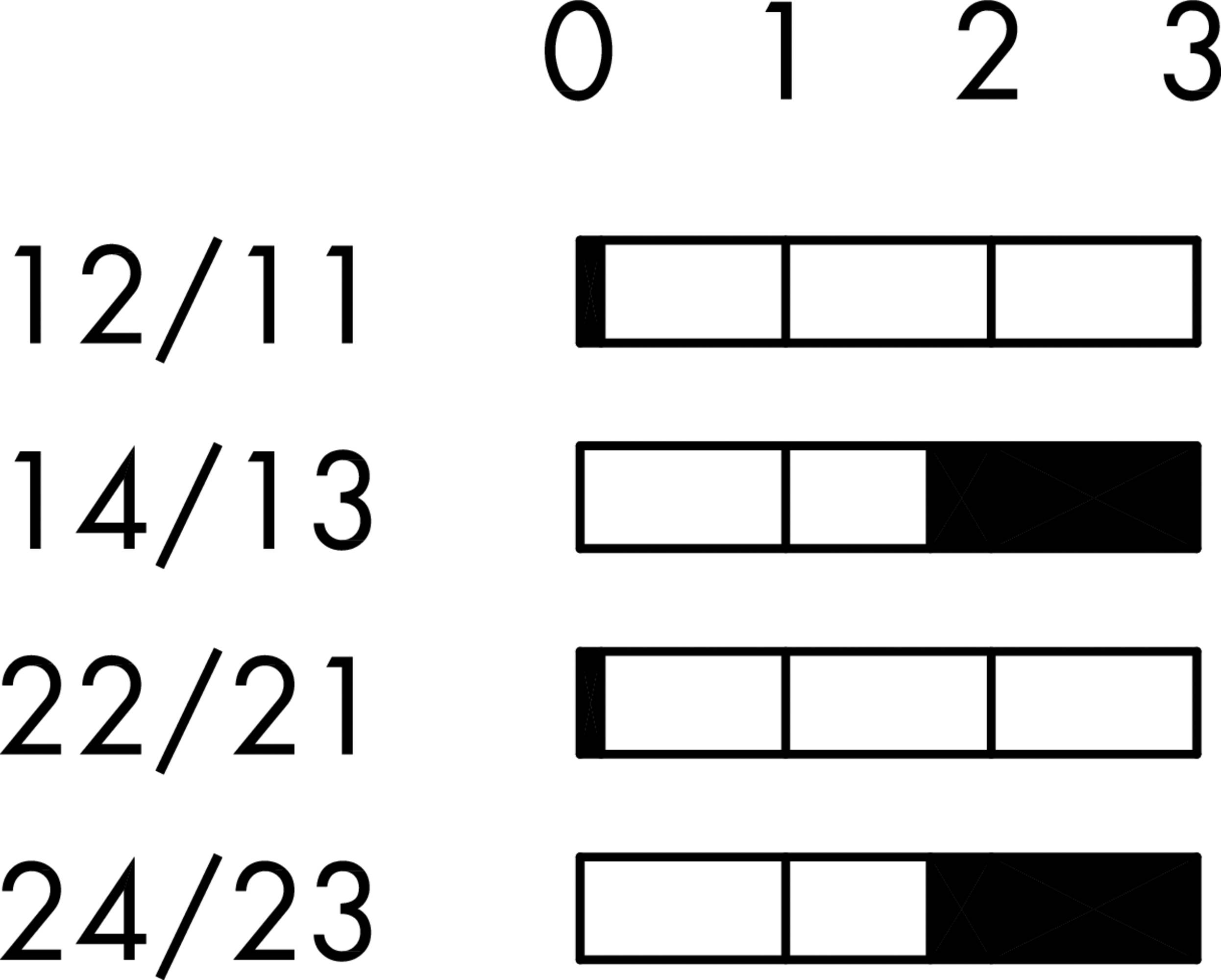

- Contact type
2 breakers
2 makers
- Min. temperature
-30 °C
- Max. temperature
70 °C
- Durability
1,000,000 switching cycles
- Content
1 pc(s)
- Type
BZL5_439
- Lighting type
None
- Nominal voltage
60 V AC
Documents & Downloads
Datasheet
Datasheet 3863357 Schlegel BZL5_439 Contact 2 breakers, 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3863357 Schlegel BZL5_439 Contact 2 breakers, 2 makers 1 pc(s)
Description

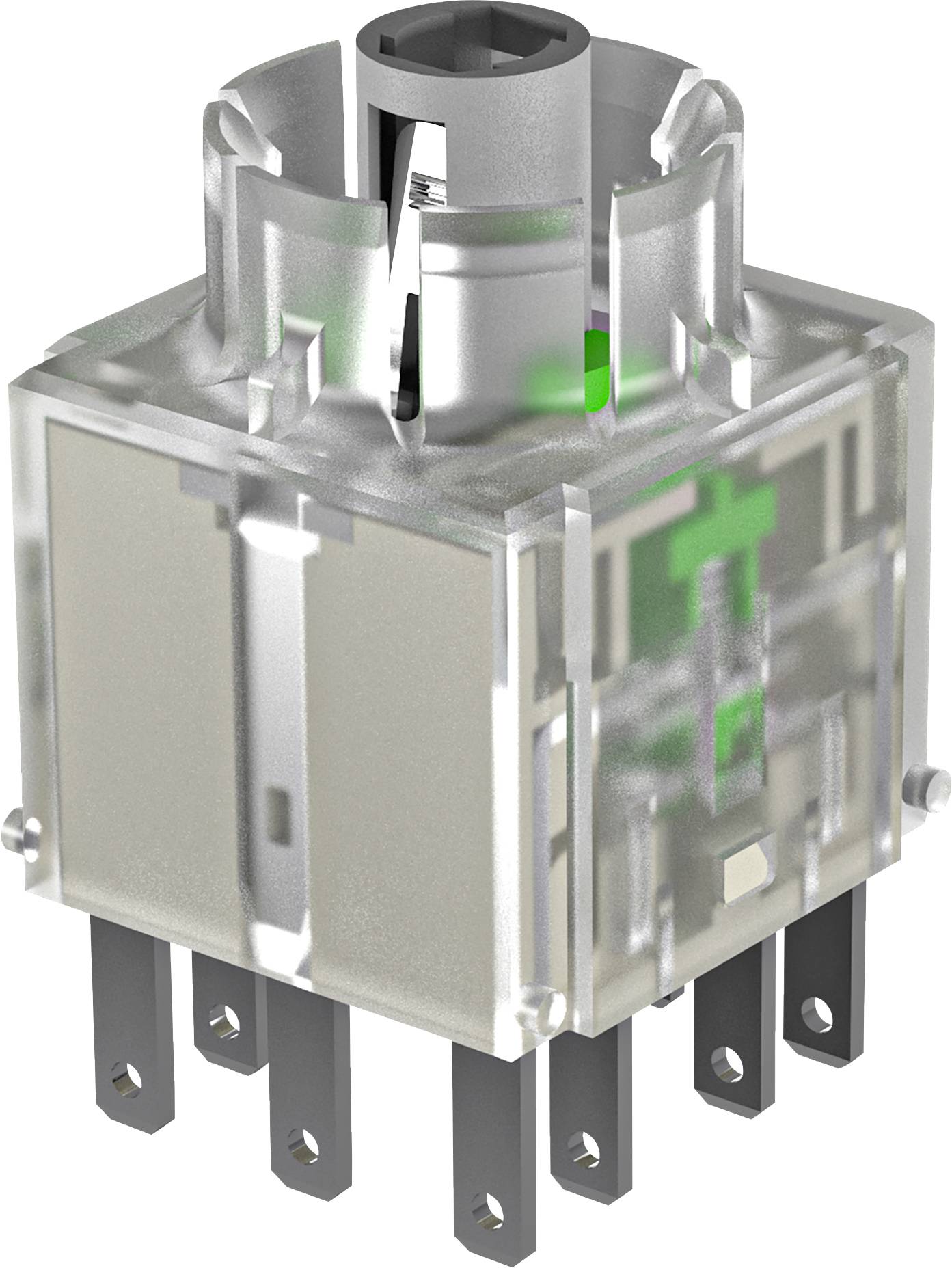

BZL5_439 - Illuminated pushbutton contact sensor T5,5K
