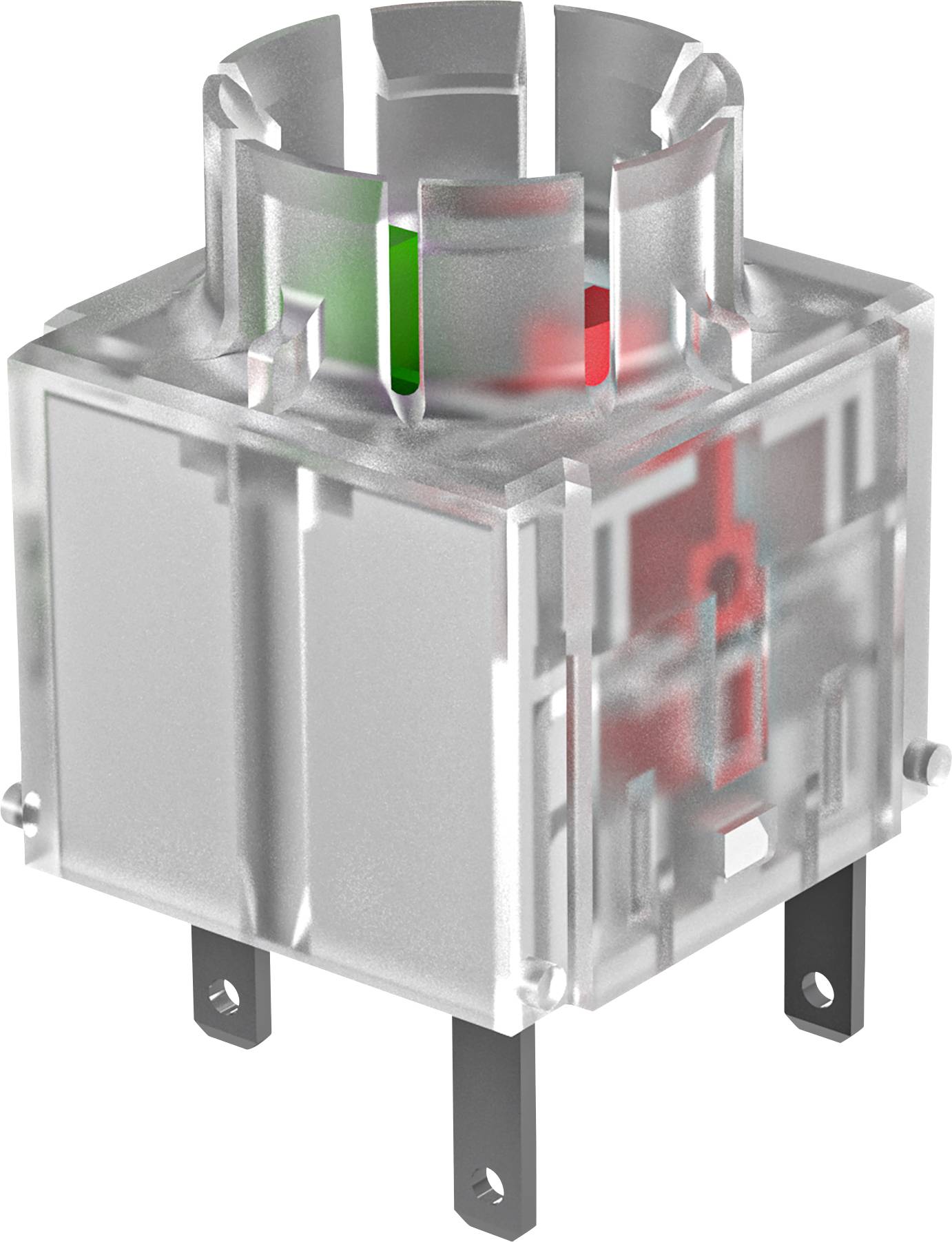

Schlegel BZOI Contact 1 breaker, 1 maker 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Technical specifications
- Series: Contact sensor BZ...
- Switching function: Key function
- Protection class front IP00
- Operating temperature: -30 °C ~ 70 °C
- RATED OPERATING VOLTAGE IEC/EN 60947-5-1: 240 V/AC;24 V/DC;60 V/DC;125 V/DC;250 V/DC
- RATED OPERATING CURRENT IEC/EN 60947-5-1: 1.5 A/AC;2 A/DC;1 A/DC;0.4 A/DC;0.2 A/DC
- Mechanical life 1,000,000 switching cycles
- Electrical life: 1,000,000 cycles at nominal load
- Lighting: No.
- II protection rating
- Product type
Contact
- Connection
CEE 7/16 CEE plug

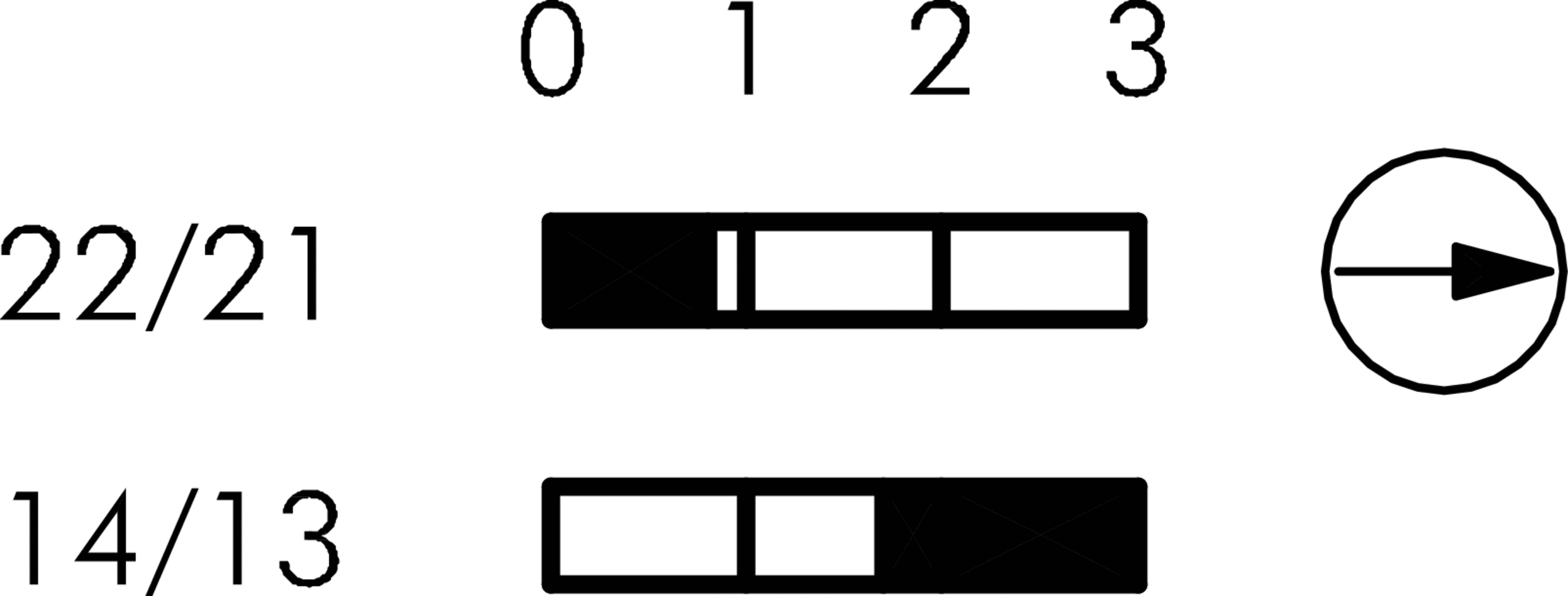

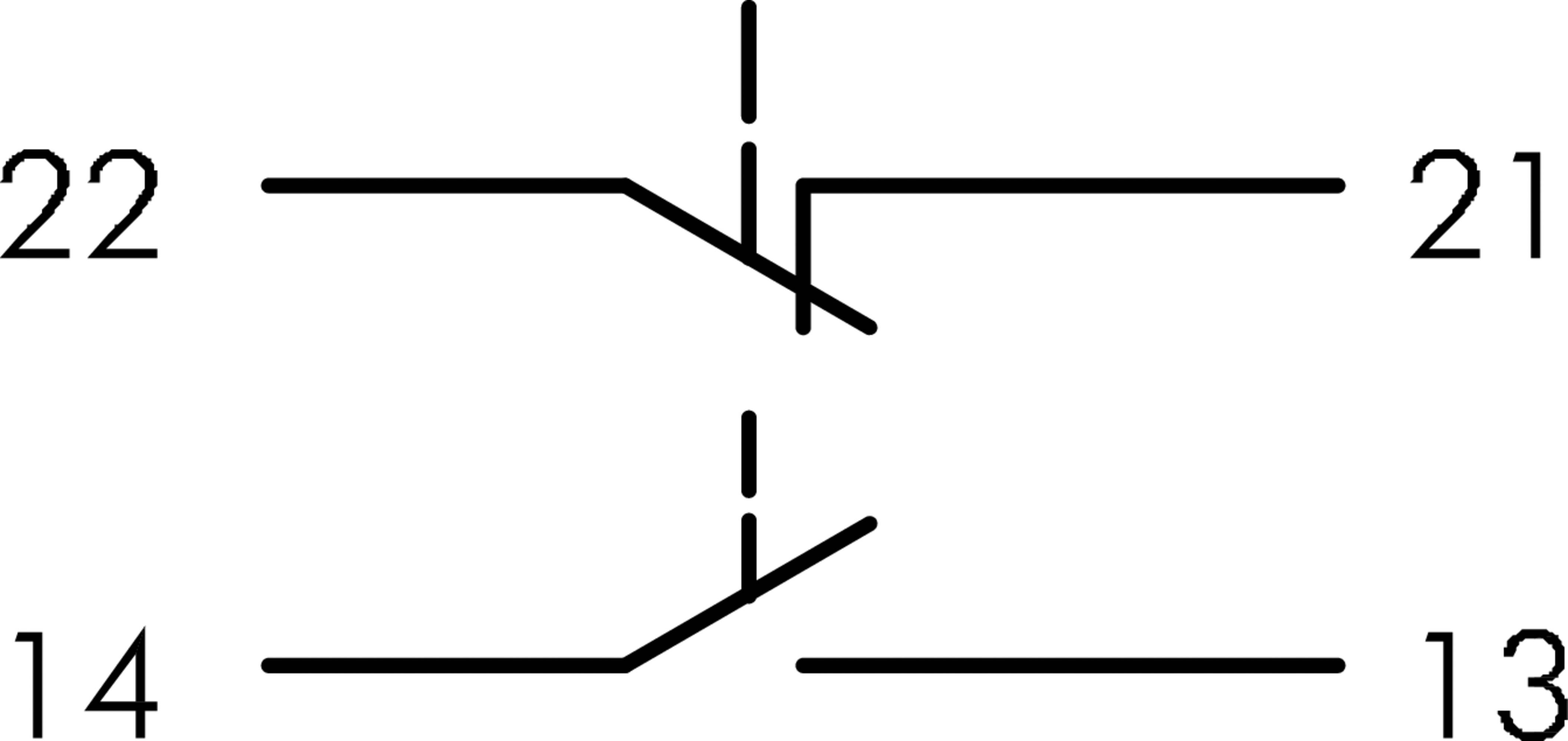

- Contact type
1 breaker
1 maker
- Min. temperature
-30 °C
- Max. temperature
70 °C
- Durability
1,000,000 switching cycles
- Electrical lifespan
1,000,000 cycles at nominal load
- Content
1 pc(s)
- Type
BZOI
- Lighting type
None
- Nominal voltage
240 V AC
24 V DC
60 V DC
125 V DC
250 V DC
Documents & Downloads
Datasheet
Datasheet 3863360 Schlegel BZOI Contact 1 breaker, 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3863360 Schlegel BZOI Contact 1 breaker, 1 maker 1 pc(s)
Description
BZOI contact sensor
