Schlegel JRGSTB JRGSTB Selector button manually, Rotary switch 1 pc(s)

A grey lock cylinder with a rotatable handle.

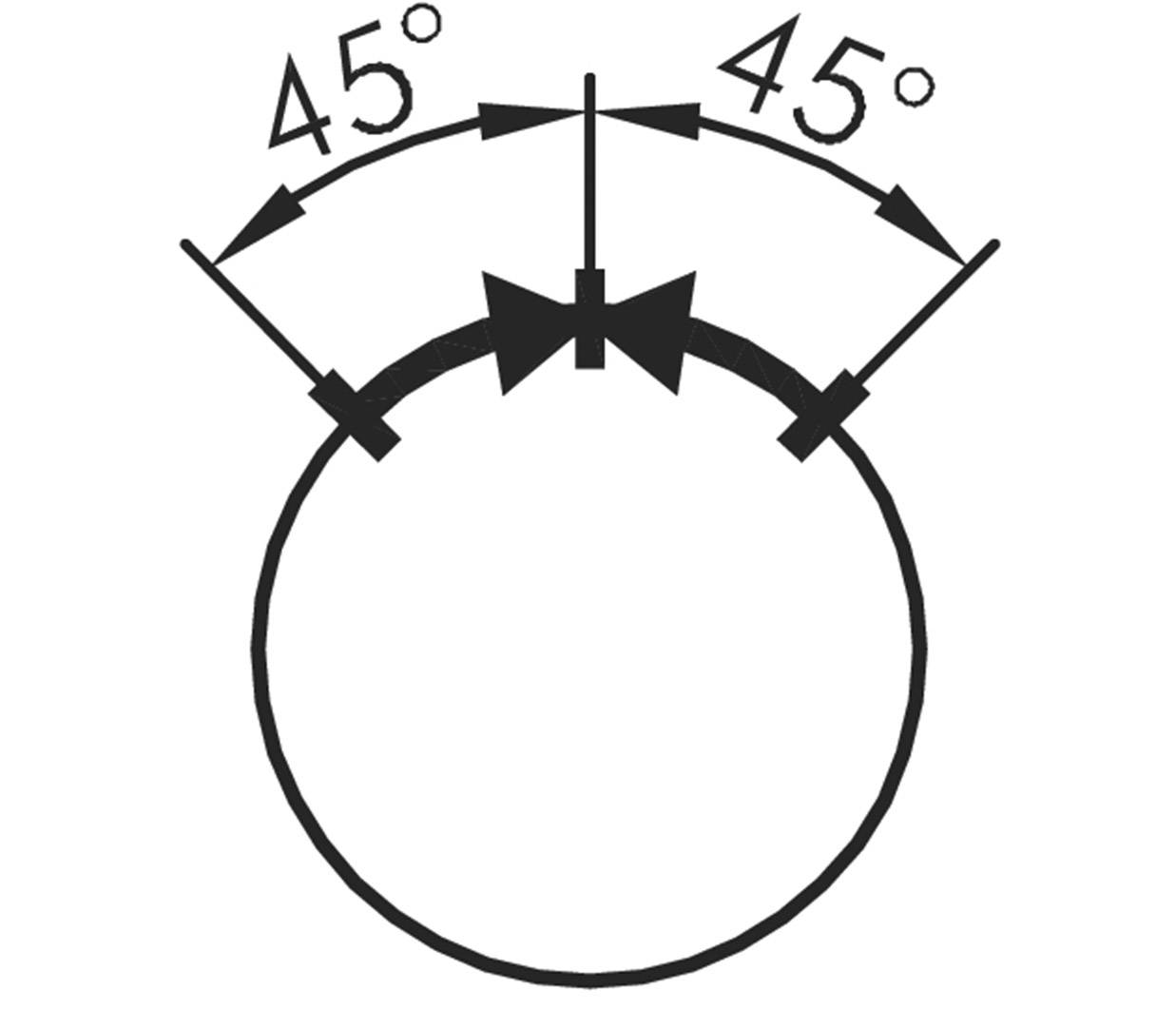

Circle with two lines and 45-degree angles, connected by a central line. Diagram illustrating angles.

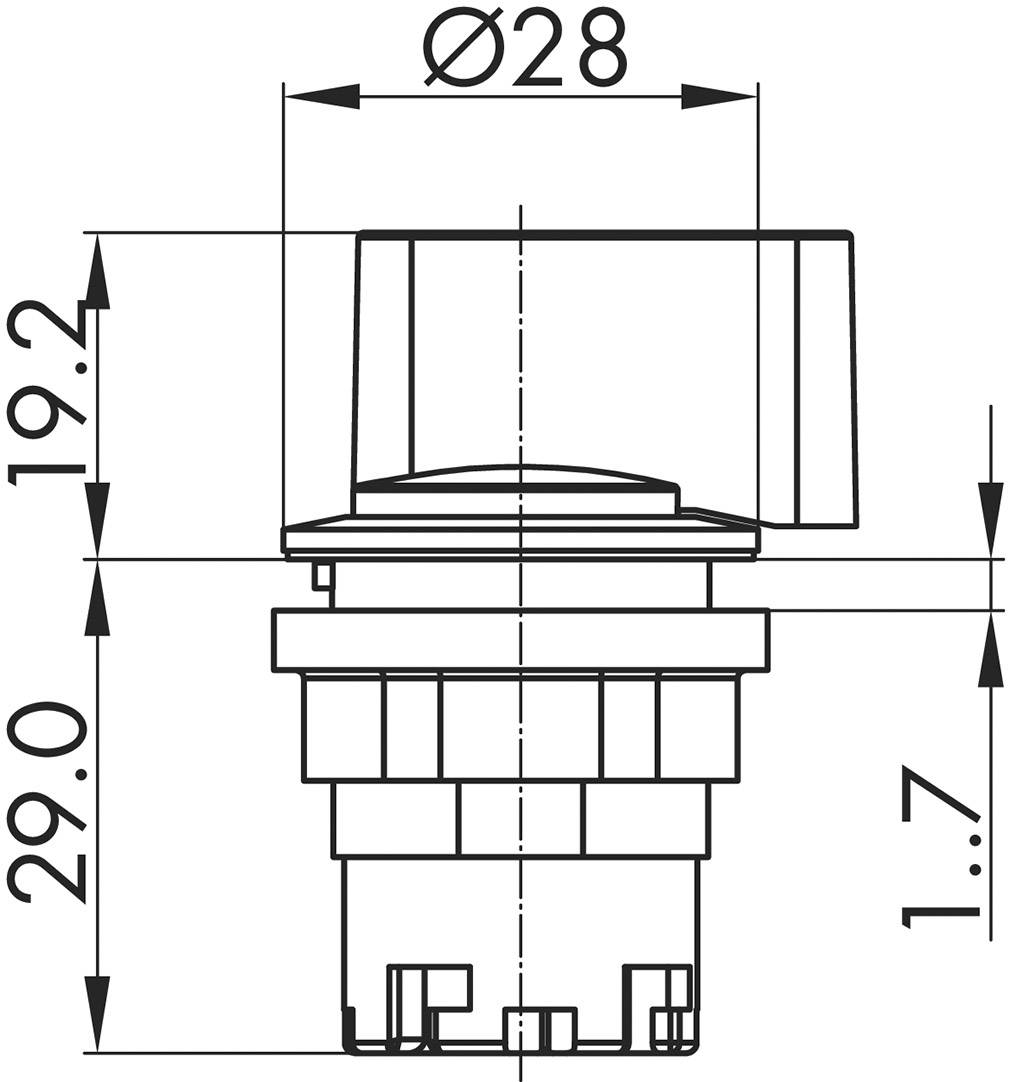

Technical Drawing of a Cylindrical Switch with Dimensions: Diameter 28 mm, Height 19.2 mm, Total Height 29 mm, Installation Depth 1.7 mm.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

"Schlegel Option key JRGSTB 1 pcs."

Our service for you

Technical specifications

  • Protection class II (protective insulation)
  • Lighting: no.
  • Writable: no.
  • Front frame: anthracite
  • Shape: Round
Product type

Selector button

Lighting type

None

Operation type

manually

Rotary switch

Connection

External contact

Functions

momentary

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

48.2 mm

Width

28 mm

Height

28 mm

Compatible with (details)

Series: RONDEX-JUWEL®

Content

1 pc(s)

Dim

(L x W x H) 48.2 x 28 x 28 mm

RoHS-compliant

Yes

Type

JRGSTB

Documents & Downloads

Datasheet

Datasheet 2238346 Schlegel JRGSTB JRGSTB Selector button manually, Rotary switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2238346 Schlegel JRGSTB JRGSTB Selector button manually, Rotary switch 1 pc(s)
