Name: Schlegel JRMGWB JRMGWB Selector button round manually, Rotary switch Anthracite 1 pc(s) Piece
Brand: Schlegel
SKU: 2238339

Switch with grey rotary knob and silver base, suitable for industrial applications.

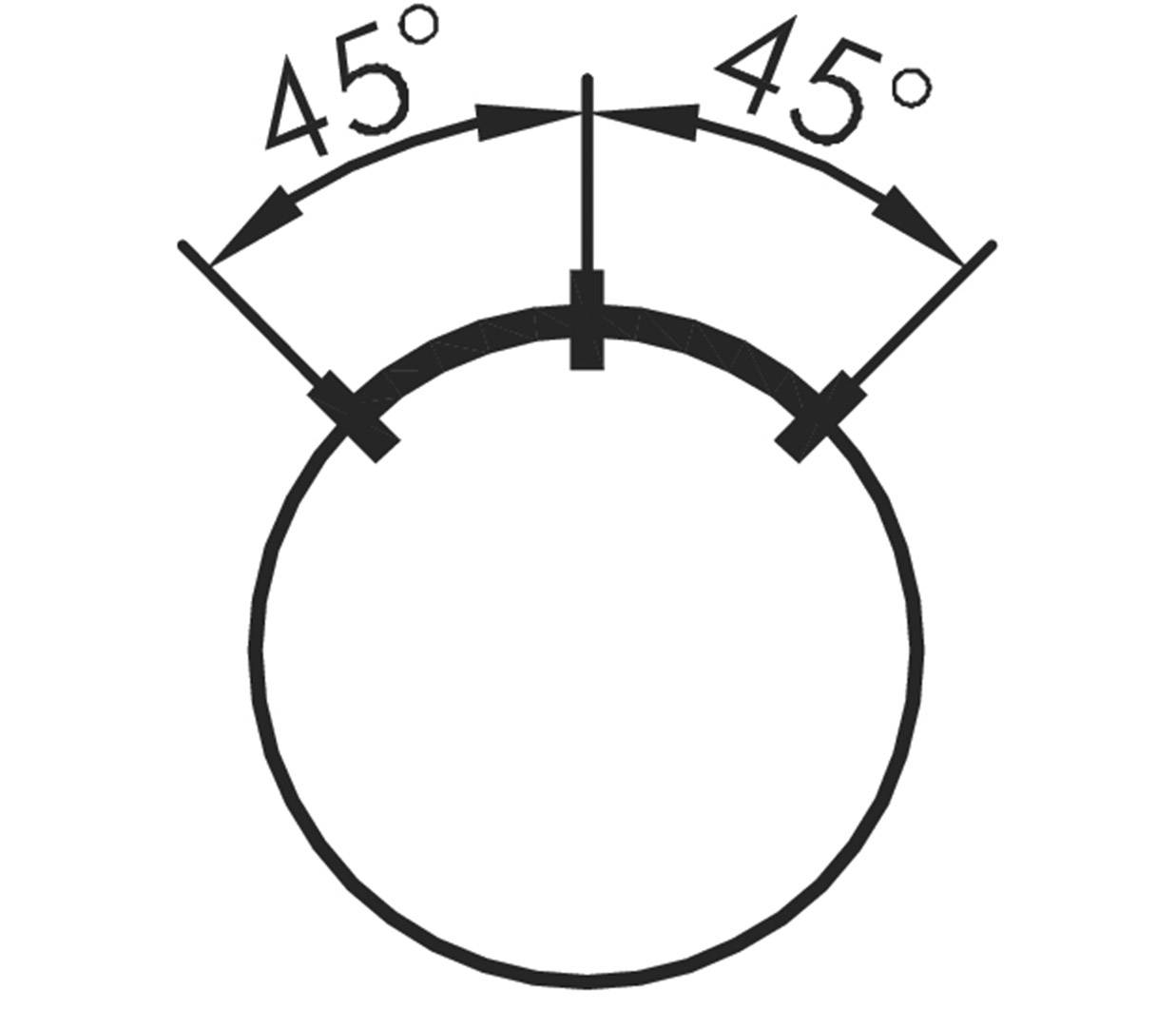

Diagram of a circle with two arrows pointing 45 degrees outwards, illustrating the angle.

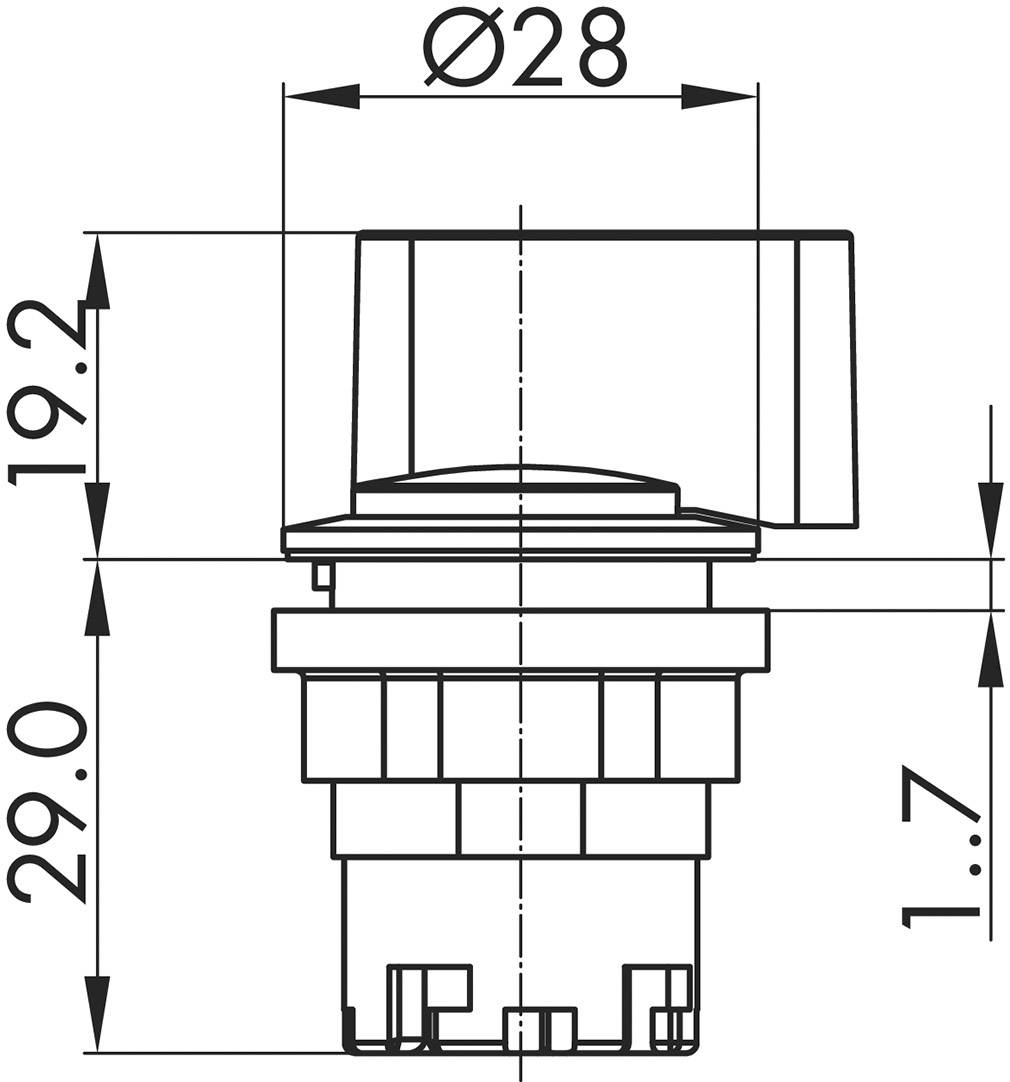

Toggle switch side view with dimensions: Diameter 28, Height 29; Button height 19.2, Base width 1.7. Suitable for technical drawings.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel Option key JRMGWB 1 pc."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Silver-colored
Shape: Round

Packaging type: Piece

Product type: Selector button

Switch/button features: round

Lighting type: None

Operation type: manually
Rotary switch

Factory colour: Anthracite

Case colour: Silver

Connection: External contact

Functions: latch

Recess diameter: 22.3 mm

: IP65

Min. temperature: -25 °C

Max. temperature: +70 °C

Length: 48.2 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: RONDEX-JUWEL®

Content: 1 pc(s)

Dim: (L x W x H) 48.2 x 28 x 28 mm

RoHS-compliant: Yes

Type: JRMGWB
