Schlegel JRMSTB JRMSTB Selector button + rotary switch manually, Rotary switch 2 pc(s)

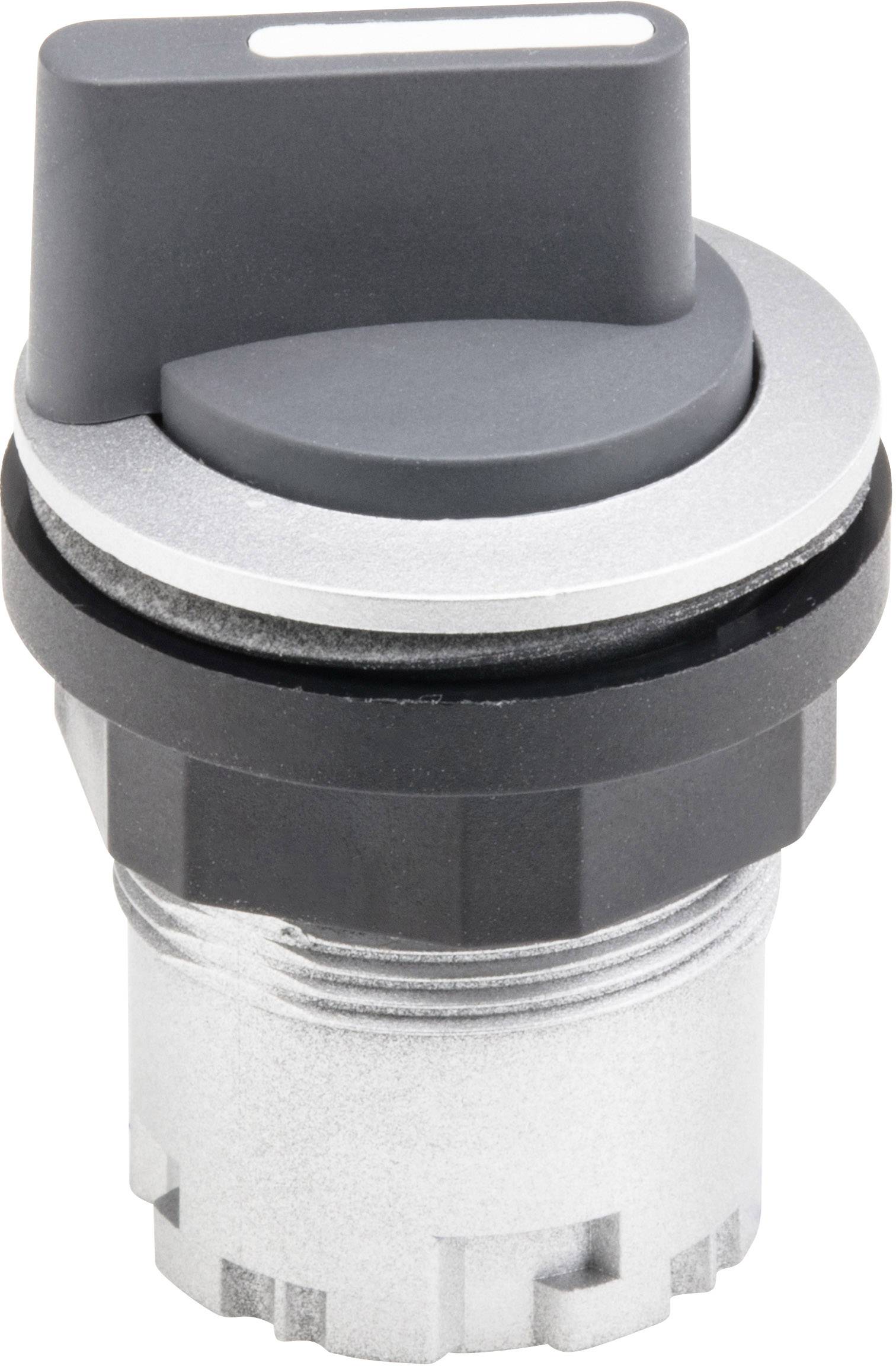

A grey, cylindrical rotary switch made of metal with a textured surface and a black plastic handle for manual operation.

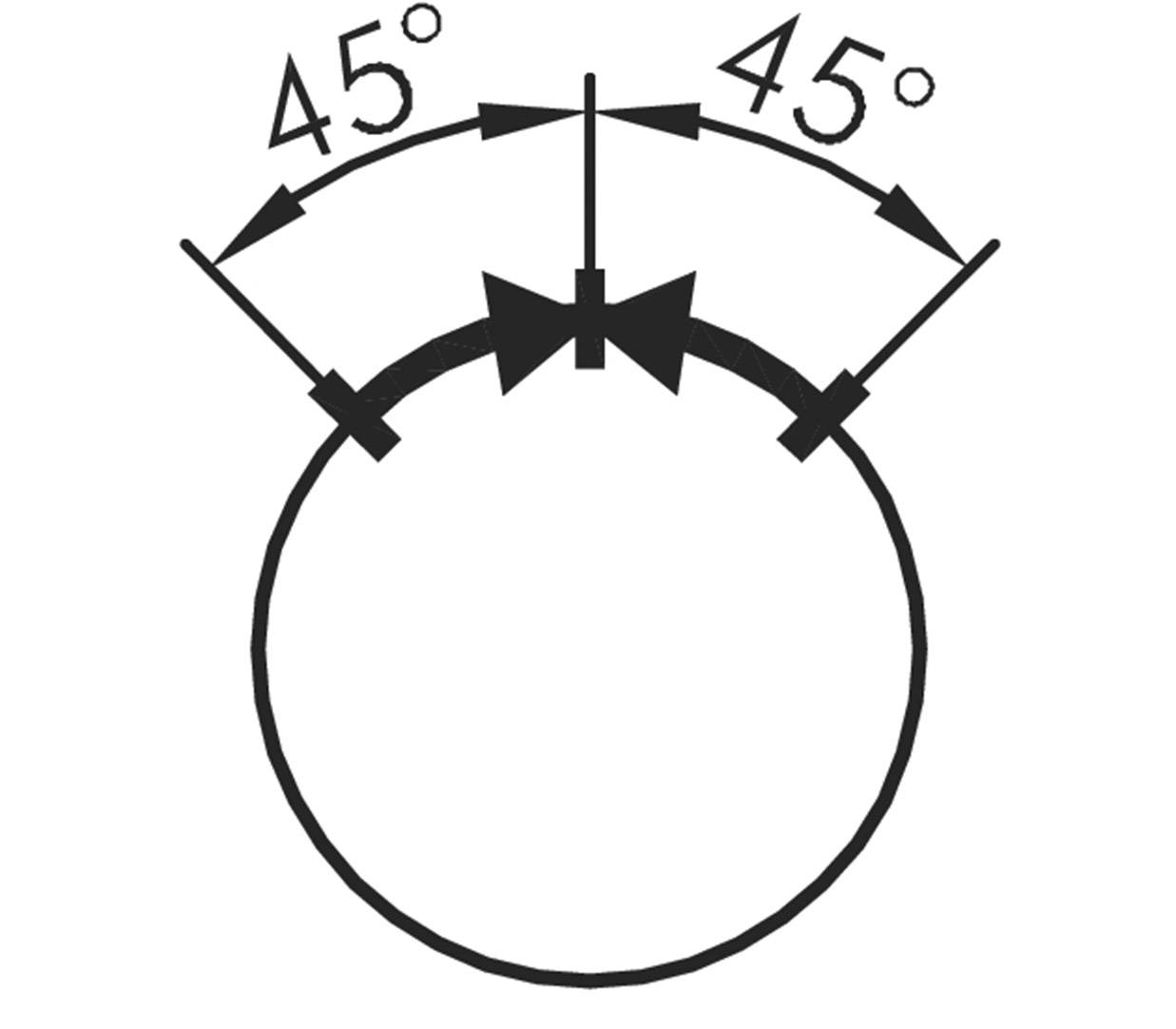

A circle marked with a 90-degree segment, with two arrows each indicating 45 degrees, with an angle protractor symbol at the top.

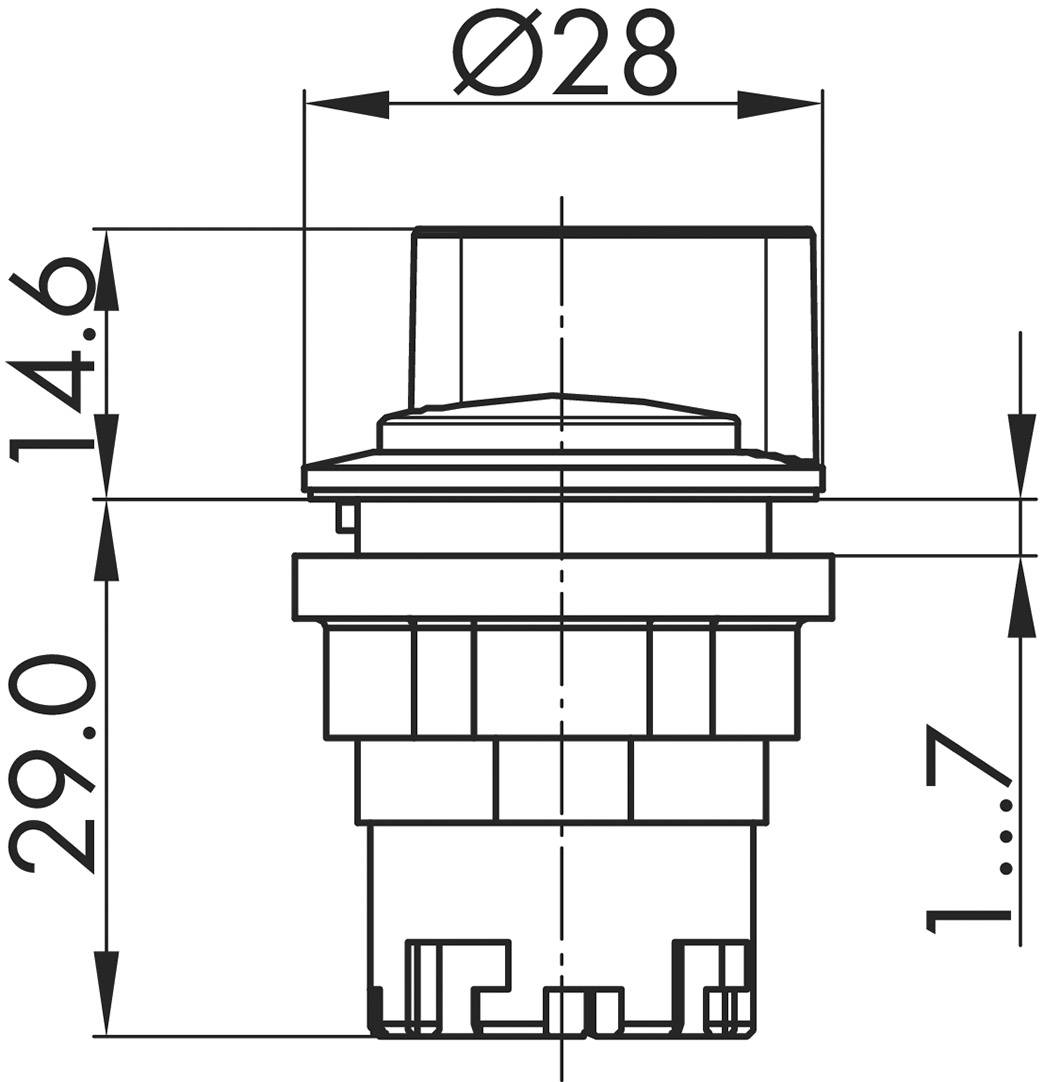

Technical drawing of a round switch with dimensions: diameter 28 mm, total height 29 mm, lens height 14.6 mm, front plate thickness 1.7 mm.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

"Schlegel Option key JRMSTB 2 pcs."

Our service for you

Technical specifications

  • Protection class II (protective insulation)
  • Lighting: no.
  • Writable: no.
  • Front frame: Silver-colored
  • Shape: Round
Product type

Selector button

Switch/button features

+ rotary switch

Lighting type

None

Operation type

manually

Rotary switch

Print motif

None

Connection

External contact

Functions

momentary

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

43.6 mm

Width

28 mm

Height

28 mm

Compatible with (details)

Series: RONDEX-JUWEL®

Content

2 pc(s)

Dim

(L x W x H) 43.6 x 28 x 28 mm

RoHS-compliant

Yes

Type

JRMSTB
