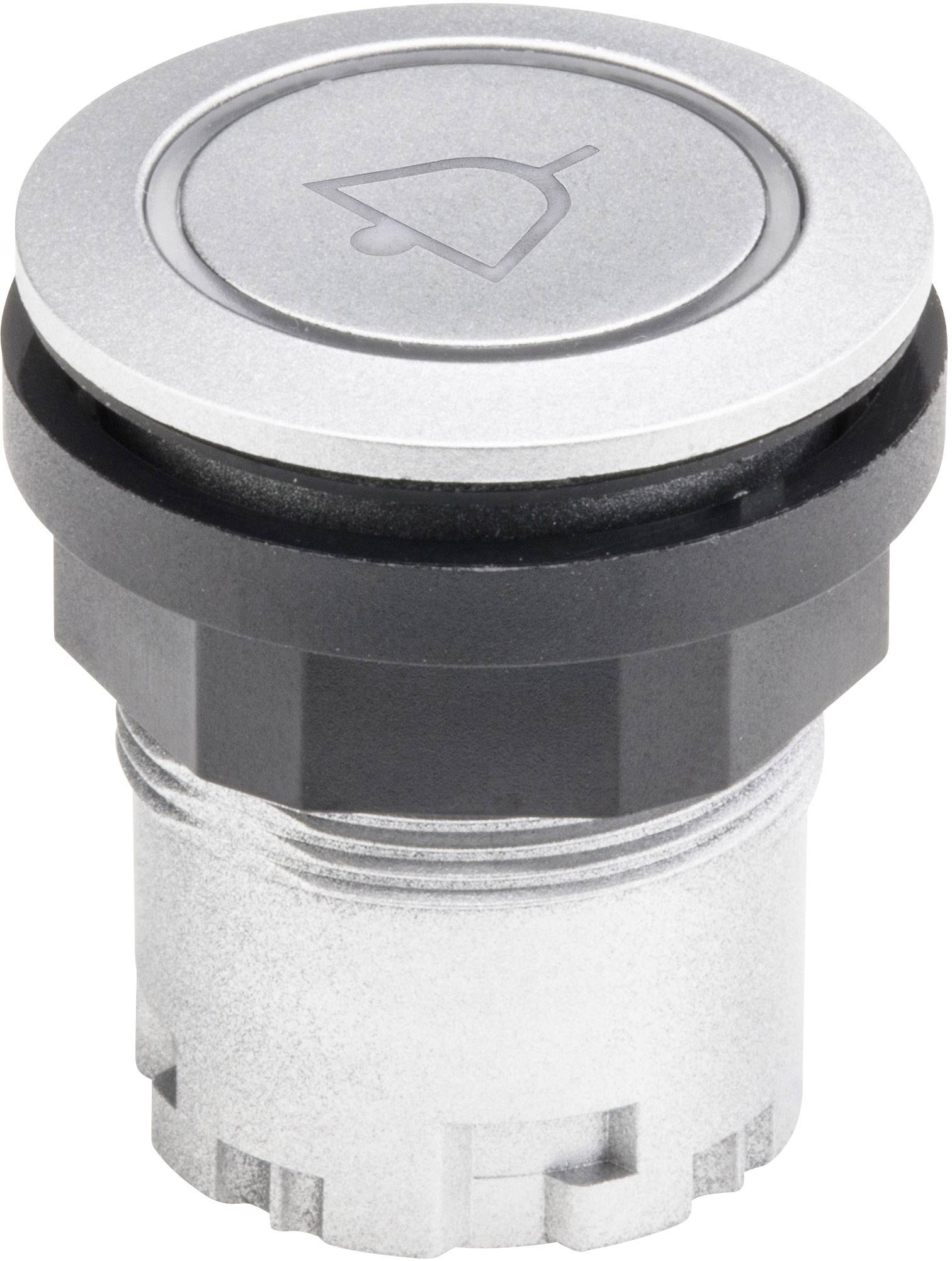

Schlegel JRMTLRL_1101 JRMTLRL_1101 Pushbutton illuminable manually, 1-button 2 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
"Schlegel Pushbutton JRMTLRL_1101 2 PCS."
Our service for you
Technical specifications
- Protection class II (protective insulation)
- Stroke: 6 mm
- Lighting: Yes
- Inscribable: Yes
- Front frame: Silver-colored
- Shape: Round
- Product type
Pushbutton
- Switch/button features
illuminable
- Lighting type
Area illumination
- Operation type
manually
1-button
- Print motif
Power symbol
- Connection
External contact
- Functions
momentary
- Recess diameter
22.3 mm
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C

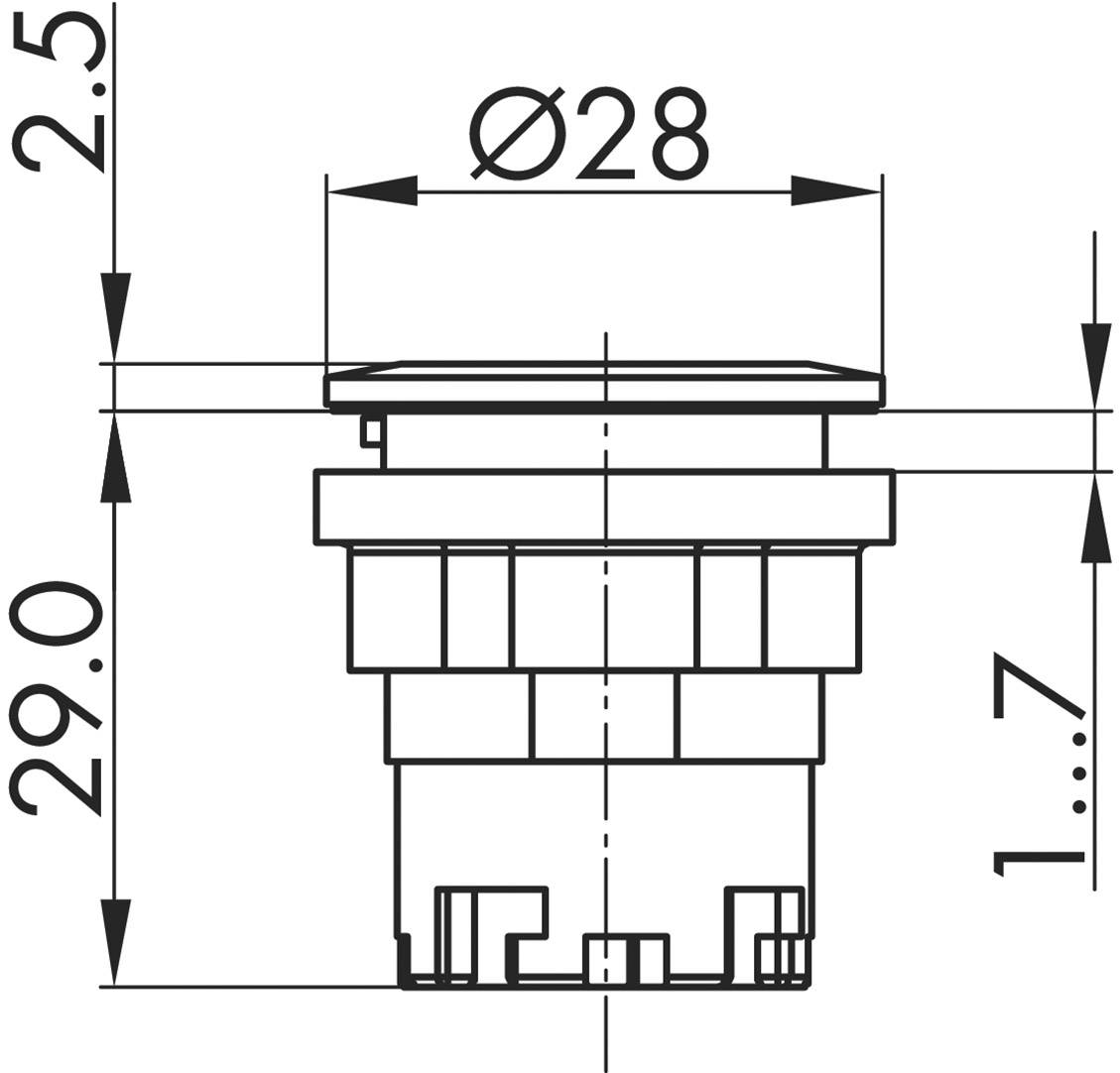

- Length
31.5 mm
- Width
28 mm
- Height
28 mm
- Compatible with (details)
Series: RONDEX-JUWEL®
- Content
2 pc(s)
- Dim
(L x W x H) 31.5 x 28 x 28 mm
- RoHS-compliant
Yes
- Type
JRMTLRL_1101
