Schlegel JRSSA13E JRSSA13E Key button manually, Key 2 pc(s)

A silver metal padlock with an inserted key. The key displays the engraving 'SCHNEIDER 845'.

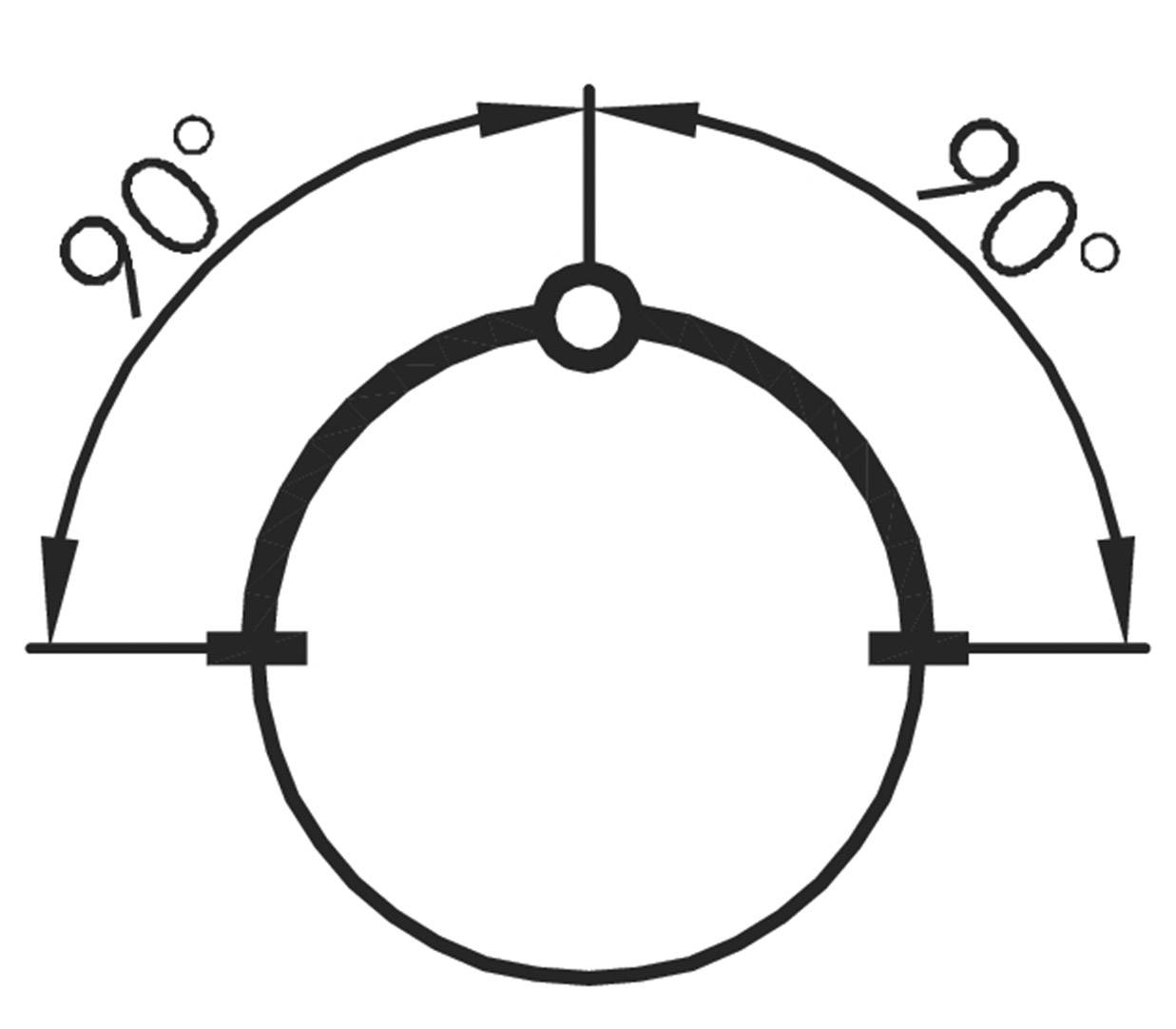

A diagram shows a circle with an inner point. Two lines divide the circle into two equal halves, each with an angle of 90 degrees.

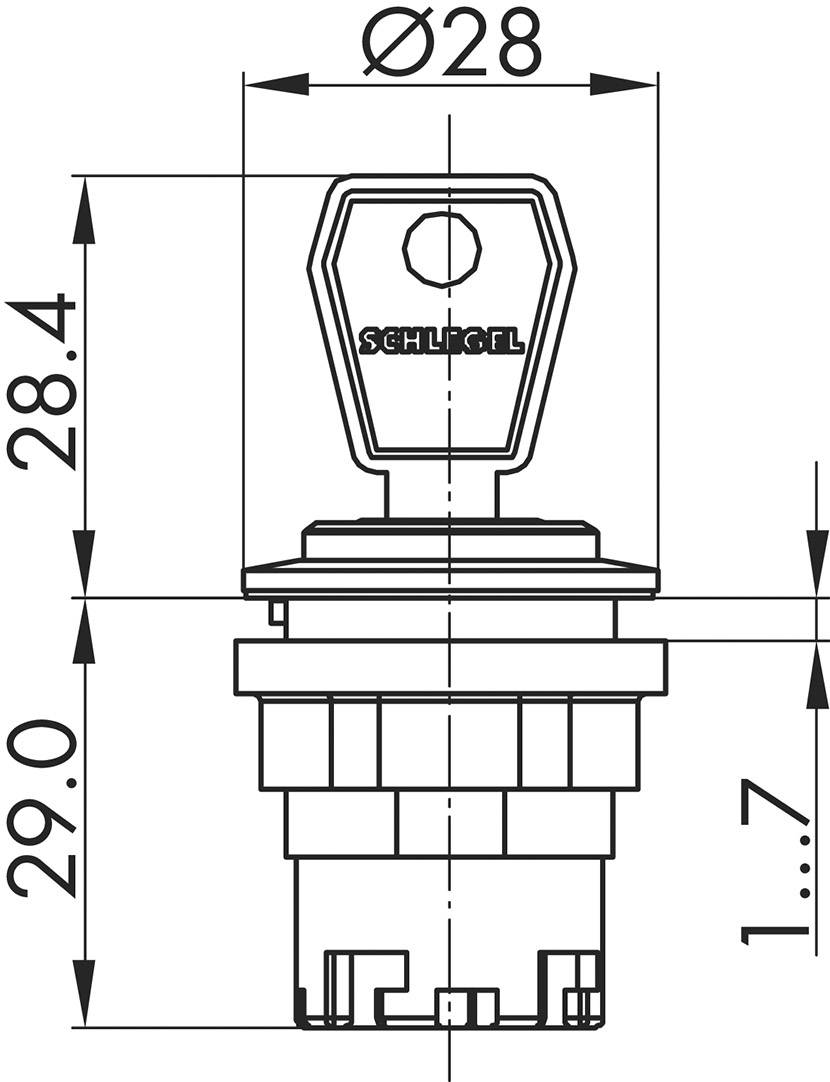

Key switch diagram shows dimensions: Total length 29 mm, Key holder height 28.4 mm, Diameter 28 mm, Key hole size 1.7 mm.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

"Schlegel KEY BUTTON JRSSA13E 2 PCS."

Our service for you

Technical specifications

  • Protection class II (protective insulation)
  • Lighting: no.
  • Writable: no.
  • Front frame: anthracite
  • Shape: Round
Product type

Key button

Lighting type

None

Operation type

manually

Key

Connection

External contact

Functions

latch

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

57.4 mm

Width

28 mm

Height

28 mm

Compatible with (details)

Series: RONDEX-JUWEL®

Content

2 pc(s)

Dim

(L x W x H) 57.4 x 28 x 28 mm

RoHS-compliant

Yes

Type

JRSSA13E

Documents & Downloads

Datasheet

Datasheet 2238367 Schlegel JRSSA13E JRSSA13E Key button manually, Key 2 pc(s)

User & Safety Instructions

User & Safety Instructions 2238367 Schlegel JRSSA13E JRSSA13E Key button manually, Key 2 pc(s)
