Schlegel JRSSA17E JRSSA17E Key button manually, Key 2 pc(s)

A grey and black key switch module with a key inserted. The metal of the key surface has a slight sheen.

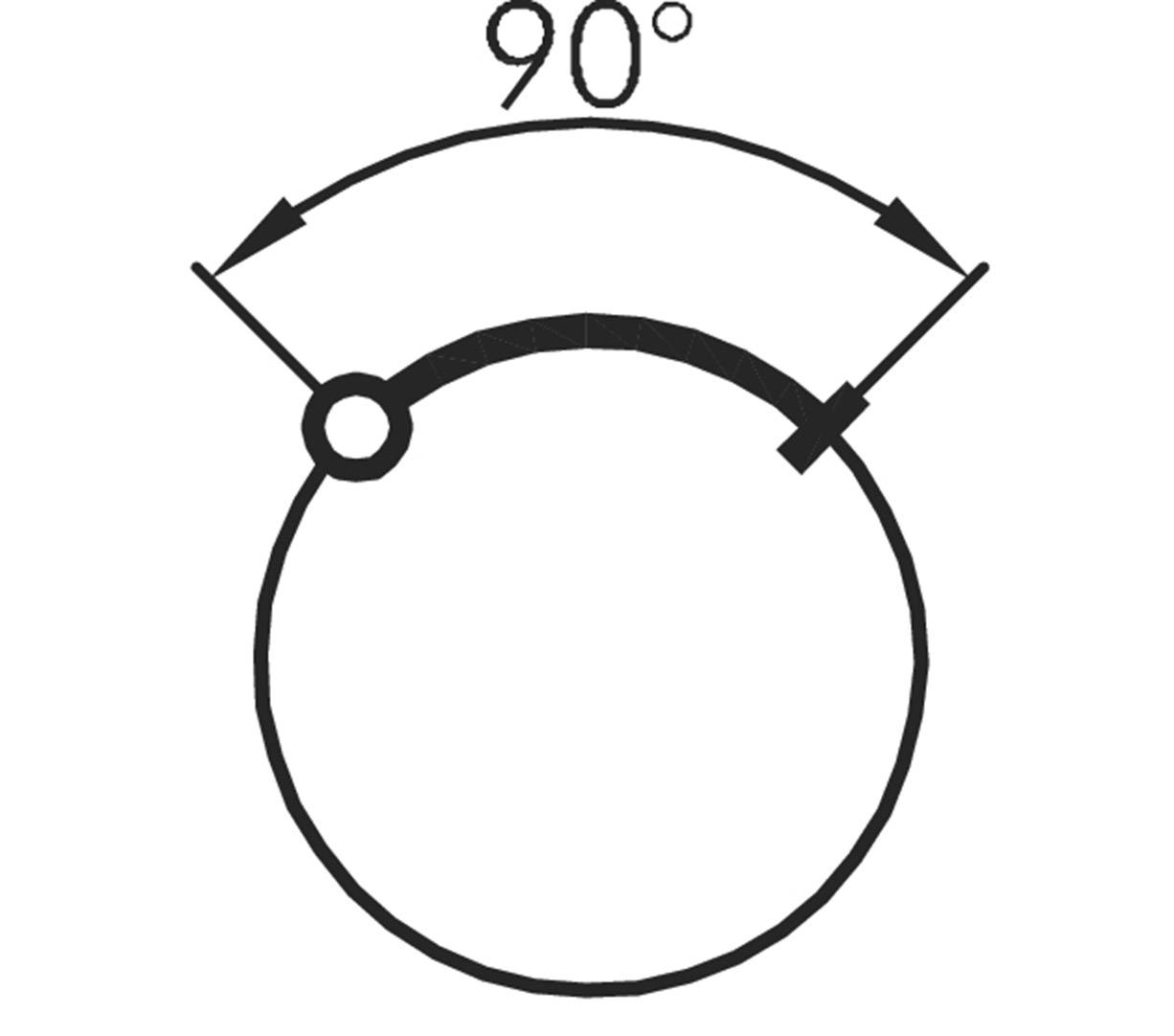

A pie chart shows an angle of 90 degrees, marked by two arrows with a point and a line to represent the distance.

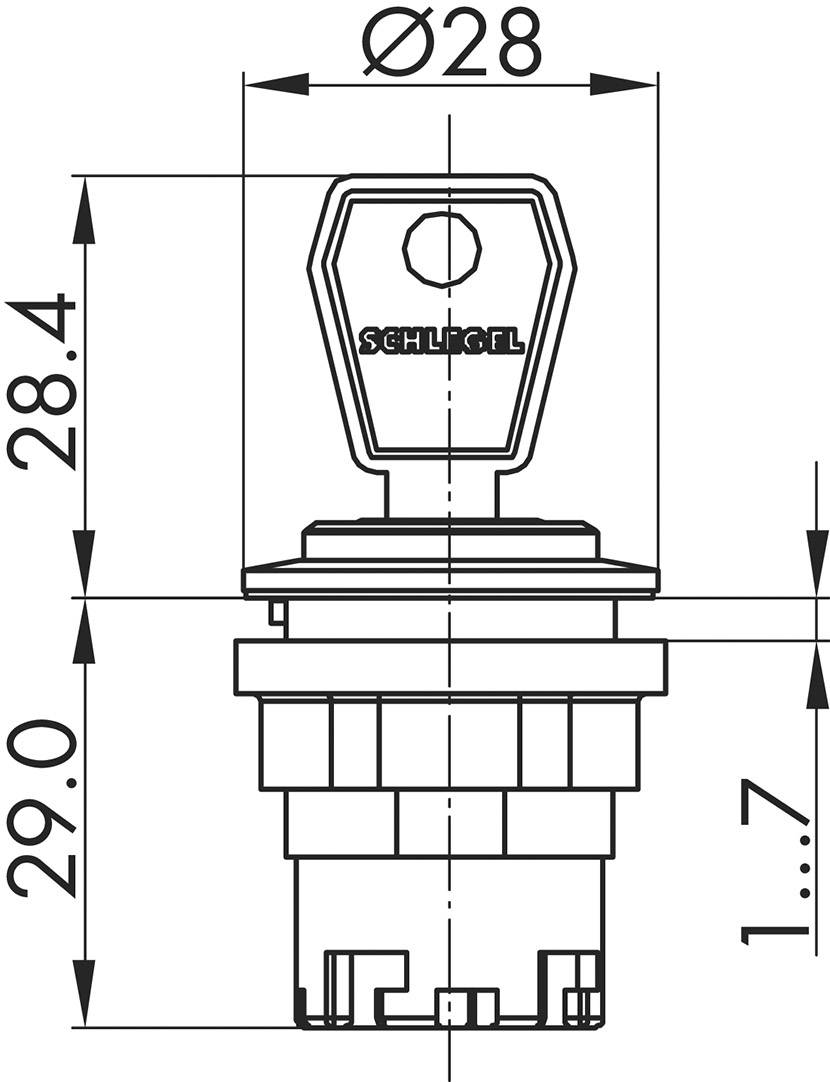

Technical drawing of a key switch with dimensions: diameter 28 mm, total height 29 mm, mounting depth 28.4 mm, spacing 1.7 mm.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

"Schlegel KEY BUTTON JRSSA17E 2 PCS."

Our service for you

Technical specifications

  • Protection class II (protective insulation)
  • Lighting: no.
  • Writable: no.
  • Front frame: anthracite
  • Shape: Round
Product type

Key button

Lighting type

None

Operation type

manually

Key

Connection

External contact

Functions

latch

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

57.4 mm

Width

28 mm

Height

28 mm

Compatible with (details)

Series: RONDEX-JUWEL®

Content

2 pc(s)

Dim

(L x W x H) 57.4 x 28 x 28 mm

RoHS-compliant

Yes

Type

JRSSA17E

Documents & Downloads

Datasheet

Datasheet 2238370 Schlegel JRSSA17E JRSSA17E Key button manually, Key 2 pc(s)

User & Safety Instructions

User & Safety Instructions 2238370 Schlegel JRSSA17E JRSSA17E Key button manually, Key 2 pc(s)
