Schlegel JRVASSA13E JRVASSA13E Key button glossy manually, Key 2 pc(s)

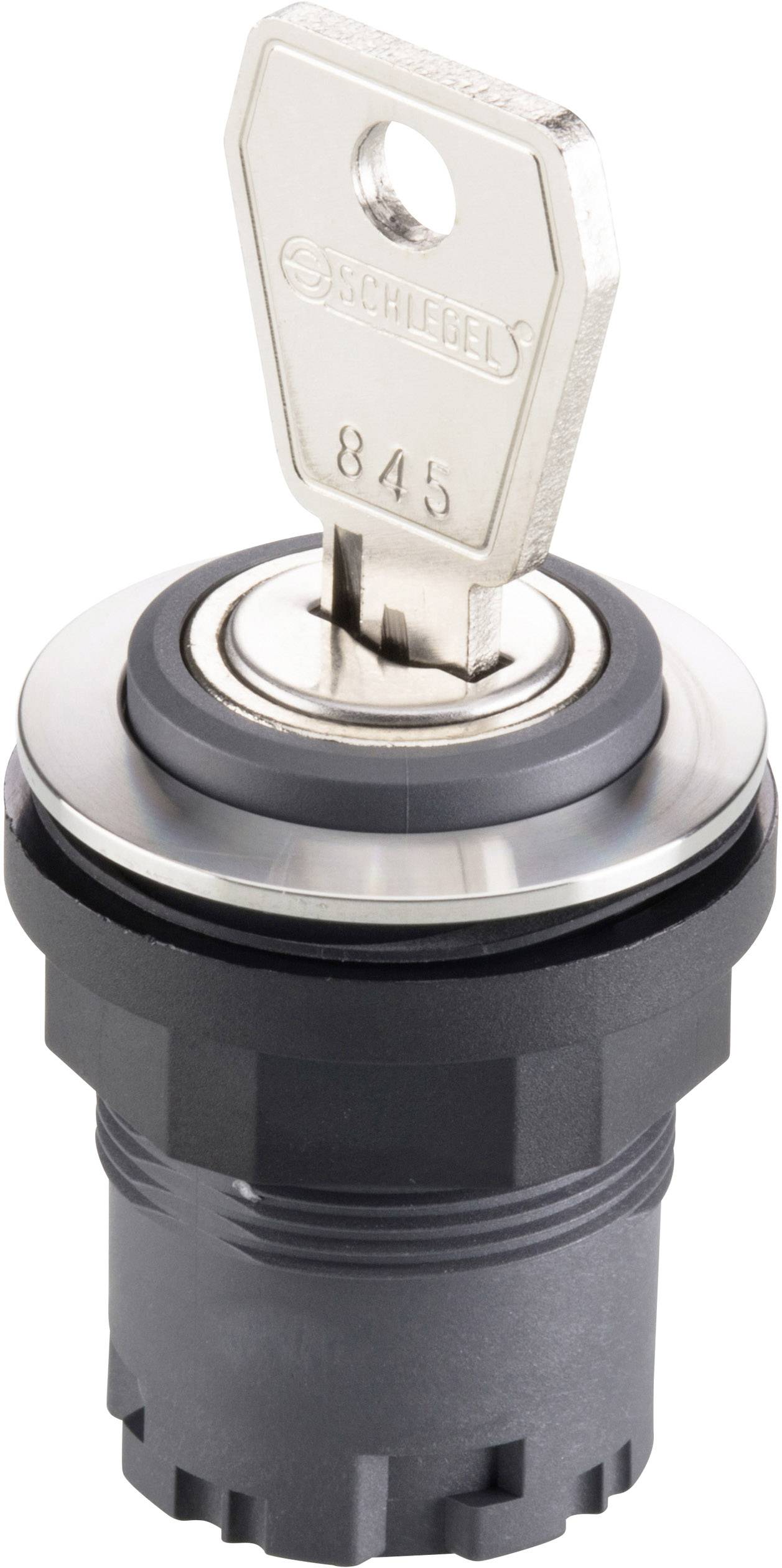

Key cylinder with key inserted, turned to the activated position. Silver and black colouration.

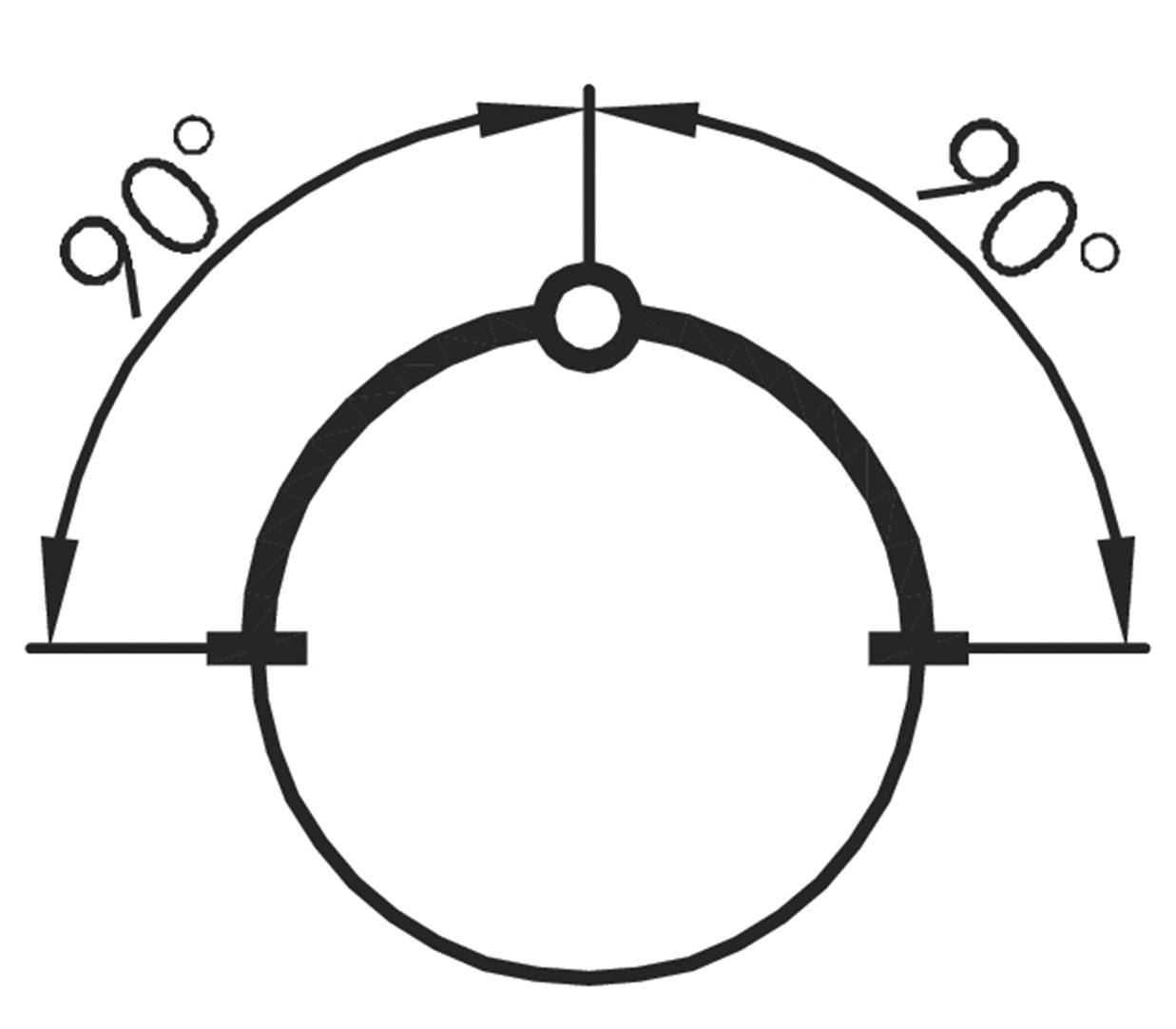

Diagram shows a circle with two 90-degree angles at opposite points, connected by arrows.

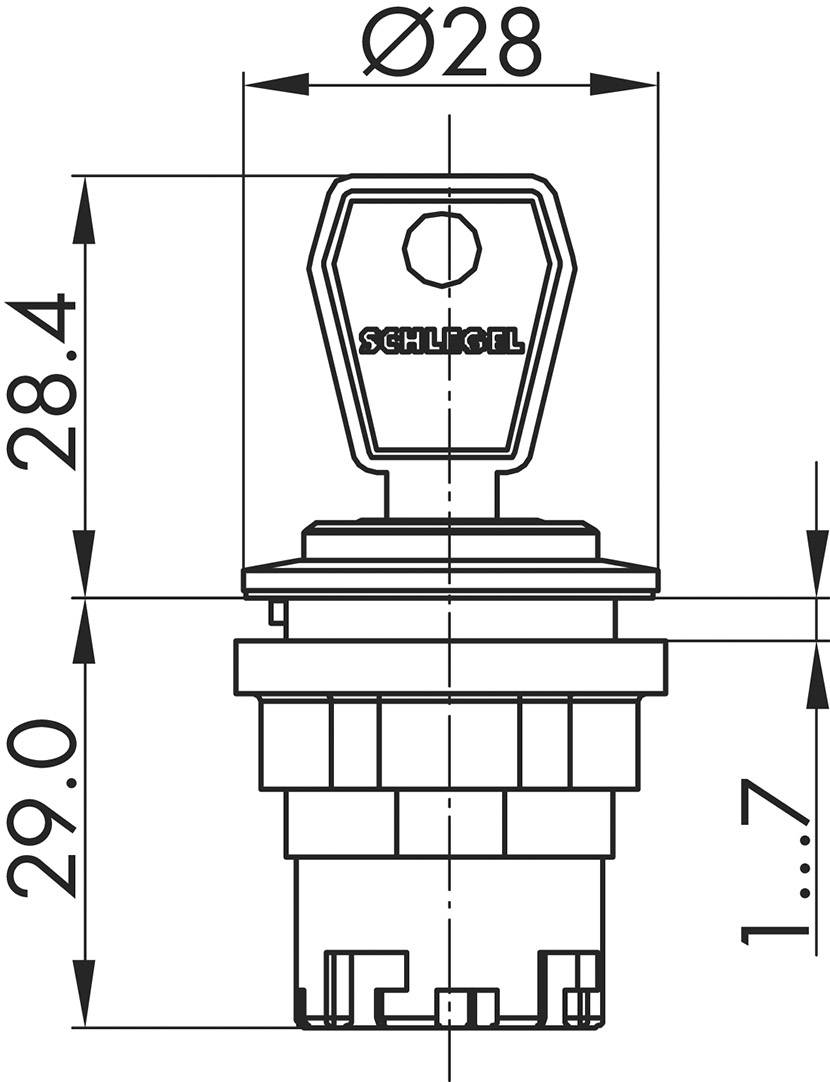

Technical drawing of a key switch with dimensions: total height 29 mm, diameter 28 mm. Marking 'SCHLÜFL' on the handle.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

"Schlegel KEY BUTTON JRVASSA13E 2 PCS."

Our service for you

Technical specifications

  • Protection class II (protective insulation)
  • Lighting: no.
  • Writable: no.
  • Front frame: Stainless steel, glossy
  • Shape: Round
Product type

Key button

Switch/button features

glossy

Lighting type

None

Operation type

manually

Key

Connection

External contact

Functions

latch

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

57.4 mm

Width

28 mm

Height

28 mm

Compatible with (details)

Series: RONDEX-JUWEL®

Content

2 pc(s)

Dim

(L x W x H) 57.4 x 28 x 28 mm

RoHS-compliant

Yes

Type

JRVASSA13E
