Schlegel JRWCL JRWCL Selector button illuminable manually, Rotary switch 2 pc(s)

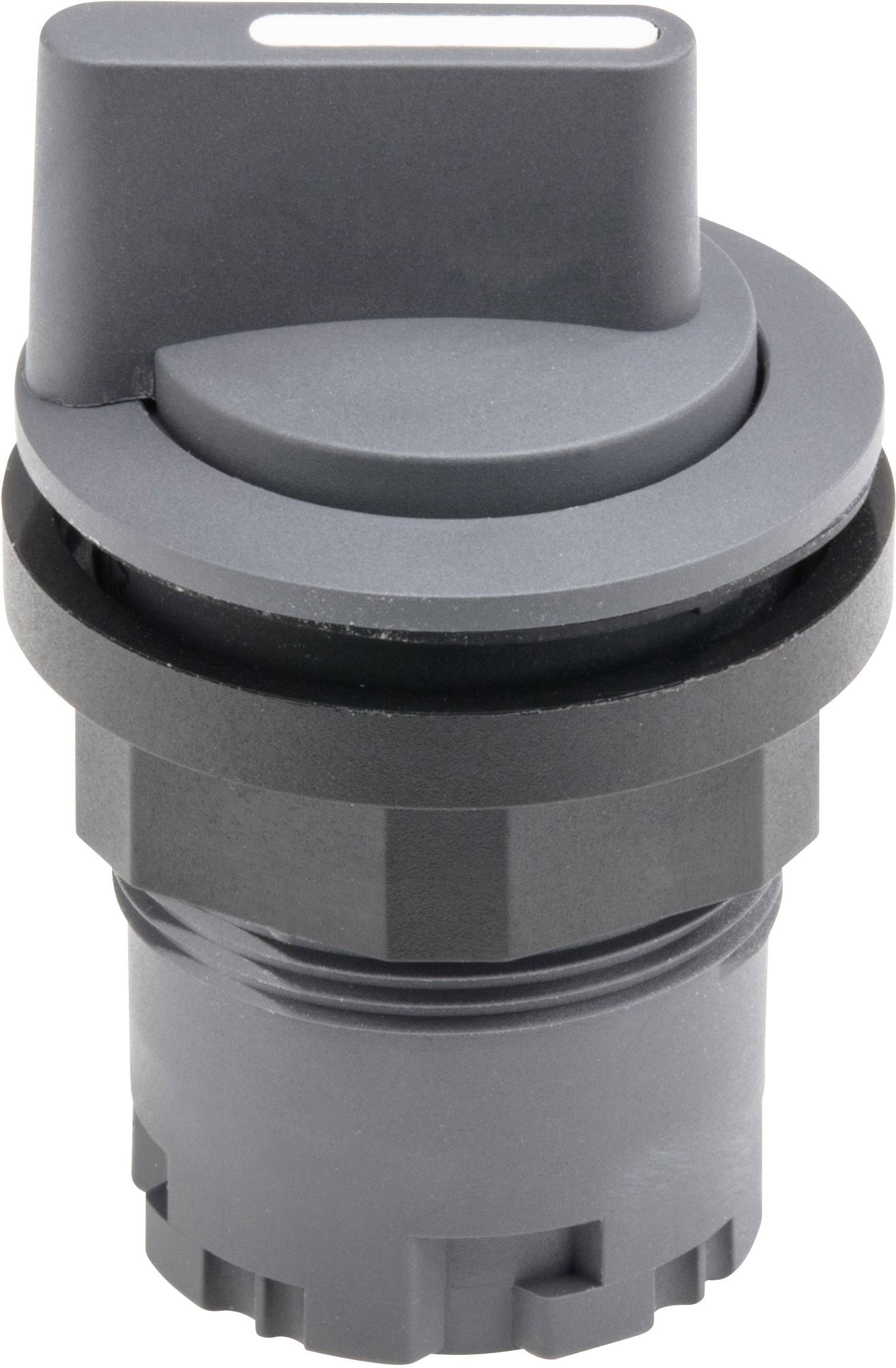

Black, cylindrical plastic switch with grooves and a rotatable head. Function and application not apparent.

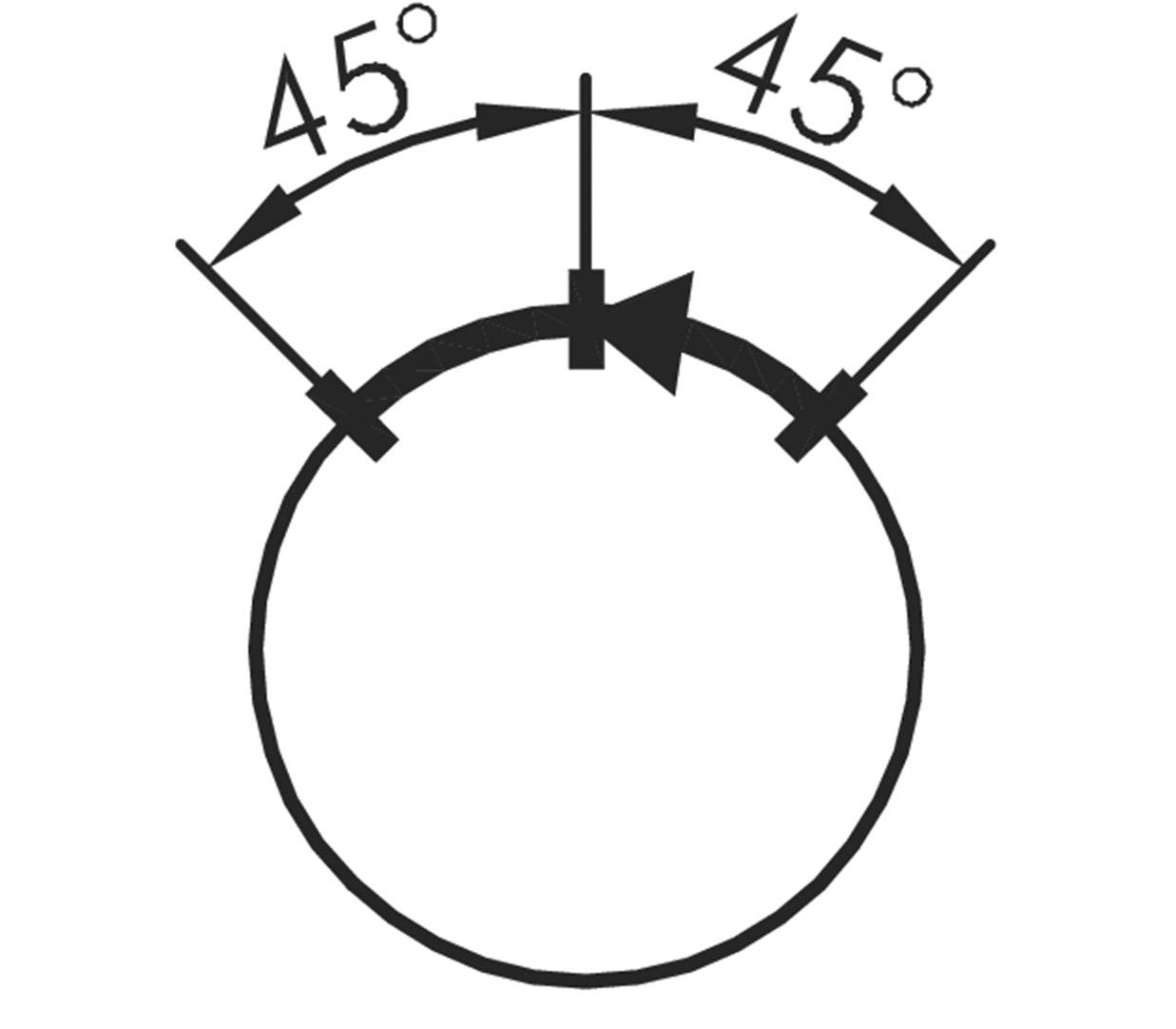

A circle is represented by two intersecting arrows, each indicating an angle of 45 degrees.

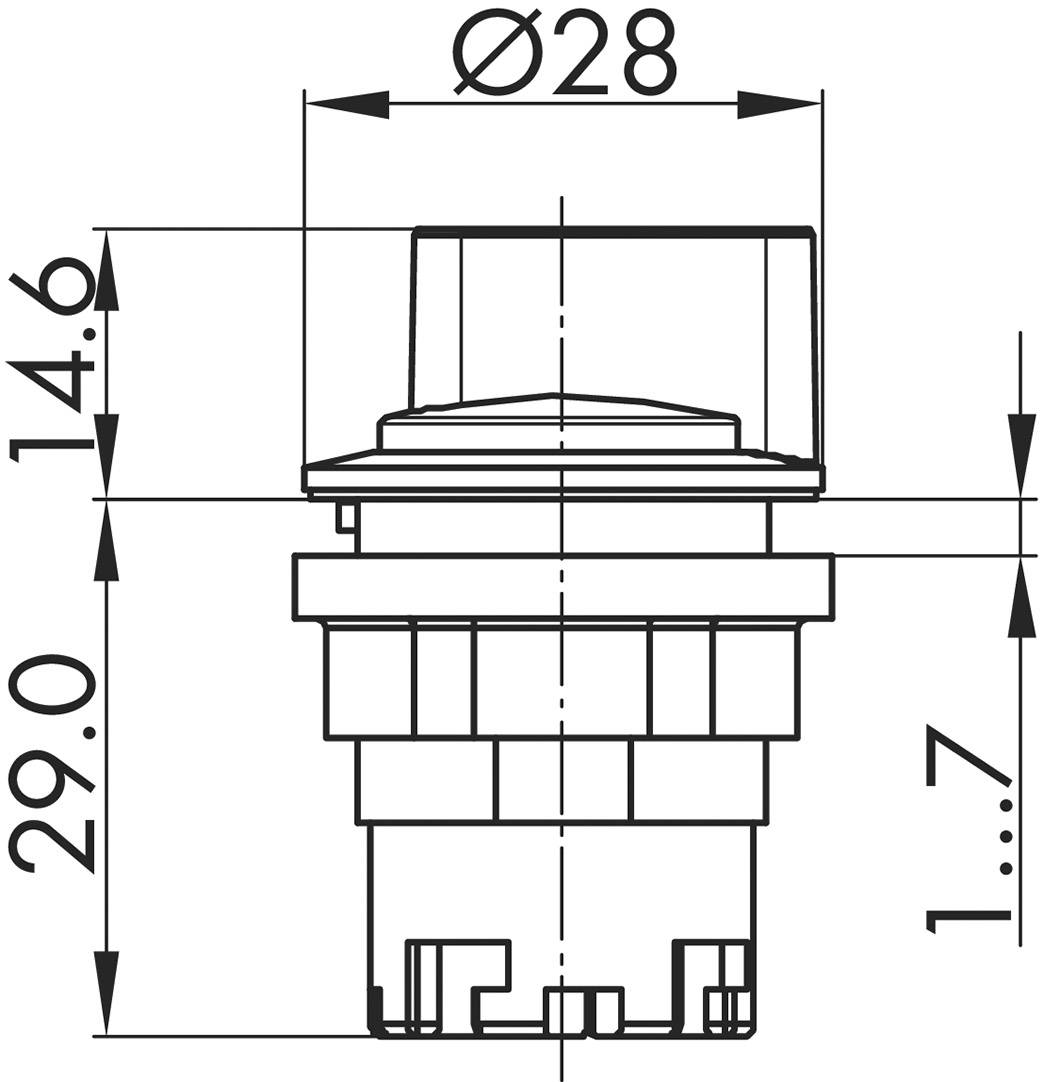

Technical drawing of a cylindrical button with a diameter of 28 mm. Height 29 mm, button 14.6 mm high. Detailed measurements provided.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

"Schlegel selector button JRWCL 2 pcs."

Our service for you

Technical specifications

  • Protection class II (protective insulation)
  • Lighting: Yes
  • Writable: no.
  • Front frame: anthracite
  • Shape: Round
Product type

Selector button

Switch/button features

illuminable

Lighting type

Area illumination

Operation type

manually

Rotary switch

Colour

Red

Yellow

Green

Blue

Connection

External contact

Functions

momentary

latch

Recess diameter

22.3 mm

IP65

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

43.6 mm

Width

28 mm

Height

28 mm

Compatible with (details)

Series: RONDEX-JUWEL®

Content

2 pc(s)

Dim

(L x W x H) 43.6 x 28 x 28 mm

RoHS-compliant

Yes

Type

JRWCL

Documents & Downloads

Datasheet

Datasheet 2238332 Schlegel JRWCL JRWCL Selector button illuminable manually, Rotary switch 2 pc(s)

User & Safety Instructions

User & Safety Instructions 2238332 Schlegel JRWCL JRWCL Selector button illuminable manually, Rotary switch 2 pc(s)
