Schlegel SN_C010 Indicator light + LED Silver 30 V DC/AC 1 pc(s)

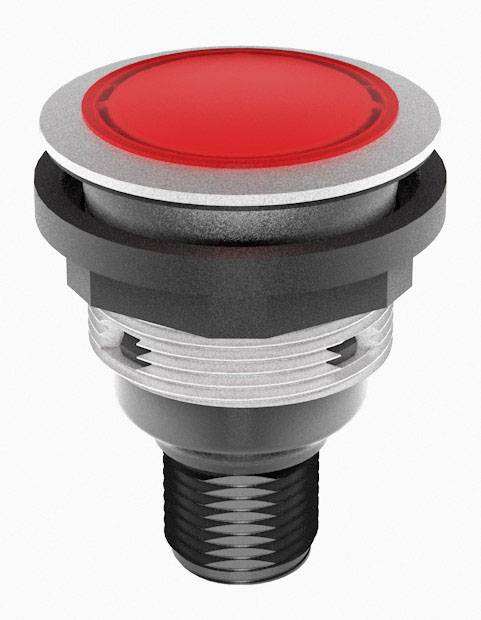

Red emergency stop button in industrial application, isolated on white background.

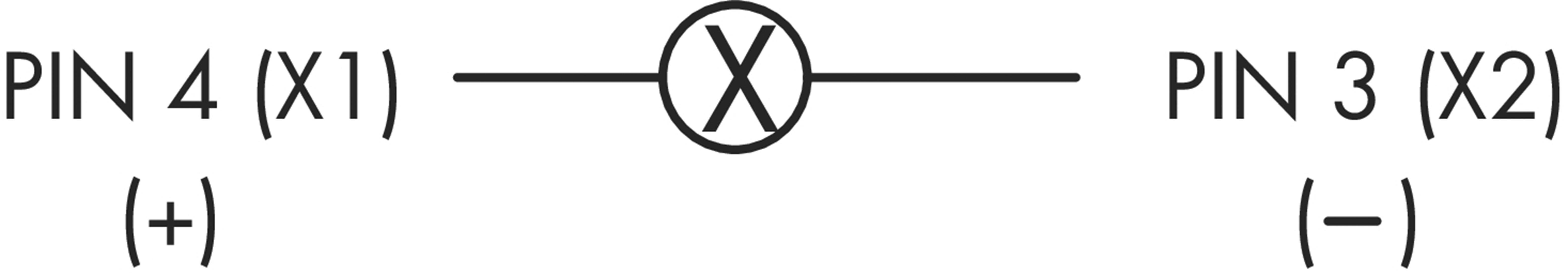

'PIN 4 (X1) (+)' is connected to 'PIN 3 (X2) (-)' via a component marked with 'X' in a circle.

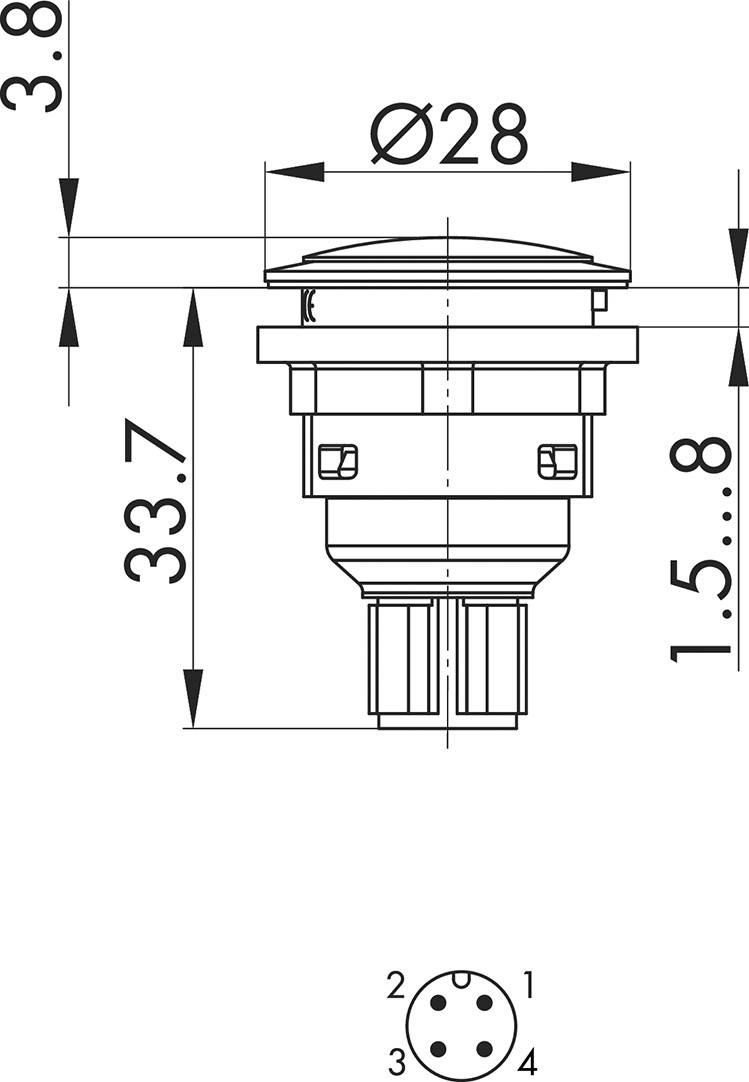

Technical drawing of a circular component with dimensions: diameter 28 mm, height 33.7 mm, five connection contacts numbered at the bottom.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

"Schlegel signal lamp SN_C010 1/pk"

Our service for you

Technical specifications

  • Series: SHORTRON® connect
  • Lighting: Yes
  • Inscribable: Yes
  • Front frame: Silver-colored
  • Shape: Round
  • Lamp holder: No, white 3 mm LED integrated
Product type

Indicator light

Factory colour

Silver

Operating voltage

30 V DC/AC

Recess diameter

22.3 mm

n.rel.

Dim

(L x W x H) 37.5 x 28 x 28 mm

Connection

M12 plug

Content

1 pc(s)

Width

28 mm

Height

28 mm

Length

37.5 mm

RoHS-compliant

Yes

Switch/button features

+ LED

IP65

IP67

Type

SN_C010
