Name: Schlegel SSSA14I_C007 SSSA14I_C007 Key button manually, Key 1 pc(s)
Brand: Schlegel
SKU: 2238637

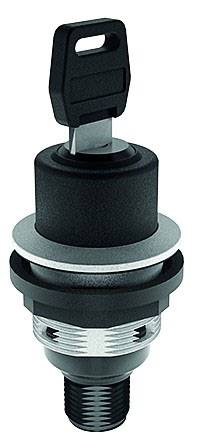

Cylindrical safety lock with protruding key, for securing machinery or electrical cabinets.

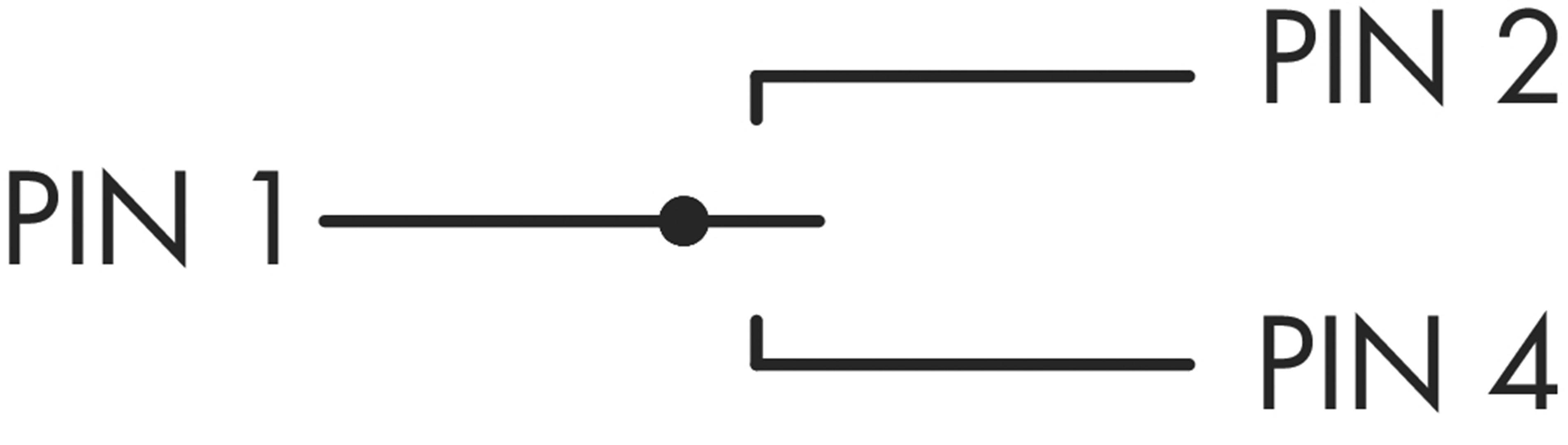

Circuit diagram of a simple switch: 'PIN 1' connected to 'PIN 2' and 'PIN 4'.

Circuit diagram shows PIN 1 connected to PIN 2, and PIN 1 connected to PIN 4.

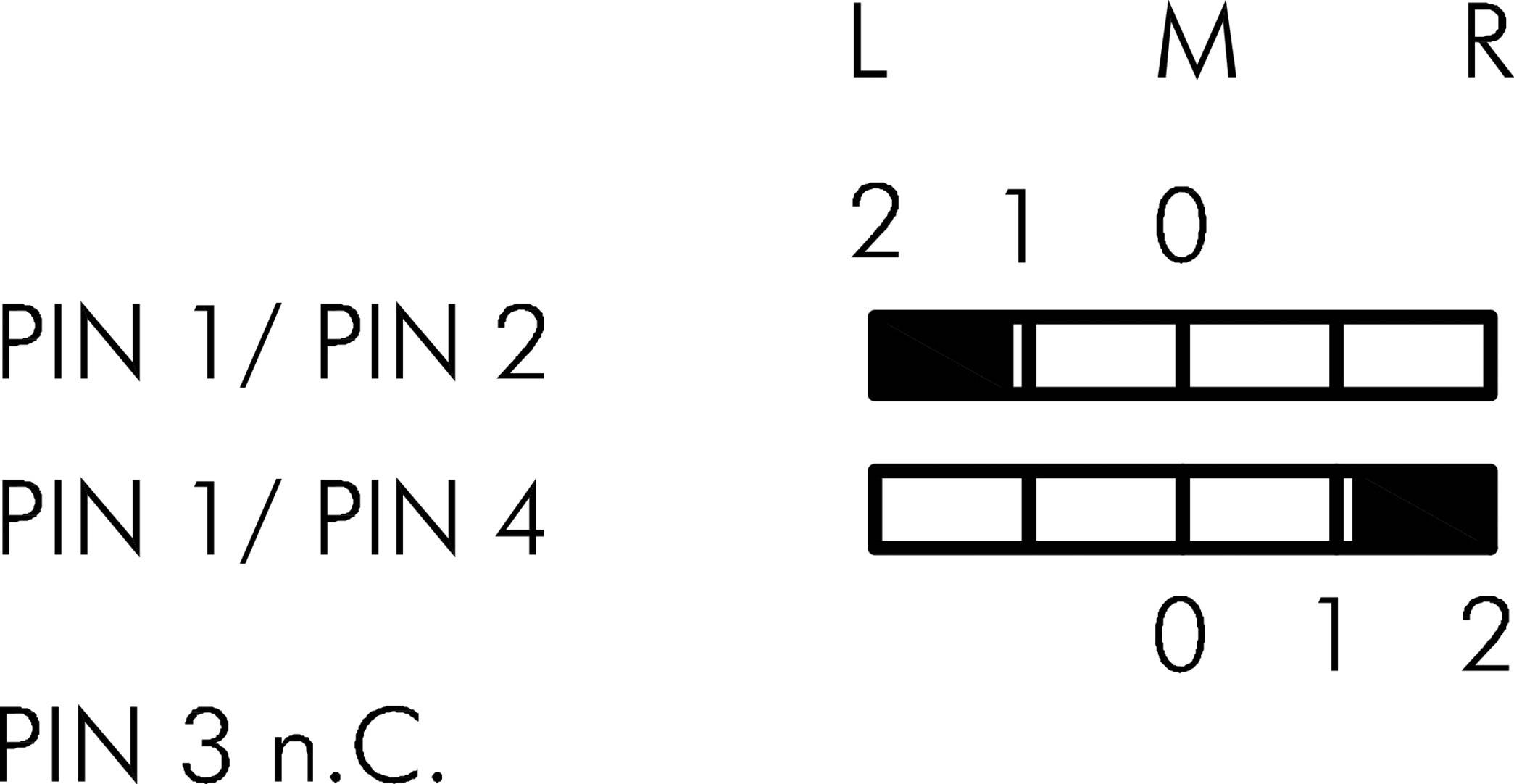

'Jumper Configuration: PIN 1/PIN 2 or PIN 1/PIN 4 for L/M/R settings; PIN 3 n.C. indicates unconnected status.'

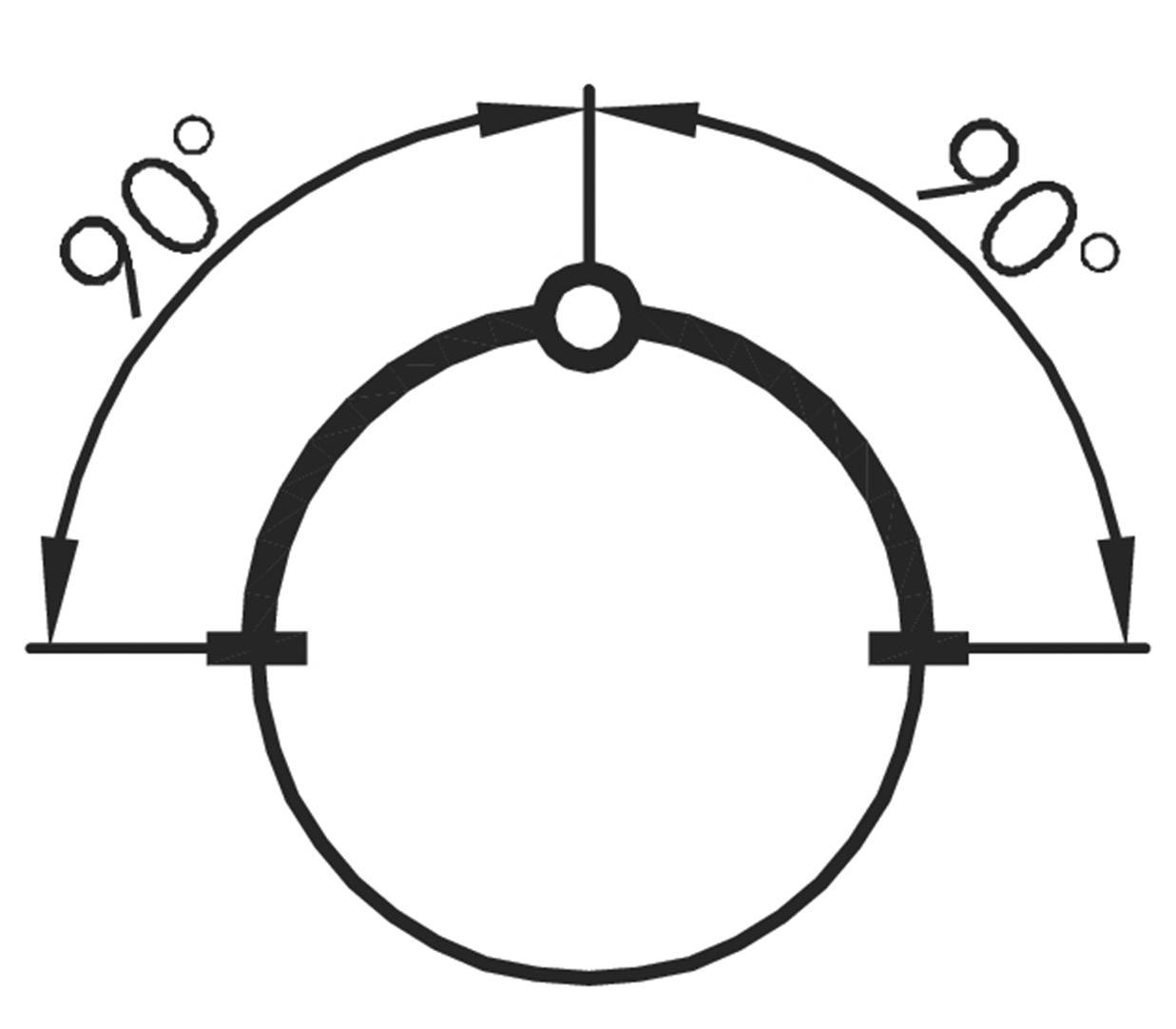

A circle with two opposing arrows indicates 90-degree angles at the top and bottom of the circle's exterior.

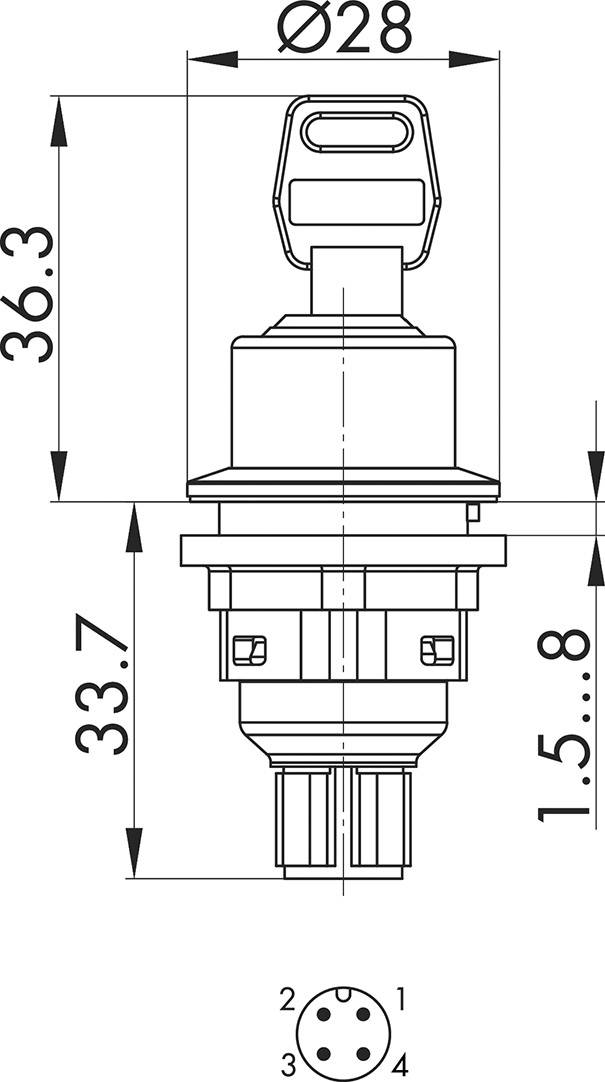

Circuit diagram of a cylindrical switch with dimensional specifications: Diameter 28 mm, Height 36.3 mm. Four connections are numbered at the bottom.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel KEY BUTTON SSSA14I_C007 1 PCS."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Silver-colored
Shape: Round

Product type: Key button

Lighting type: None

Operation type: manually
Key

Connection: M12 plug

Functions: latch

Contact type: 1 maker

Durability: 30000

Electrical lifespan: 30000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 70 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 70 x 28 x 28 mm

RoHS-compliant: Yes

Type: SSSA14I_C007
