Name: Schlegel SSTALI_C005 SSTALI_C005 Selector button illuminable, + LED manually, Rotary switch 1 pc(s) Piece
Brand: Schlegel
SKU: 2238625

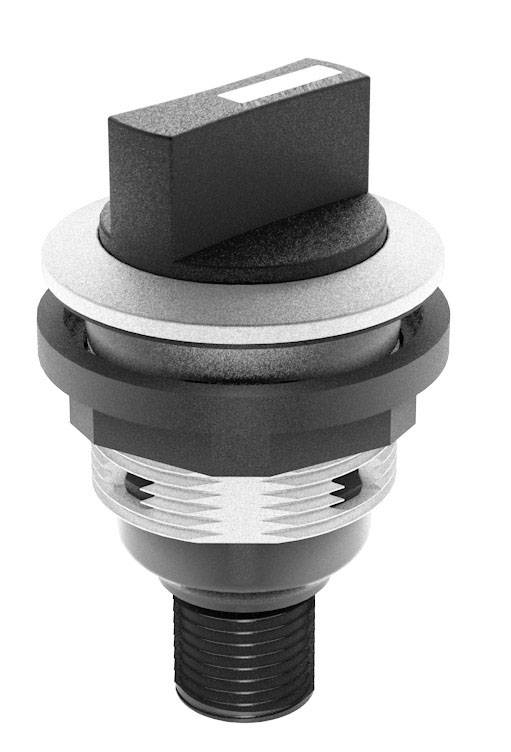

Black, cylindrical electrical component with a protruding rectangular switch on top and a screwable thread at the bottom.

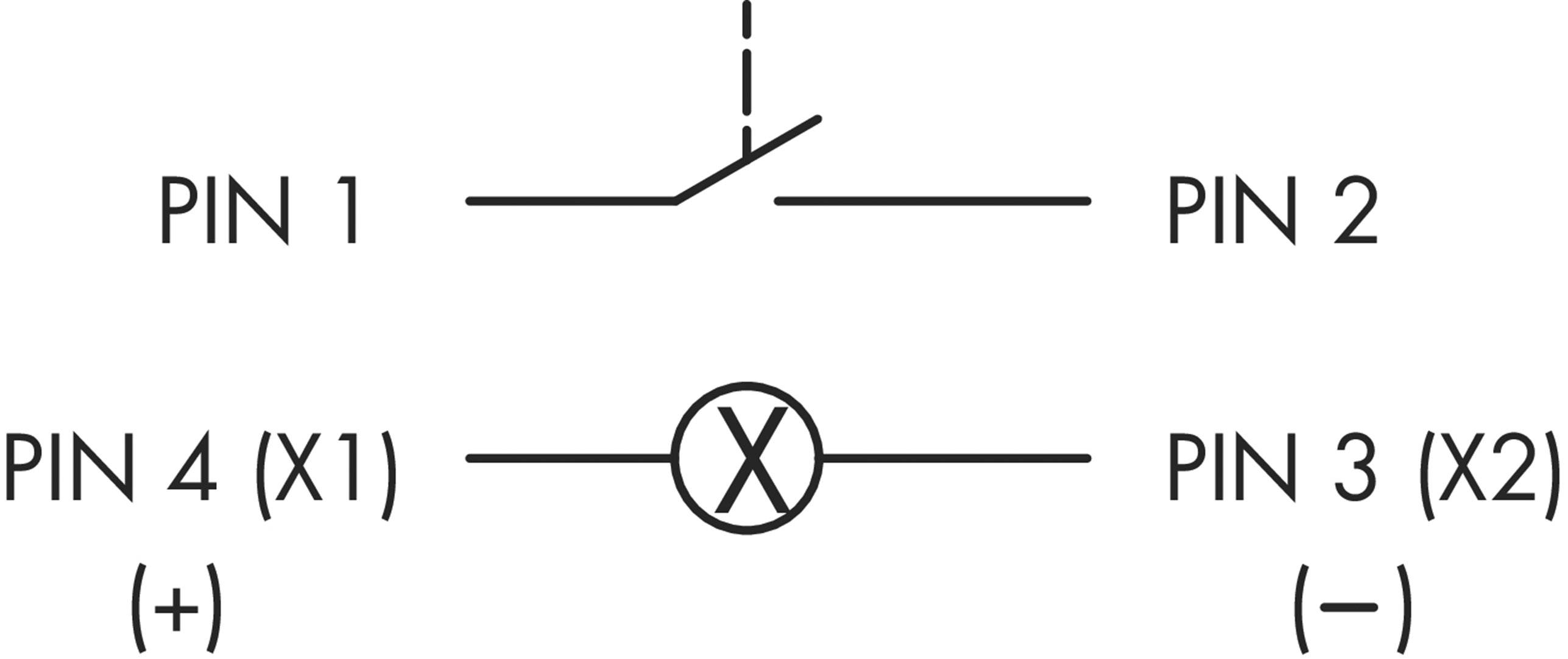

Circuit diagram of a switch with four connection points: 'Pin 1' connected to 'Pin 2'; 'Pin 4 (X1)' positive; 'Pin 3 (X2)' negative.

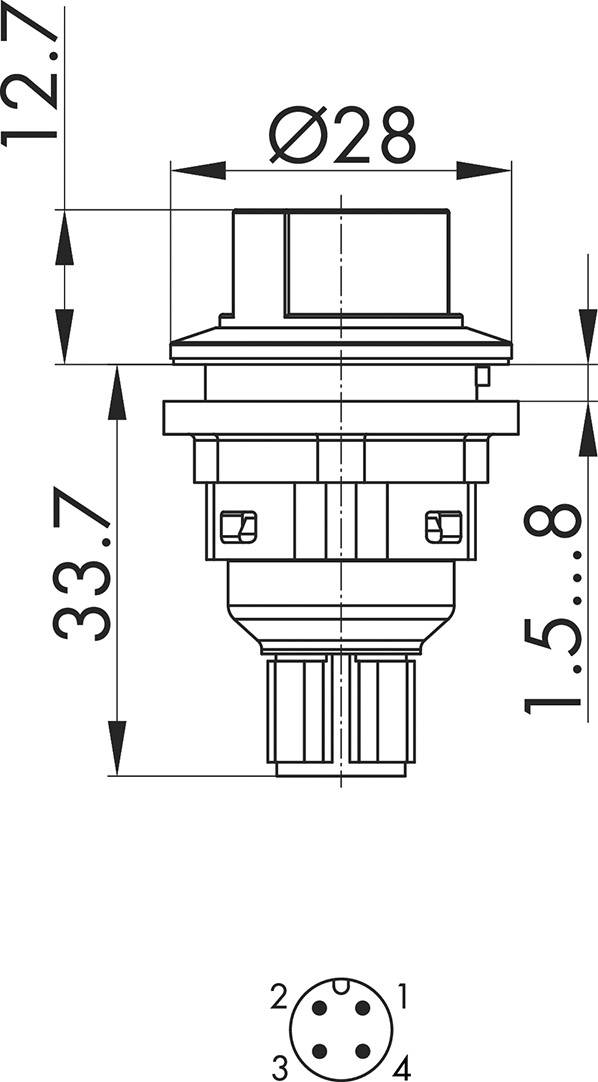

Technical drawing of a push button with dimensions: diameter 28 mm, height 33.7 mm. Connection diagram with four pins shown below.

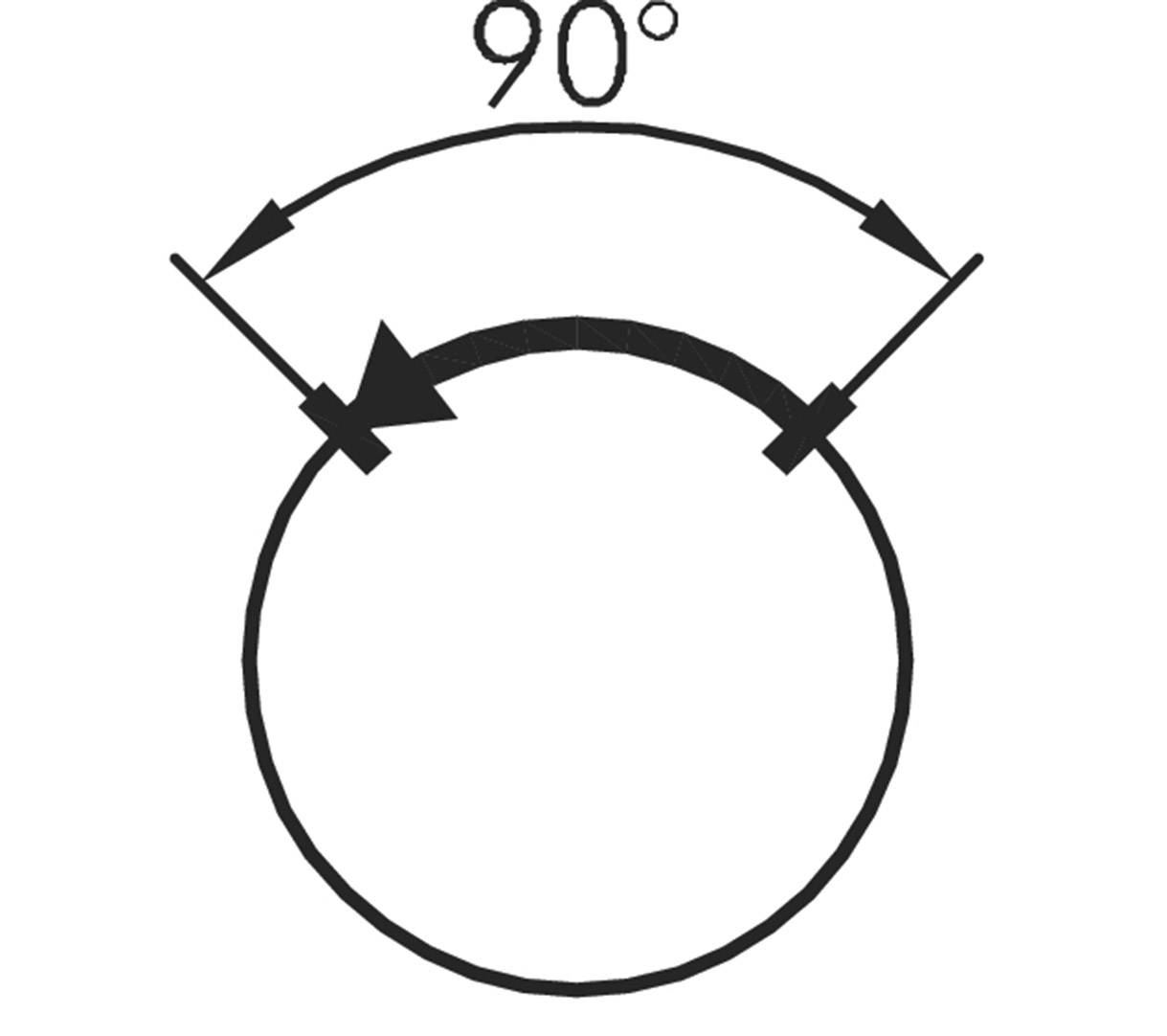

Circle with a 90-degree arc symbol above, marking a quarter circle.

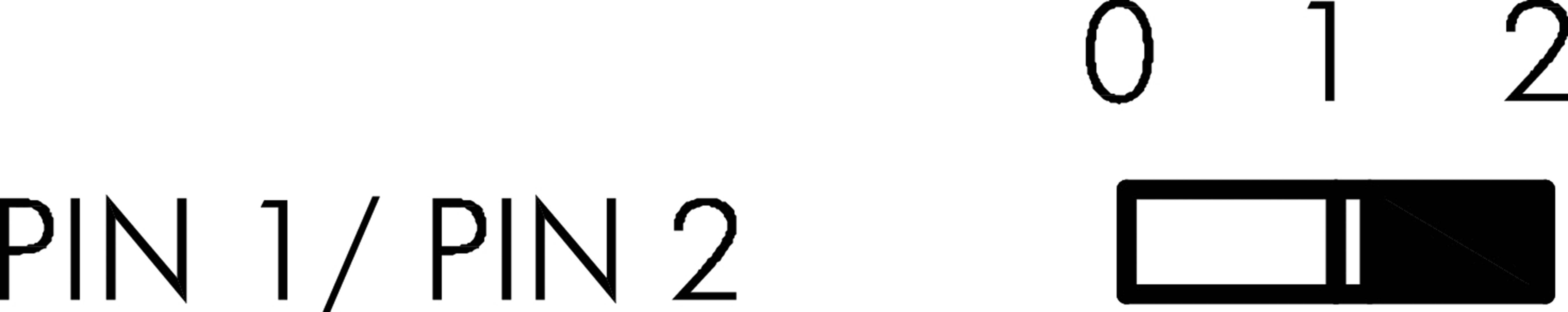

'PIN 1/PIN 2' indicates a switch with positions 0, 1, 2. The switch is currently set to position 1.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SSTALI_C005 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: Yes
Writable: no.
Front frame: Silver-colored
Shape: Round
Lamp holder: No, white 3 mm LED integrated

Packaging type: Piece

Product type: Selector button

Switch/button features: illuminable
+ LED

Lighting type: LED

Bulb type: LED (monochrome)

Operation type: manually
Rotary switch

Colour: White

Connection: M12 plug

Functions: momentary

Contact type: 1 maker

Durability: 1000000

Electrical lifespan: 1000000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SSTALI_C005
