Name: Schlegel SSTAOI_C008 SSTAOI_C008 Selector button + rotary switch manually, Rotary switch Silver 1 pc(s)
Brand: Schlegel
SKU: 2238616

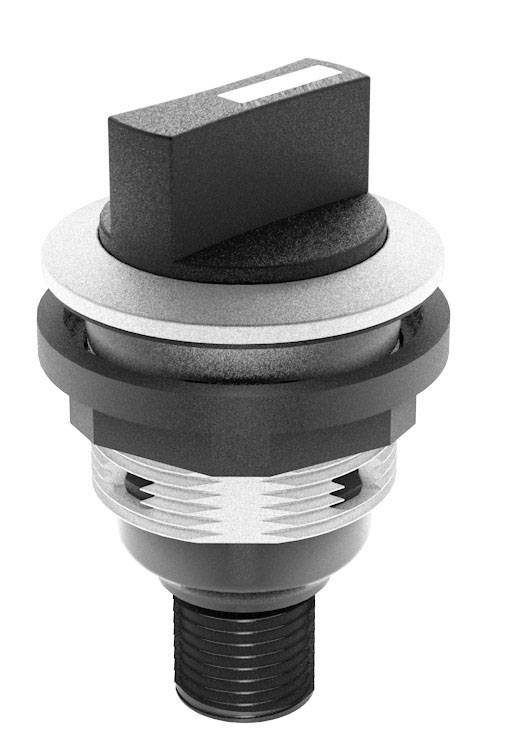

A black switch with a rotary knob and thread for mounting. Primarily used for mechanical or electrical applications.

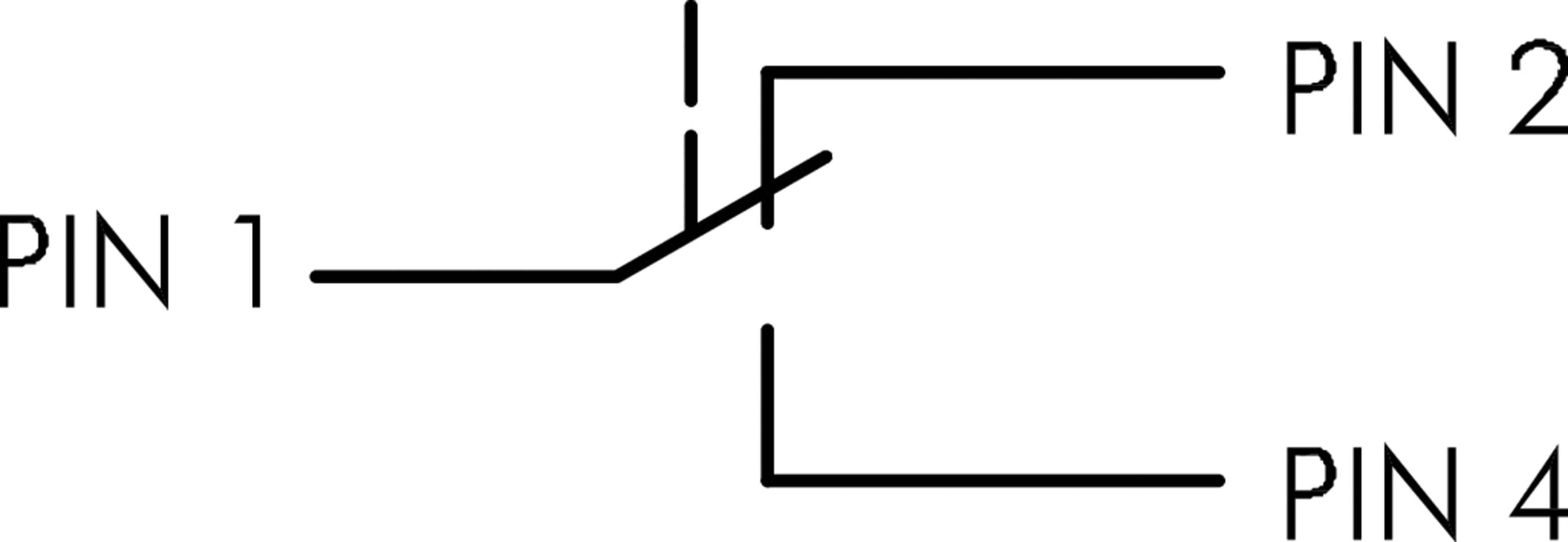

Switch symbol: PIN 1 as input, connects to PIN 2 (upper position) or PIN 4 (lower position), indicates switching contact logic.

'PIN 1' connects with 'PIN 2' and 'PIN 4' in an electrical circuit diagram, showing a switchover connection.

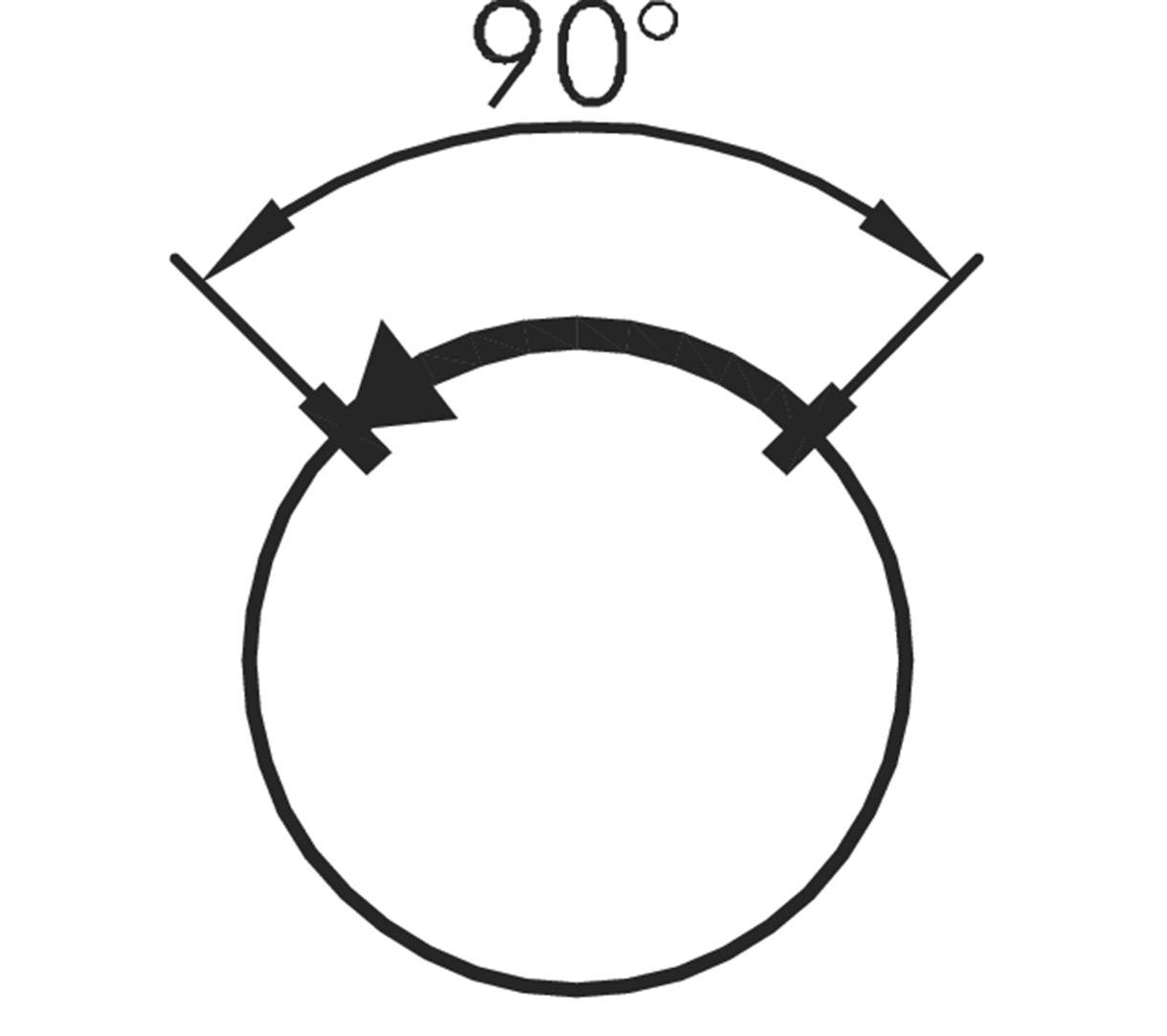

A circle with a marked segment showing 90 degrees. Two arrows next to the arc line indicate the angle.

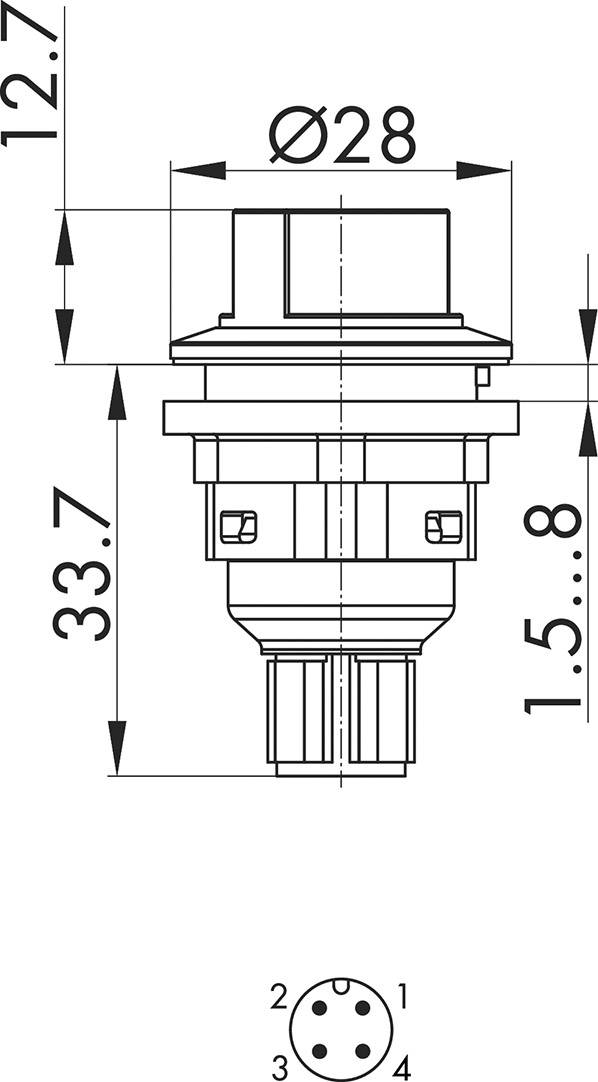

Technical drawing of a mechanical switch with dimensions: 12.7 mm, 33.7 mm high, interface connections shown below.

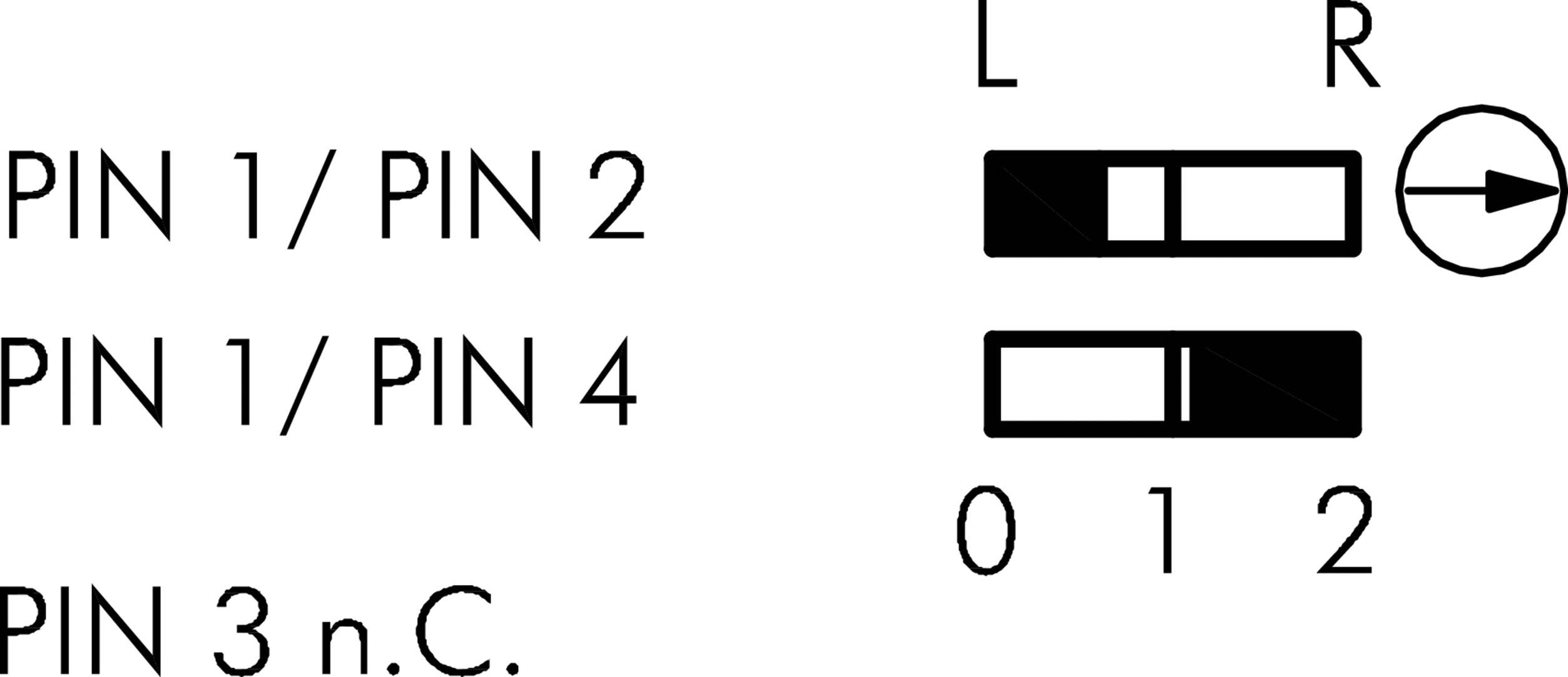

PIN Configuration: Top left, PIN 1/2; Centre left, PIN 1/4; Bottom left, PIN 3 unused. Right: L and R denote channels 0, 1, 2.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SSTAOI_C008 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Silver-colored
Shape: Round

Product type: Selector button

Switch/button features: + rotary switch

Lighting type: None

Operation type: manually
Rotary switch

Factory colour: Silver

Connection: M12 plug

Functions: momentary

Contact type: 1 breaker
1 maker

Durability: 1000000

Electrical lifespan: 1000000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SSTAOI_C008
