Name: Schlegel SSWWBII_C009 SSWWBII_C009 Selector button round manually, Rotary switch Black 1 pc(s) Piece
Brand: Schlegel
SKU: 2238601

A black metal tension pin with a ribbed, cylindrical base and a rectangular head, typical of clamping technology.

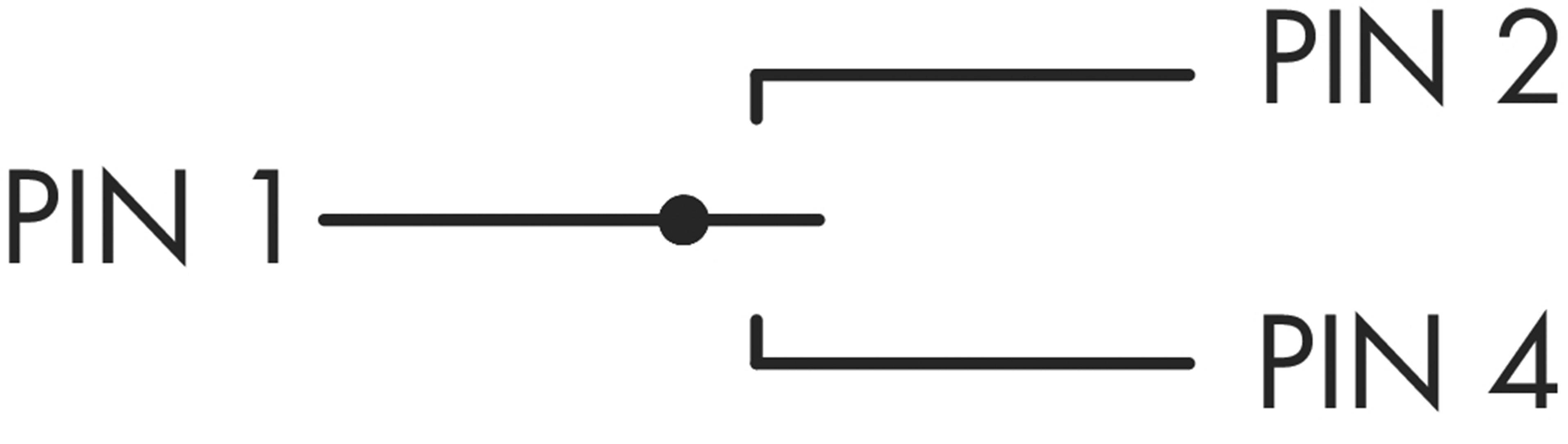

'PIN 1' is connected to 'PIN 2' and 'PIN 4' in a simple connection diagram.

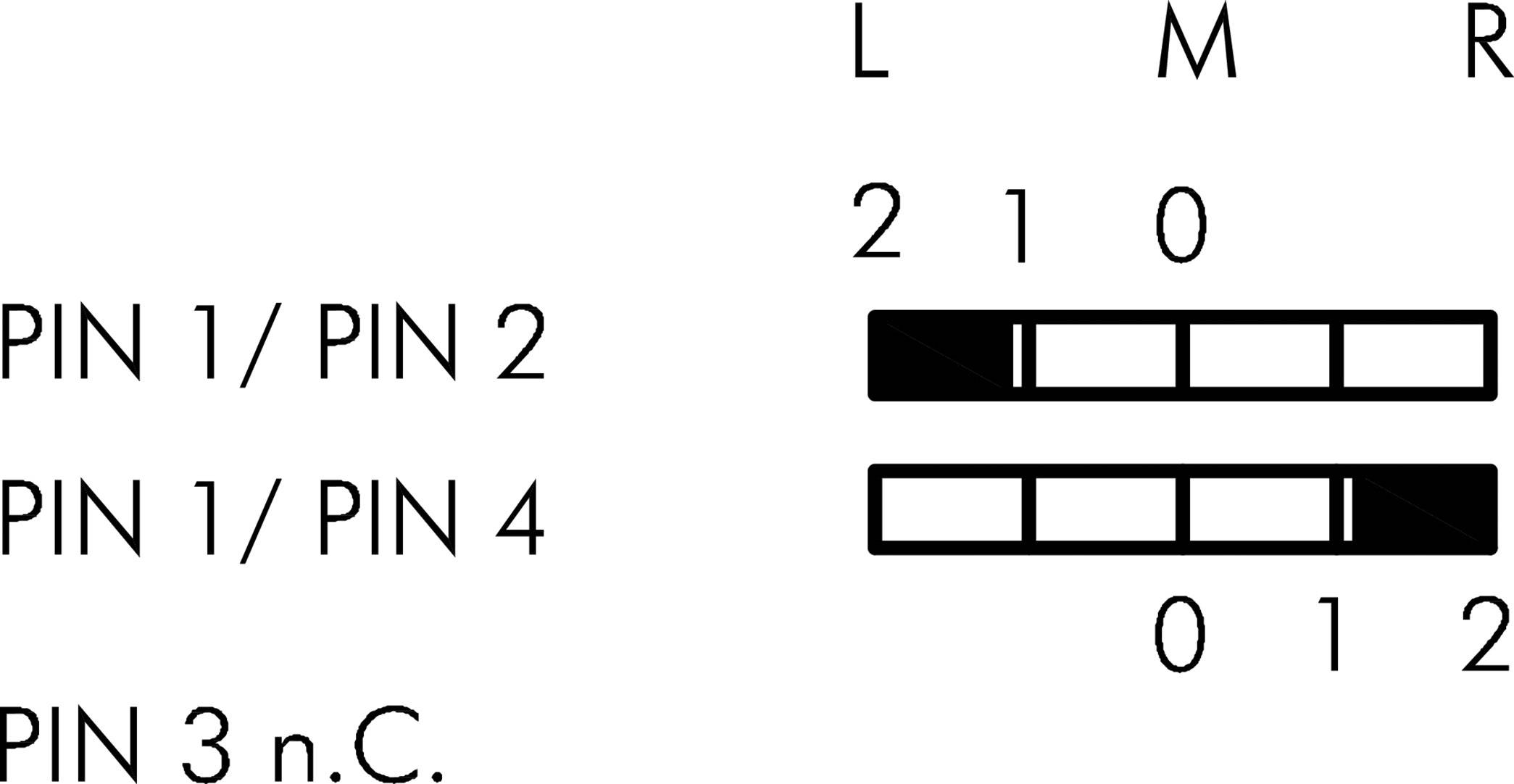

'PIN 1' connected with 'PIN 2' and 'PIN 4' in a schematic representation of circuits.

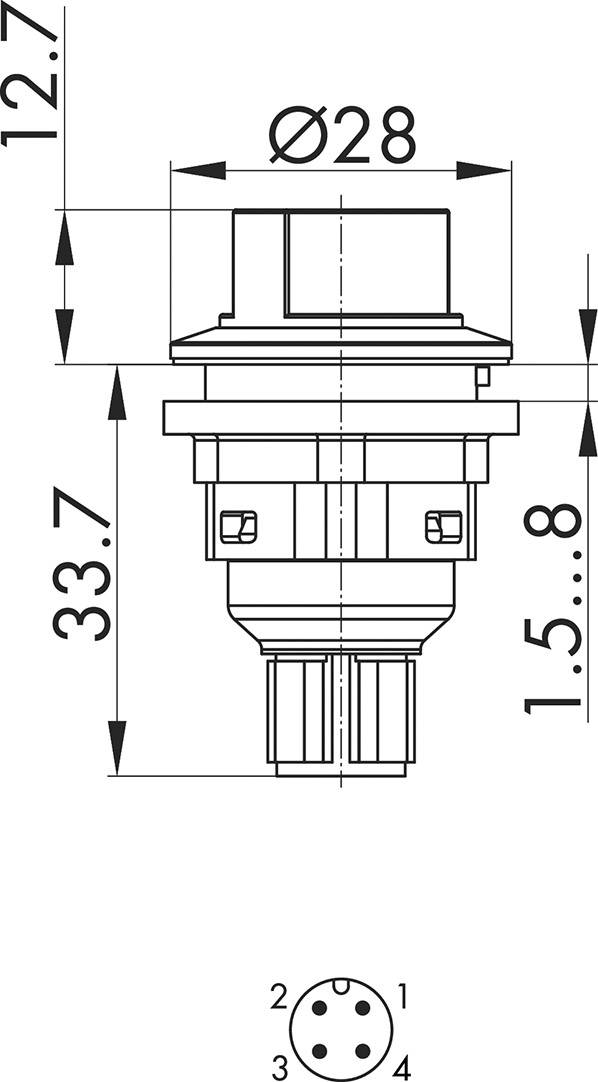

Technical drawing of a round switch with dimensions: diameter 28 mm, height 33.7 mm. Four-pin connections shown below.

Schlegel SSWWBII_C009 SSWWBII_C009 Selector button round manually, Rotary switch Black 1 pc(s) Piece-4

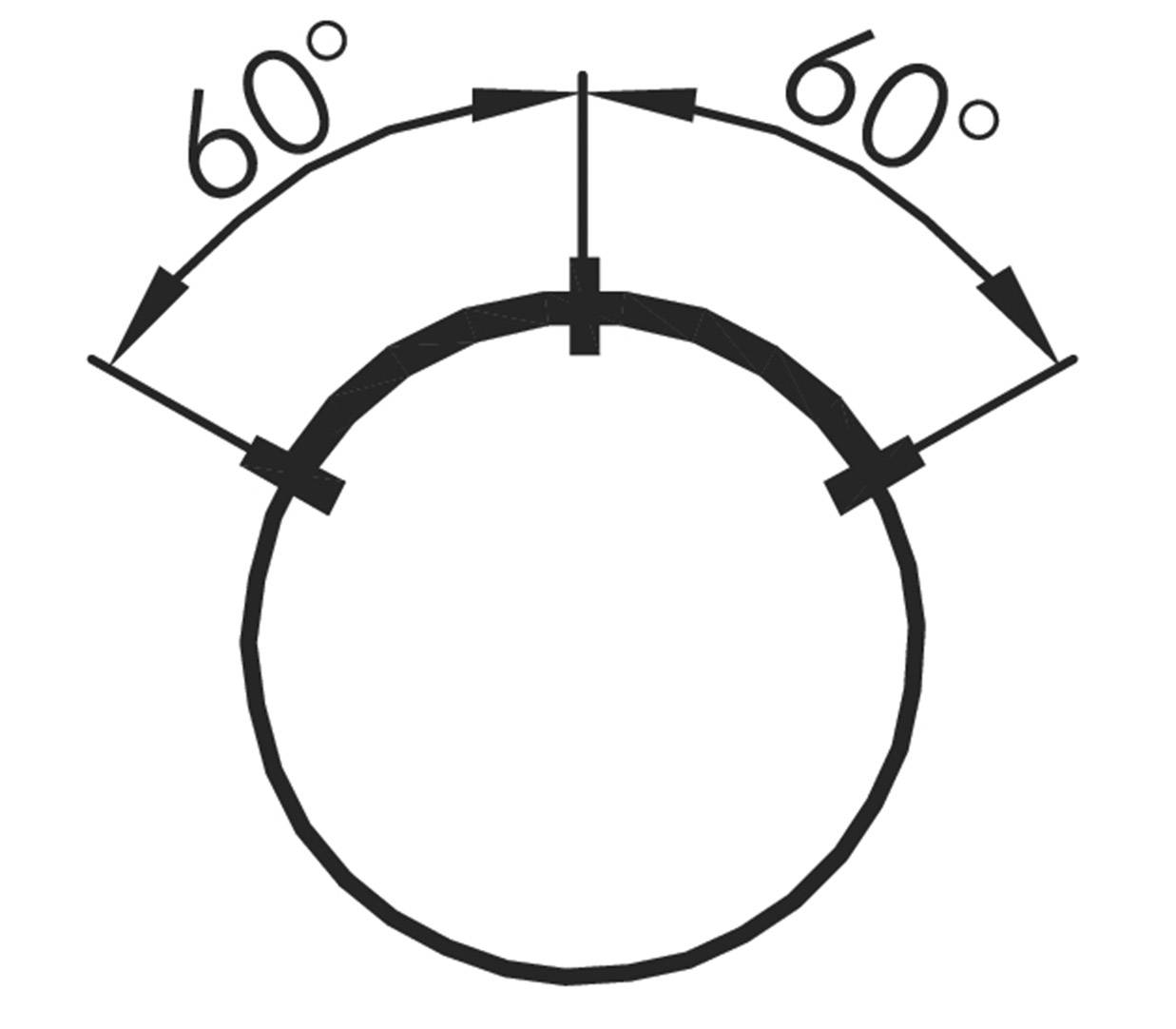

'A circle showing two directional angles of 60° each, indicating a combined angle of 120°.'

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SSWWBII_C009 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Black
Shape: Round

Packaging type: Piece

Product type: Selector button

Switch/button features: round

Lighting type: None

Operation type: manually
Rotary switch

Factory colour: Black

Case colour: Black

Connection: M12 plug

Functions: latch

Contact type: 2 makers

Durability: 30000

Electrical lifespan: 30000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Switch position: Off/On

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SSWWBII_C009
