Name: Schlegel STLRYI_C005 STLRYI_C005 Pushbutton + LED manually, 1-button Silver 1 pc(s)
Brand: Schlegel
SKU: 2238498

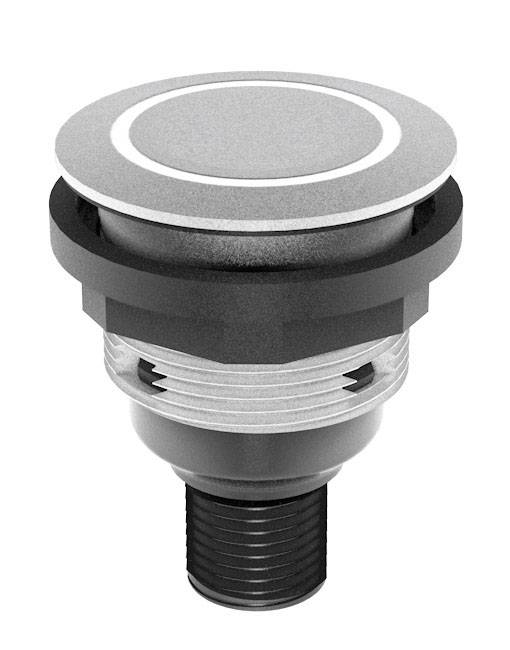

Round metal push button with threaded screw, suitable for switching devices or machines on and off, in a modern design.

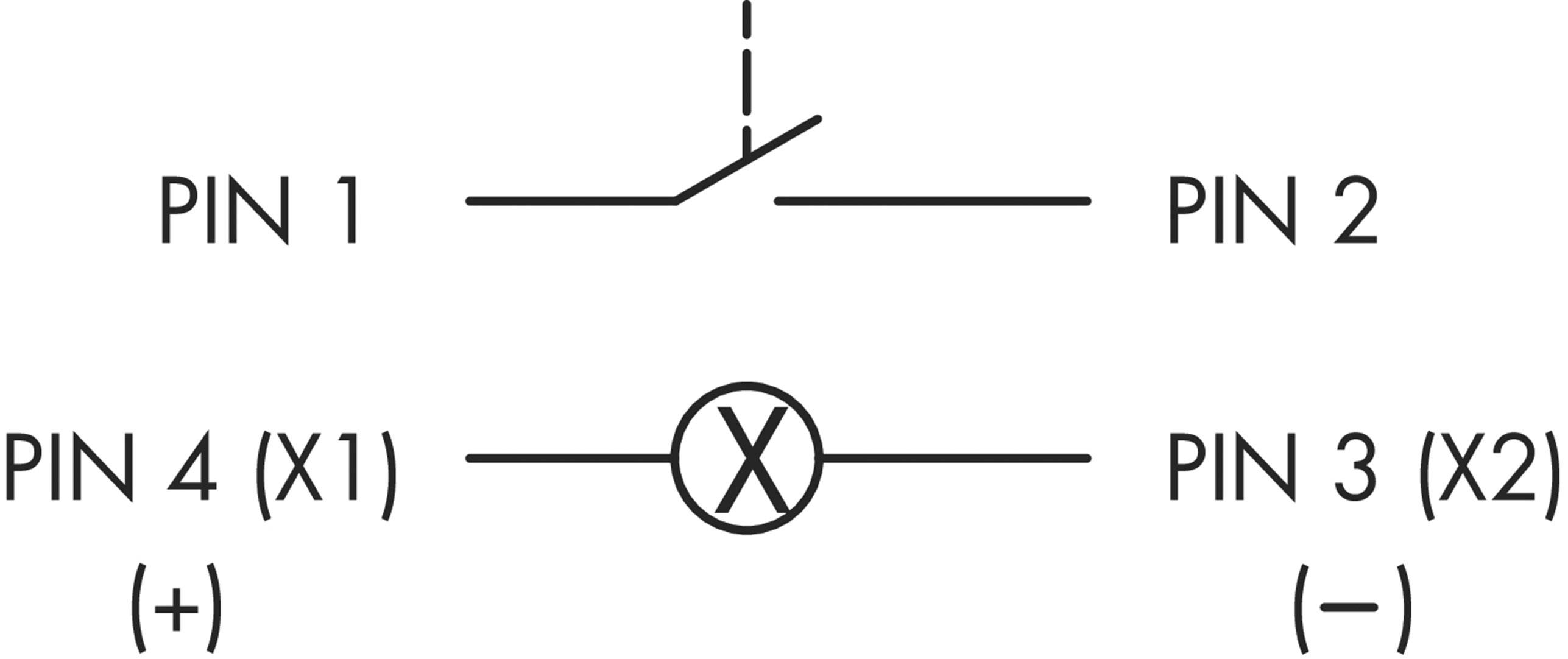

Switching symbol for a macro switch: PIN 1 connects with PIN 2 via switch; LED connected to PIN 4 (Plus), PIN 3 (Minus).

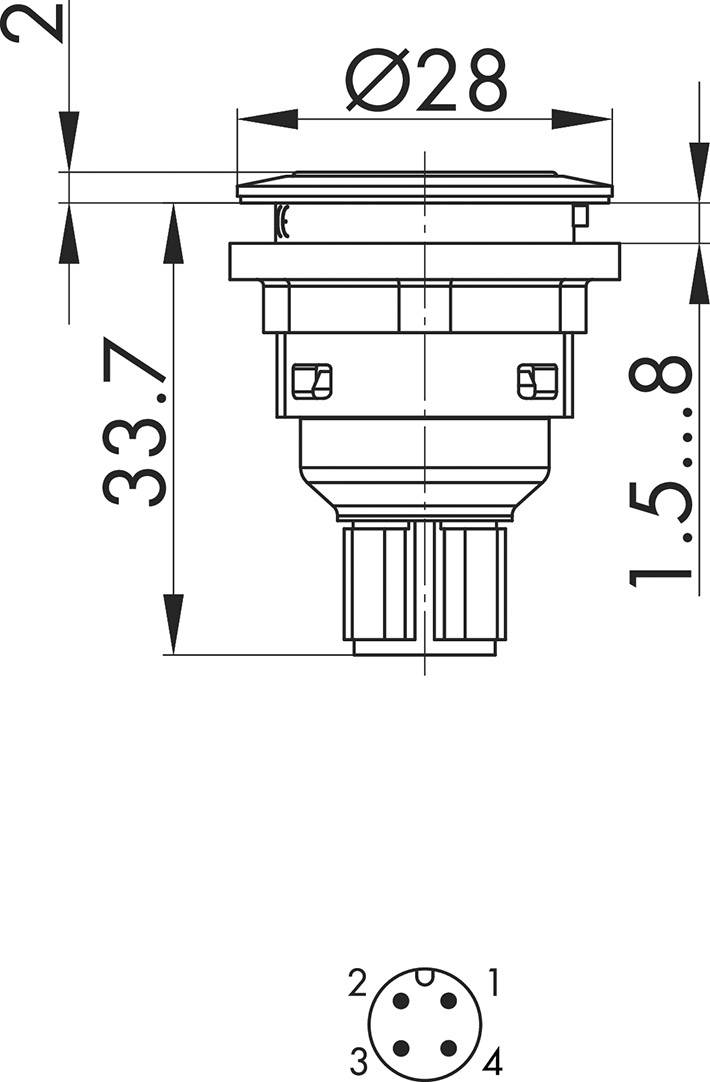

Technical drawing of a component with dimensions: diameter 28 mm, height 33.7 mm. Detailed view of connection with four pins.

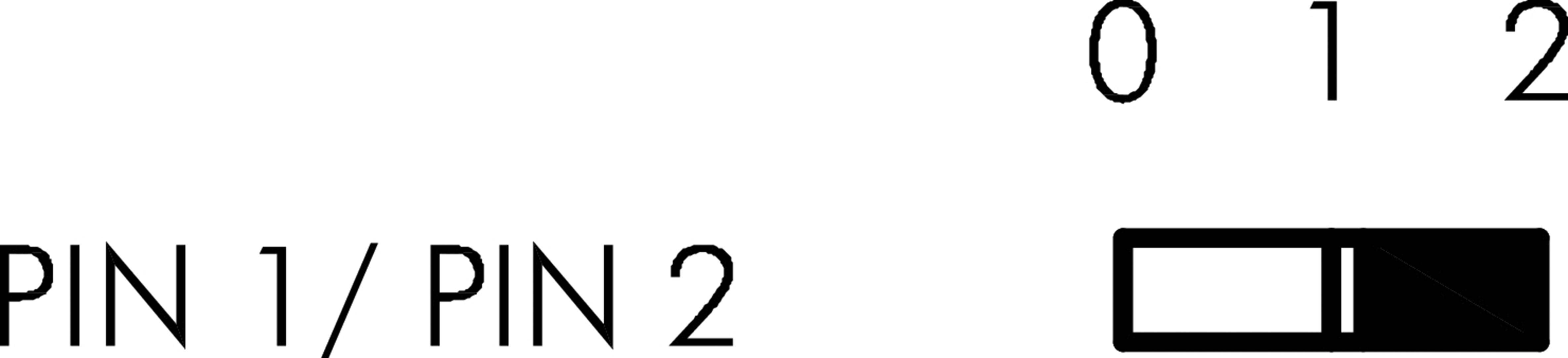

'PIN 1 / PIN 2' switch shows position 0 or 1.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel pushbutton STLRYI_C005 1/pk"

Our service for you

Technical specifications

Protection class II (protective insulation)
Stroke: 2.3 mm
Lighting: Yes
Writable: no.
Front frame: Silver-colored
Shape: Round
Light ring: Yellow

Product type: Pushbutton

Switch/button features: + LED

Lighting type: Circular lighting

Bulb type: LED (monochrome)

Operation type: manually
1-button

Colour: Yellow

Factory colour: Silver

Print motif: Blank

Connection: M12 plug

Functions: momentary

Contact type: 1 maker

Durability: 1000000

Electrical lifespan: 1000000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Switch position: 1 x On/Off

Length: 35.7 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 35.7 x 28 x 28 mm

RoHS-compliant: Yes

Type: STLRYI_C005
