Name: Schlegel SVASSA13II_C009 SVASSA13II_C009 Key button + rotary switch manually, Key 1 pc(s)
Brand: Schlegel
SKU: 2238633

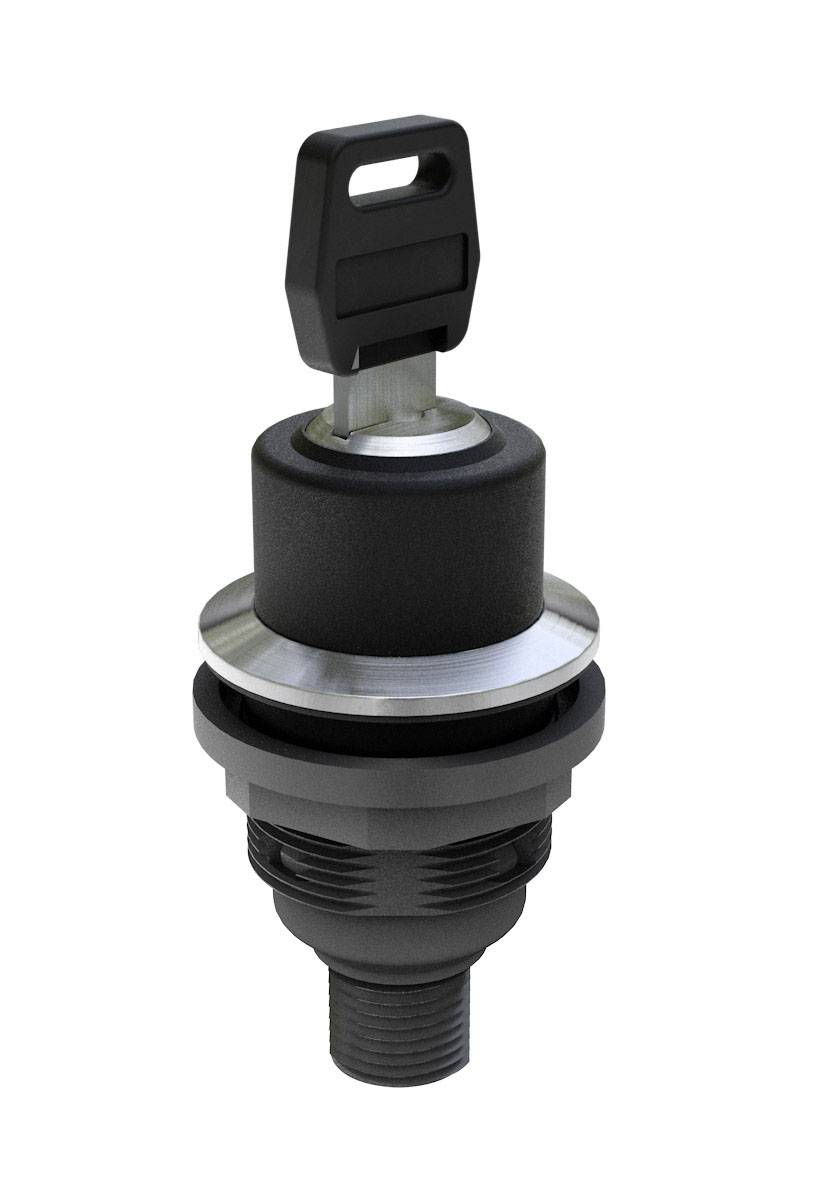

A metal locking mechanism with a black key inserted. The cylinder is silver, surrounded by black plastic and metal rings.

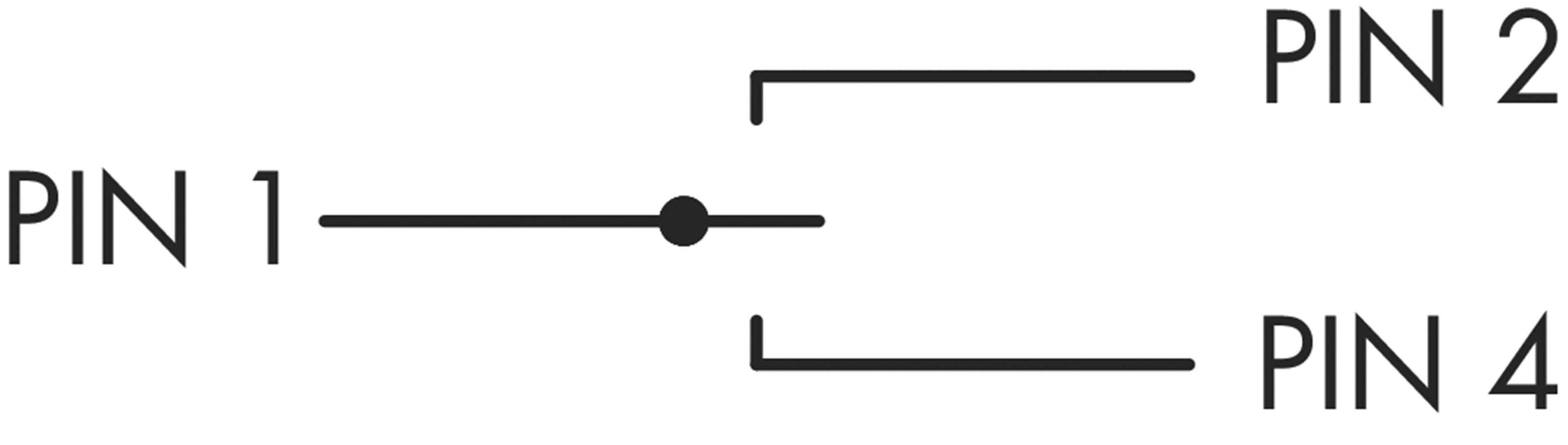

'PIN 1' is connected to 'PIN 2' and 'PIN 4', represented by a line and two branches. Schematic of an electrical circuit diagram.

'PIN 1' is connected to 'PIN 2' and 'PIN 4', diagram shows an electrical connection.

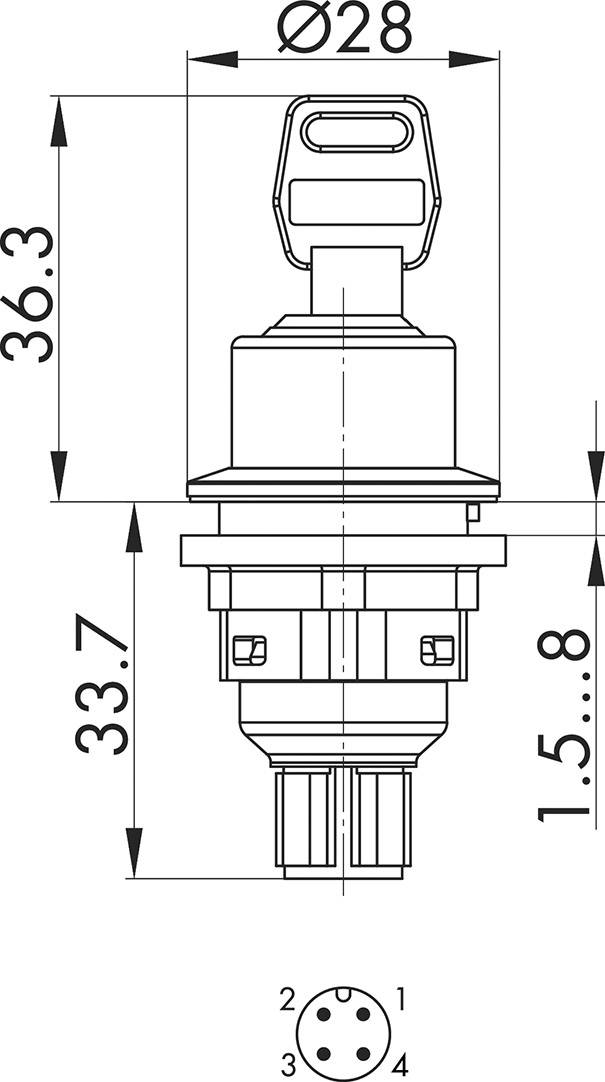

Technical drawing of a switch with dimensions: 36.3 mm height, 28 mm diameter. Shows pin configuration below.

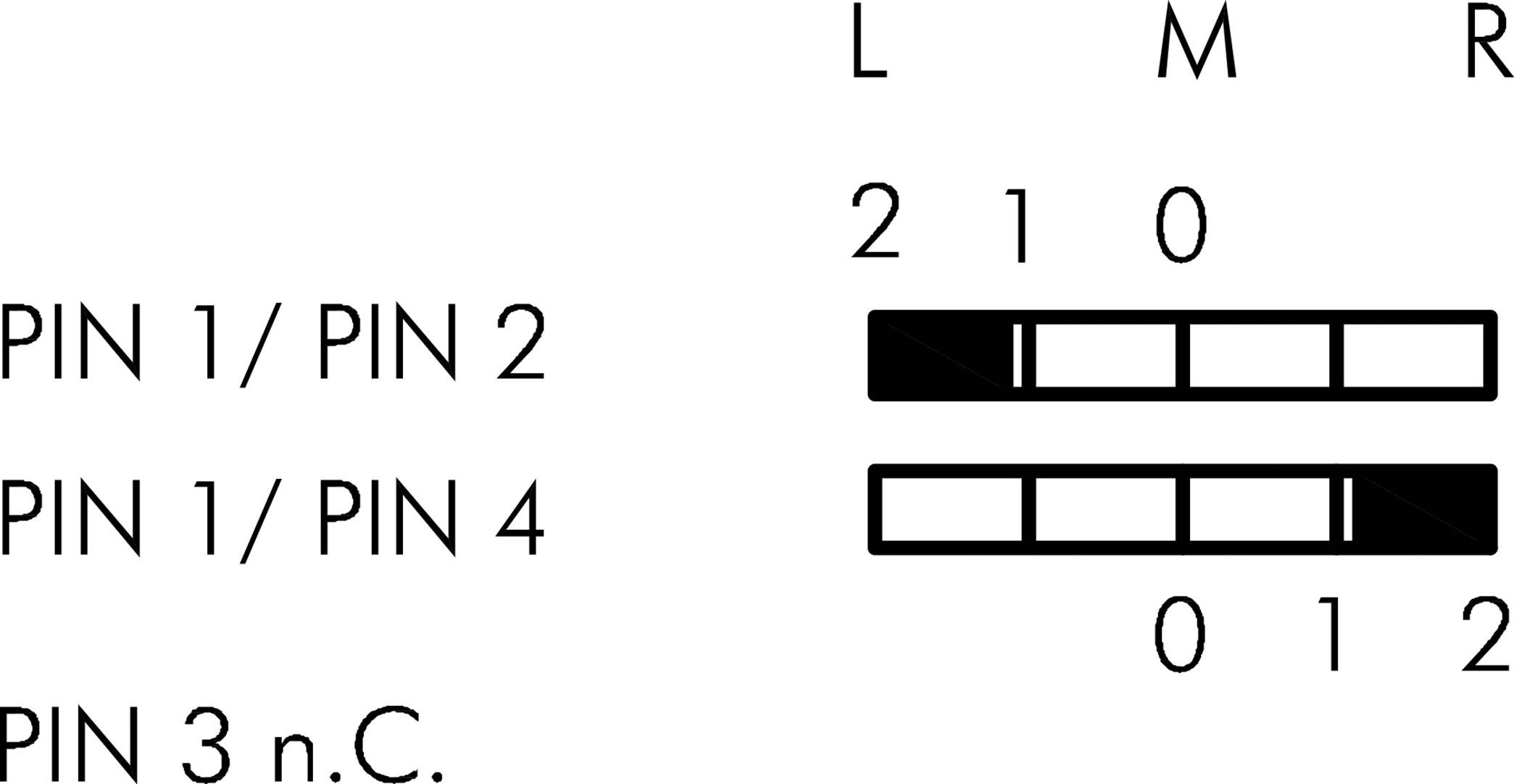

PIN Diagram: Upper graph shows the connection of PIN 1/2 with designation L, M, R. Lower graph shows PIN 1/4 with n.C. at PIN 3.

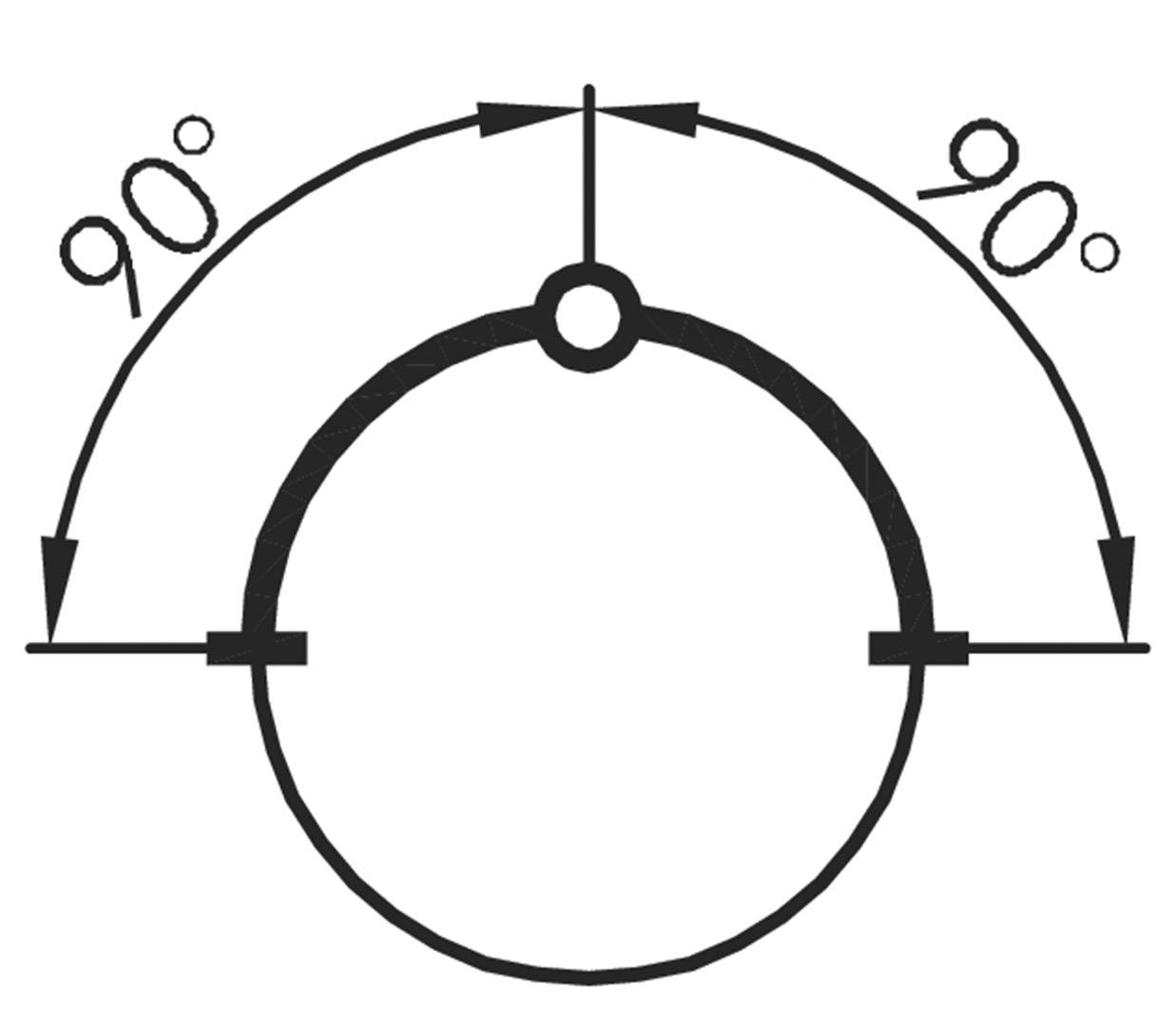

Diagram of a circle with two 90-degree arrows on the top surface, indicating the angular arcs. The arrows point outwards.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel KEY BUTTON SVASSA13II_C009 1 PCS."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Stainless steel, glossy
Shape: Round

Product type: Key button

Switch/button features: + rotary switch

Lighting type: None

Operation type: manually
Key

Connection: M12 plug

Functions: latch

Contact type: 2 makers

Durability: 30000

Electrical lifespan: 30000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 70 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 70 x 28 x 28 mm

RoHS-compliant: Yes

Type: SVASSA13II_C009
