Name: Schlegel SVASTAI_C007 SVASTAI_C007 Selector button + rotary switch manually, Rotary switch 1 pc(s)
Brand: Schlegel
SKU: 2238615

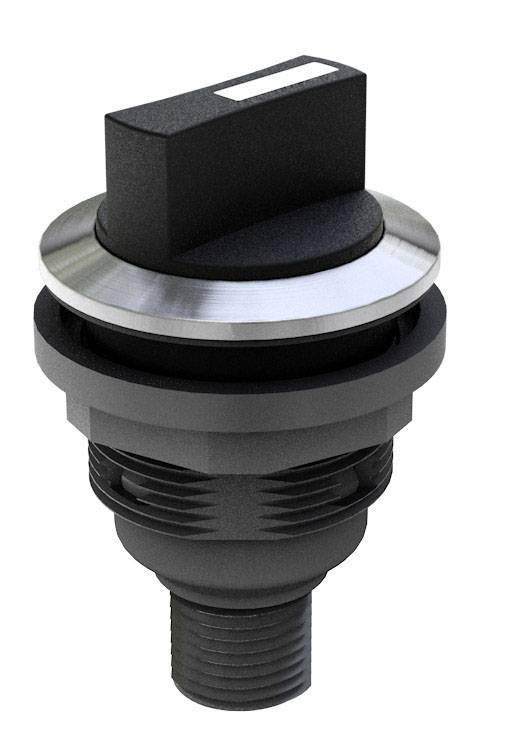

Black rotary knob with a silver rim on a technical component, possibly a switch or control dial.

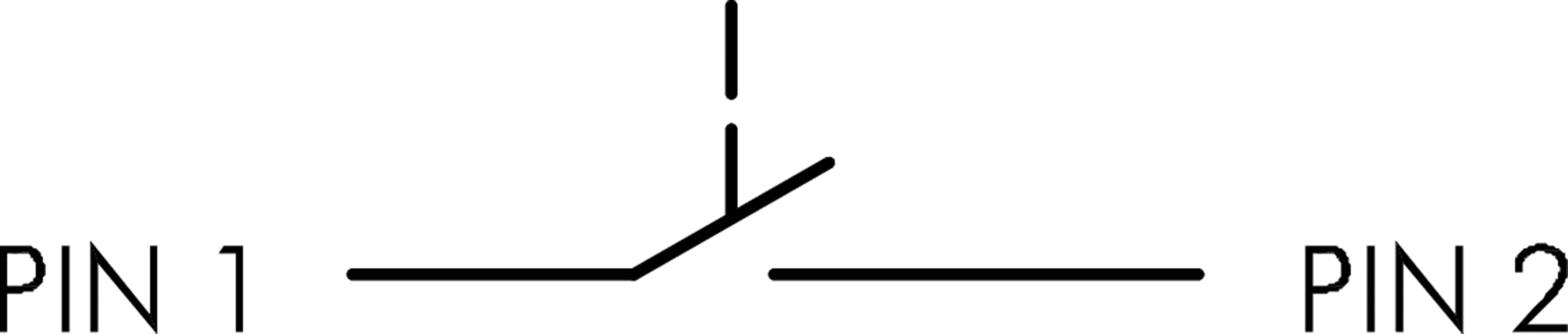

The circuit diagram shows a simple electrical switch with two pins, PIN 1 and PIN 2, and a make contact.

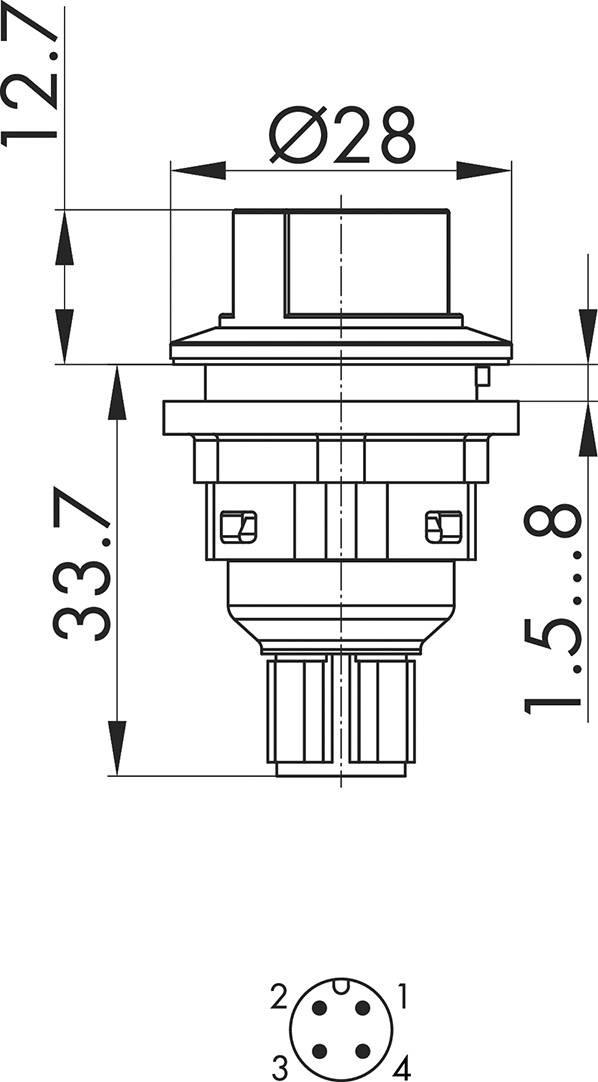

Technical drawing of a cylindrical component with diameter specifications of 28 mm and height specifications of 12.7 mm and 33.7 mm.

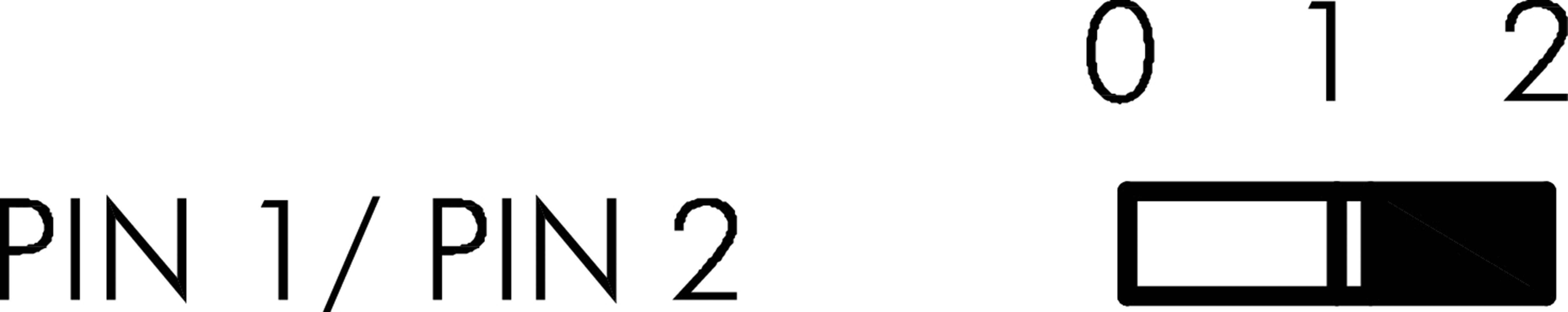

Diagram shows two alphabetical pins: PIN 1/PIN 2. On the right-hand side, there is a numerical scale from 0 to 2.

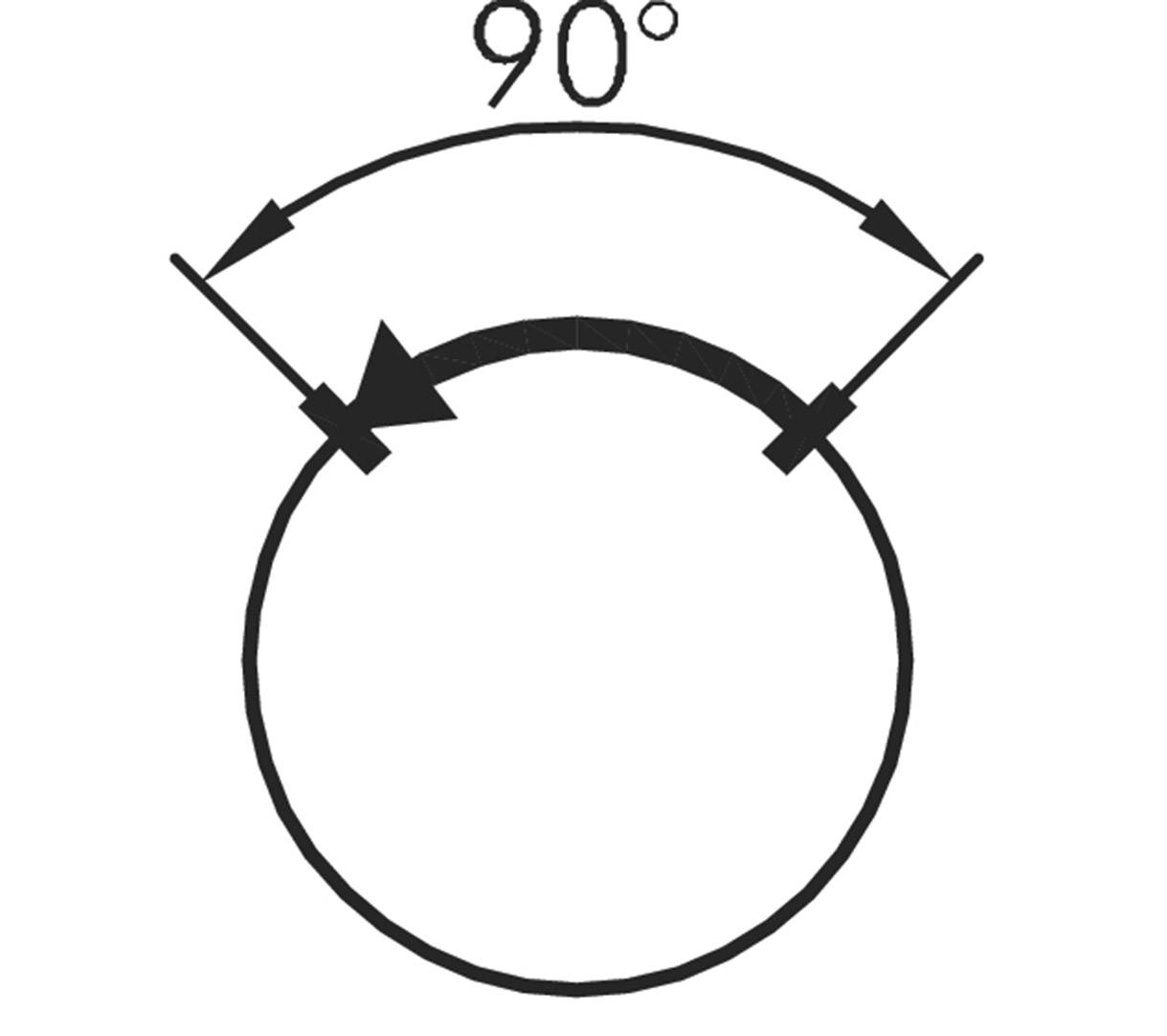

Pie chart shows a sector with an angle of 90 degrees, marked by two arrows.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SVASTAI_C007 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Stainless steel, glossy
Shape: Round

Product type: Selector button

Switch/button features: + rotary switch

Lighting type: None

Operation type: manually
Rotary switch

Connection: M12 plug

Functions: momentary

Contact type: 1 maker

Durability: 1000000

Electrical lifespan: 1000000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SVASTAI_C007

Documents & Downloads

Datasheet

Datasheet 2238615 Schlegel SVASTAI_C007 SVASTAI_C007 Selector button + rotary switch manually, Rotary switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2238615 Schlegel SVASTAI_C007 SVASTAI_C007 Selector button + rotary switch manually, Rotary switch 1 pc(s)

Schlegel SVASTAI_C007 SVASTAI_C007 Selector button + rotary switch manually, Rotary switch 1 pc(s)
