Name: Schlegel SVASTAOI_C008 SVASTAOI_C008 Selector button Front ring (steel) manually, Rotary switch 1 pc(s) Piece
Brand: Schlegel
SKU: 2238618

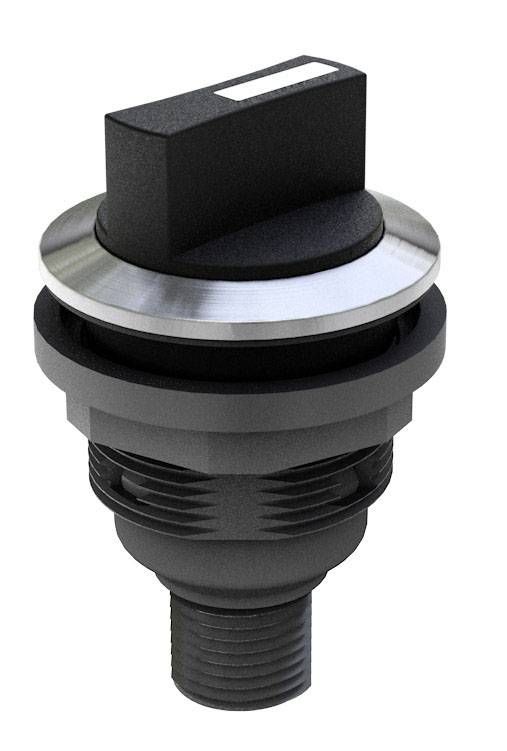

Black push-button switch with metallic rim, suitable for industrial applications. Compact design, round shape.

'PIN 1' is connected to 'PIN 2' and 'PIN 4'.

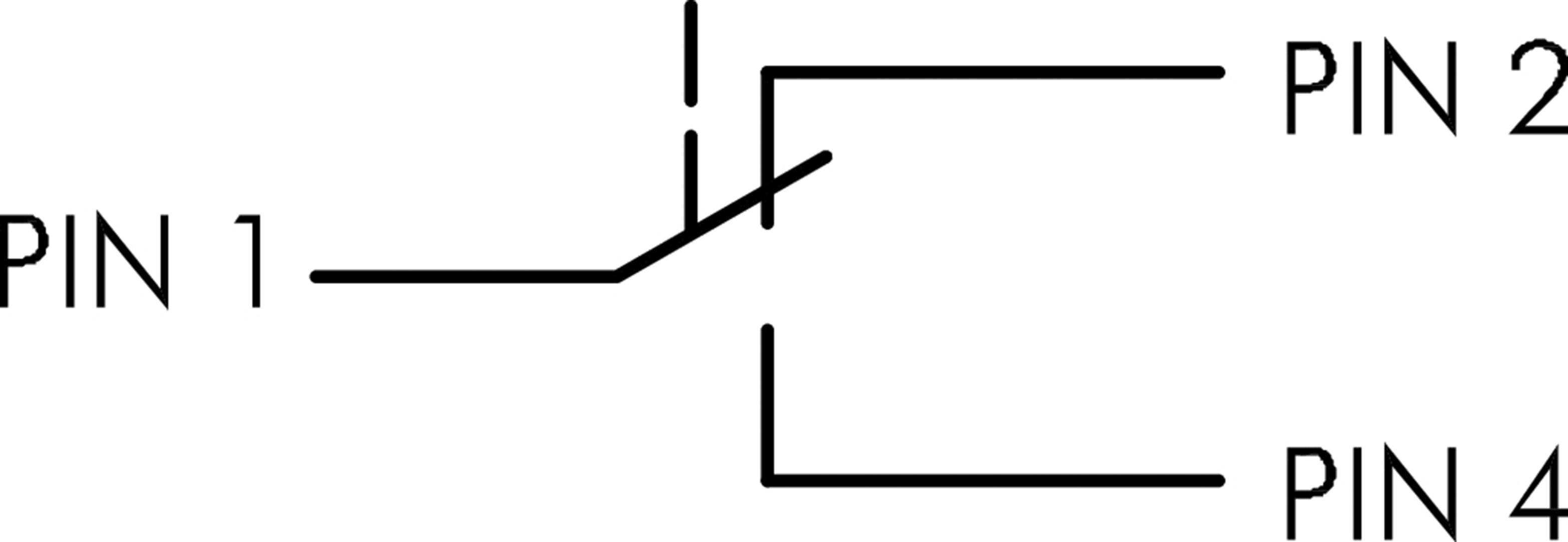

Circuit diagram of a switchover switch with PIN 1 as the common contact, which is switched between PIN 2 and PIN 4.

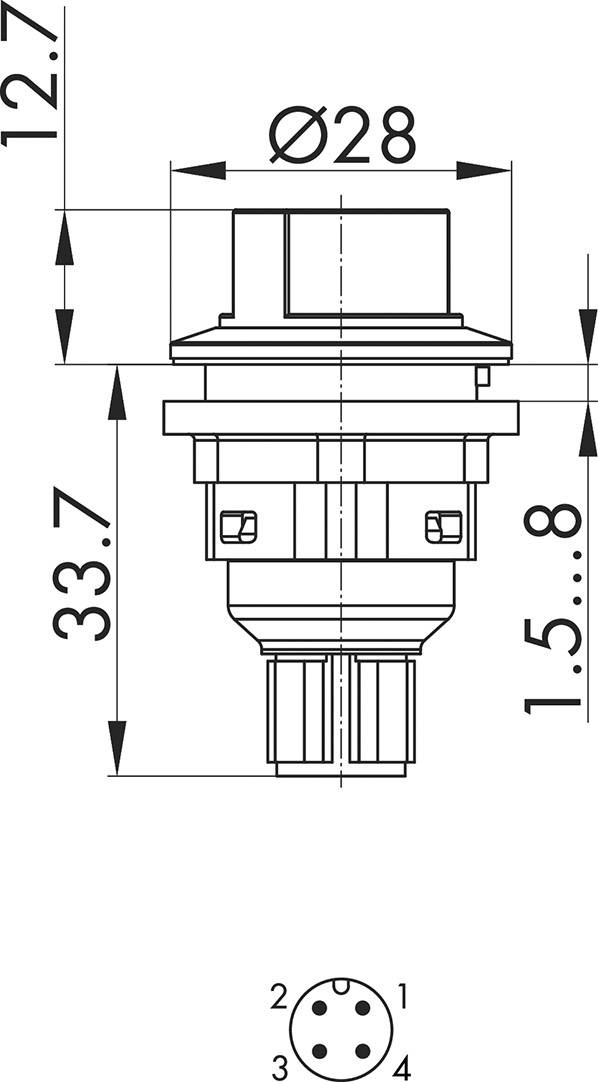

Technical Drawing of a Round Component with Dimensions: Diameter 28 mm, Height 33.7 mm, and Additional Details. Top View Below.

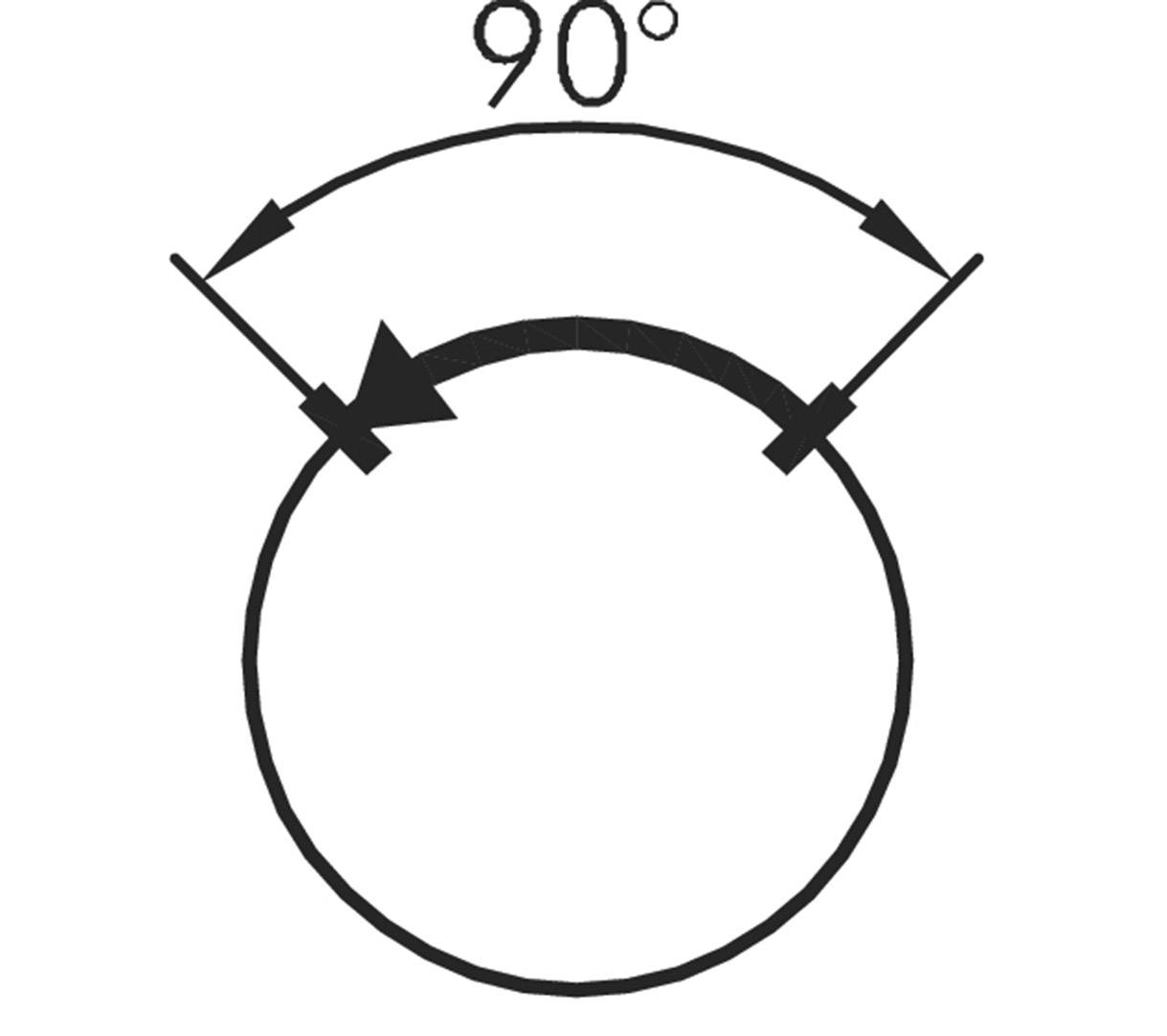

Shows a circle with a marked 90-degree angle at the top edge, represented by two arrows and an arc.

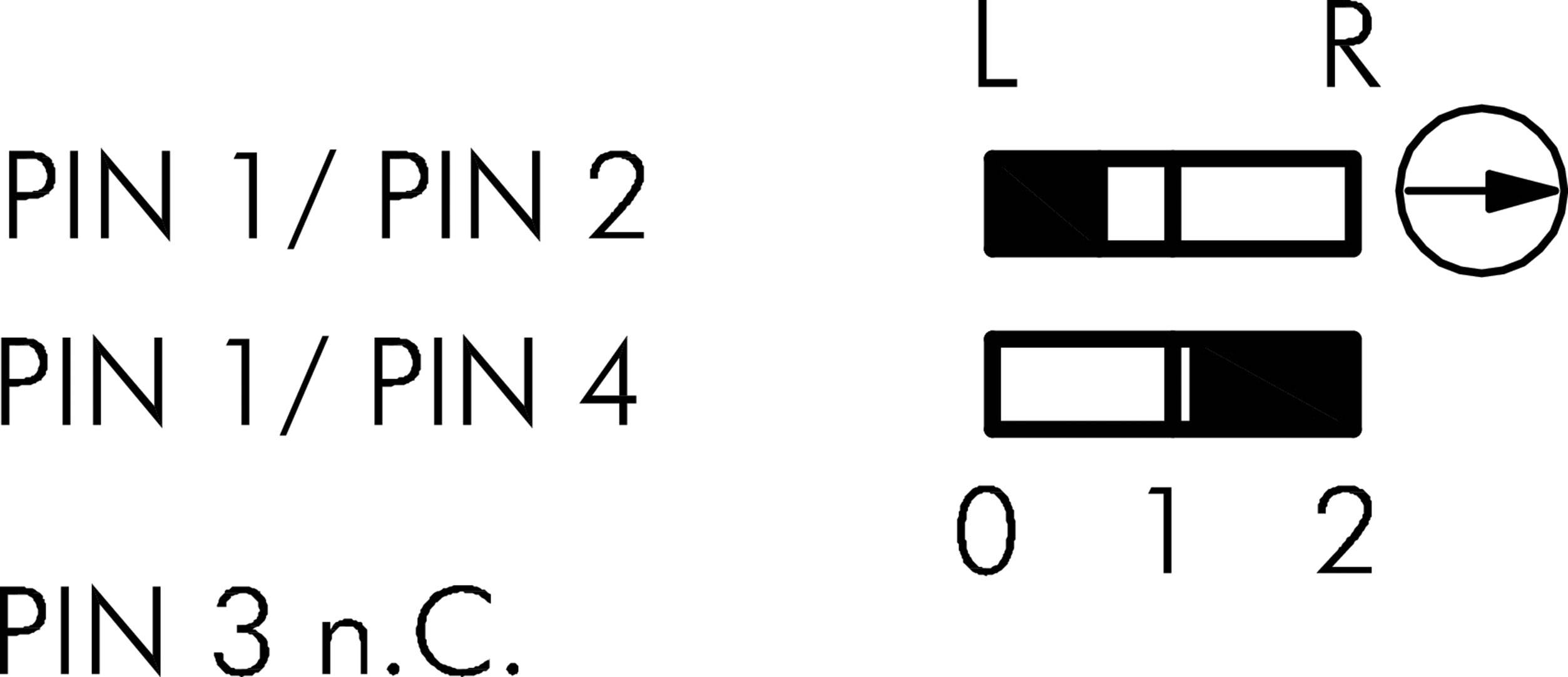

'Diagram with plug contact information: PIN 1/PIN 2, PIN 1/PIN 4, PIN 3 n.C. Graphics for L, R, with numbers 0, 1, 2.'

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SVASTAOI_C008 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Stainless steel, glossy
Shape: Round

Packaging type: Piece

Product type: Selector button

Switch/button features: Front ring (steel)

Lighting type: None

Operation type: manually
Rotary switch

Connection: M12 plug

Functions: momentary

Contact type: 1 breaker
1 maker

Durability: 1000000

Electrical lifespan: 1000000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SVASTAOI_C008
