Name: Schlegel SVASTBII_C009 SVASTBII_C009 Selector button + rotary switch, glossy, Front ring (steel) manually, Rotary switch
Brand: Schlegel
SKU: 2238612

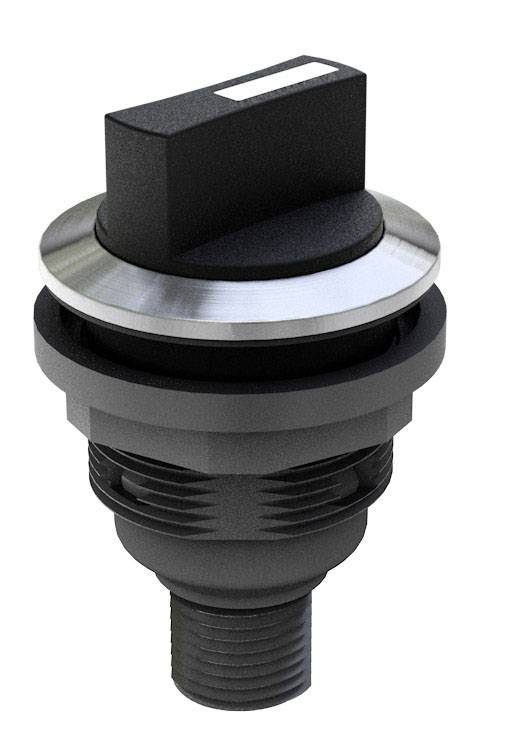

Electronic rotary switch with a black handle and metallic ring, used for controlling devices or systems.

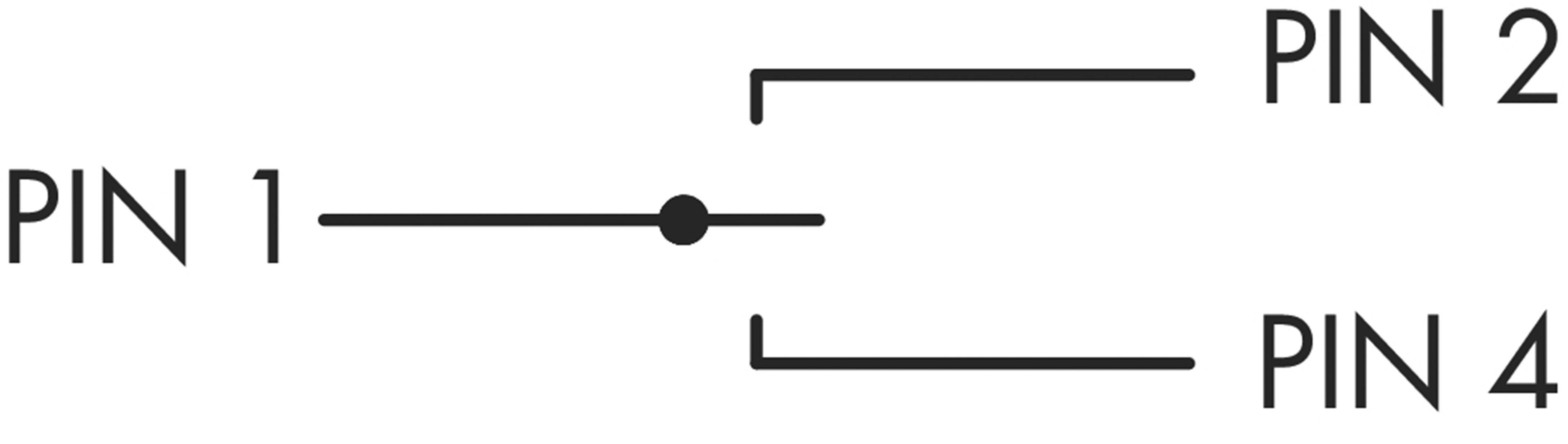

Schematic diagram of a two-pole changeover switch: PIN 1 connected to PIN 2 or PIN 4. Main contact on PIN 1.

Circuit diagram of a sliding contact: PIN 1 is connected to a contact switch, PIN 2 and PIN 4 are switched by it.

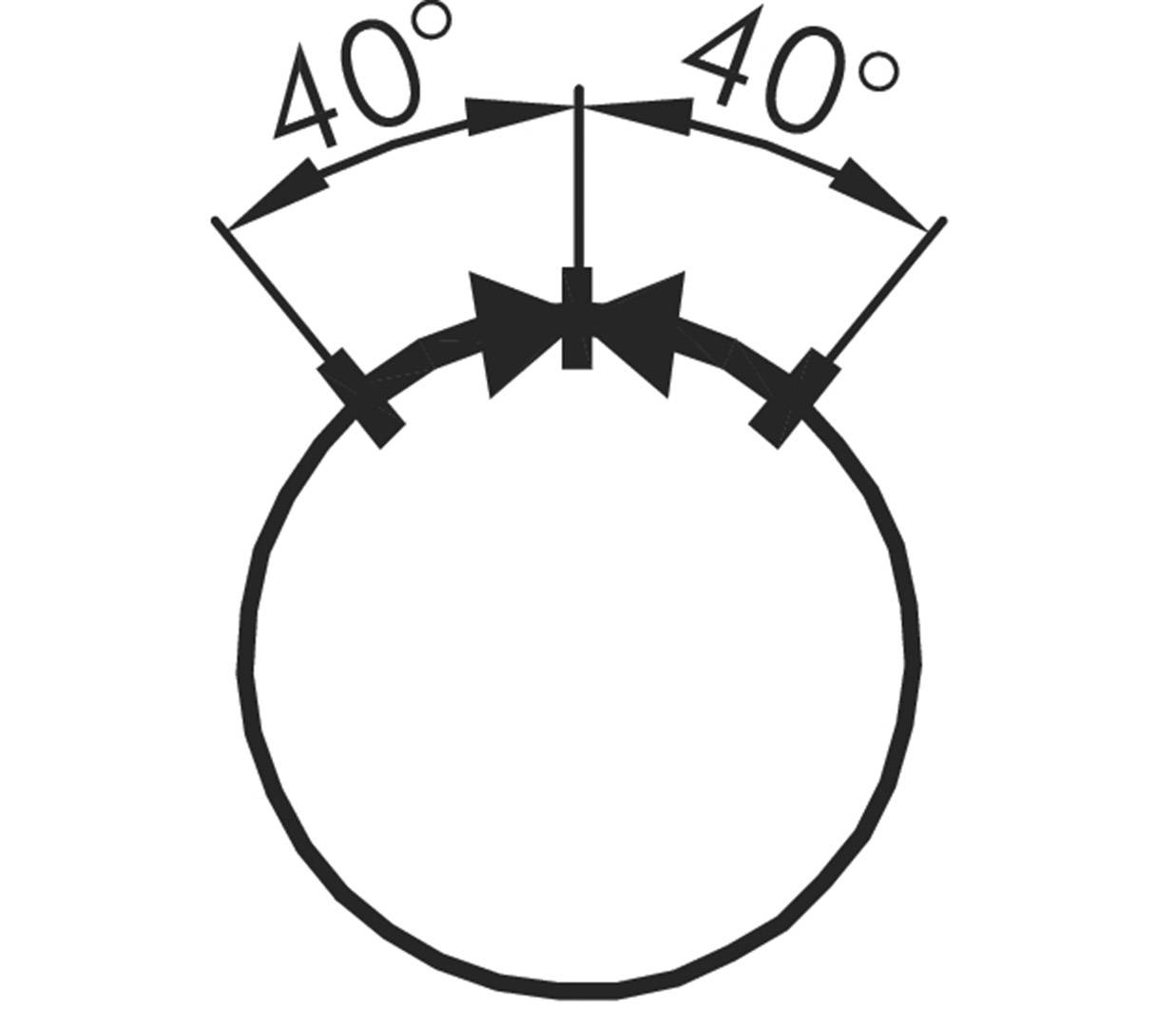

Diagram shows two equal angles of 40 degrees, emanating from the centre of a circle. Demonstrates symmetry.

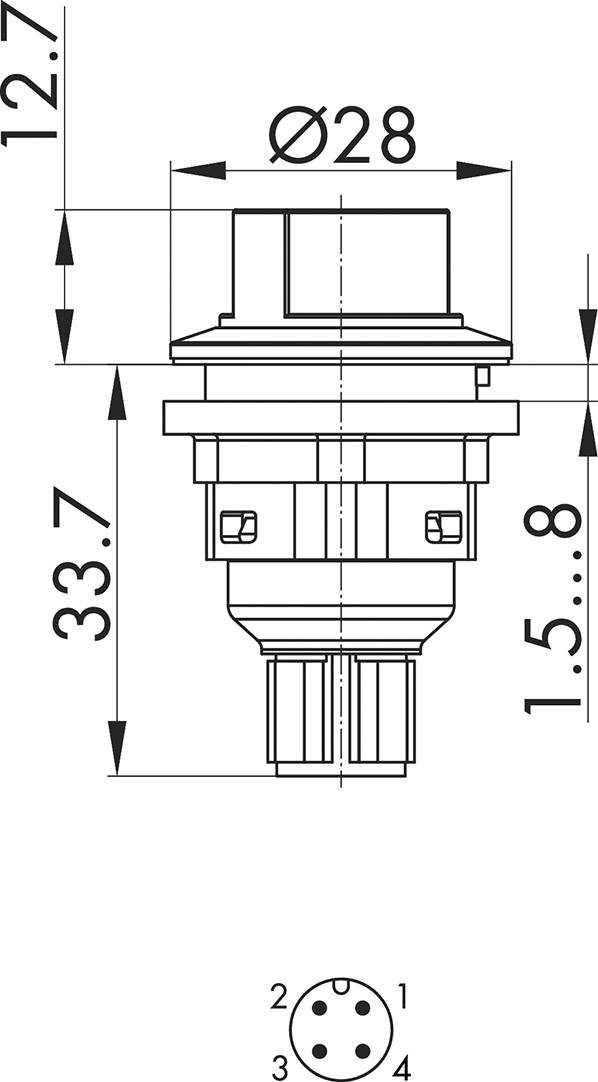

Technical drawing of a round switch with a 28 mm diameter and a depth of 33.7 mm. Includes connection view with pin numbers.

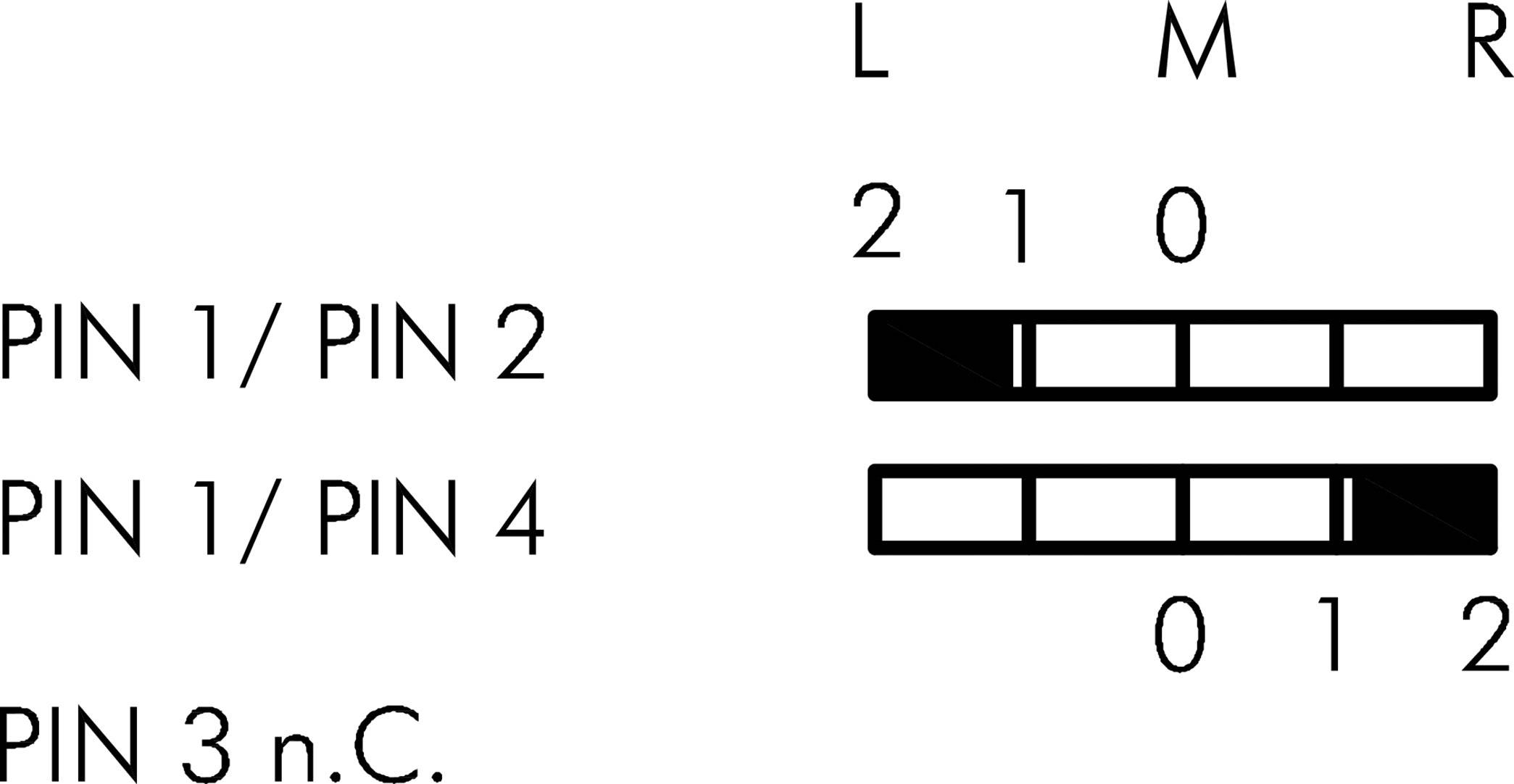

Diagram shows three audio pins and their assignments: PIN 1/2 and 1/4 as lever, PIN 3 not assigned. Sides: Left (L), Centre (M), Right (R).

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SVASTBII_C009 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Stainless steel, glossy
Shape: Round

Product type: Selector button

Switch/button features: + rotary switch
glossy
Front ring (steel)

Lighting type: None

Operation type: manually
Rotary switch

Connection: M12 plug

Functions: momentary

Contact type: 2 makers

Durability: 1000000

Electrical lifespan: 1000000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SVASTBII_C009
