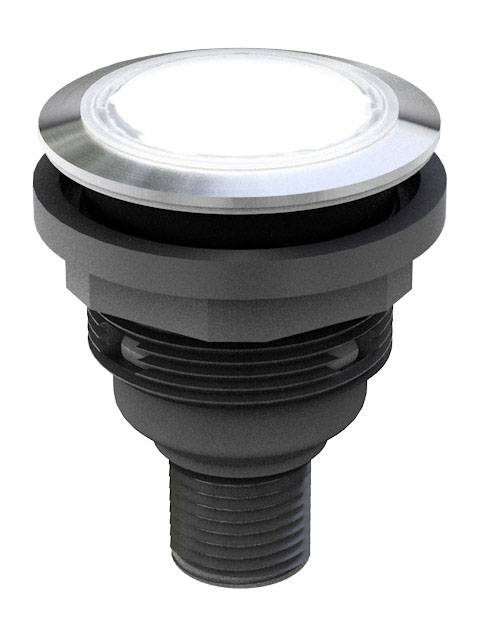

Schlegel SVATII_C009 SVATII_C009 Pushbutton writable manually, 1-button 2 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
"Schlegel pushbutton SVATII_C009 2 pcs."
Our service for you
Technical specifications
- Protection class II (protective insulation)
- Stroke: 2.3 mm
- Lighting: no.
- Inscribable: Yes
- Front frame: Stainless steel, glossy
- Shape: Round
- Product type
Pushbutton
- Switch/button features
writable
- Lighting type
None
- Operation type
manually
1-button
- Connection
M12 plug
- Functions
momentary

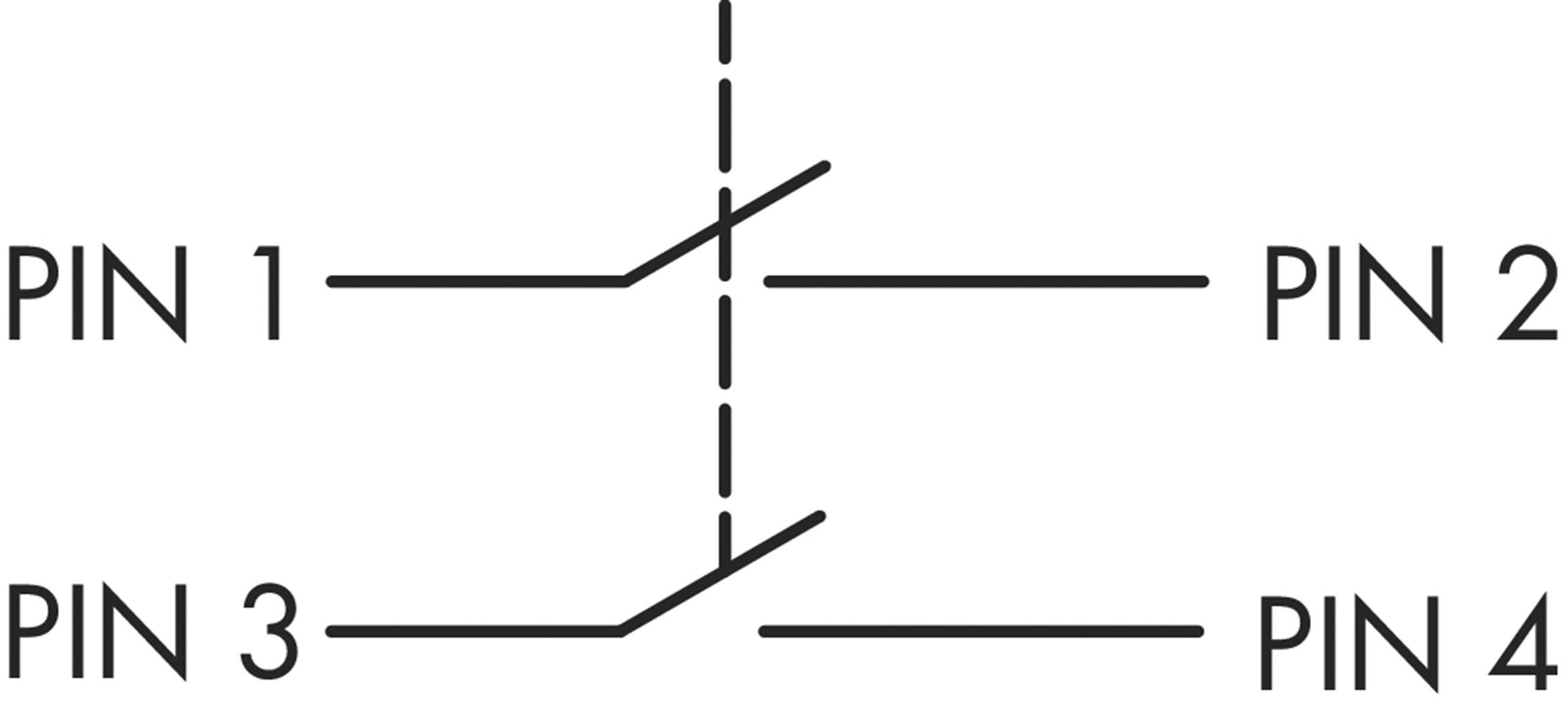

- Contact type
2 makers
- Durability
1000000
- Electrical lifespan
1000000
- Recess diameter
22.3 mm
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Switching voltage
50 V DC/AC
- Switching current (max.)
4 A
- Length
35.7 mm
- Width
28 mm
- Height
28 mm
- Compatible with (details)
Series: SHORTRON® connect
- Content
2 pc(s)

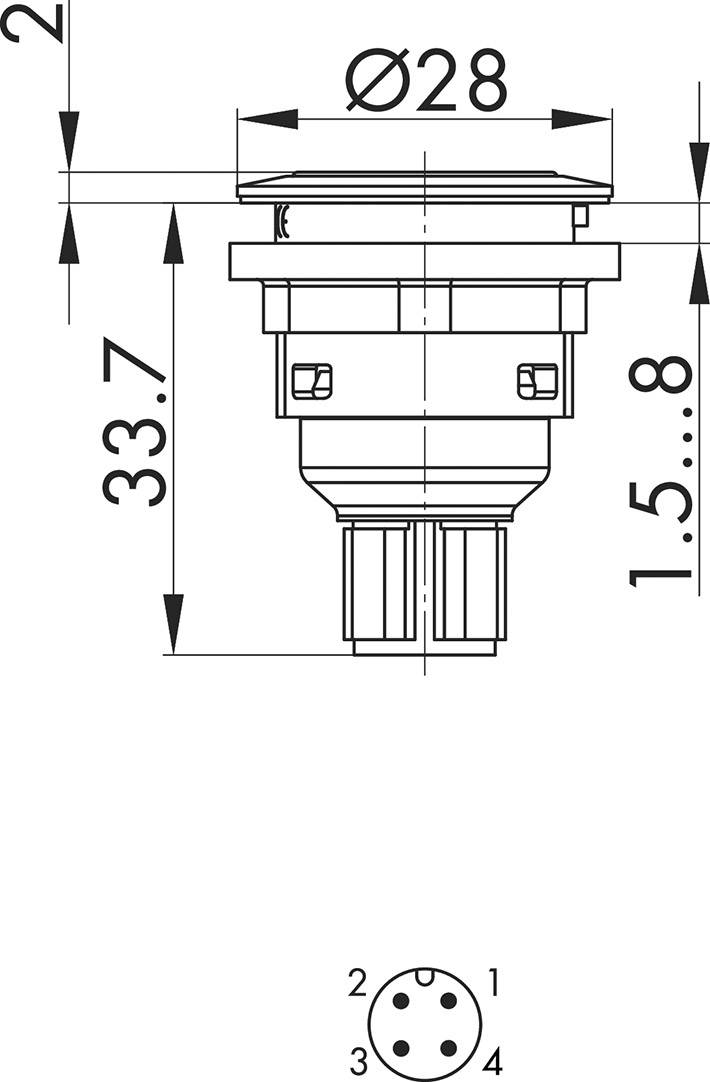

- Dim
(L x W x H) 35.7 x 28 x 28 mm
- RoHS-compliant
Yes
- Type
SVATII_C009
Documents & Downloads
Datasheet
Datasheet 2238477 Schlegel SVATII_C009 SVATII_C009 Pushbutton writable manually, 1-button 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2238477 Schlegel SVATII_C009 SVATII_C009 Pushbutton writable manually, 1-button 2 pc(s)
