Name: Schlegel SVATLRYI_C005 SVATLRYI_C005 Pushbutton illuminable manually, 1-button 1 pc(s)
Brand: Schlegel
SKU: 2238488

'Uniform metal drain plug in a cylindrical shape, in grey and silver colours.'

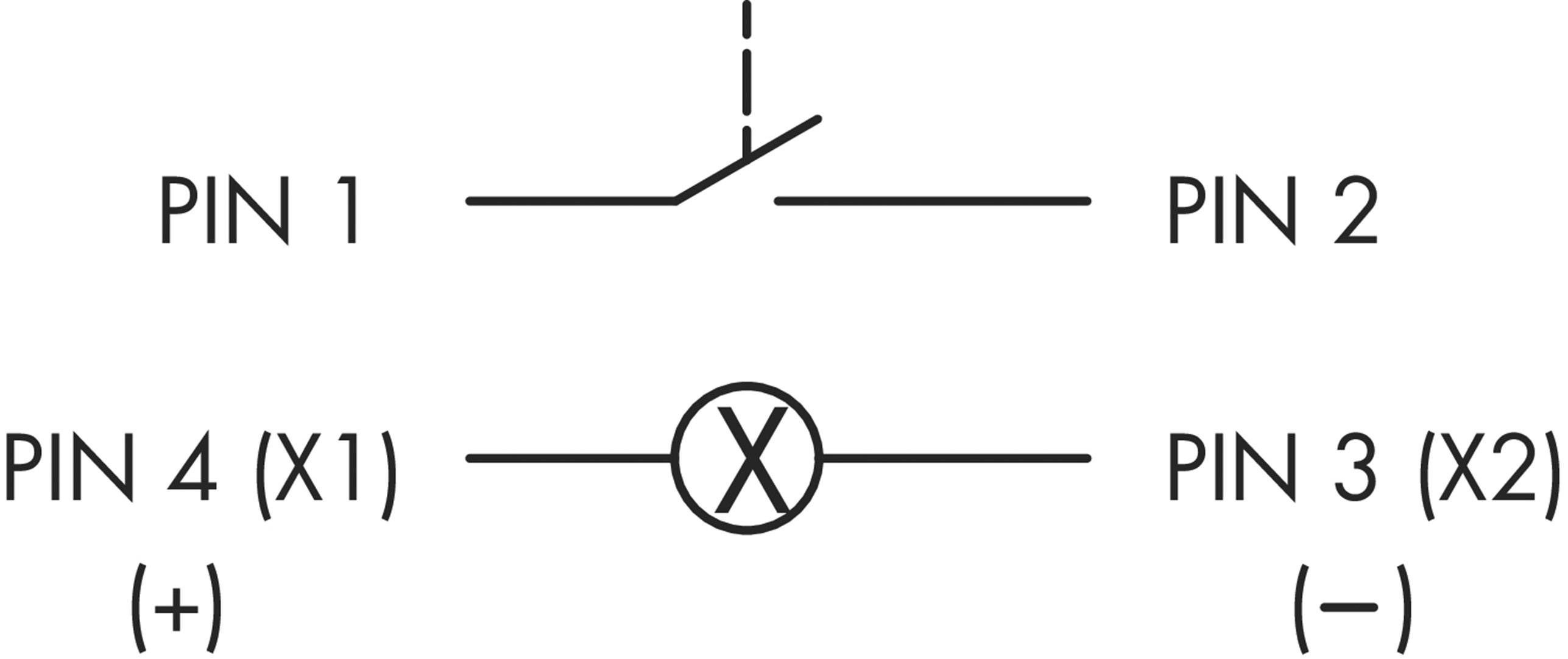

Switching symbol of a relay with four connection points: PIN 1 and PIN 2 as switches, PIN 3 (X2) negative, PIN 4 (X1) positive.

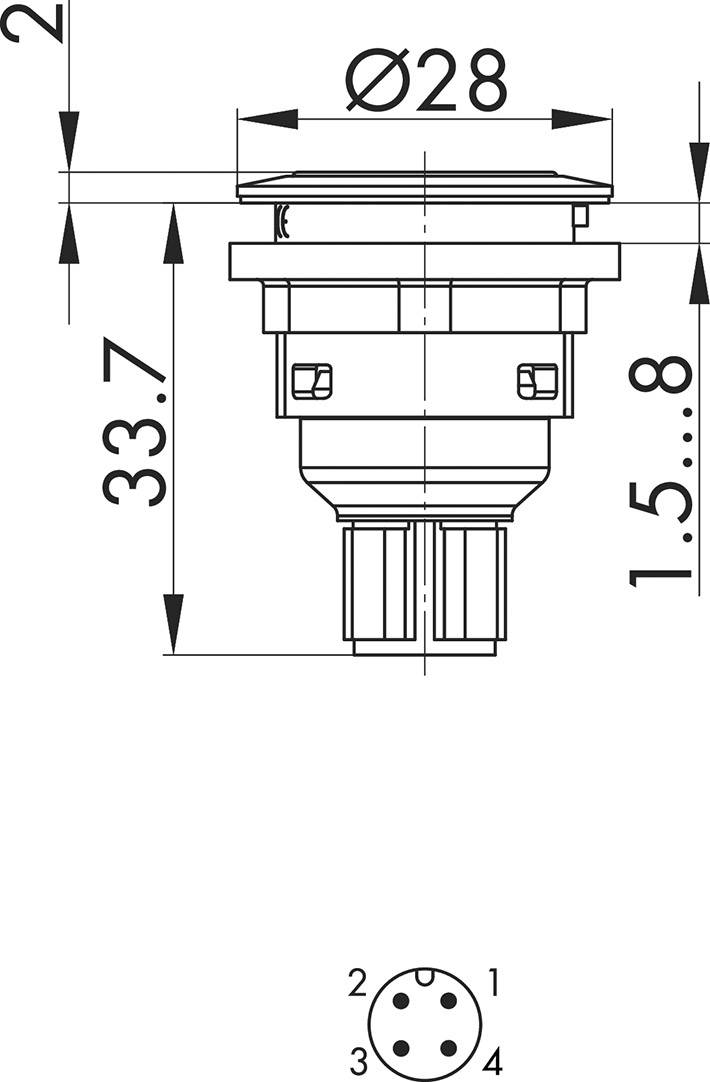

Technical drawing of a cylindrical connector. Dimensions: Diameter 28 mm, height 33.7 mm. Pin configuration shown below.

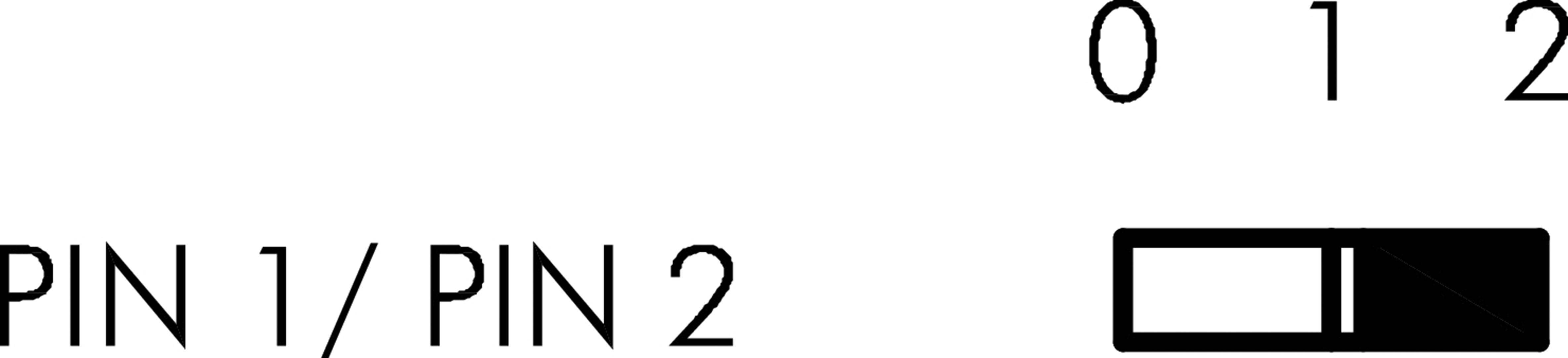

'PIN 1' and 'PIN 2' options with slider set to position 1.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel pushbutton SVATLYI_C005 1/pk"

Our service for you

Technical specifications

Protection class II (protective insulation)
Stroke: 2.3 mm
Lighting: Yes
Writable: no.
Front frame: Stainless steel, glossy
Shape: Round
Light ring: Yellow

Product type: Pushbutton

Switch/button features: illuminable

Lighting type: Circular lighting

Bulb type: LED (monochrome)

Operation type: manually
1-button

Colour: Yellow

Connection: M12 plug

Functions: momentary

Contact type: 1 maker

Durability: 1000000

Electrical lifespan: 1000000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 35.7 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 35.7 x 28 x 28 mm

RoHS-compliant: Yes

Type: SVATLRYI_C005

Variants(All information is without VAT, plus shipping costs)

Functions

Lighting type

Recess diameter
