Name: Schlegel SWALI_C005 SWALI_C005 Selector button + LED manually, Rotary switch 1 pc(s)
Brand: Schlegel
SKU: 2238624

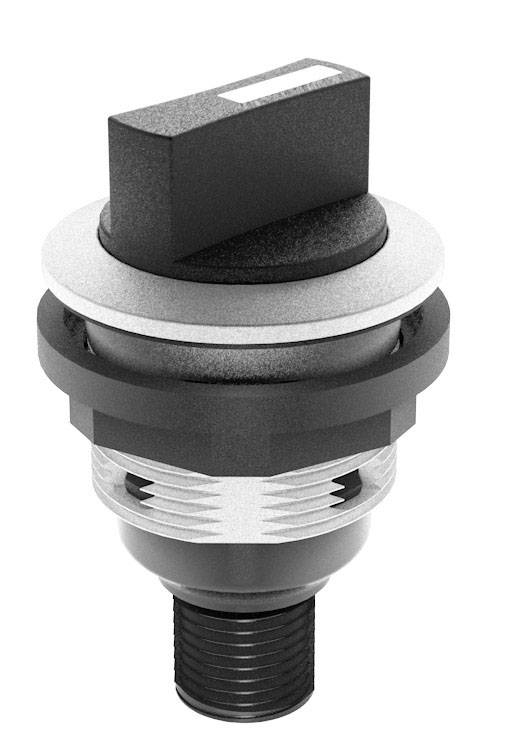

Mounting button with a round base and rectangular handle, suitable for machinery or industrial applications.

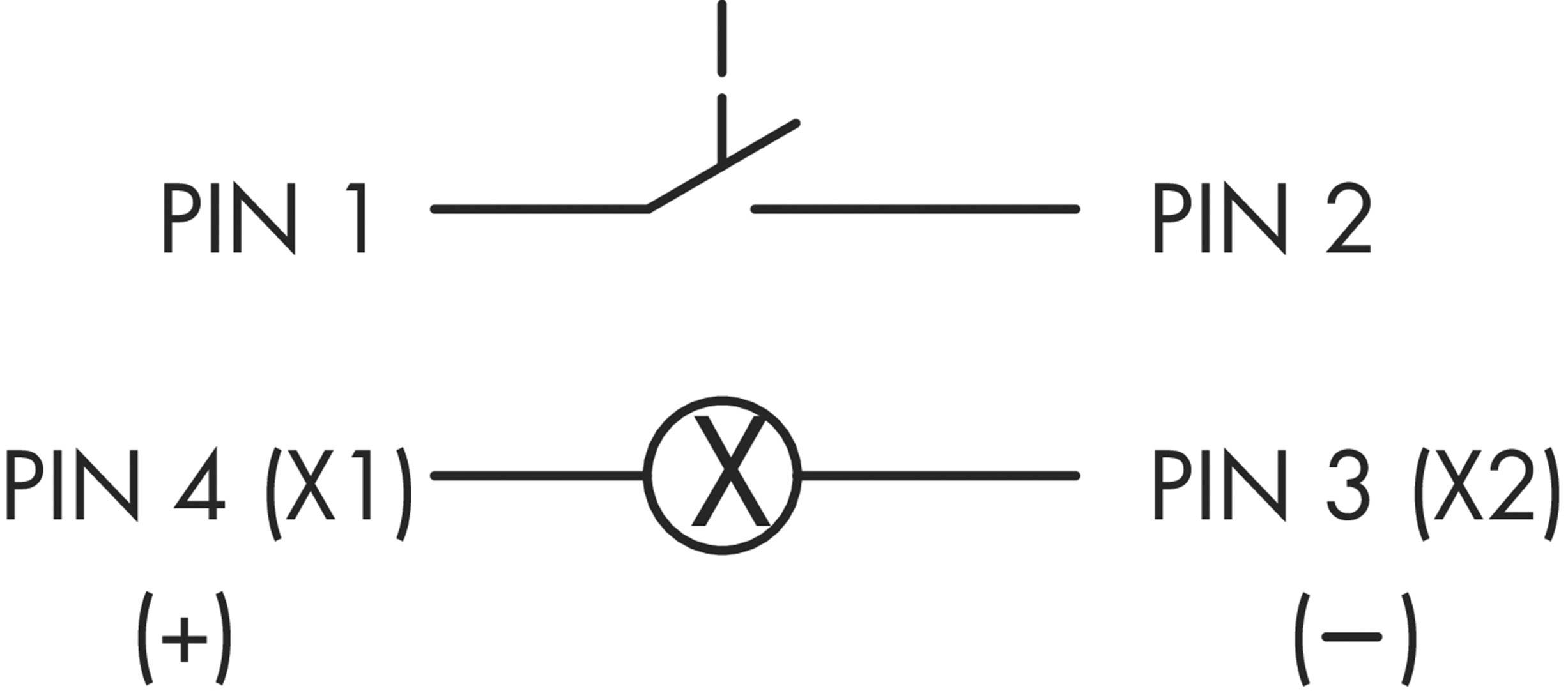

Switching symbol for an illuminated push button: above, switch between PIN 1 and PIN 2; below, lamp between PIN 4 (+) and PIN 3 (−).

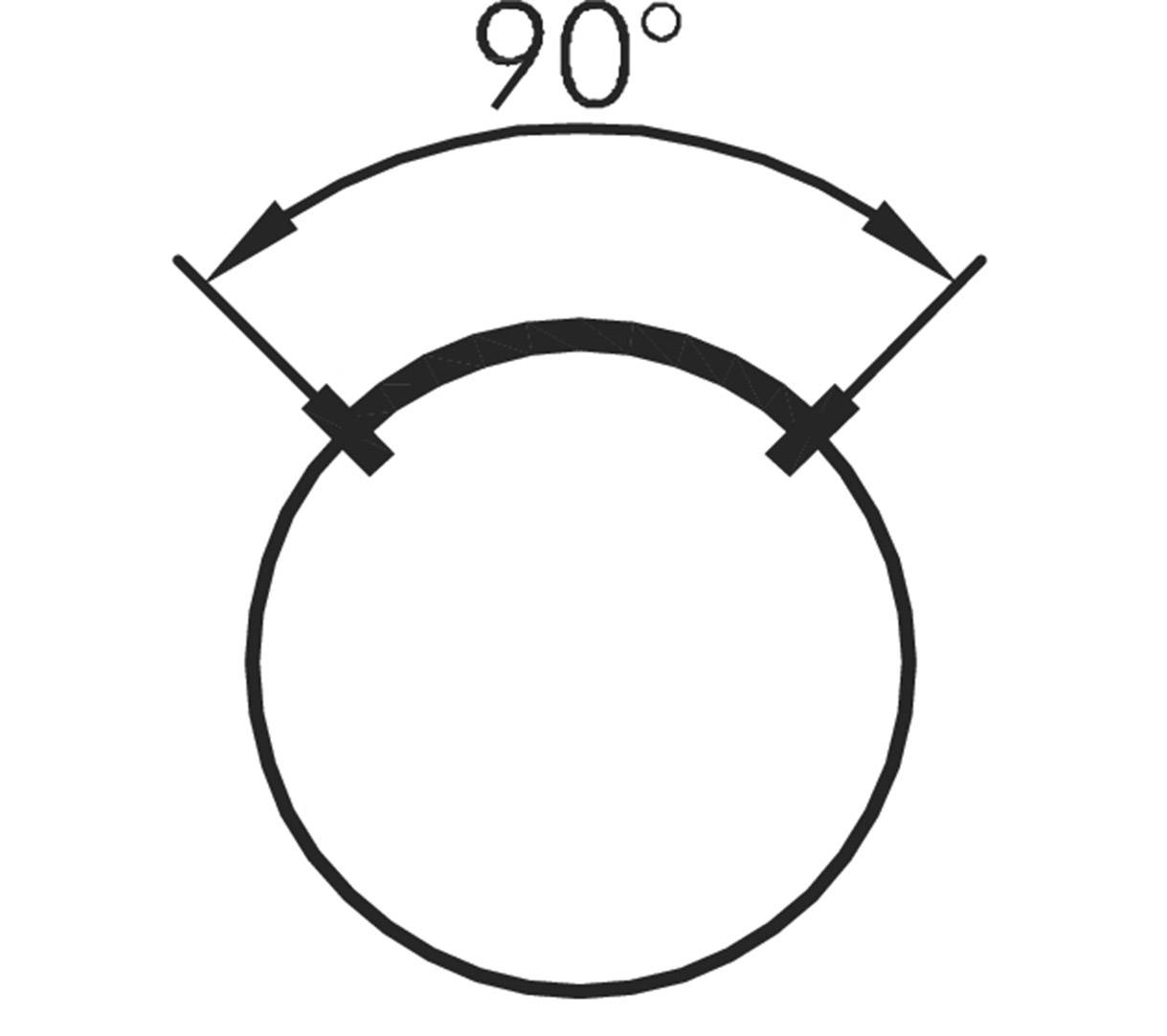

A circle with a marked arc spanning 90 degrees. The arrows indicate the arc length.

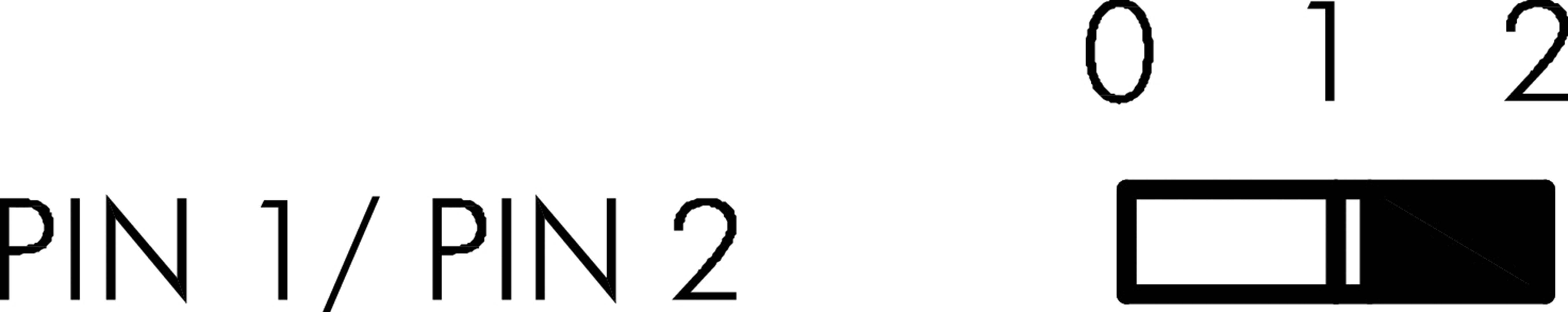

Switch display with numbers '0', '1', '2'. Position '1' is activated. Text 'PIN 1/PIN 2' beside it.

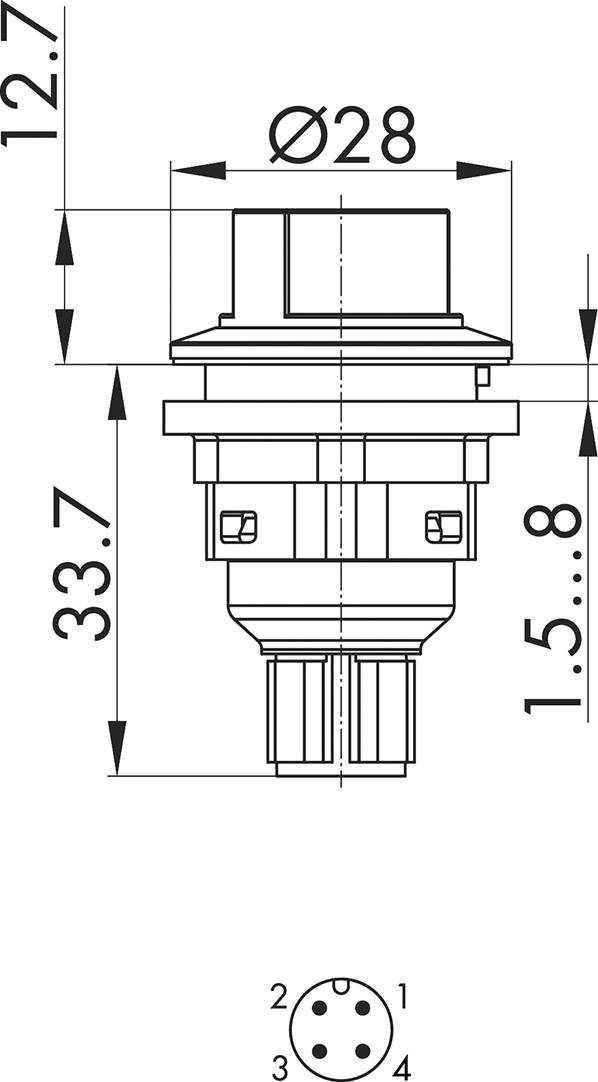

Top view of a cylindrical switch with dimensions: diameter 28 mm, height 33.7 mm. Lower connection shows pin configuration.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SWALI_C005 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: Yes
Writable: no.
Front frame: Silver-colored
Shape: Round
Lamp holder: No, white 3 mm LED integrated

Product type: Selector button

Switch/button features: + LED

Lighting type: LED

Bulb type: LED (monochrome)

Operation type: manually
Rotary switch

Colour: White

Print motif: Blank

Connection: M12 plug

Functions: latch

Contact type: 1 maker

Durability: 30000

Electrical lifespan: 30000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SWALI_C005
