Name: Schlegel SWCII_C009 SWCII_C009 Selector button + rotary switch manually, Rotary switch Silver 1 pc(s)
Brand: Schlegel
SKU: 2238621

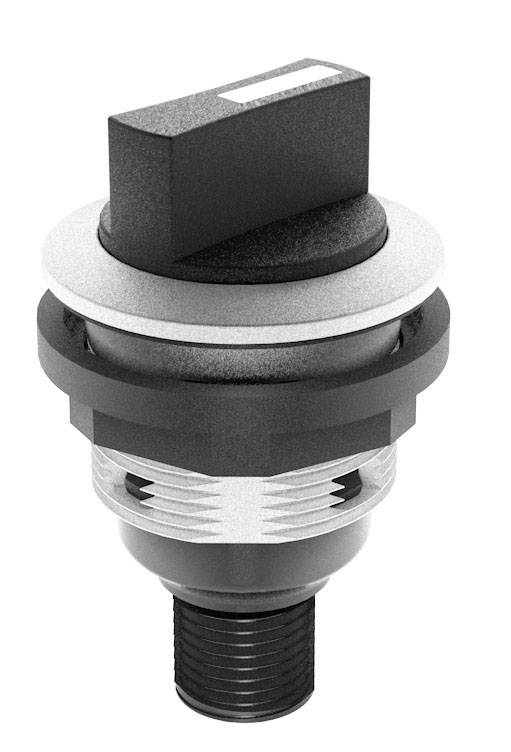

A black rotary switch with a circular base and grooves, suitable for electronic applications.

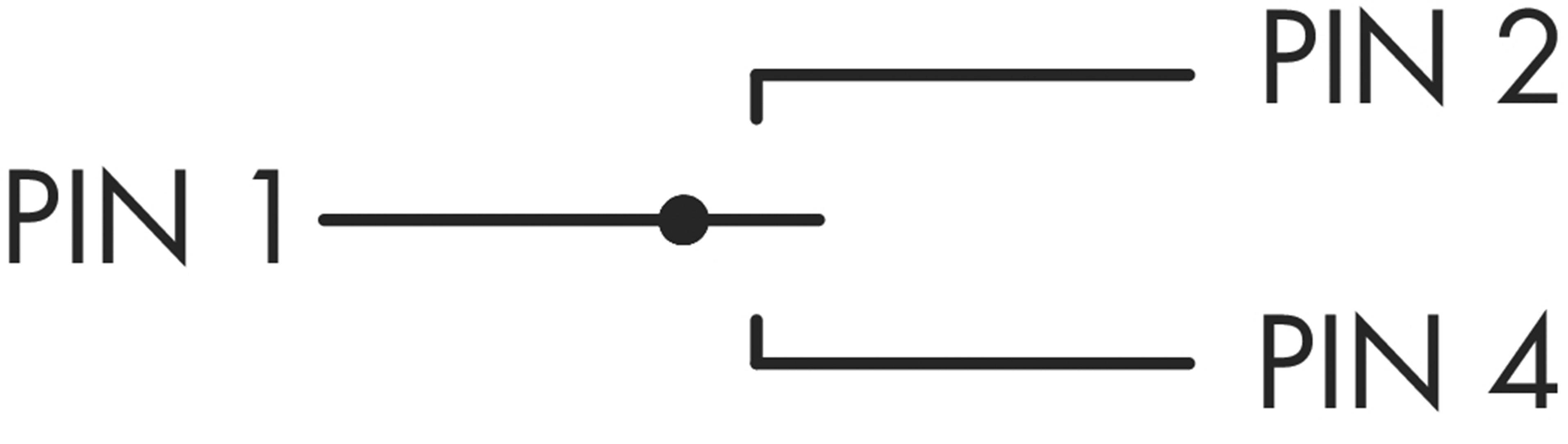

'PIN 1' is connected to a point. Two lines lead to 'PIN 2' and 'PIN 4'.

Circuit diagram shows connection from Pin 1 to Pin 2 and Pin 4. Pin 1 is the starting point, with Pin 2 and Pin 4 connected in parallel.

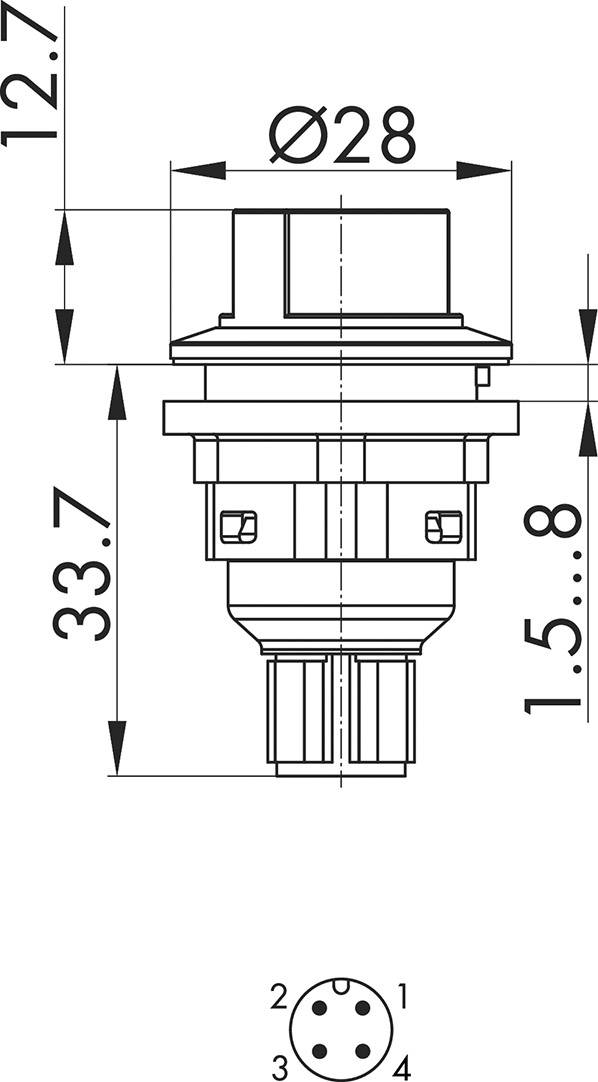

'Drawing of an electrical rotary switch: Diameter 28 mm, height 33.7 mm. Pin configuration shown below. Height measurement 12.7 mm.'

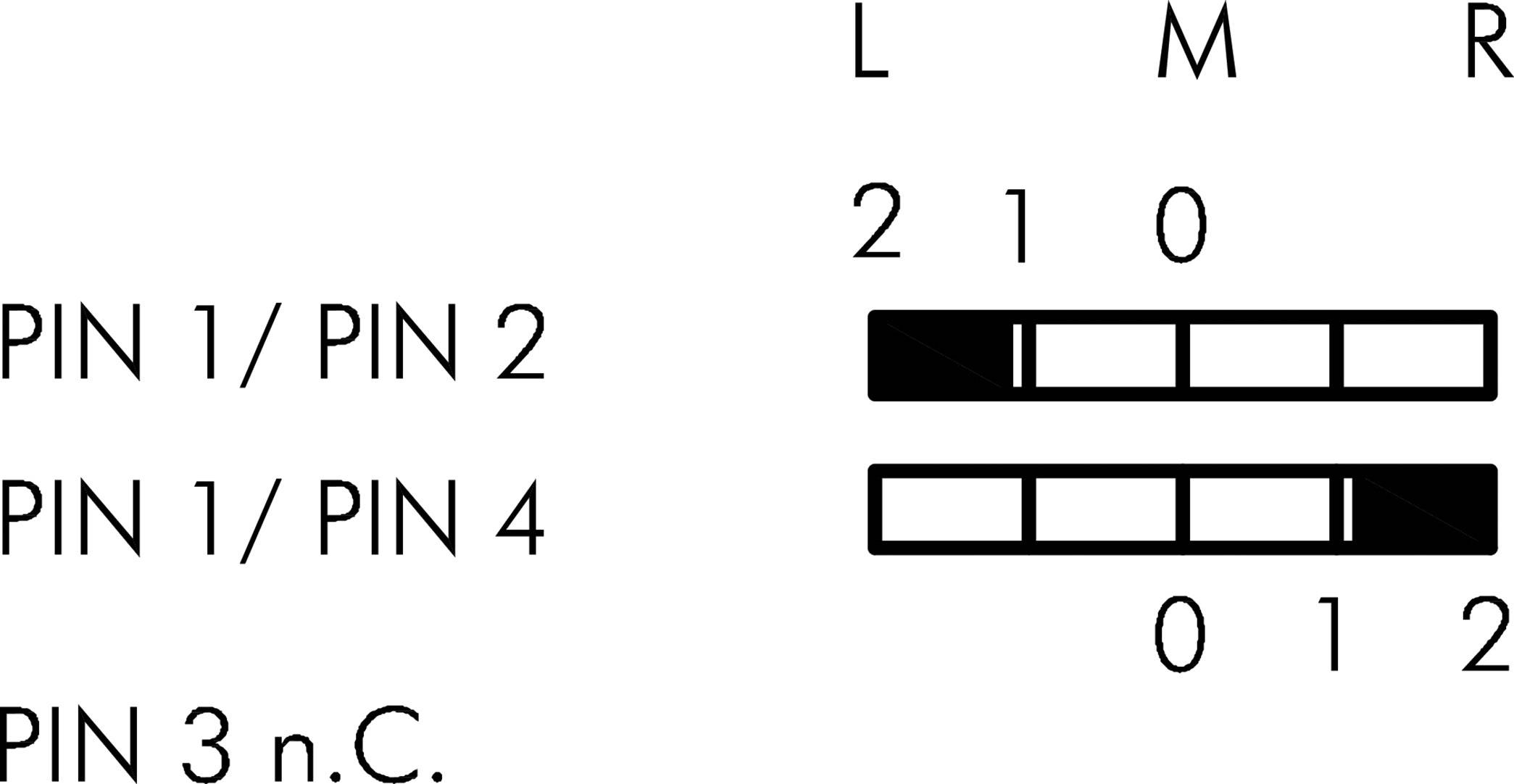

Diagram shows switch position: 'L' for PIN 1/2, 'M' for PIN 1/4, 'R' for PIN 3 not connected. Markings 0, 1, 2 for positions.

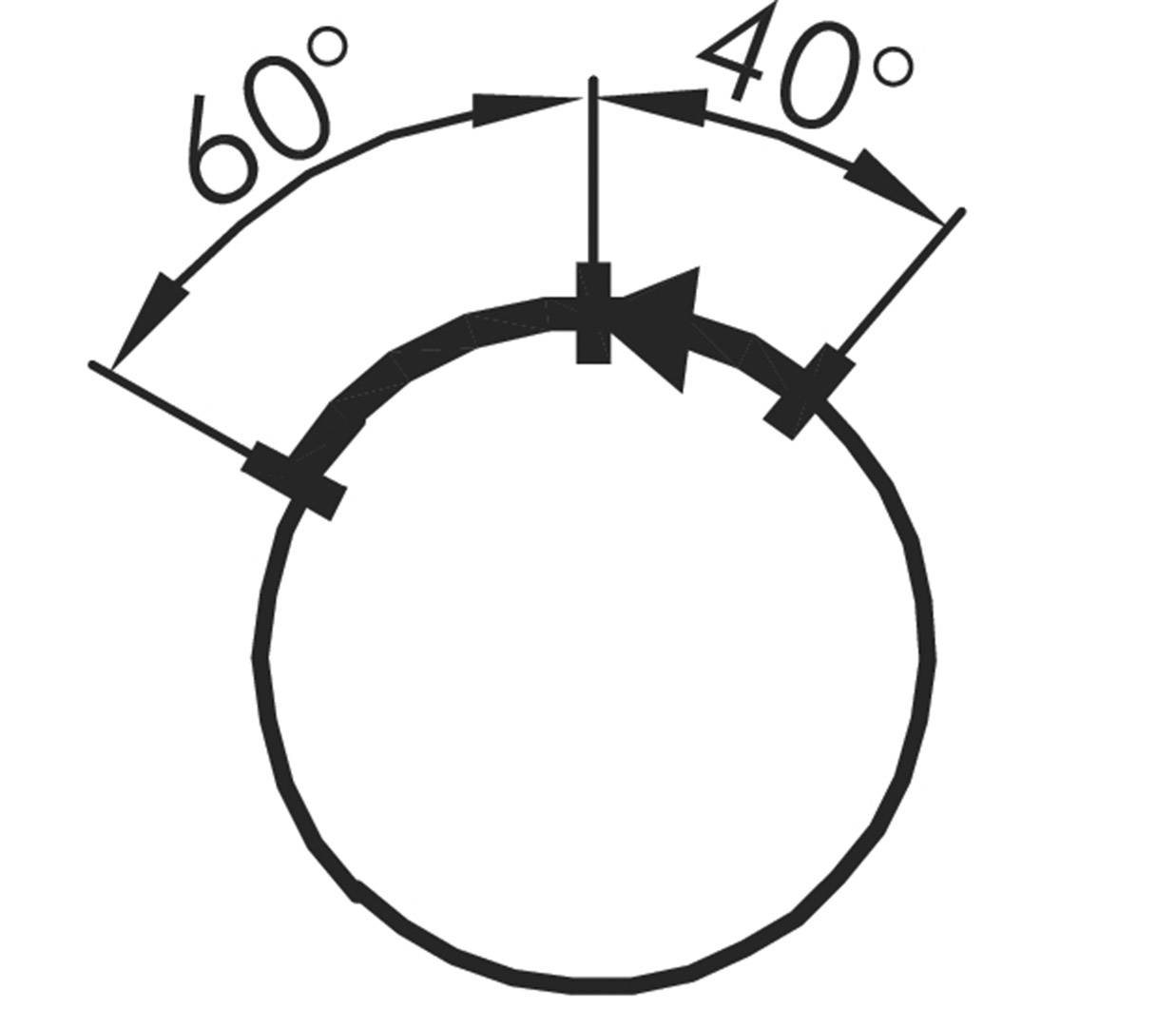

Circle with two angles, 60° and 40°, marked by arrows.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel selection key SWCII_C009 1 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Silver-colored
Shape: Round

Product type: Selector button

Switch/button features: + rotary switch

Lighting type: None

Operation type: manually
Rotary switch

Factory colour: Silver

Connection: M12 plug

Functions: momentary
latch

Contact type: 2 makers

Durability: 30000

Electrical lifespan: 30000

Recess diameter: 22.3 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 50 V DC/AC

Switching current (max.): 4 A

Length: 46.4 mm

Width: 28 mm

Height: 28 mm

Compatible with (details): Series: SHORTRON® connect

Content: 1 pc(s)

Dim: (L x W x H) 46.4 x 28 x 28 mm

RoHS-compliant: Yes

Type: SWCII_C009
