Name: Schlegel YMTLW_0043 YMTLW_0043 Pushbutton 1-way manually, 1-button 5 pc(s)
Brand: Schlegel
SKU: 2238462

A round button with an upward-pointing arrow. The button has silver and black elements and is potentially a push button.

Road sign with a vertical black bar on a white background, indicating the start of a tunnel.

'Circuit diagram of an electronic component with diode symbols and labelled connection points 3 and 4.'

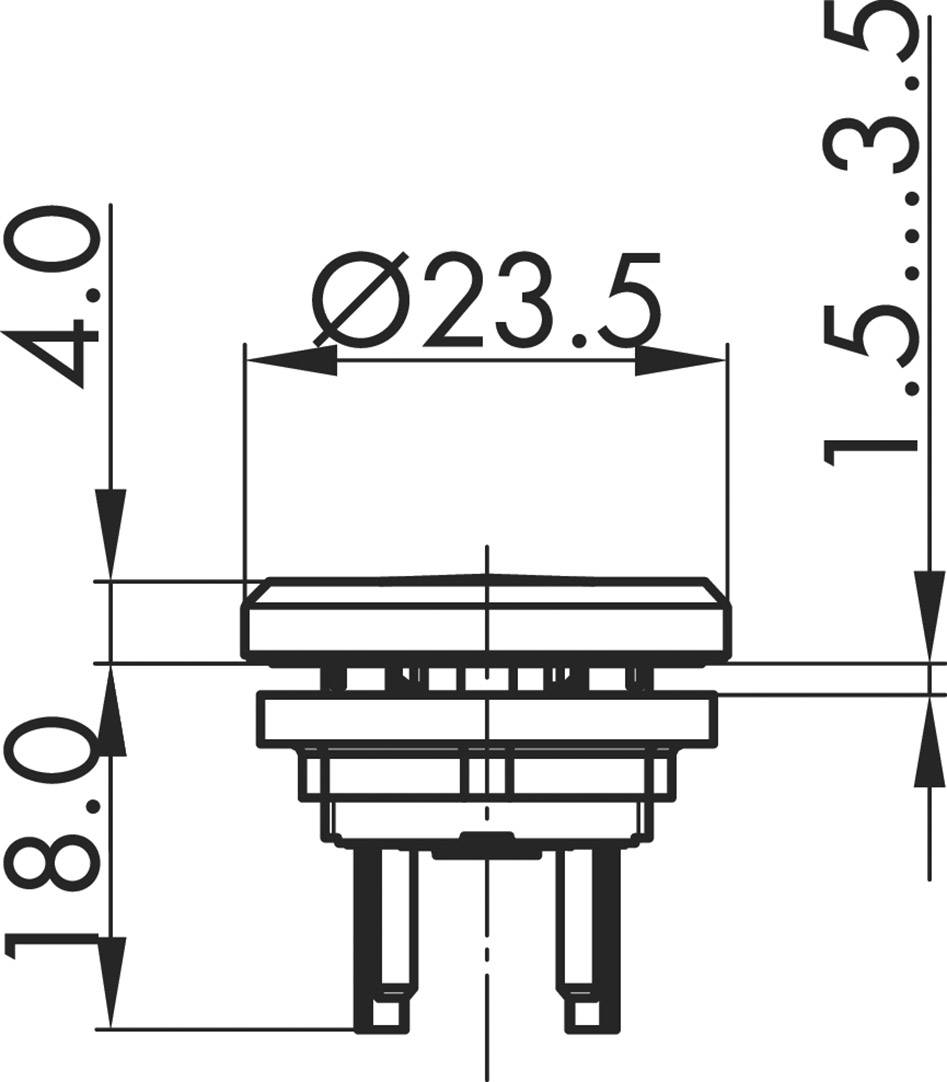

Technical drawing of an electronic component with dimensions: diameter 23.5 mm, height 18.0 mm; connection length 1.5-3.5 mm.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel pushbutton YMTLW_0043 5/pk"

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: Yes
Inscribable: Yes
Front frame: Silver-colored
Shape: Round

Product type: Pushbutton

Switch/button features: 1-way

Lighting type: LED

Bulb type: LED (monochrome)

Operation type: manually
1-button

Colour: White

Print motif: 1

Connection: CEE 7/16 CEE plug

Functions: momentary

Contact type: 1 maker

Durability: 500000

Electrical lifespan: 500000

Recess diameter: 16.2 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 30 V AC
42.4 V

Switching current (max.): 100 mA

Switch position: 1 x Off/(On)

Length: 22 mm

Width: 24 mm

Height: 24 mm

Compatible with (details): Series: MYnitron®

Content: 5 pc(s)

Dim: (L x W x H) 22 x 24 x 24 mm

RoHS-compliant: Yes

Type: YMTLW_0043

Variants(All information is without VAT, plus shipping costs)

Functions

Lighting type

Recess diameter
