Name: Schlegel YTGS YTGS Pushbutton 1-way manually, 1-button Black 5 pc(s)
Brand: Schlegel
SKU: 2238433

Black round push switch with three metal terminals, suitable for mounting on a printed circuit board.

Diagram shows an electrical circuit diagram with a transformer, marked with '3', '+', '-', '4' and three connected cables.

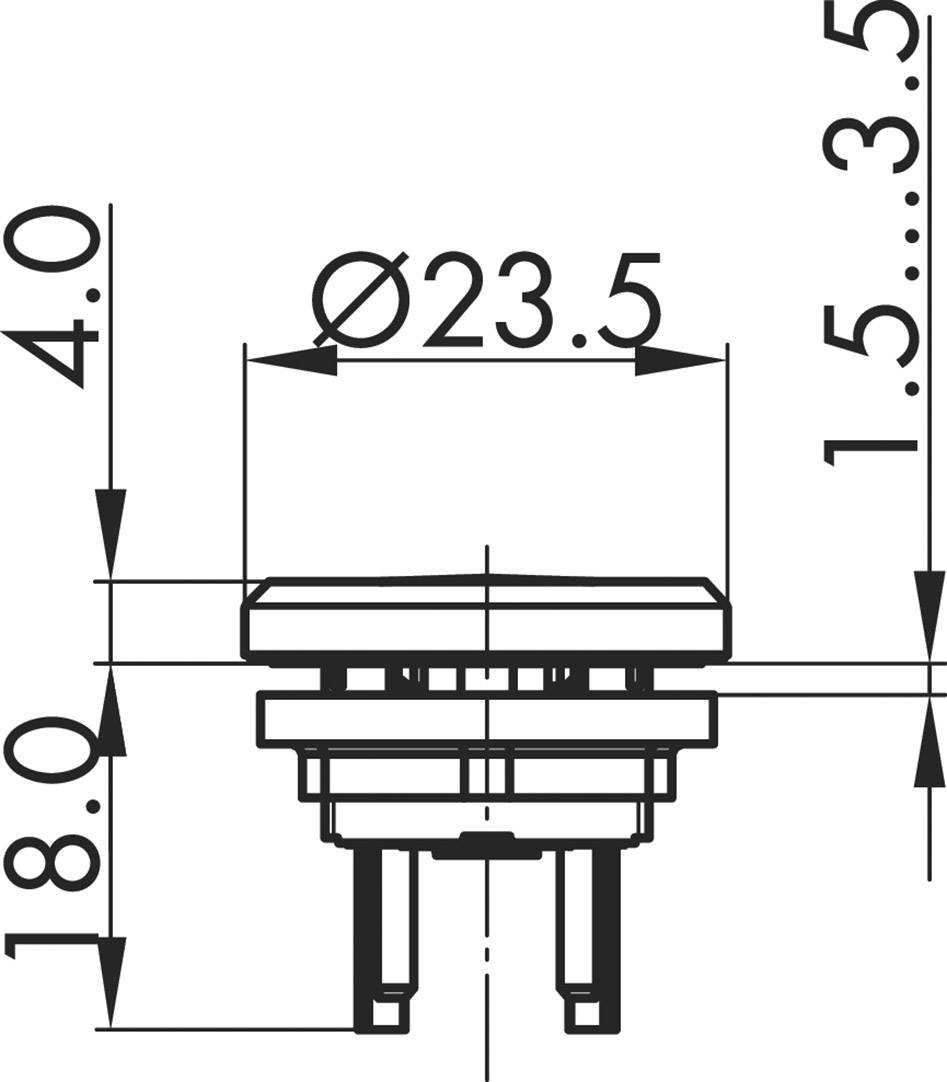

Technical drawing of a connector with dimensions: height 18 mm, width 23.5 mm, hole diameter 4 mm.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel pushbutton YTGS 5 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Black
Shape: Round

Product type: Pushbutton

Switch/button features: 1-way

Lighting type: None

Operation type: manually
1-button

Factory colour: Black

Connection: CEE 7/16 CEE plug

Functions: momentary

Contact type: 1 maker

Durability: 500000

Electrical lifespan: 500000

Recess diameter: 16.2 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 30 V AC
42.4 V

Switching current (max.): 100 mA

Switch position: 1 x Off/(On)

Length: 22 mm

Width: 24 mm

Height: 24 mm

Compatible with (details): Series: MYnitron®

Content: 5 pc(s)

Dim: (L x W x H) 22 x 24 x 24 mm

RoHS-compliant: Yes

Type: YTGS

Variants(All information is without VAT, plus shipping costs)

Functions

Lighting type

Recess diameter
