Name: Schlegel YTW YTW Pushbutton manually, 1-button 5 pc(s)
Brand: Schlegel
SKU: 2238398

Round black push button with metal contacts underneath, used as a switch in electrical devices.

Diagram shows circuit with a switch and four connections. Labels '+', '-', '3', '4' on right-hand terminals.

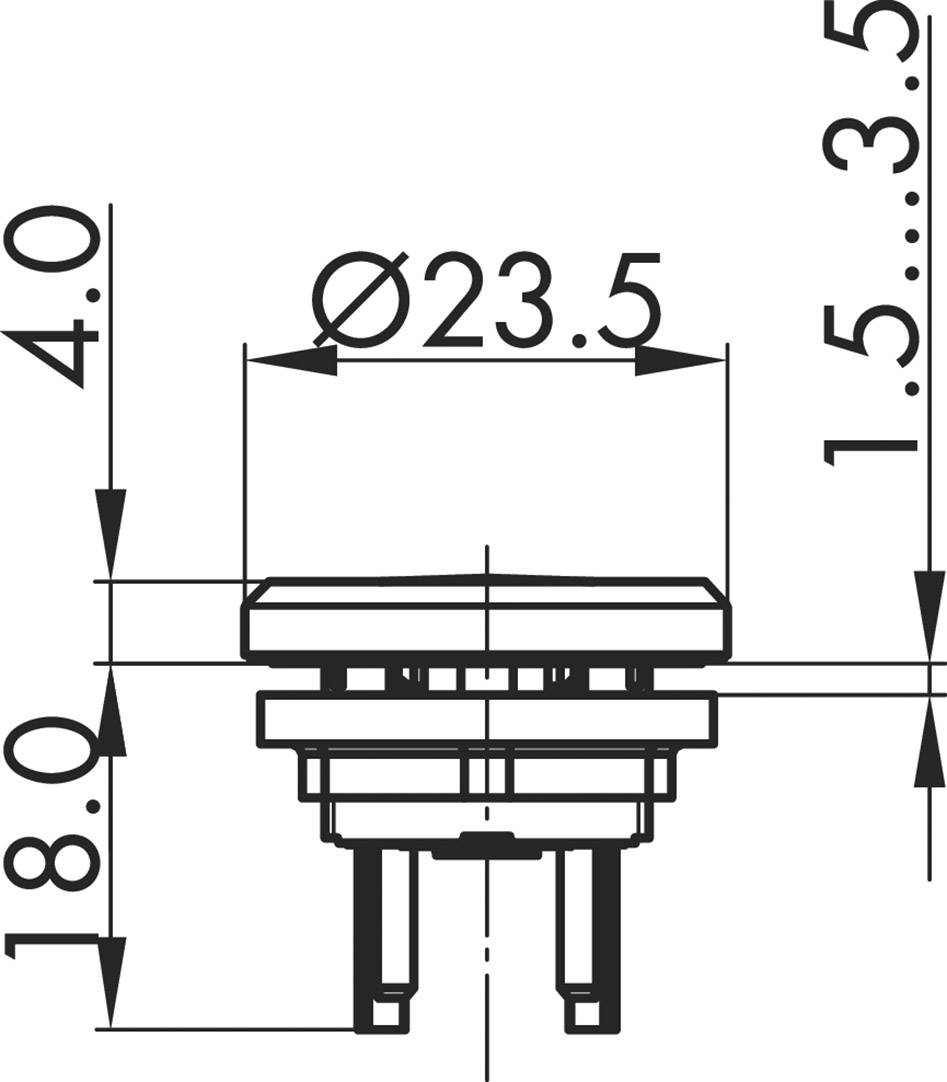

Technical drawing of a round electronic component with dimensions: Diameter 23.5 mm, height 18 mm, additional height 1.5-3.5 mm.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

"Schlegel pushbutton YTW 5 pcs."

Our service for you

Technical specifications

Protection class II (protective insulation)
Lighting: no.
Writable: no.
Front frame: Black
Shape: Round

Product type: Pushbutton

Lighting type: None

Operation type: manually
1-button

Case colour: Black

Connection: CEE 7/16 CEE plug

Functions: momentary

Contact type: 1 maker

Durability: 500000

Electrical lifespan: 500000

Recess diameter: 16.2 mm

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +70 °C

Switching voltage: 30 V AC
42.4 V

Switching current (max.): 100 mA

Switch position: 1 x Off/(On)

Length: 22 mm

Width: 24 mm

Height: 24 mm

Compatible with (details): Series: MYnitron®

Content: 5 pc(s)

Dim: (L x W x H) 22 x 24 x 24 mm

RoHS-compliant: Yes

Type: YTW

Variants(All information is without VAT, plus shipping costs)

Functions

Lighting type

Recess diameter
