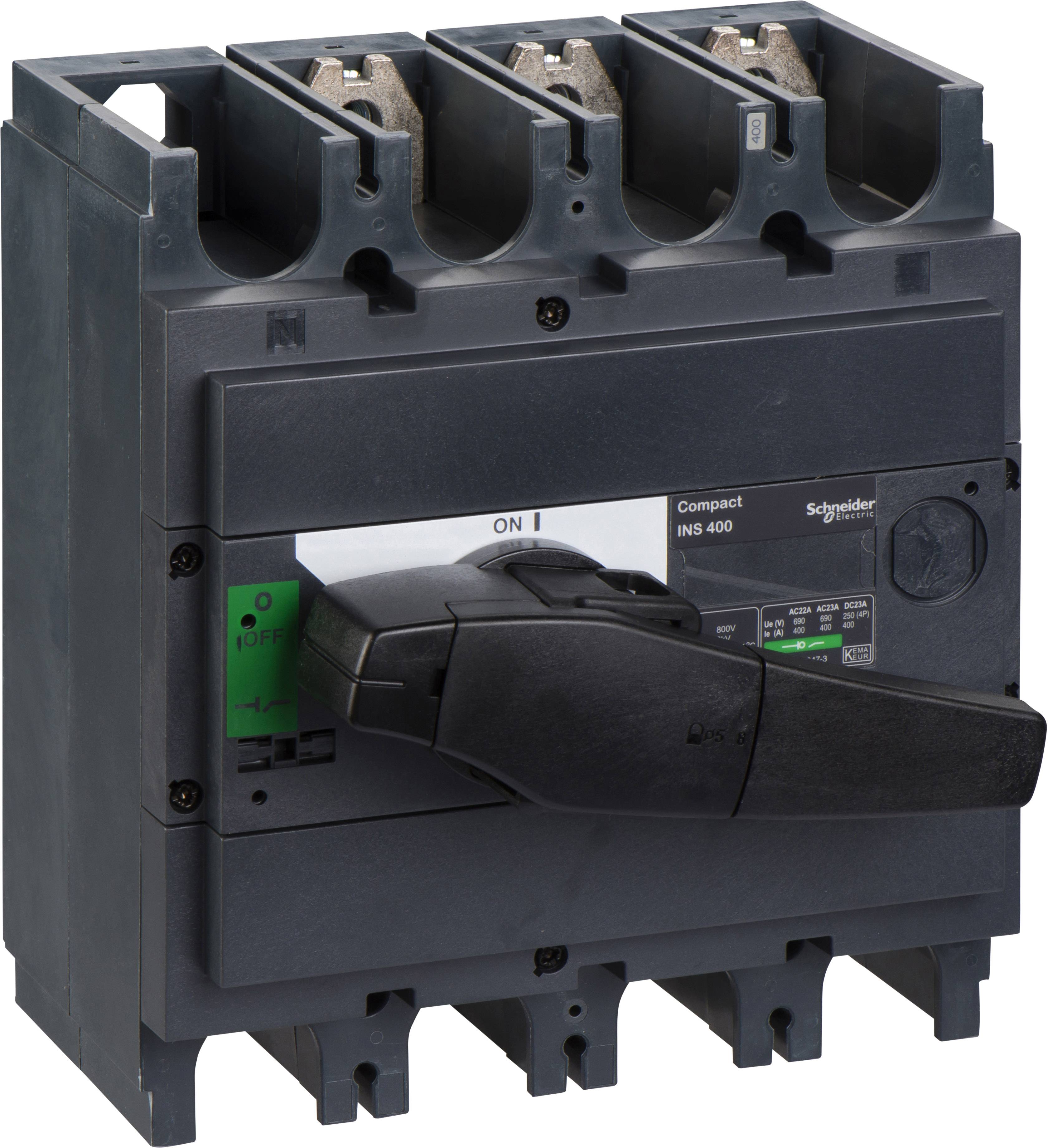

Schneider Electric 31110 Isolator switch + lever 400 A 125 V DC, 690 V AC Black 1 pc(s)

Lasttrennsch. The 400, 3P, 400 A/690 V DC/AC, black rotary lever. Series: Compact-product or component type: Switch Disconnectors Product Name: The 400-Description of Poles: 3P-network connection: AC, DC-network frequency: 50/60 Hz-rated operational current Ie: AC-23A: 400 A AC 50/60 Hz 480 V NEMA, AC-22A: 400 A AC 50/60 Hz 660/690 V, AC-22A: 400 A AC 50/60 Hz 380/415 V, AC-23A: 400 A AC 50/60 Hz 380/415 V, DC-23 A: 400 A DC 125 V 2 poles in series, AC-22A: 400 A AC 50/60 Hz 500/525 V, AC-23A: 400 A AC 50/60 Hz 660/690 V, DC-22 A: 400 A DC 125 V 2 poles in series, AC-22A: 400 A AC 50/60 Hz 480 V NEMA, AC-23A: 400 A AC 50/60 Hz 440/480 V, AC-23A: 400 A AC 50/60 Hz 220/240 V, AC-22A: 400 A AC 50/60 Hz 440/480 V, AC-22A: 400 A AC 50/60 Hz 220/240 V, AC-23A: 400 A AC 50/60 Hz 500/525 V voltage resistance [Uimp Bemessungssto?]: 8 kV gema? IEC 60947-3, 8 kV-rated short-circuit jack-breaking capacity. Icm: 330 kA 690 V AC 50/60 Hz with an upstream protective circuit breakers, 50 kA 690 V AC 50/60 Hz cut-off switch alone-rated operational voltage Ue: 125 V DC, 690 V AC 50/60 Hz-plus contact display: Yes - visible break: no.

This text is machine translated.
