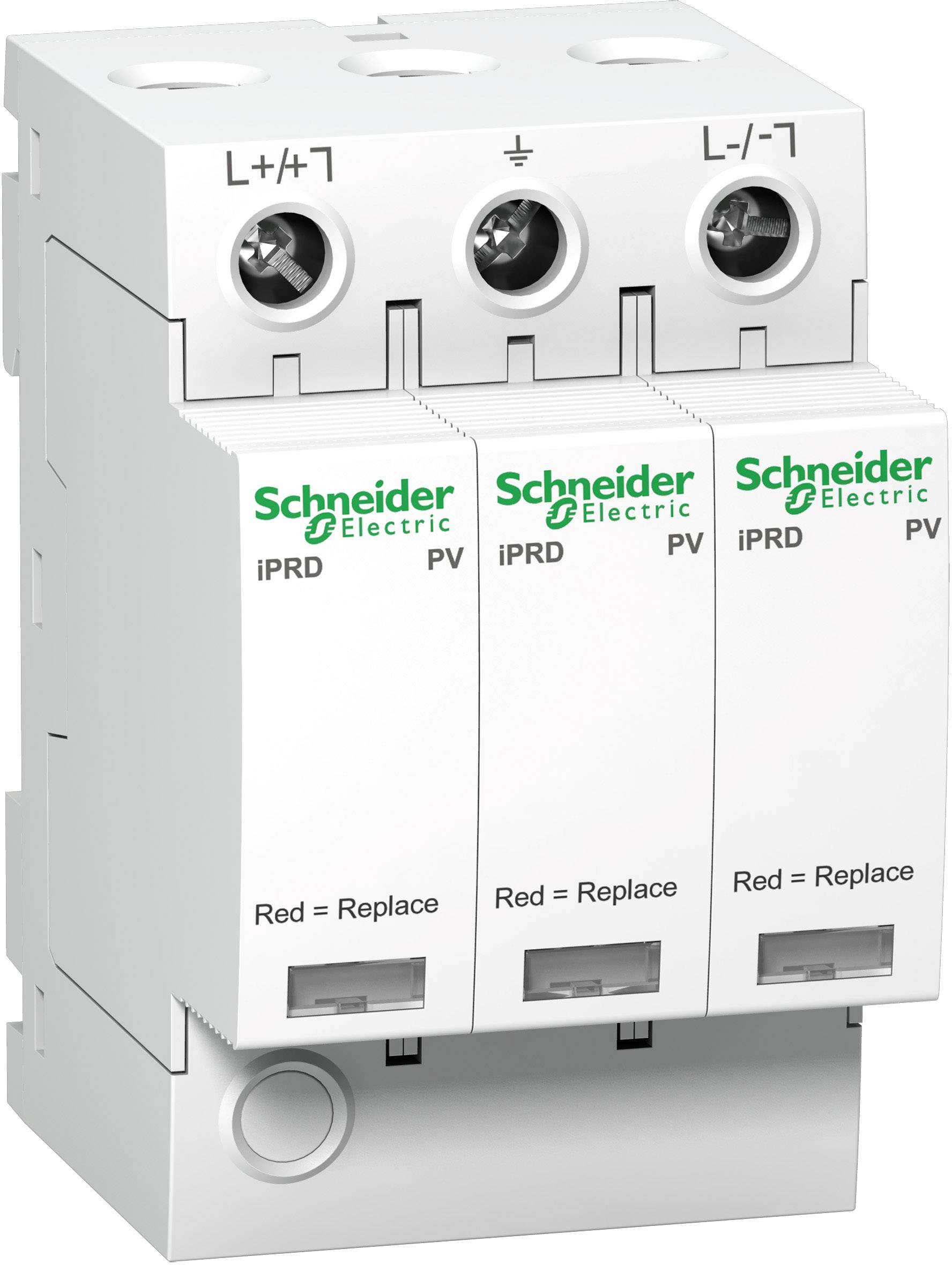

Schneider Electric A9L40271 A9L40271 Surge arrester Surge protection for: PV systems 40 kA Single 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Surge arrester
- Surge protection for
PV systems
- Leakage current
40 kA
- Nominal voltage
800 V DC
- Pick-up time (details)
25 ns
- Operating temperature
-25°C-60 °C
IP40
IP20
- Manufacturer part #
A9L40271
- Factory colour
White
- Dim
(W x H x D) 54 x 85 x 69 mm
- Width
54 mm
- Height
85 mm
- Depth
69 mm
- Content
1 pc(s)
- Packaging type
Single
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863744 Schneider Electric A9L40271 A9L40271 Surge arrester Surge protection for: PV systems 40 kA Single 1 pc(s)
Description
Surge suppressor. iPRD PV-DC40r 800 V, Type 2, 2P, Imax 40 kA. Product range: iPRD-DC-product or component type: lightning arresters with pluggable protection module-Output Type: contact (voltage-free) - Combined Mens. d. Signal contacts: 1 SD (1W) type. d. Surge arrester: electrical distribution network.
