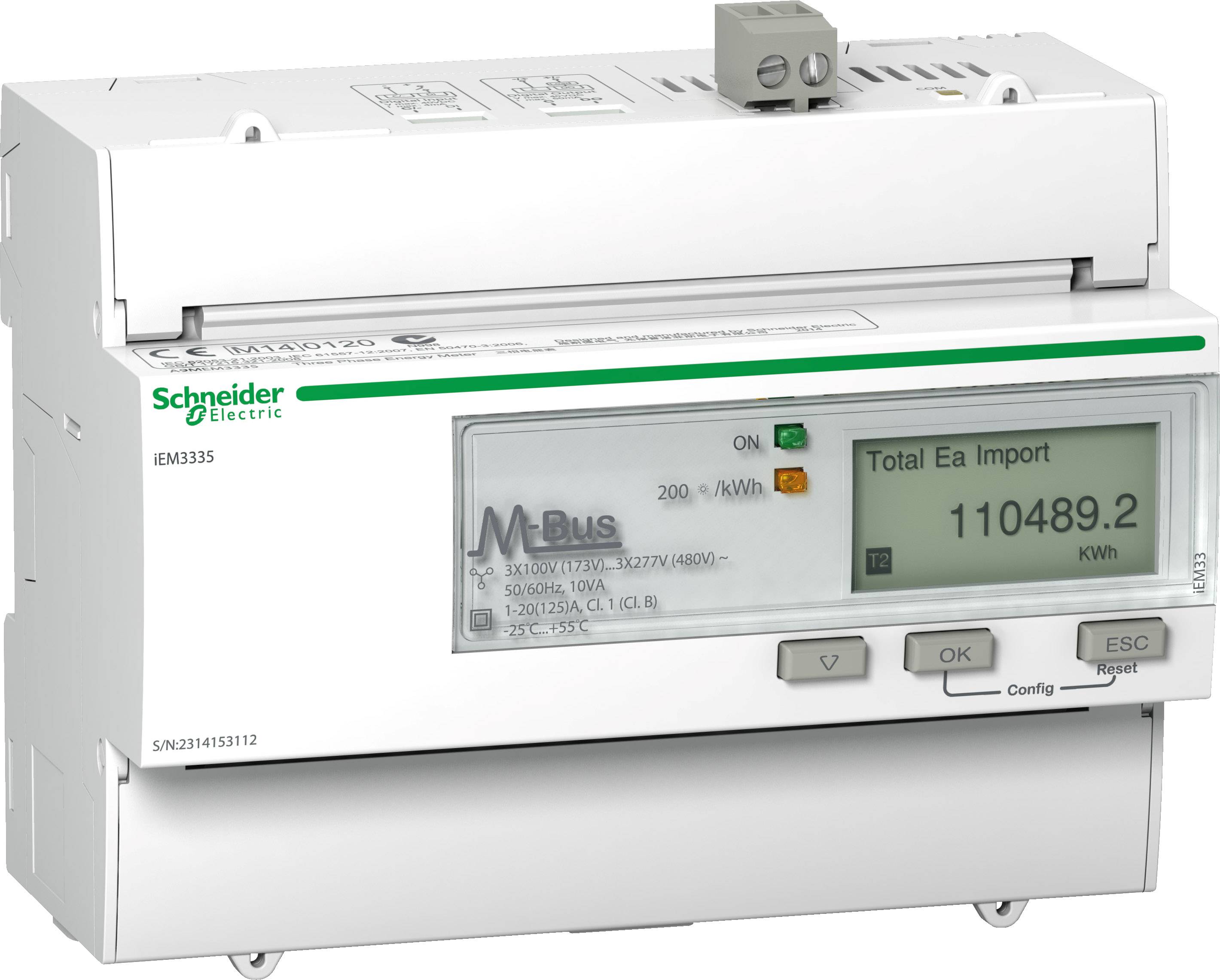

Schneider Electric A9MEM3335 A9MEM3335 Electricity meter Digital 125 A MID-approved: Yes Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter
Current load
125 A
Display
Digital
Calibration
Calibrated
Operating voltage
100V-277V | | 173 V-480 V
Datasheet (PDF)
Technical specifications
- Product type
Electricity meter
- Current load
125 A
- Display
Digital
- Calibration
Calibrated
- Operating voltage
100V-277V | | 173 V-480 V
- Factory colour
White
- Dim
(L x W x H) 69.3 x 126 x 103.2 mm
- Operating voltage
480 V
- Frequency
60 Hz
- Accuracy class
B
- MID-approved
Yes
- Reading type
Energy consumption
- Width
126 mm
- Height
103.2 mm
- Length
69.3 mm
- Current (max.)
125 A
- Current range
125 A (max)
- Type
A9MEM3335
- Packaging type
Piece
- Effective current range
125 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1863931 Schneider Electric A9MEM3335 A9MEM3335 Electricity meter Digital 125 A MID-approved: Yes Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1863931 Schneider Electric A9MEM3335 A9MEM3335 Electricity meter Digital 125 A MID-approved: Yes Piece 1 pc(s)
Description
IEM 3335 energy counter, 3-phase, 125 A, M-Bus, 1E/1A, 4 tariffs. Series: Activsense 9-Product Name: Activsense 9 iEM 3000 - Short description of the device: iEM 3335 product or component type: energy meter.
