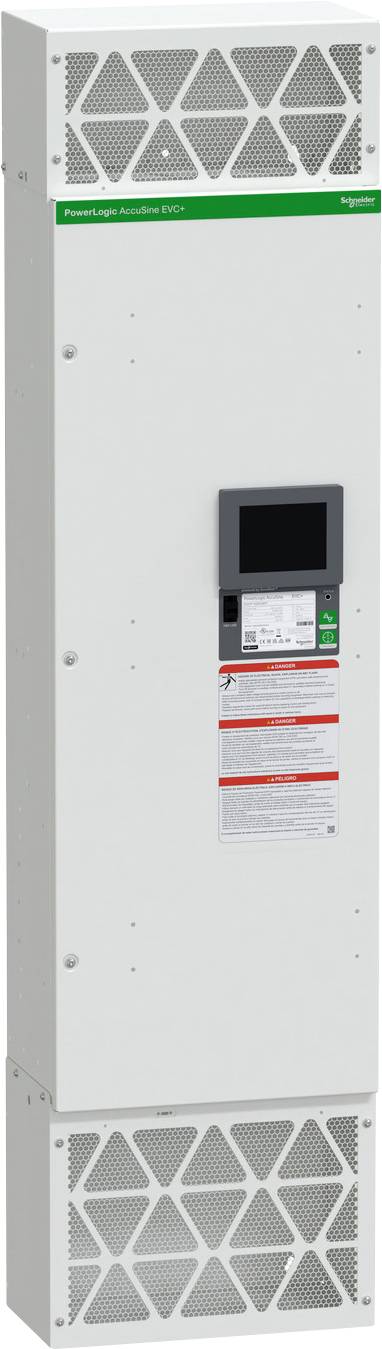

Schneider Electric EVCP100D5W01 Electronic VAR compensation, PowerLogic EVC+, 100kvar, 208-480V, UL type 1 Active reacti
EAN:
Part number:
Item no:
Product type
Active reactive power compensation
Dim
(W x H x D) 445 x 1740 x 280 mm
Content
1 pc(s)
Width
445 mm
Height
1740 mm
Datasheet (PDF)
Technical specifications
- Application: Power quality
- Number of phases: 3
- Rated operating current Ie at AC-1: 263 A.
- Rated operating current Ie at AC-3: 263 A.
- With Ethernet communication interface: Yes
- With RS-232 communication interface: No.
- With RS-485 communication interface: No.
- Voltage type of supply voltage: AC
- Supports protocol for CAN: No.
- Supports protocol for Modbus: Yes
- Supply voltage 208-480 V
- Product type
Active reactive power compensation
- Dim
(W x H x D) 445 x 1740 x 280 mm
- Content
1 pc(s)
- Width
445 mm
- Height
1740 mm
- Depth
280 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763378 Schneider Electric EVCP100D5W01 Electronic VAR compensation, PowerLogic EVC+, 100kvar, 208-480V, UL type 1 Active reacti
User & Safety Instructions
User & Safety Instructions 3763378 Schneider Electric EVCP100D5W01 Electronic VAR compensation, PowerLogic EVC+, 100kvar, 208-480V, UL type 1 Active reacti
Description
Active reactive power compensation from the AccuSine family, which contributes to the stabilization of electrical networks by fast reactive power compensation, load balancing and harmonic reduction. It is specially designed for demanding electrical conditions, for commercial buildings, industrial facilities and health facilities. This version has protection class UL Type 1 and can be connected to low voltage networks with a voltage of 208 to 480 volts. The device is specified for reactive power of 100 kvar at 480 V AC 50/60 Hz. The housing is wall-mounted, allowing the cable entry from below.
