Schneider Electric EVP1SSS43 eMobility accessories
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection technology: Screw terminals
- Number of communication contacts: 1
- Contact material: Other
- LED integrated: No.
- Nominal current max. 32 A
- With locking actuator: No.
- With access lock: No.
- Nominal voltage: 415 V
- Surface treatment contacts: Silver-plated
- Cross-section of the power contacts: 12-12 mm²
- Standard: Type 2
- Current type AC 3-phase
- Product type
eMobility accessories
- Nominal voltage
415 V
IP55
- Width
234.45 mm
- Height
194.92 mm
- Depth
110 mm
- Type
Charging socket
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3754735 Schneider Electric EVP1SSS43 eMobility accessories
User & Safety Instructions
User & Safety Instructions 3754735 Schneider Electric EVP1SSS43 eMobility accessories
Description

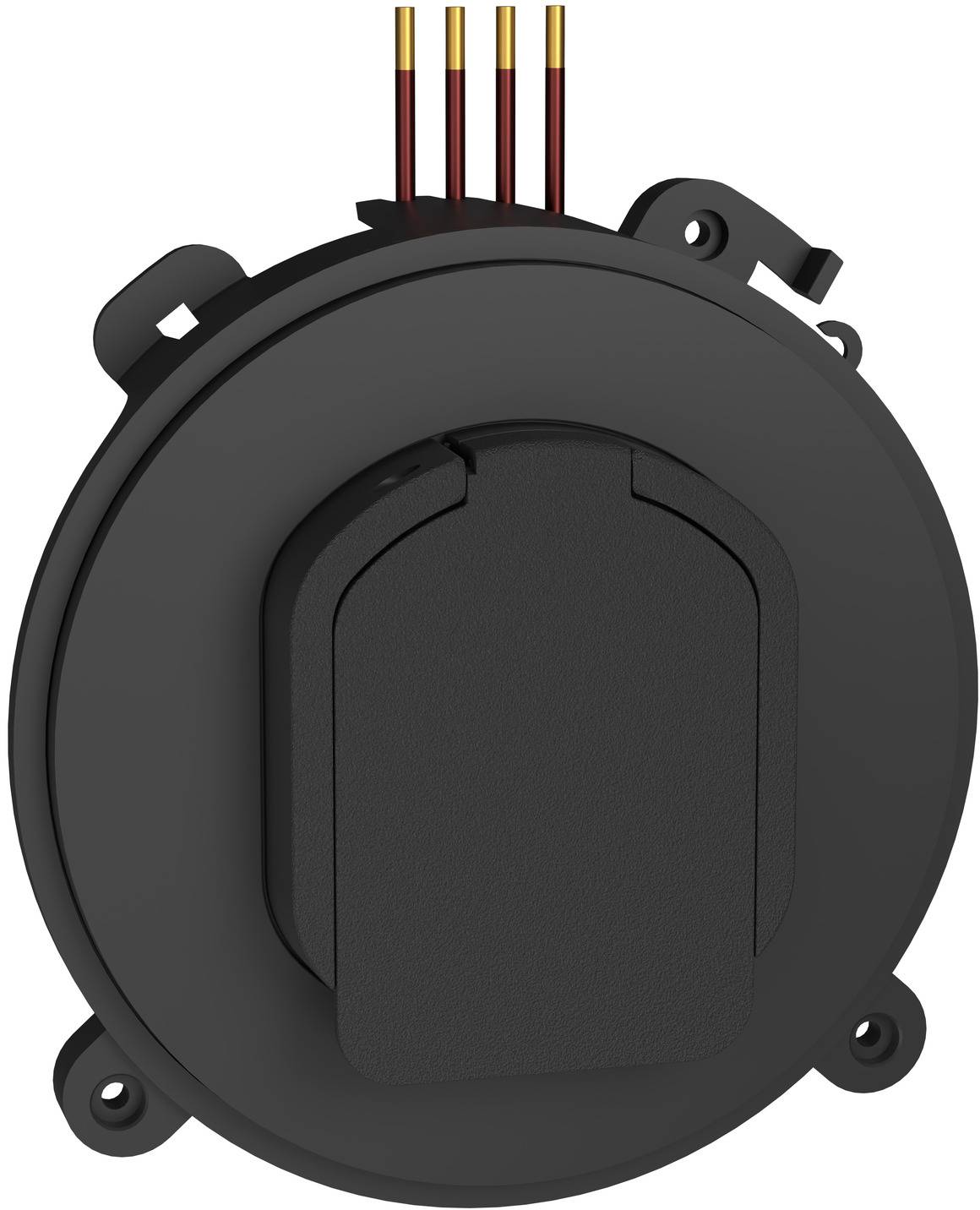

EVlink Pro AC Spare part type 2 socket with shutter with silver-plated contacts. 3-phase connection, max. Operating current 32A, 22 kW. Protection class IP55, shock resistance IK10. Operating temperature: -30°C to +50°C, storage temperature: -40°C to +80°C. Dimensions WxHxD 195mm x 235.5mm x 110mm.
