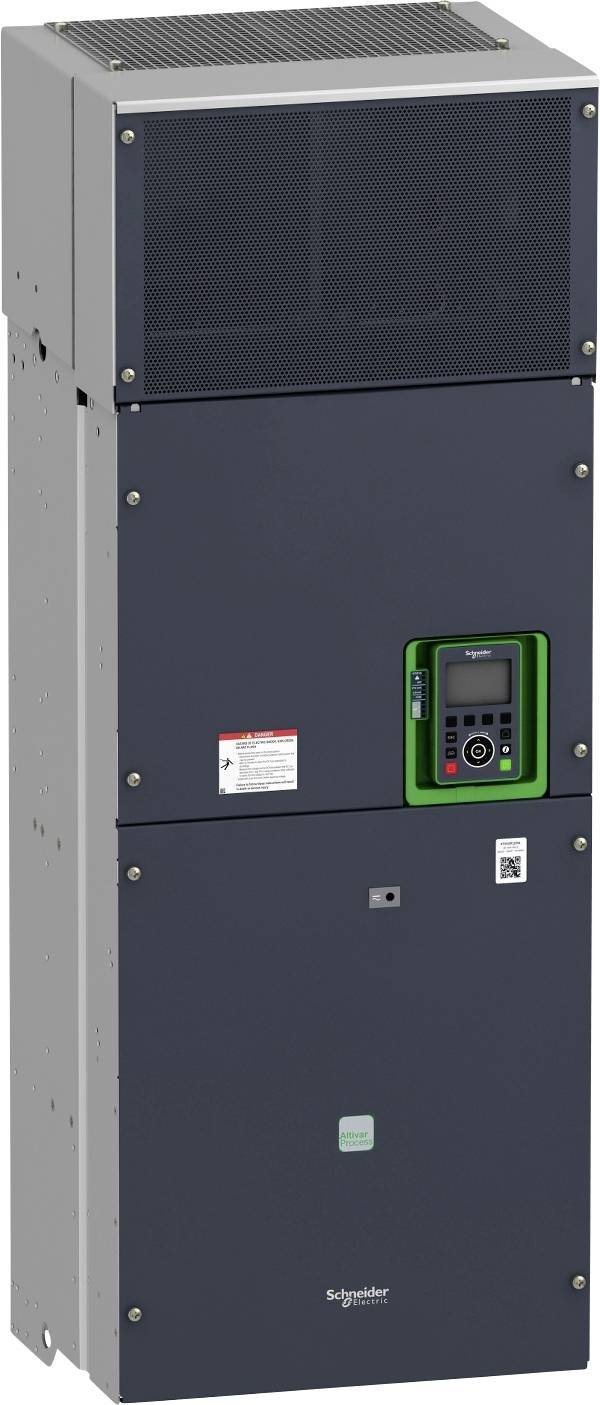

Image similar
Schneider Electric Frequency inverter ATV630C22N4 220 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Modbus TCP; Ethernet; Modbus. Serial
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated frequency 2.5 kHz
- Apparent power 247 kVA at 480 V (standard overload); 187 kVA at 480 V (high overload)
- Operating ambient temperature -10…40 °C (without load reduction); 40…60 °C (with)
- Engine Power (HP): 350 HP standard overload; 250 HP high
- Output rated current: 302 A at 2.5 kHz for high overload; 427 A at 2.5 kHz for standard overload
- Noise level 66 dB
- Cooling air volume: 860 m3/h.
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
220 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
397 A
- Depth
380 mm
- Height
1195 mm
- Width
440 mm
IP00
IP21
- Type
ATV630C22N4
- Filter class
C3
- Dim
(W x H x D) 440 x 1195 x 380 mm
- Manufacturer part #
ATV630C22N4
- Weight
172 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373974 Schneider Electric Frequency inverter ATV630C22N4 220 kW 3-phase 380 V, 480 V
What kind of Frequency Inverters are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
€ 2,620.84*
