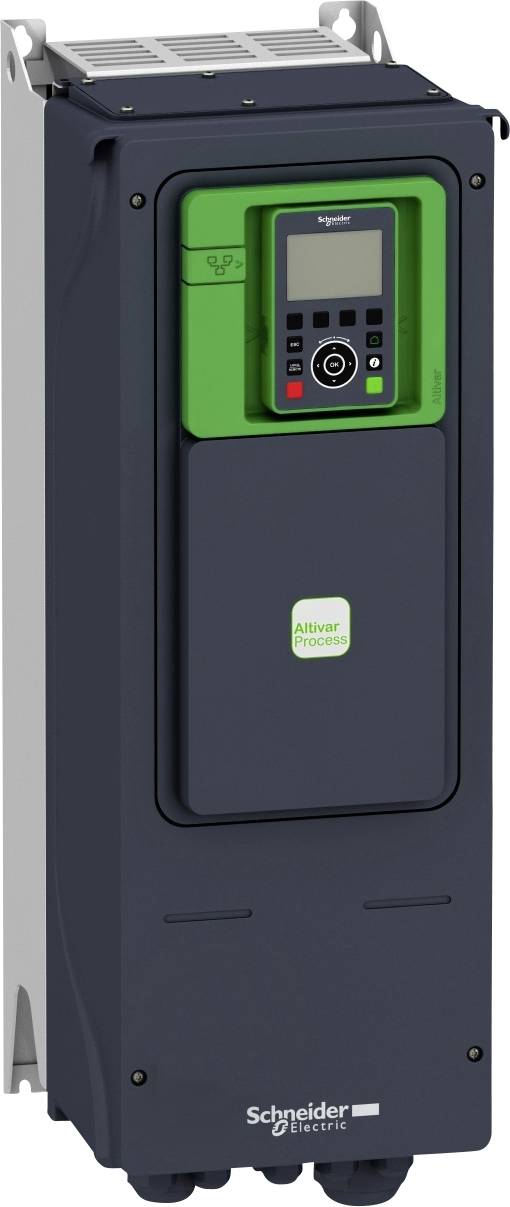

Image similar
Schneider Electric Frequency inverter ATV650D18N4 18.5 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Modbus TCP; Modbus. Serial; Modbus TCP
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated clock frequency 4 kHz
- Apparent power 15 kVA at 480 V (high overload); 24 kVA at 480 V (standard overload)
- Operating ambient temperature 40…50 °C (with); -15…40 °C (without load reduction)
- Engine Power (HP): 15 HP high overload; 25 HP standard overload
- Output rated current: 23.5 A at 4 kHz for high overload; 39.2 A at 4 kHz for standard overload
- Noise level 53.7 dB
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
18.5 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
33.4 A
- Depth
299 mm
- Height
678 mm
- Width
264 mm
IP55
- Type
ATV650D18N4
- Filter class
C2
- Dim
(W x H x D) 264 x 678 x 299 mm
- Manufacturer part #
ATV650D18N4
- Weight
20.6 kg
- UKCA
yes
