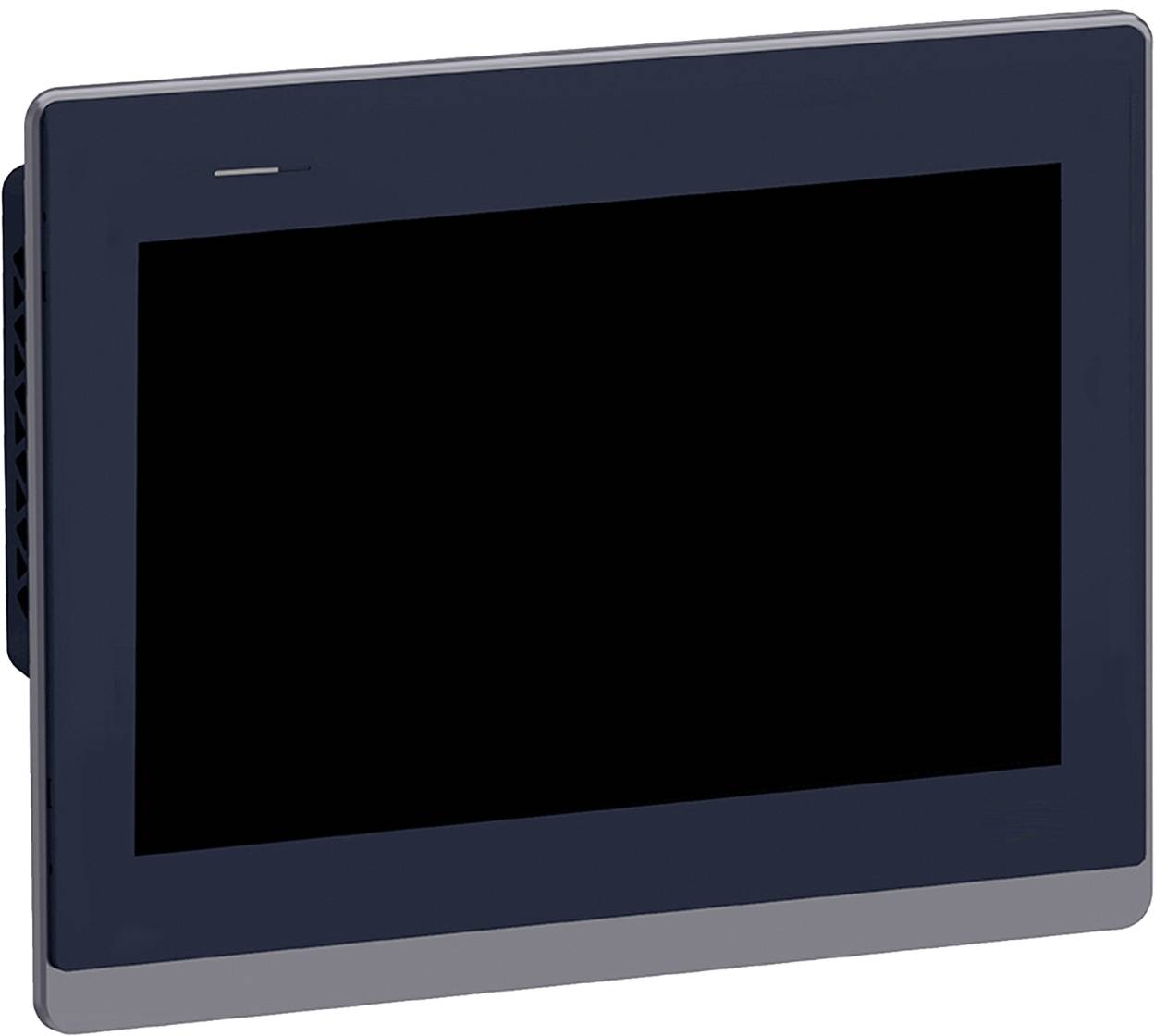

Schneider Electric HMIST6500FW HMIST6500FW PLC touch panel

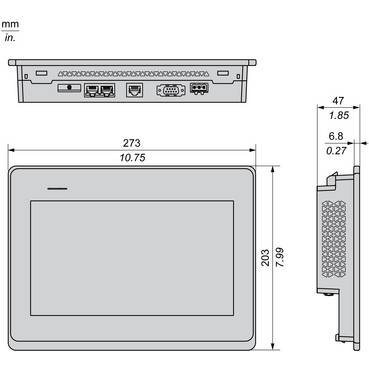

This logo-free HMI panel is part of the Schneider Electric Harmony ST6 product line. This touch-sensitive HMI consists of an aluminum front plate with a multi-colored status display that shows the different operating modes. This HMI interface is 10.1-inch wide with 16 million colors and a resolution of 1024 x 600 pixels (SVGA). It is supported by EcoStruxure Operator Terminal Expert software, which enables intuitive user guidance. It possesses a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data storage and 512 KB backup memory. This HMI ST6 No Logo model supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and its weight is 1.30kg. It is intended for industries such as packaging, food and beverages, textiles, HVAC systems and compressors, as well as for end-users who want to maintain their Web equipment. It complies with standards such as EN (61000-6-4, 61131-2-2, 61000-6), UL 61010-2-201, CSA C22.2 No. 61010-2-201 and certifications such as CSA, CE, China RoHS, KC and REACH. This product line is designed to meet the needs of simple machine operators for good visualization, connectivity, cyber security with EcoStruxure Secure Connect Advisor and low-cost devices. The different protection types are: IP65F, Type 1, Type 4X (indoor only), Type 13 (on the front panel if properly installed in a housing).
