Name: Schneider Electric LC1D32B7 Electrical contactor 3 makers 15 kW + auxiliary contact Piece 1 pc(s)
Brand: Schneider Electric
SKU: 1979132

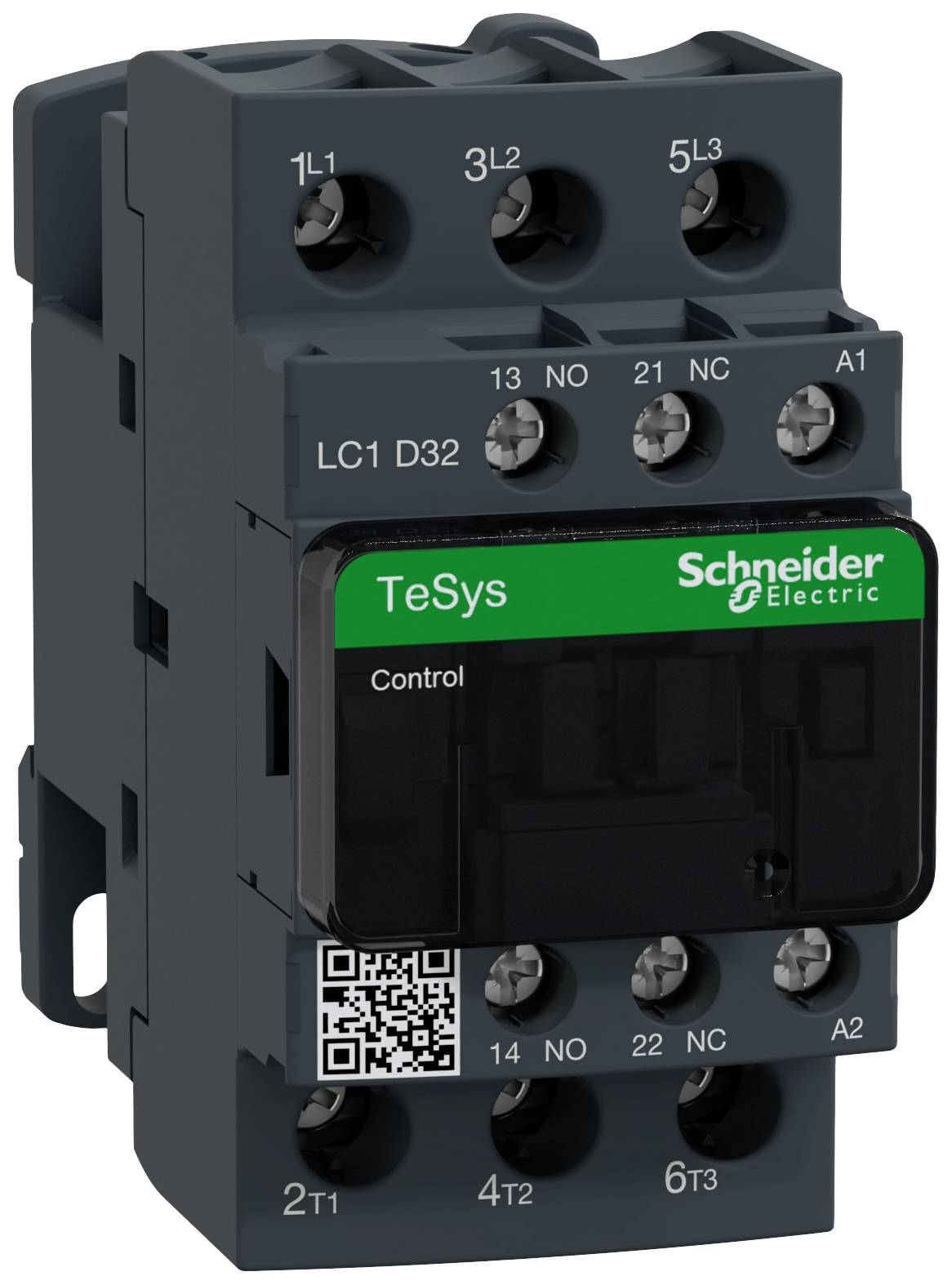

'TeSys' contactor by Schneider Electric with model number LC1 D32, showing electrical connections and control markings on the front panel.

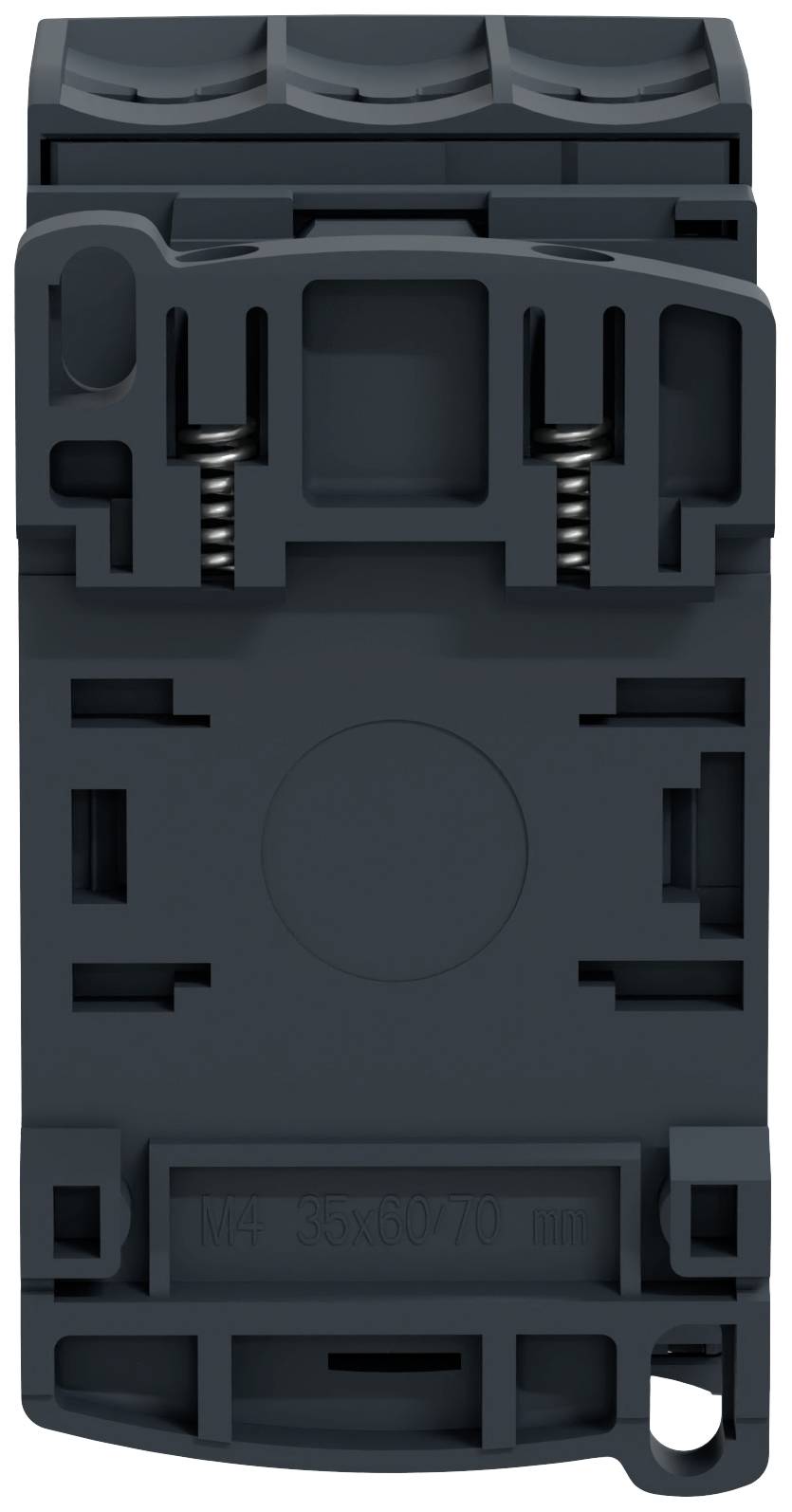

A black electrical component, rectangular in shape, with two springs visible. It appears to be a cable mounting element.

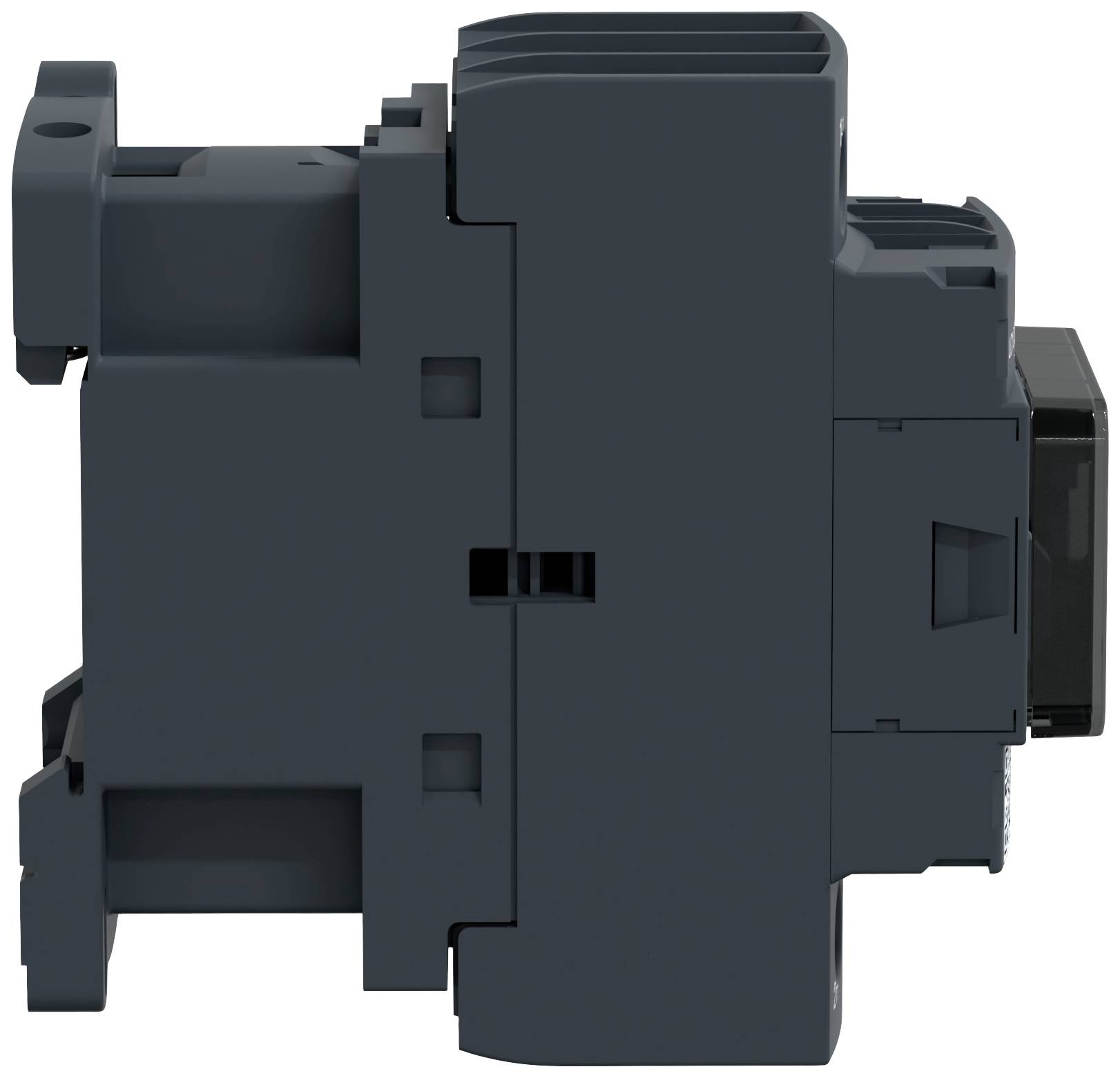

Black electric protective switch viewed from the side, showing parts of the housing structure and connections.

1/4

Product type

Electrical contactor

No. of pins

3-pin

Power

15 kW

Connection

Screw terminal

Packaging type

Piece

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Schneider Electric contactor LC1D32B7 3polig 32A 24V 50/60HZ 1S/1OE

TeSys D contactor, 3 pole (3 NO contact)
For motor control applications up to 32 A/690 V AC-3/3e (15 kW at 400 V)
24-V-50/60-Hz AC coil
Built-in 1 NO contacts + 1 auxiliary NC contacts (certified as a mirror opener)
Connection via screw terminals
For operating rates up to 3600 cycles/hour and environments up to 60 °C.

Technical specifications

Packaging type: Piece

Product type: Electrical contactor

Type: LC1D32B7

No. of pins: 3-pin

Contact type: 3 makers

Control voltage (max.): 24 V AC

Control voltage range: 24 V AC (max)

Switching voltage (max.): 690 V AC

Permanent current (max.): 32 A

: 15 kW

Features: + auxiliary contact

Connection: Screw terminal

Max. temperature: 60 °C

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1979132 Schneider Electric LC1D32B7 Electrical contactor 3 makers 15 kW + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1979132 Schneider Electric LC1D32B7 Electrical contactor 3 makers 15 kW + auxiliary contact Piece 1 pc(s)

Description

TeSys D contactor, 3-pole (3 NO contact) for motor control applications up to 32 A/690 V AC-3/3e (15 kW at 400 V). It has a 24 V 50/60 Hz AC coil, integrated 1 NO contact + 1 NC auxiliary contacts (certified NC mirror) and connection via screw terminals. For operating rates up to 3600 cycles/hour and environments up to 60 °C it offers a high reliability and durability.
