Name: Schneider Electric LC1DT25P7 Electrical contactor 4 makers + auxiliary contact 1 pc(s)
Brand: Schneider Electric
SKU: 1979548

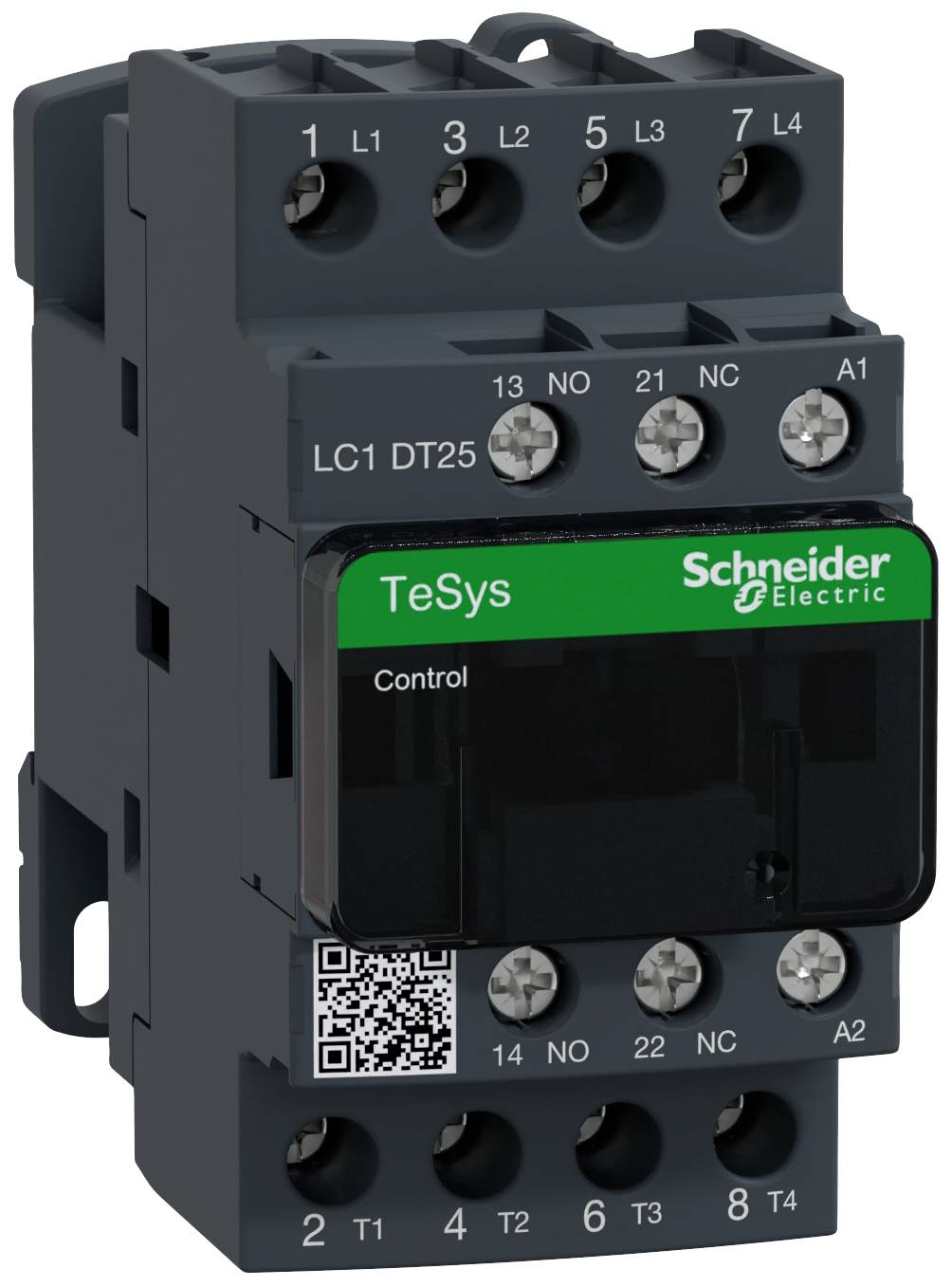

A black electrical relay with green labelling 'TeSys Schneider Electric' and multiple connection terminals on the top surface.

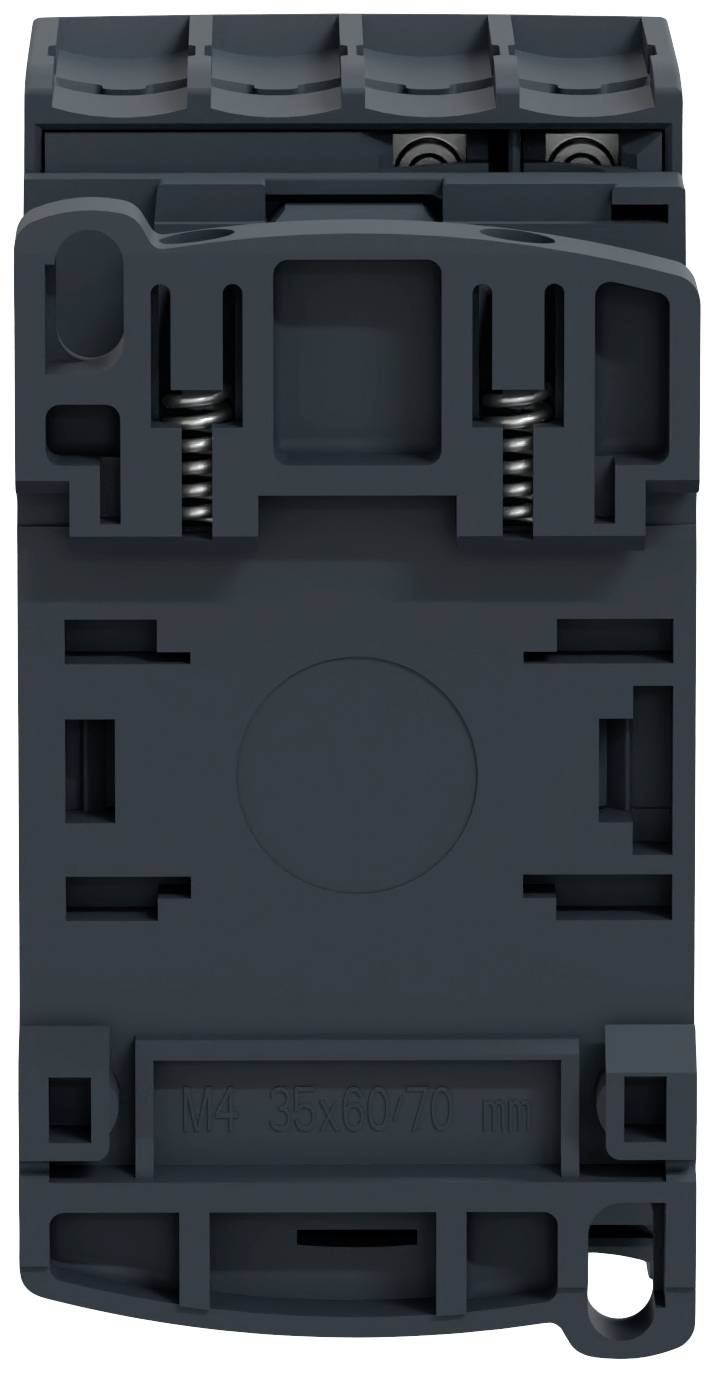

A black, rectangular technical component with spring mechanisms on both sides and multiple recesses.

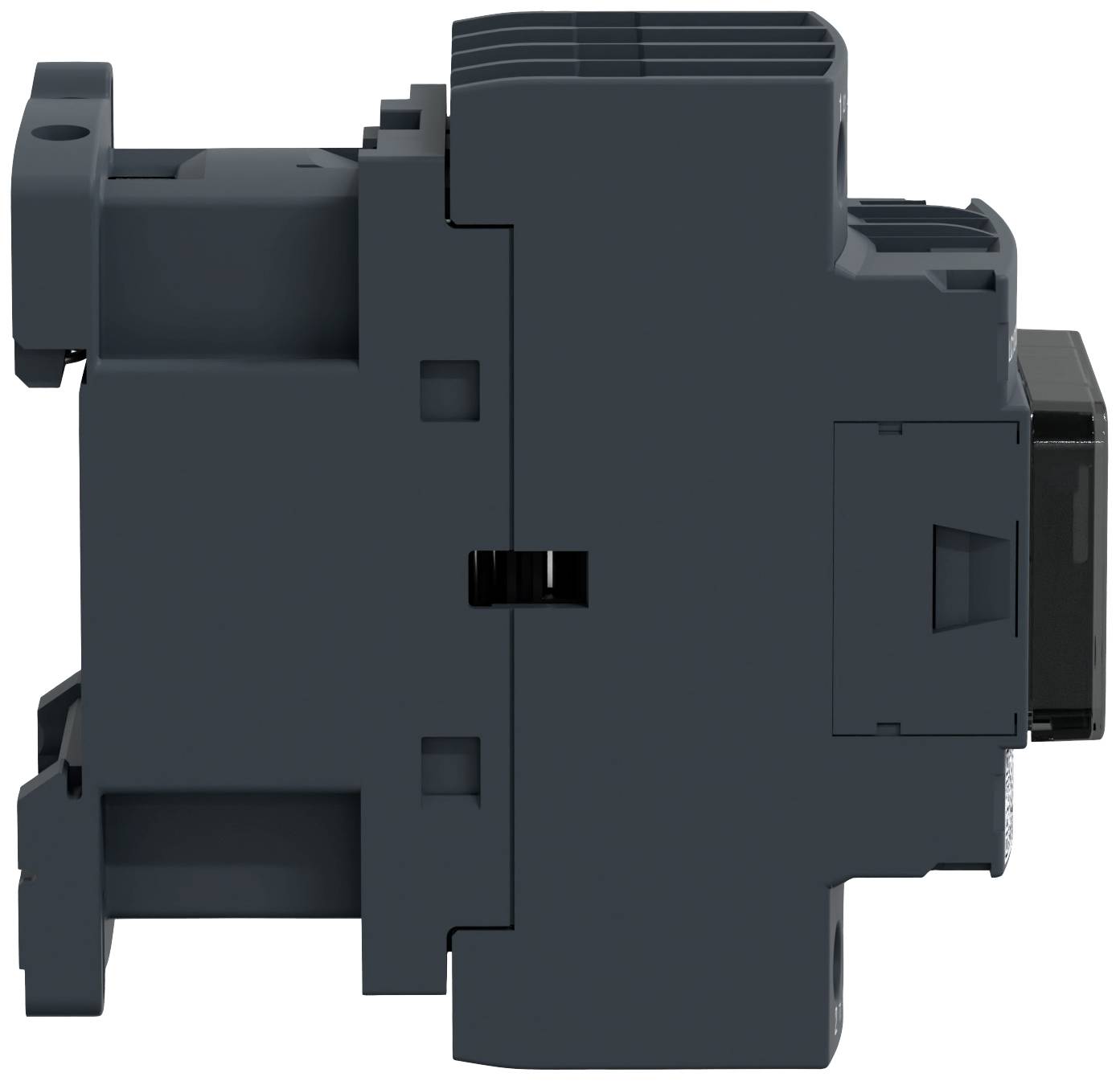

An electrical relay viewed from the side with a dark housing, visible socket slots and mounting hooks.

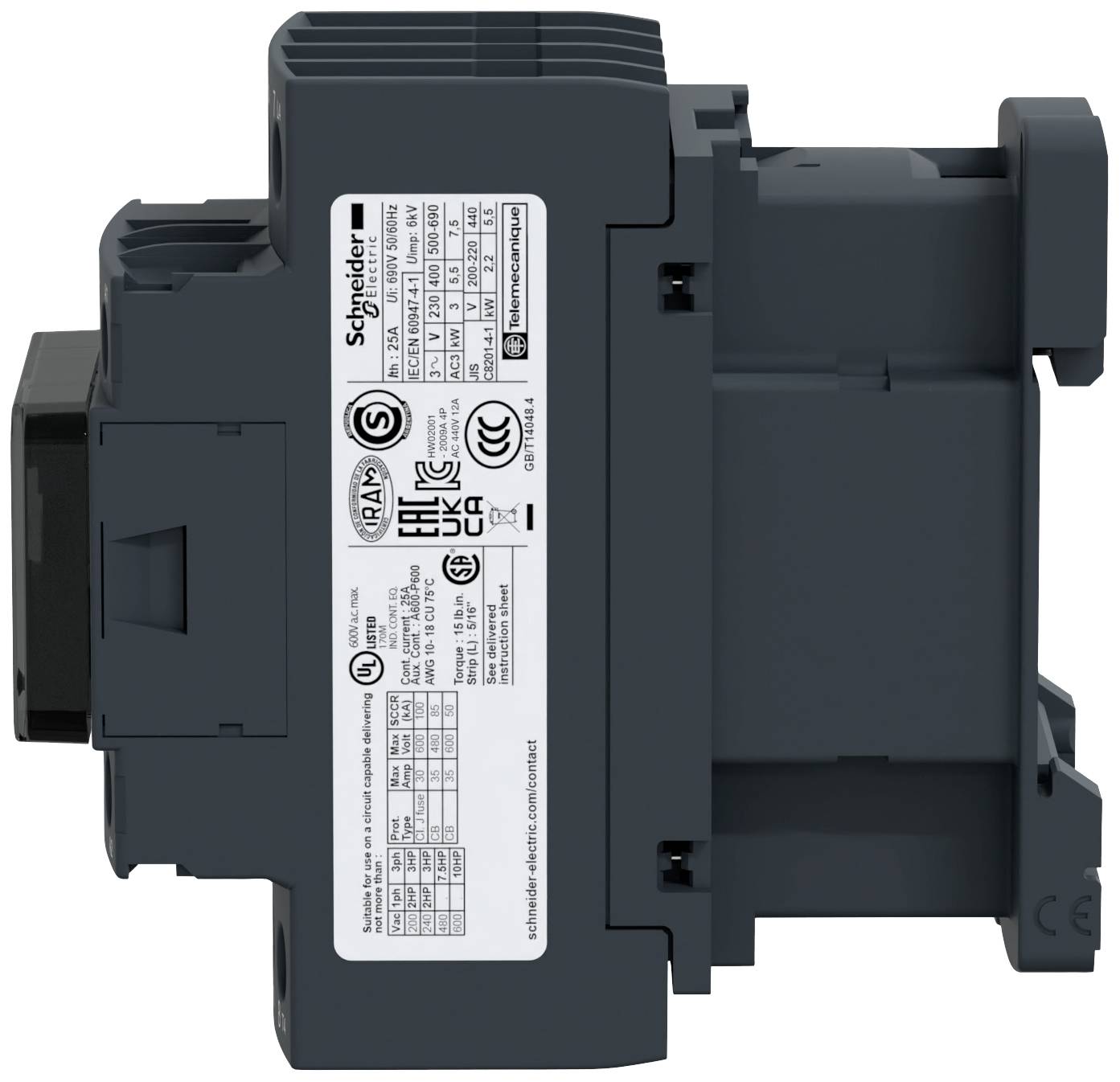

'Schneider Electric' circuit breaker with technical labelling, displaying electrical specifications and certifications.

1/4

Product type

Electrical contactor

No. of pins

4-pin

Connection

Screw terminal

Type

LC1DT25P7

Contact type

4 makers

Datasheet (PDF)

Unavailable

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Schneider Electric LC1DT25P7 Auxiliary Contact

TeSys DECA contactor, 4 pin (4NO)
For non-inductive load applications up to 25 A/440 V AC-1
230-V-50/60-Hz AC coil
Built-in 1 NO contacts + 1 auxiliary NC contacts (certified as a mirror opener)
Connection via screw terminals
For operating rates up to 3600 cycles/hour and environments up to 60 °C.

Technical specifications

Product type: Electrical contactor

Type: LC1DT25P7

No. of pins: 4-pin

Contact type: 4 makers

Control voltage (max.): 230 V AC

Control voltage range: 230 V AC (max)

Switching voltage (max.): 440 V AC

Permanent current (max.): 25 A

Features: + auxiliary contact

Connection: Screw terminal

Max. temperature: 60 °C

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1979548 Schneider Electric LC1DT25P7 Electrical contactor 4 makers + auxiliary contact 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1979548 Schneider Electric LC1DT25P7 Electrical contactor 4 makers + auxiliary contact 1 pc(s)

Description

TeSys DECA contactor, 4-pin (4NO) for non-inductive load applications up to 25 A/440 V AC-1. It has a 230 V 50/60 Hz AC coil, integrated 1 NO contact + 1 NC auxiliary contacts (certified NC mirror), connection via screw terminals. For operating rates up to 3600 cycles/hour and environments up to 60 °C it offers a high reliability and durability.
