Name: Schneider Electric LC1DT80AP7 Electrical contactor 4 makers + auxiliary contact Piece 1 pc(s)
Brand: Schneider Electric
SKU: 1979670

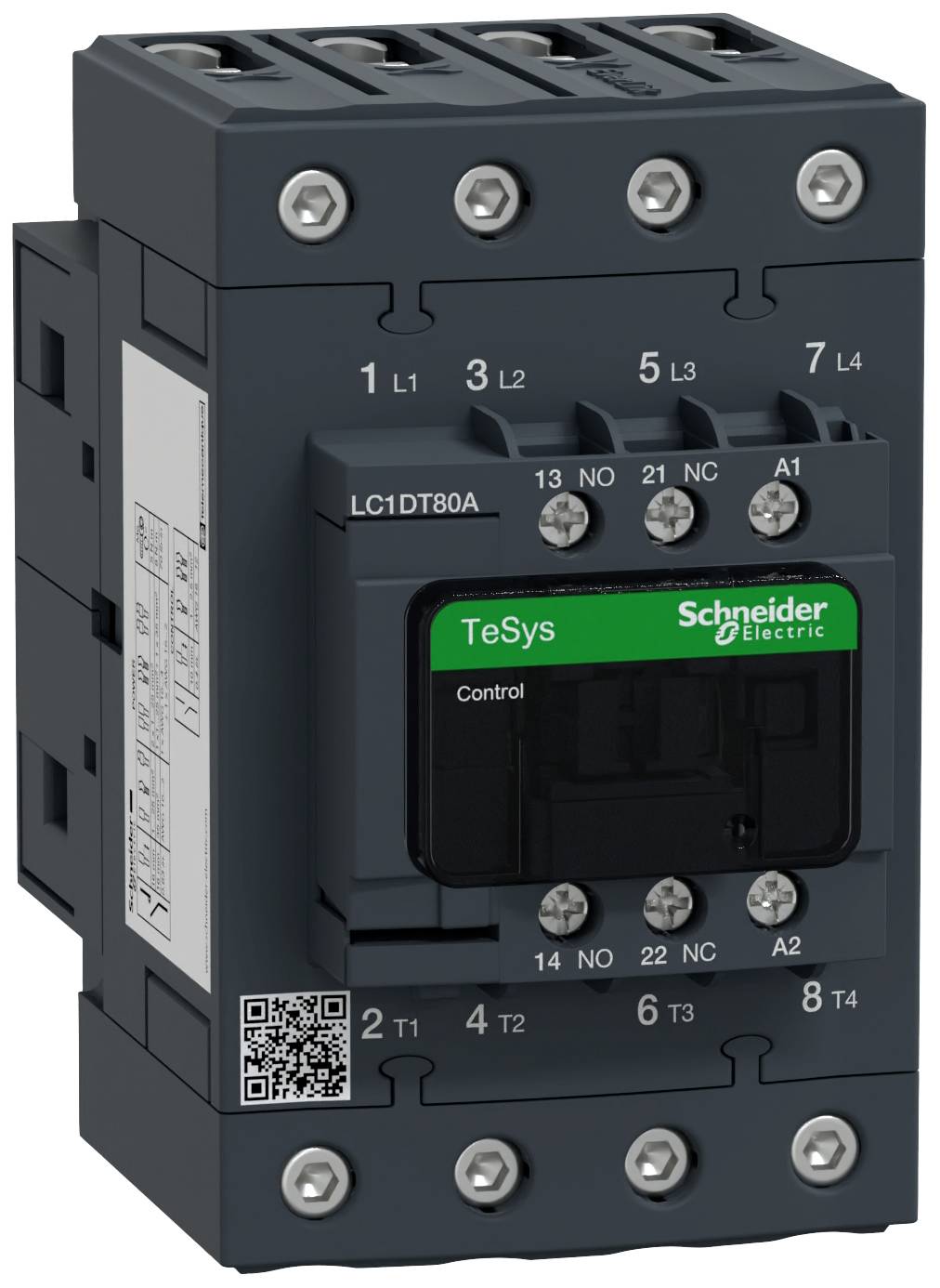

'Contactor from Schneider Electric's TeSys range, model number LC1DT80A, with terminal blocks at the top and bottom.'

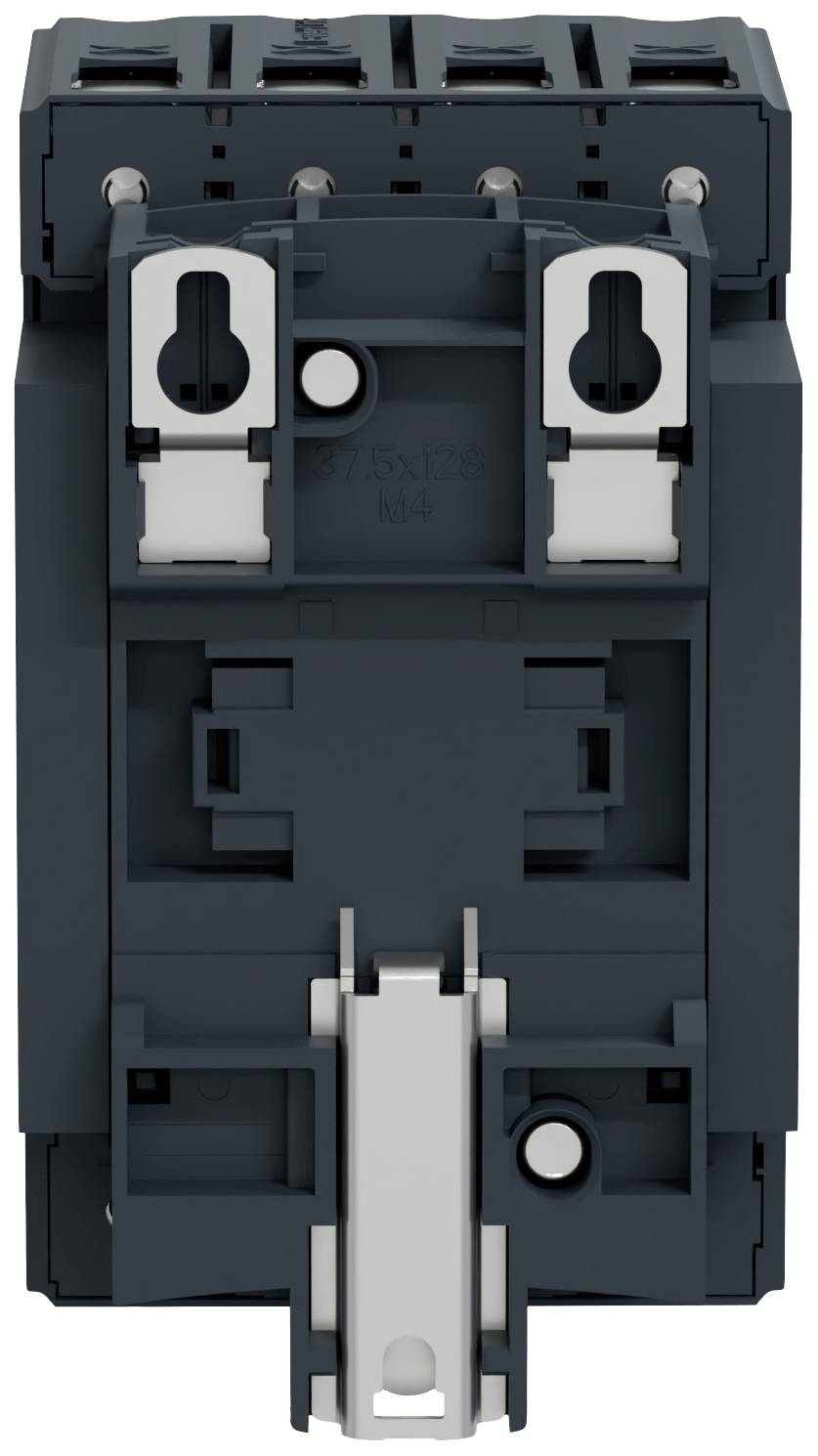

A black electric power switch, vertically aligned, shows the front face with screws and mounting elements.

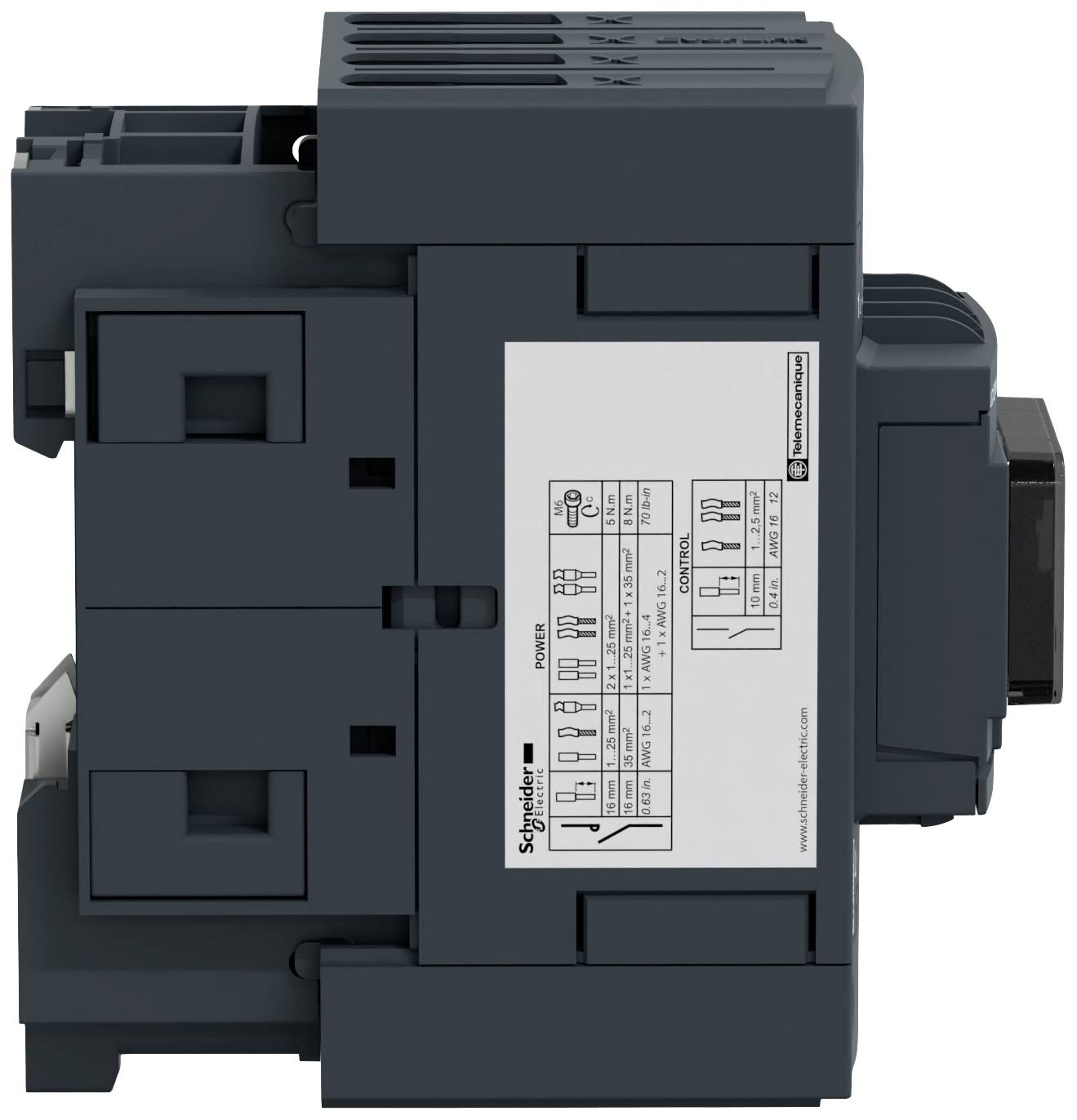

A grey electrical device from Schneider Electric, pictured from the side, with a white label displaying switching and installation information.

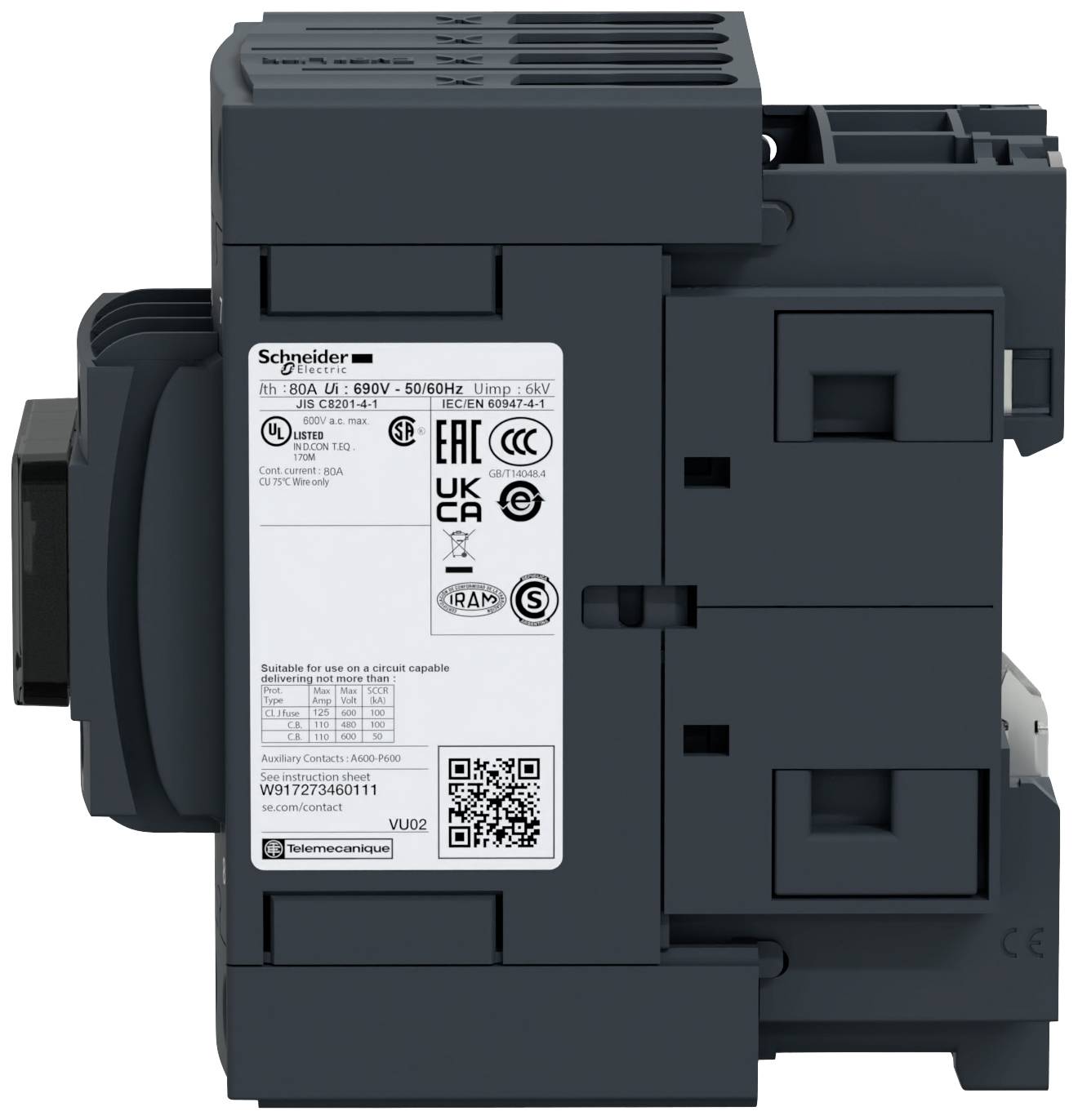

An electrical switchgear from Schneider Electric, displaying voltage and current data on a label on its side.

1/4

Product type

Electrical contactor

No. of pins

4-pin

Connection

Screw terminal

Packaging type

Piece

Type

LC1DT80AP7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Schneider Electric LC1DT80AP7 Auxiliary Contact

TeSys DECA contactor, 4 pin (4NO)
For non-inductive load applications up to 80 A/440 V AC-1
230-V-50/60-Hz AC coil
Built-in 1 NO contacts + 1 auxiliary NC contacts (certified as a mirror opener)
Power connections via EverLink BTR screw terminals and control via screw terminals
For operating rates up to 3600 cycles/hour and environments up to 60 °C.

Technical specifications

Packaging type: Piece

Product type: Electrical contactor

Type: LC1DT80AP7

No. of pins: 4-pin

Contact type: 4 makers

Control voltage (max.): 230 V AC

Control voltage range: 230 V AC (max)

Switching voltage (max.): 440 V AC

Permanent current (max.): 80 A

Features: + auxiliary contact

Connection: Screw terminal

Max. temperature: 60 °C

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1979670 Schneider Electric LC1DT80AP7 Electrical contactor 4 makers + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1979670 Schneider Electric LC1DT80AP7 Electrical contactor 4 makers + auxiliary contact Piece 1 pc(s)

Description

TeSys DECA contactor, 4-pin (4NO) for non-inductive load applications up to 80 A/440 V AC-1. It features a 230 V 50/60 Hz AC coil, built-in 1 NO contacts + 1 auxiliary NC contacts (mirror certification), power connections via EverLink BTR screw terminals and control via screw terminal. For operating rates up to 3600 cycles/hour and environments up to 60 °C it offers a high reliability and durability.
