Name: Schneider Electric LV510335 Circuit breaker 1 pc(s) Adjustment range (amperage): 0 - 63 A Switching voltage (max.): 440
Brand: Schneider Electric
SKU: 3755321
Availability: BackOrder

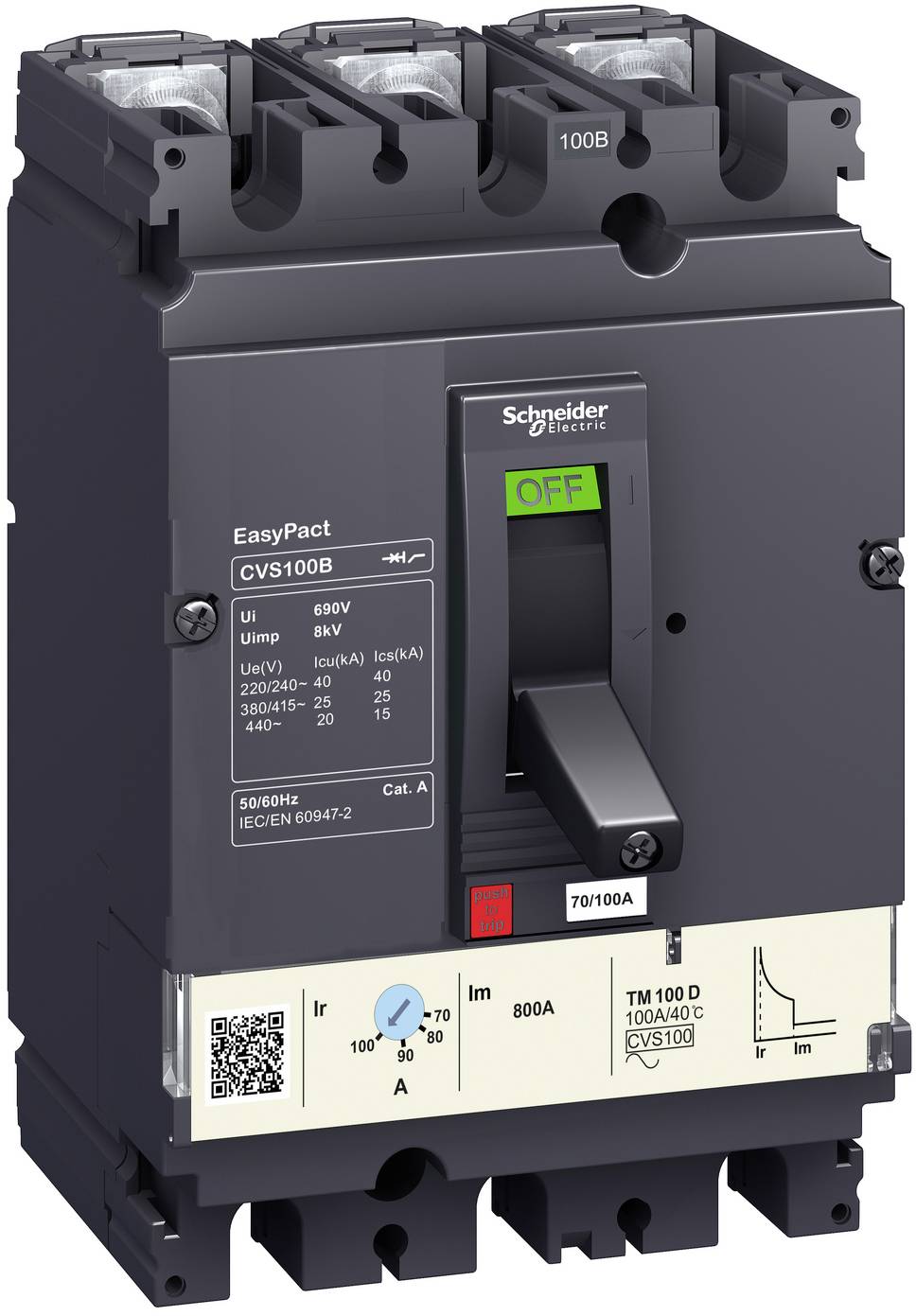

Black Schneider Electric EasyPact CVS100B circuit breaker with green OFF switch and visible rating labels and dials.

Product type

Circuit breaker

Amperage adjustment range (max.)

63 A

Packaging type

Piece

Type

LV510335

Amperage adjustment range (min.)

0 A

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as changer: 0
Actuator type: Knob
Rated continuous current IU 100 A
Rated short circuit switch-off current ICU at 400 V, 50 Hz: 36 kA
Rated voltage 440-440 V
Setting range of the undelayed short-circuit release: 500-500 A.
Suitable for DIN rail mounting: No.
Device type: Built-in device permanent installation technology
DIN rail mounting optional: No.
Built-in ground fault protection: No.
Complete unit with protection unit: Yes
With trip indicator: Yes
With integrated undervoltage release: No.
Motor drive integrated: No.
Motor drive optional: No.
Location of the main circuit connector: Front
Power loss: 7.62 W
Overload release current setting 0-63 A

Packaging type: Piece

Product type: Circuit breaker

Type: LV510335

Amperage adjustment range (min.): 0 A

Amperage adjustment range (max.): 63 A

Adjustment range (amperage): 0 - 63 A

No. of pins: 3-pin

Switching voltage (max.): 440 V AC

Mounting type: Fixed

: IP40

Depth: 86 mm

Width: 105 mm

Height: 161 mm

Dim: (W x H x D) 105 x 161 x 86 mm

Content: 1 pc(s)

Number of pins: 3

: 100 A

: FALSE

: 3

: 0-63 A

: 0

: 440-440 V

: 7.62 W

: IP40

: Front side

: FALSE

: Screw connection

: Toggle

: TRUE

: 36 kA

: 500-500 A

: FALSE

: FALSE

: FALSE

: Built-in device fixed built-in technique

: FALSE

: TRUE

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Packaging type

Schneider Electric C063B3WM Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 210 x 327 x 147 mm Piece

Item no:3756416

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,195.00^*

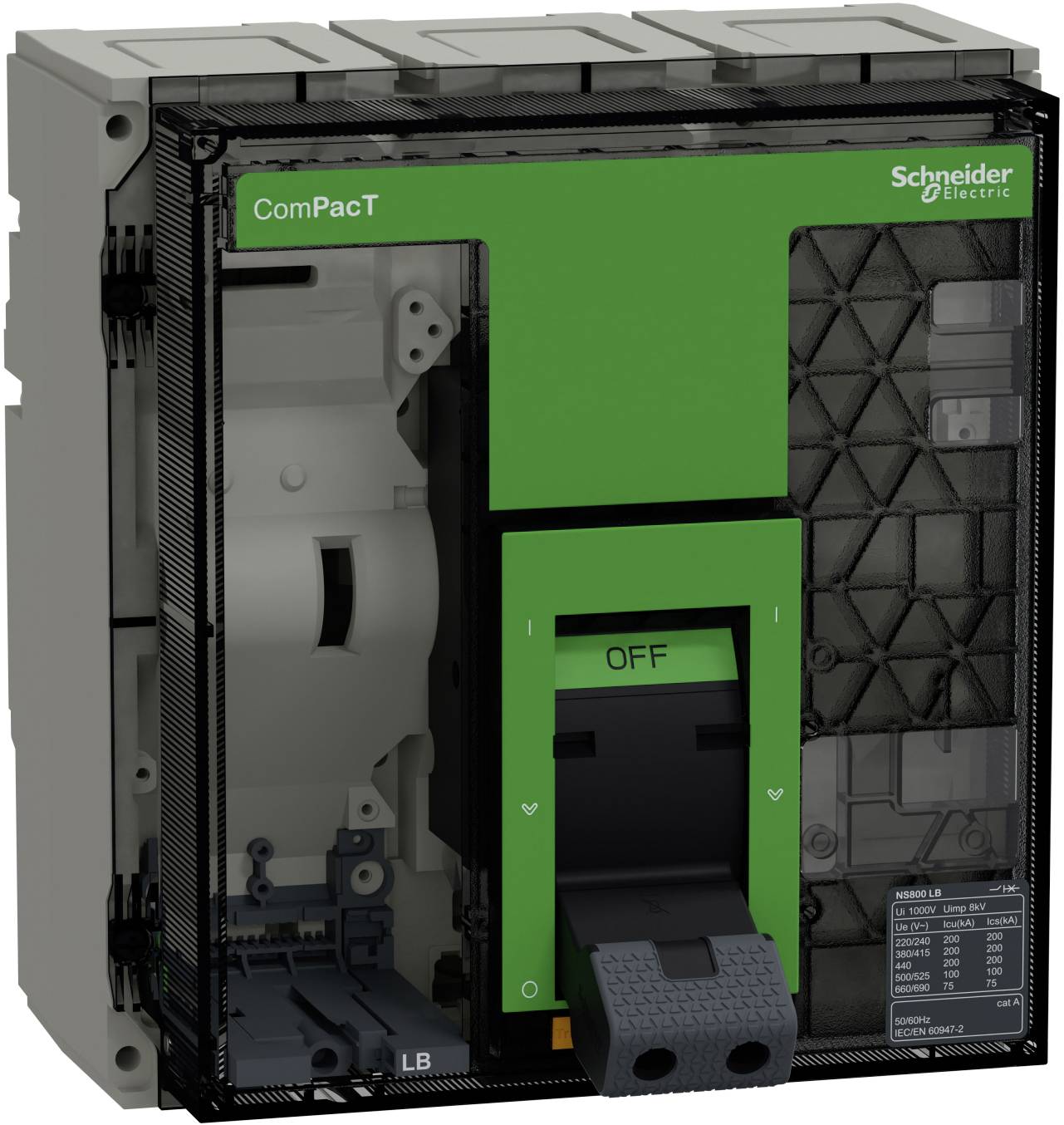

Schneider Electric C080B3FM Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 210 x 327 x 147 mm Piece

Item no:3756419

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,539.00^*

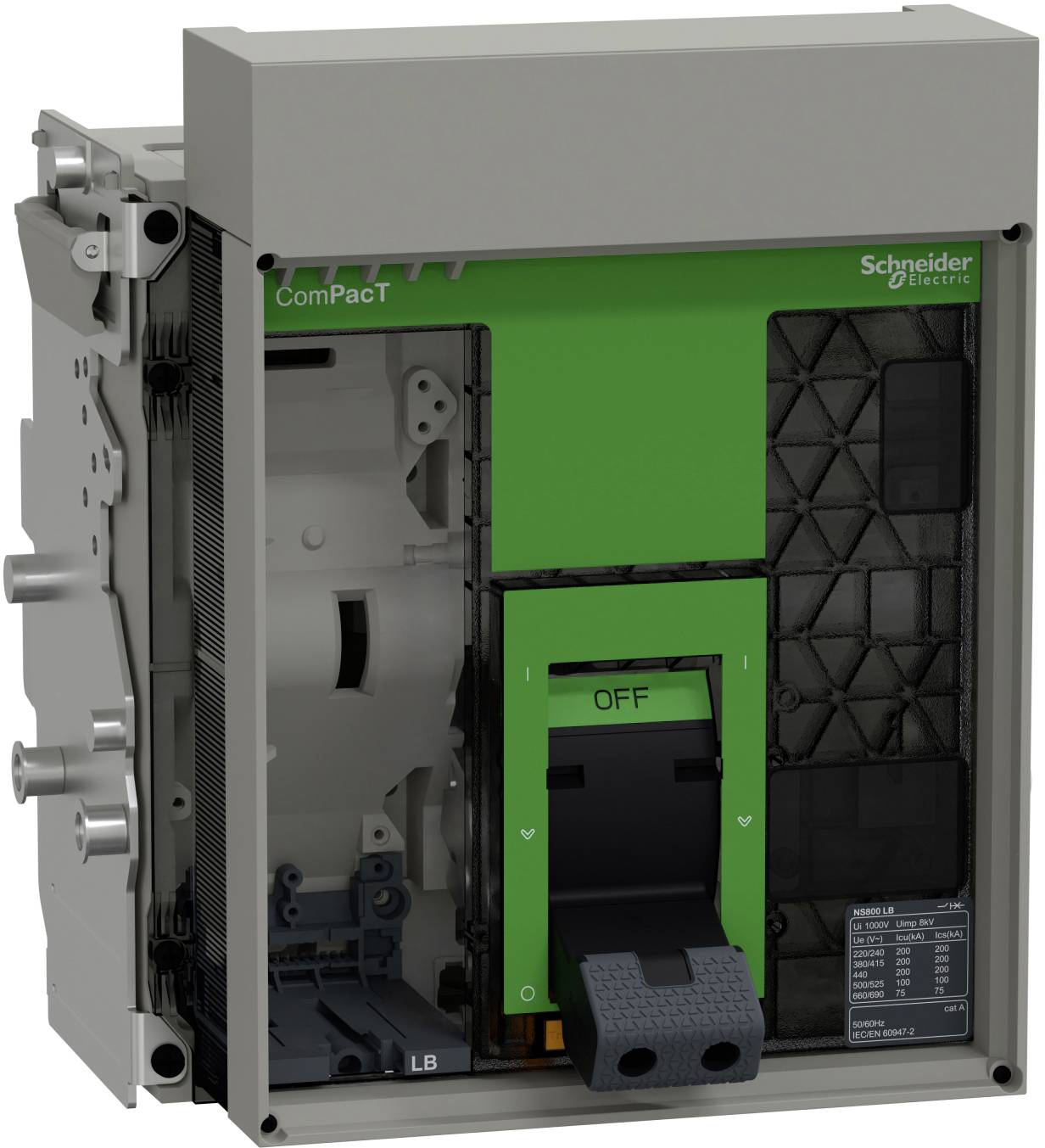

Schneider Electric C080B3WM Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 210 x 327 x 147 mm Piece

Item no:3756420

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,589.00^*

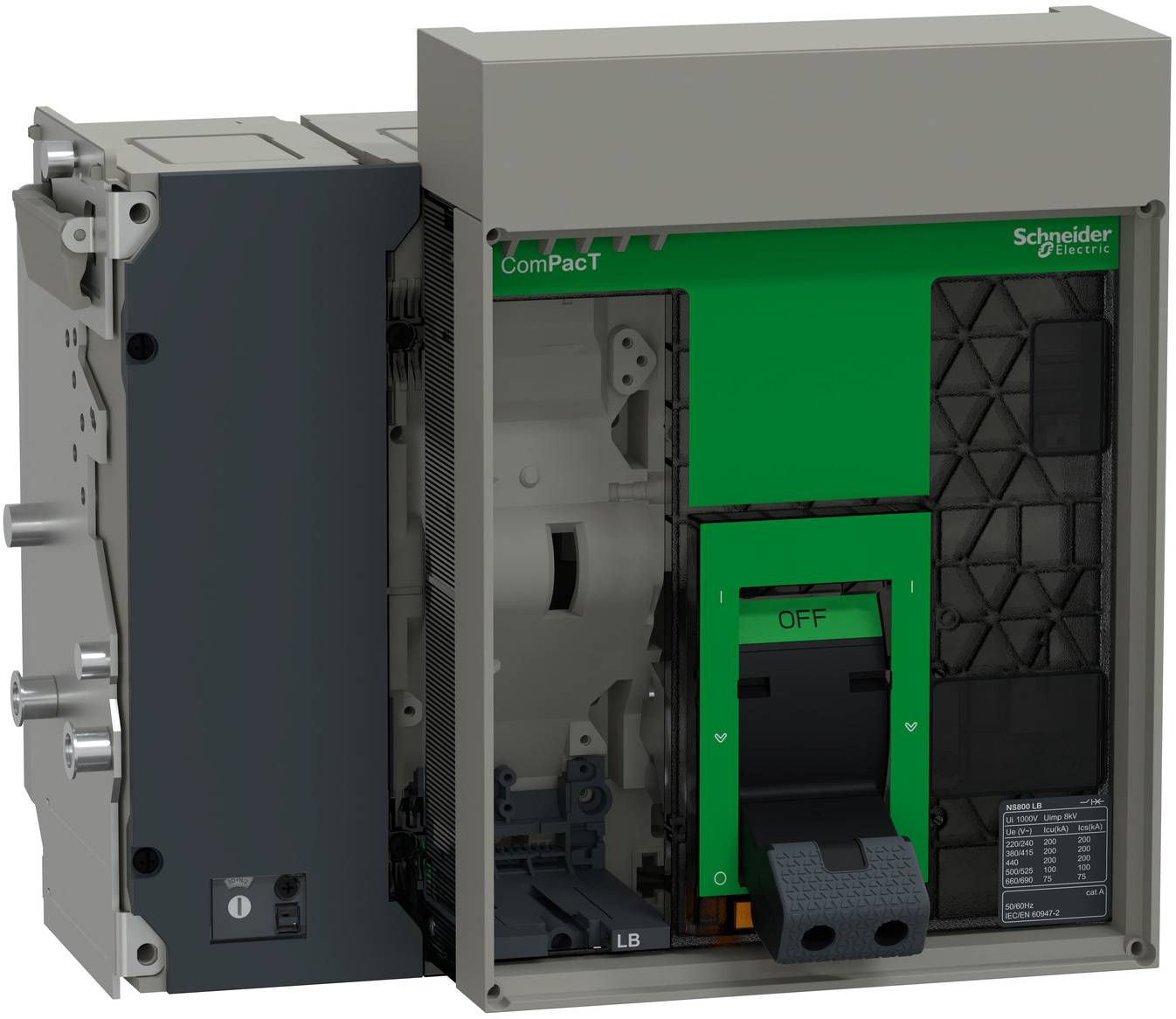

Schneider Electric C080B4WM Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 280 x 327 x 147 mm Piece

Item no:3756422

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4,765.00^*

Schneider Electric C100N3WM Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 210 x 327 x 147 mm Piece

Item no:3756429

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,729.00^*

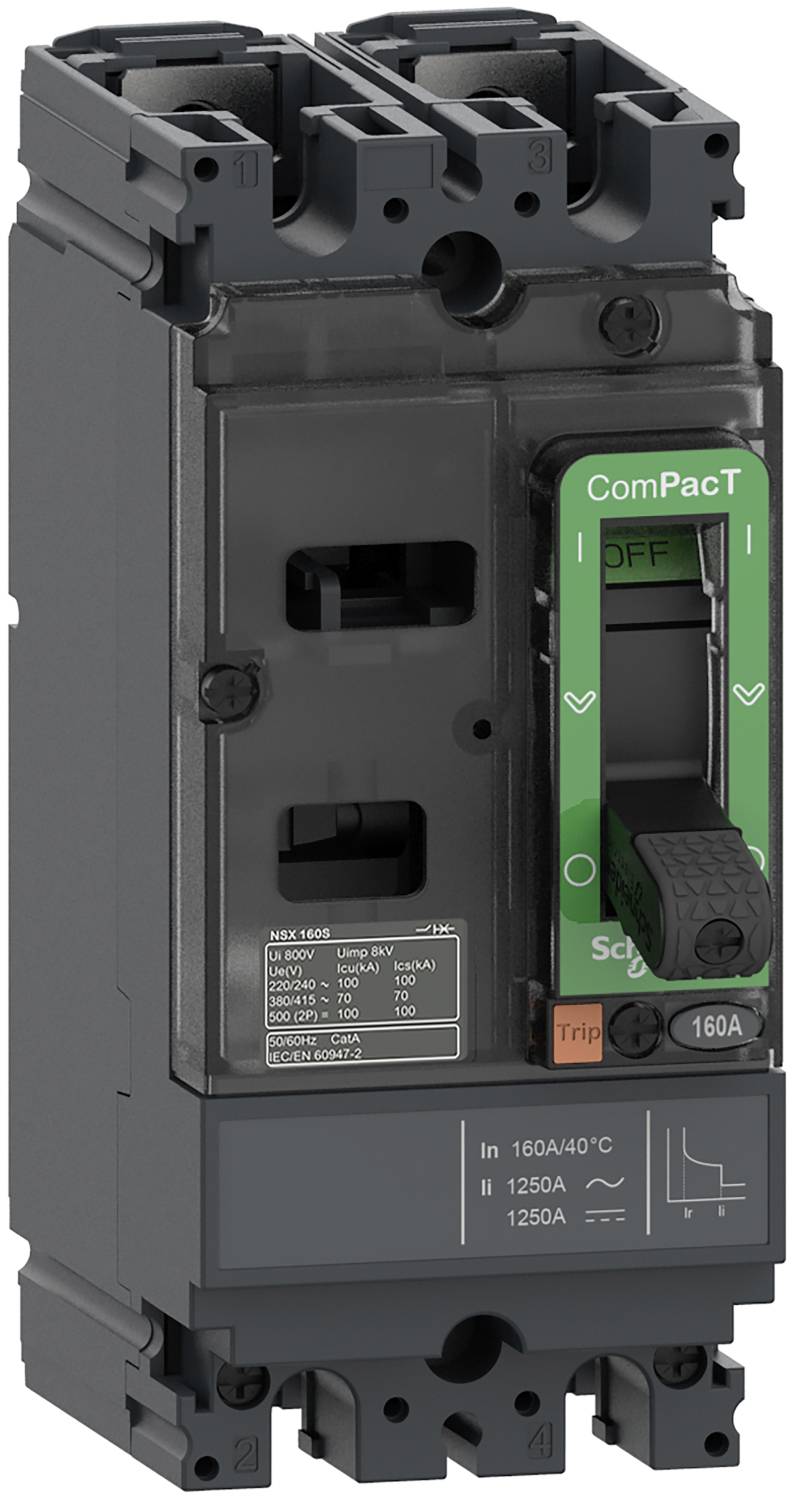

Schneider Electric C10M2TM063 Circuit breaker 1 pc(s) Adjustment range (amperage): 700 - 700 A Switching voltage (max.): 690 V AC (W x H x D) 70 x 161 x 86 mm Piece

Item no:3754712

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

Schneider Electric C10M2TM080 Circuit breaker 1 pc(s) Adjustment range (amperage): 80 - 80 A (W x H x D) 70 x 161 x 86 mm

Item no:3754713

Dispatches on Fri 23 Oct

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

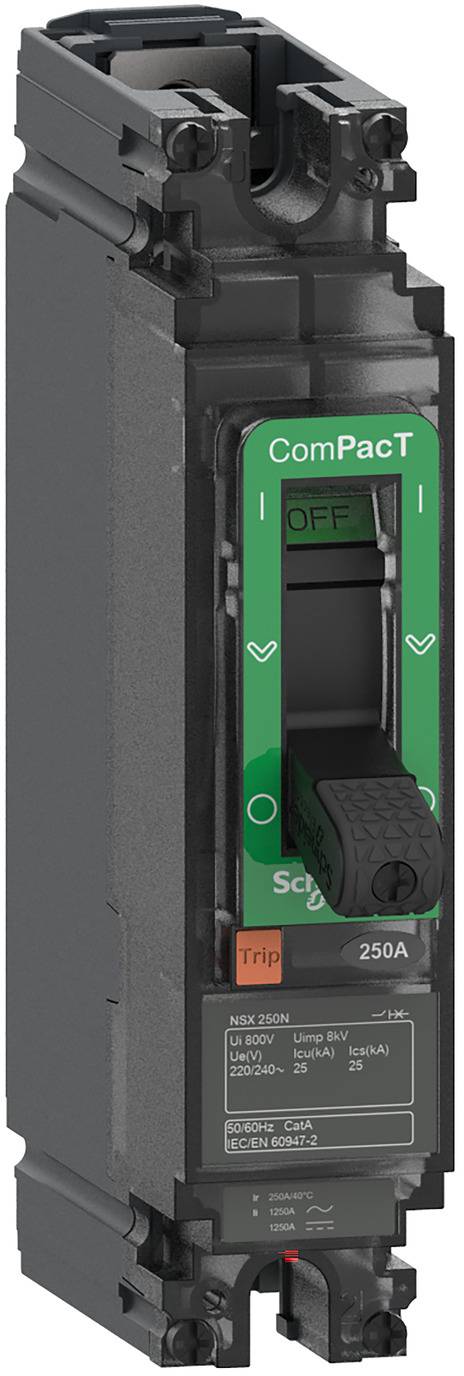

Schneider Electric C10N1TM016 Circuit breaker 1 pc(s) Adjustment range (amperage): 260 - 260 A Switching voltage (max.): 277 V AC (W x H x D) 35 x 161 x 86 mm Single

Item no:3754714

Dispatches on Fri 23 Oct

Conrad Electronic

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Schneider Electric C125H4WM Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 280 x 327 x 147 mm Piece

Item no:3756438

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5,829.00^*

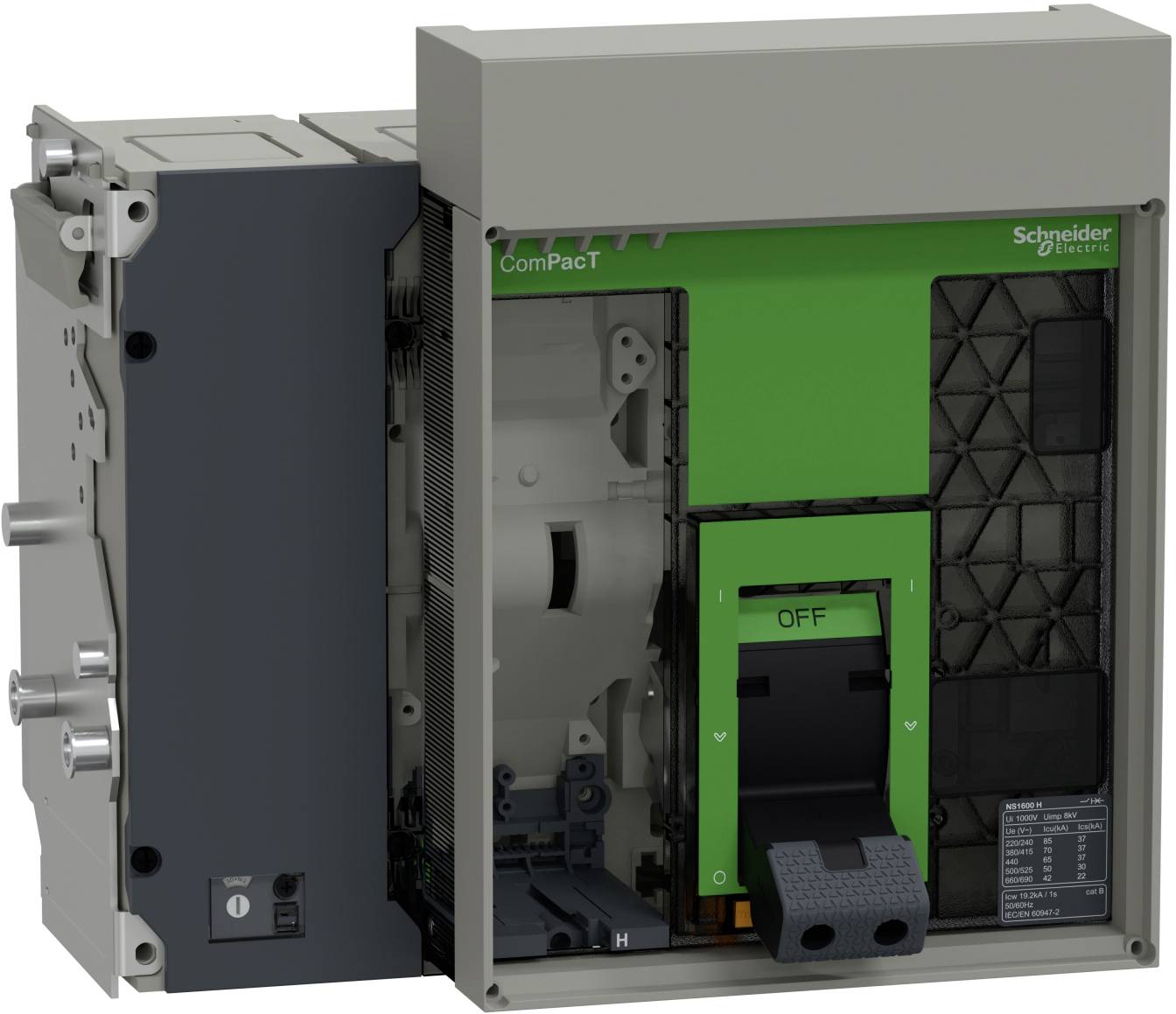

Schneider Electric C160H4WM Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 280 x 327 x 147 mm Piece

Item no:3756431

Dispatches on Fri 23 Oct

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9,315.00^*

Documents & Downloads

Datasheet

Datasheet 3755321 Schneider Electric LV510335 Circuit breaker 1 pc(s) Adjustment range (amperage): 0 - 63 A Switching voltage (max.): 440

User & Safety Instructions

User & Safety Instructions 3755321 Schneider Electric LV510335 Circuit breaker 1 pc(s) Adjustment range (amperage): 0 - 63 A Switching voltage (max.): 440

Description

The EasyPact CVS100F is a fixed-mount 3-pole circuit-breaker with high performance and cost-saving functionality. It is the ideal choice for the protection of small and medium-sized buildings. The breaking capacity (ICU) is 36kA RMS at 415VAC 50/60Hz. The operating voltage is 440VAC 50/60Hz. This product has a thermal-magnetic trigger (TMD) with a nominal current of 63 A. The TMD trigger offers an adjustable thermal overload protection and a solid magnetic protection. This 3-pole version (105mm x 161mm x 86mm) can be equipped with a variety of optional functions and accessories. EasyPact CVS100F conforms to the international standards (IEC 60947, CCC, EAC). It can be installed in insulation class II switchgear as it is a class II front panel device (IEC 60664-1).

This text is machine translated.
