Name: Schneider Electric LV540401 LV540401 Isolator switch 1 pc(s)
Brand: Schneider Electric
SKU: 3755268
Availability: BackOrder

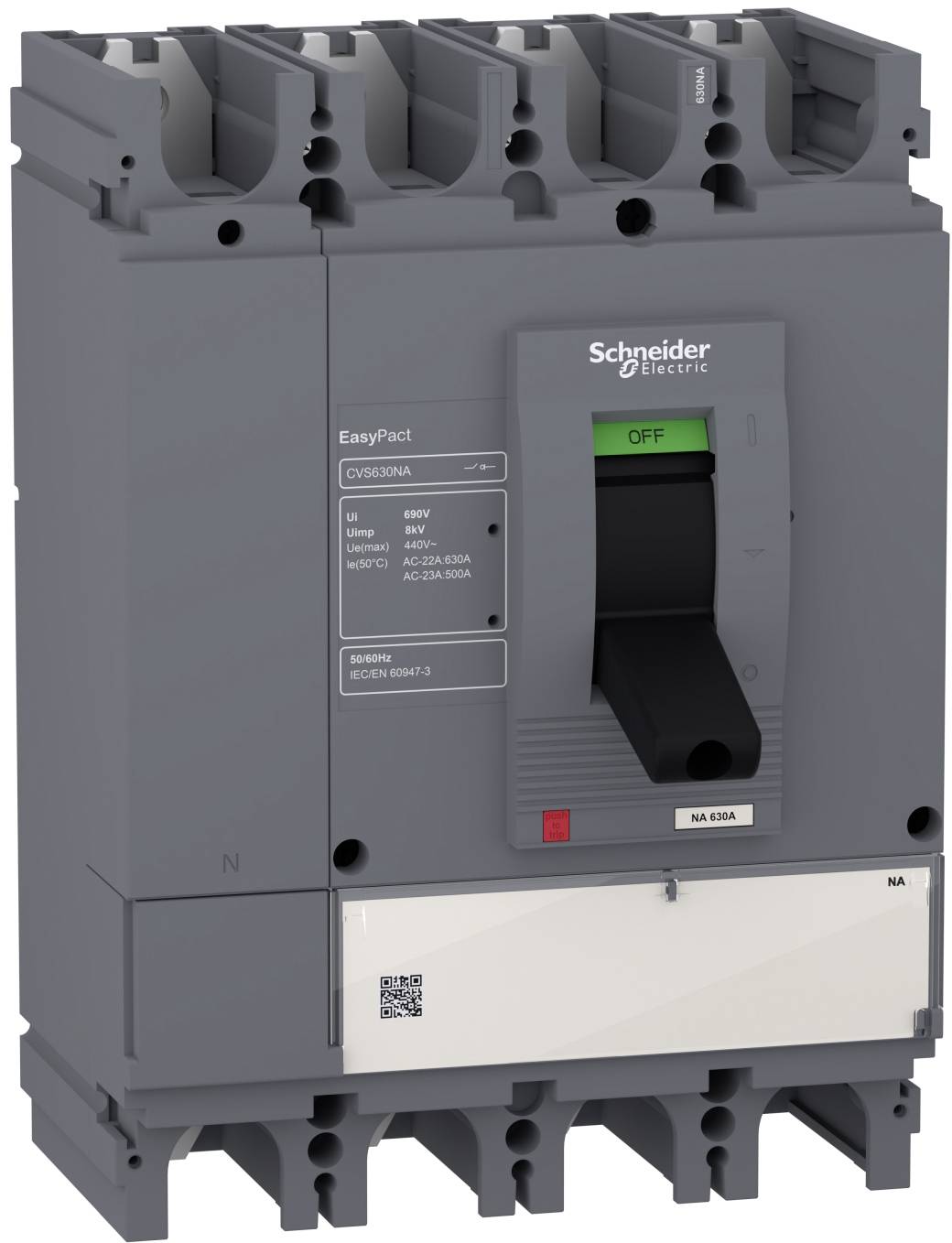

Gray Schneider Electric EasyPact circuit breaker with black toggle switch in the OFF position.

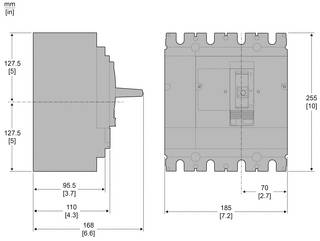

Technical drawing of a rectangular mechanical part shown in side and front views with dimensions in mm and inches, including 255 mm height and 185 mm width.

1/2

Product type

Isolator switch

IP rating

IP40 (Front)

Width

140 mm

Height

255 mm

Content

1 pc(s)

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,108.24 / piece)

€ 1,108.24

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Connection type main circuit: Screw terminals
Number of auxiliary contacts as NO contacts: 0
Number of auxiliary contacts as changer: 5
Number of auxiliary contacts as NC contacts: 0
Number of switches: 1
Main switch version: Yes
Design as an emergency-OFF device: No.
Safety switch version: No.
Design as maintenance/repair switch: No.
Design as a turn-switch: No.
Actuator type: Knob
Rated operating voltage 440-440 V
Rated continuous current IU 400 A
Rated short-term current strength ICW 5 kA
Colour of actuator: Black
Suitable for front mounting 4-hole: Yes
Suitable for front mounting in center: Yes
Suitable for distributor installation: Yes
Suitable for intermediate construction: Yes
Device type: Built-in device permanent installation technology
Max. Rated operating voltage Ue at AC: 440 V
Motor drive integrated: No.
Motor drive optional: No.
Voltage trigger optional: No.
Lockable: Yes

Product type: Isolator switch

: IP40 (Front)

Width: 140 mm

Height: 255 mm

Content: 1 pc(s)

Type: LV540401

Dim: (W x H x D) 140 x 255 x 110 mm

Depth: 110 mm

Number of pins: 4

: 140 mm

: 255 mm

: 110 mm

: 0

: 0

: 400 A

: 4

: 440-440 V

: IP40

: 5

: 1

: TRUE

: FALSE

: Screw connection

: FALSE

: Toggle

: TRUE

: FALSE

: FALSE

: 5 kA

: Black

: FALSE

: TRUE

: TRUE

: TRUE

: TRUE

: 440 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3755268 Schneider Electric LV540401 LV540401 Isolator switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3755268 Schneider Electric LV540401 LV540401 Isolator switch 1 pc(s)

Description

The EasyPact CVS400NA is a complete 4-pin switch disconnectors. It is used for control and isolation of circuits and requires upstream protection. The operating current is 400A at 415VAC 50/60Hz for the use categories AC22A and AC23A. The operating voltage is 440VAC 50/60Hz. It is equipped with a variety of optional functions and accessories that are common with EasyPact CVS switches. The dimensions for this 4-pin version are 185mm x 255mm x 110mm. It complies with the international standards (IEC 60947), CCC, EAC and the specifications of the Marine.
