Schneider Electric M9Y14740 Multi 9 OEM Vigi N40 3-pin + N 40A 300mA type AC for LS switch N40N Distribution board acces

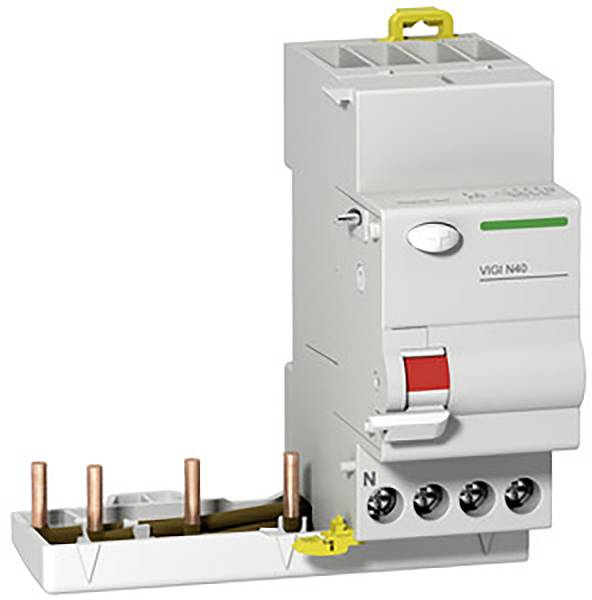

Error current circuit breaker Vigi N40 Multi 9 OEM, 300mA. 3-pole+N, nominal current 40A, type AC, operating voltage (Ue) 400-415V, insulation voltage (UI) 440 V AC. Vigi N40 fault current protection blocks for N40N provide protection against electric shock from direct and indirect contact and fire protection in the event of insulation faults. Technology of the tripping unit differential current. Additional accessories can also be added to the circuit breakers, which are combined with a Vigi module. Additional stackable auxiliary modules (optional) - display of switch position (OF), error triggering (SD), operating current release (MX, MX + OF), undervoltage release (MN, MNs, MNx) Tool-free assembly on the left side of the device. The Vigi N40 ground fault circuit interrupter meets the following standards IEC / EN 61009-1.
