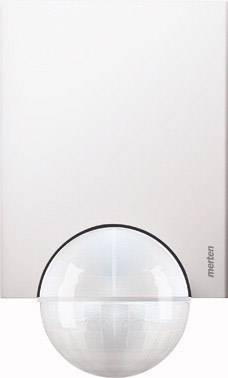

Schneider Electric MEG5628-3160 Surface-mount PIR motion detector 220 ° Aluminium IP55
EAN:
Part number:
Item no:
Highlights & Details
Movement sensor ARGUS 220
- 360° Nahschutzzone (approx. 4 m radius)
- Large connection space and plug-in system
- Looping possible
Technical specifications
- Product type
PIR motion detector
- Detection angle
220°
16 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Switching capacity
2200 W
- Switching capacity (energy saving bulbs)
100 VA
- Switching capacity (light bulbs)
2200 W
- Switching capacity (halogen bulbs)
2000 W
- Switching capacity (light tubes)
100 W
- Standby current consumption
1 W
- Twilight settings
3 - 1000 lx
- Time settings
1 sec - 8 min
- Factory colour
Aluminium
IP55
- Operating temperature
-20…25 °C
- Length
93 mm
- Width
71 mm
- Height
151 mm
- Dim
(L x W x H) 93 x 71 x 151 mm
- Weight
0.25
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1629149 Schneider Electric MEG5628-3160 Surface-mount PIR motion detector 220 ° Aluminium IP55
Description
Motion detector for the outdoor area. 220 °-area surveillance for larger house fronts and areas of the house. 360° Nahschutzzone (approx. 4 m radius). Large connection space and plug-in system. Looping is possible. LED function display for quick alignment at the installation site. Controls are located protected under the easily accessible cover plate. Flexible adjustable sensor head. Hide individual lens areas possible. Wall and ceiling mounting without additional accessories.
This text is machine translated.
This text is machine translated.
Features
- LED function display for quick alignment at the place of installation
- Controls are located protected under the easily accessible cover plate
- Flexible adjustable sensor head
- Hide individual lens areas possible.
