Schneider Electric MTN6212-0414 MTN6212-0414 PLC accessories

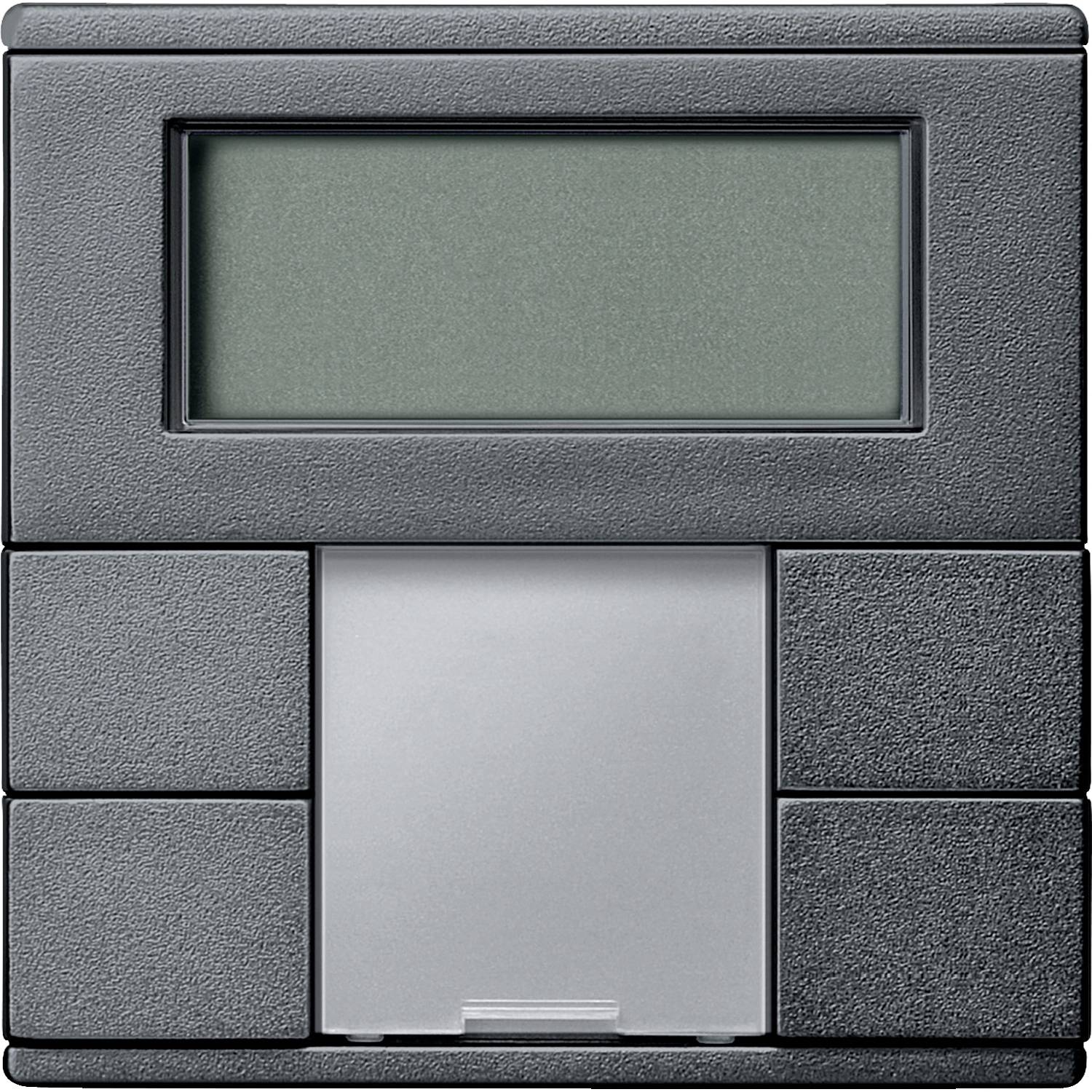

2-way probe plus with room temperature controller For System M. Comfortable control unit with 4 operating buttons, status and status display and marker field. The power indicator can also be used as orientation light. With room temperature controller and display. With 5 red LEDs. The room temperature controller can be used for heating and cooling with infinitely adjustable KNX valve operating mechanisms or for controlling switching actuators and heating actuators. With the white backlight display for e.g. time, date, temperature and operating mode. Menu for setting standard operating modes, set point, working/non-working day (external trigger), display mode, time, switching times and brightness of display. The buttons can be freely configured as switch pairs (two areas) or as single buttons. With integrated bus coupler. The bus connection is via a bus terminal. Functions of the push buttons: Switching, switching, dimming, blind control (relative or absolute), pulse edges trigger 1-, 2-, 4- or 8-bit telegrams (distinction between short and long actuation). Pulse edges with 2-byte telegrams (distinction between short and long operation), 8-bit linear controller, scene recall, scene storage, blocking functions. Timer-controlled with synchronization, notification functions, cyclic reading of external temperature values, fan control, operating modes, setpoint offset. Room temperature controller functions: Controller type: 2-point control, constant PI controller, switching PI controller (PWM). Output: Continuous in the range of 0 to 100% or switching ON/OFF. Control mode: Heating with a controller output. Cool with a control output. Heating and cooling with separate controller outputs. Heating and cooling with a controller output. 2-stage heating with 2 control outputs. 2-stage cooling with 2 control outputs. 2-stage heating and cooling with 4 control outputs. Operating modes: Comfort, comfort extension, standby, night reduction, frost / heat protection. Shifting all set values, saving all set temperatures and operating modes during reset, external temperature monitoring, additional output of the manipulated variable as a 1 byte value on the PWM. With bus terminal clamp and backing plate. Screw for disassembling protection With protective cover for plaster. Material: Thermoplastic classic matt. Colour: Anthracite

This text is machine translated.
