Schneider Electric NSYCRN66250P Door 600 x 600 x 250 Steel Grey 1 pc(s)

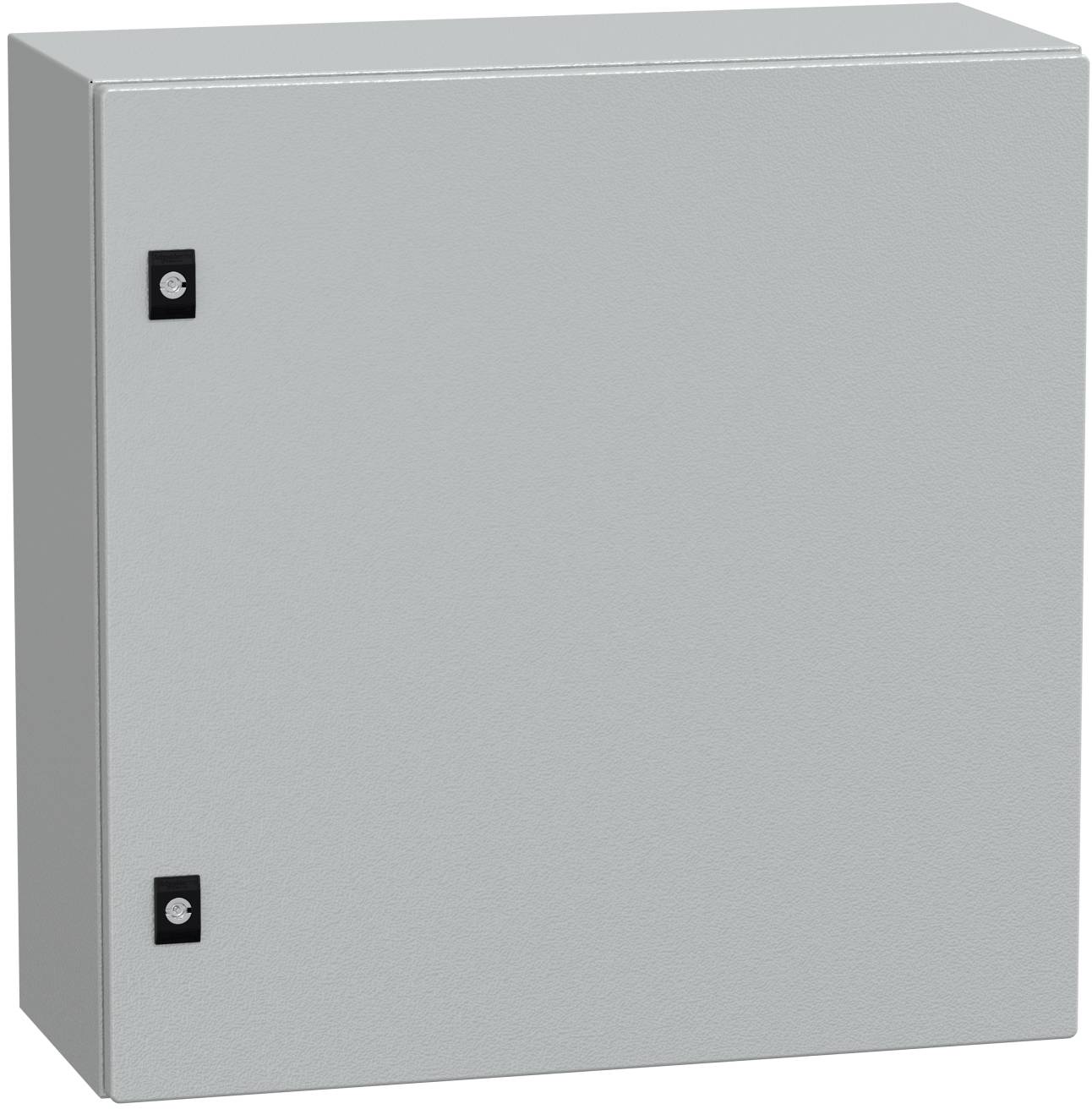

PanelSet CRN is a versatile steel wall housing with a nominal height, width and depth of 600 mm, 600 mm and 250 mm each. Designed for use in harsh environments and resistant to strong shocks according to IK10 (IEC 62262) and to dust and water according to IP66 (IEC 60529). The cabinet is gray (RAL 7035) and has an epoxy-polyester powder coating. A cable entry panel, a simple door with three-point locking and a 3-mm double-bit insert and a galvanized mounting plate are supplied. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door, cable entry plates and mounting plate can be removed for maintenance purposes. The net weight of the cabinet is 19.54 kg. Certified according to UL, cUL and DNV‑GL. The back part is welded with a double profile and forms a protected sealed area, the sides consist of a single edged profile. It can be operated from the front. This compact cabinet is cUL certified.
