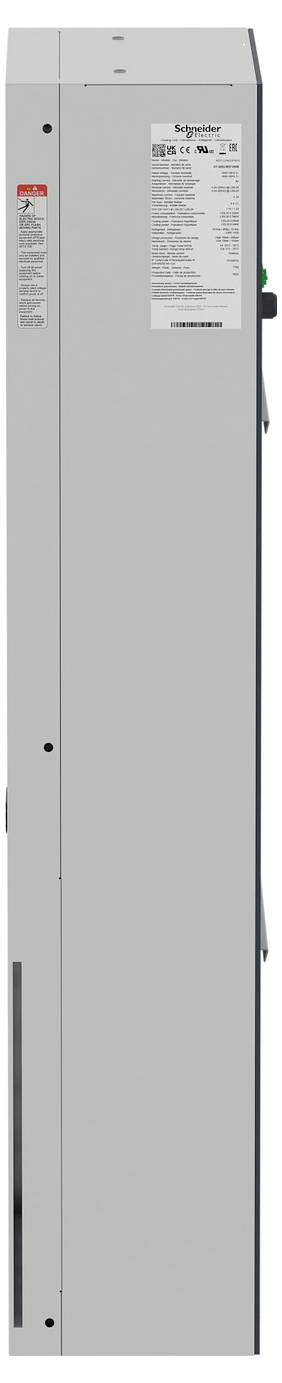

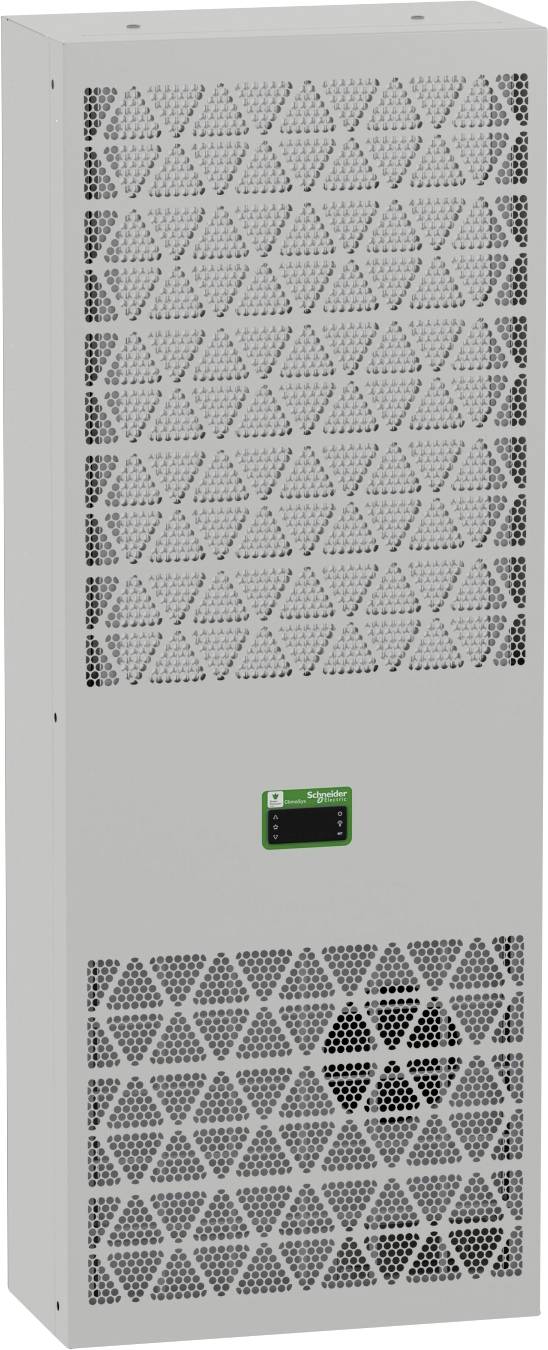

Schneider Electric NSYCU3K23P4DG Wall-mounted cooler 380 - 460 V 3200 W (W x H x D) 490 x 1300 x 250 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Wall-mounted cooler
Max. operating voltage
460 V
Type
NSYCU3K23P4DG
Features
Thermostat
Datasheet (PDF)
Technical specifications
- Operating voltage AC 50 Hz: 380-415 V
- Operating voltage AC 60 Hz: 460-460 V
- Speed-controlled: No.
- Master/slave function: Yes
- With heating function: No.
- With temperature control: Yes
- Voltage type AC
- Ambient temperature during operation: 5-55 °C.
- Packaging type
Piece
- Product type
Wall-mounted cooler
- Type
NSYCU3K23P4DG
- Features
Thermostat
- Min. operating voltage
380 V
- Max. operating voltage
460 V
- Operating voltage
380 - 460 V
3200 W
IP55
- Mounting type
Wall
- Width
490 mm
- Height
1300 mm
- Dim
(W x H x D) 490 x 1300 x 250 mm
- Operating temperature (max.)
55 °C
- Operating temperature (min.)
-5 °C
- Depth
250 mm
- Type
Air/air
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763460 Schneider Electric NSYCU3K23P4DG Wall-mounted cooler 380 - 460 V 3200 W (W x H x D) 490 x 1300 x 250 mm Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763460 Schneider Electric NSYCU3K23P4DG Wall-mounted cooler 380 - 460 V 3200 W (W x H x D) 490 x 1300 x 250 mm Piece 1 pc(s)
Description

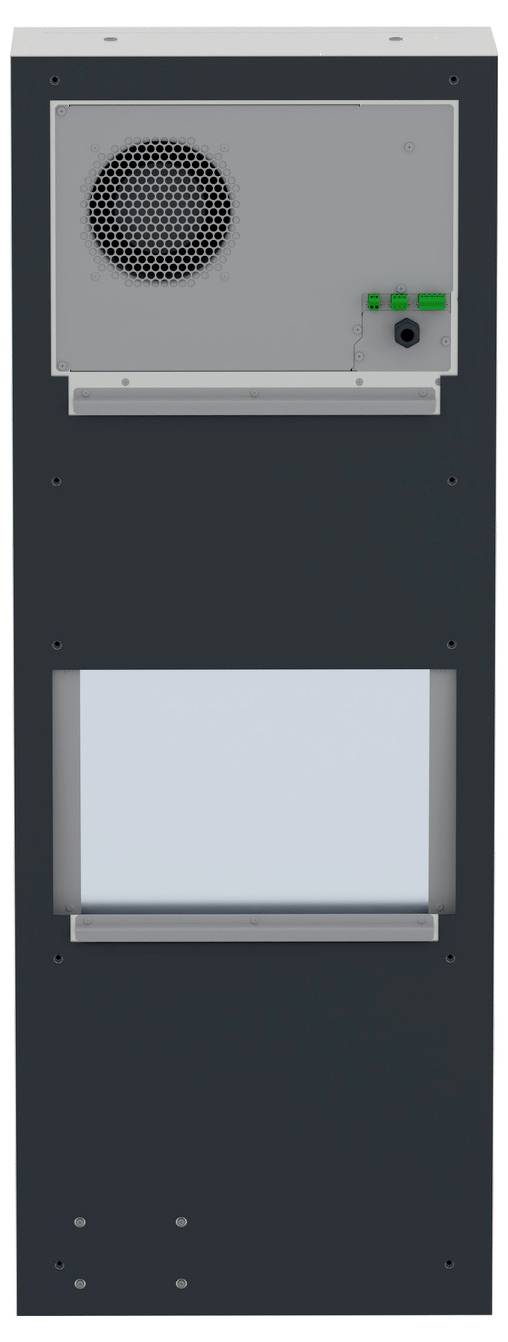

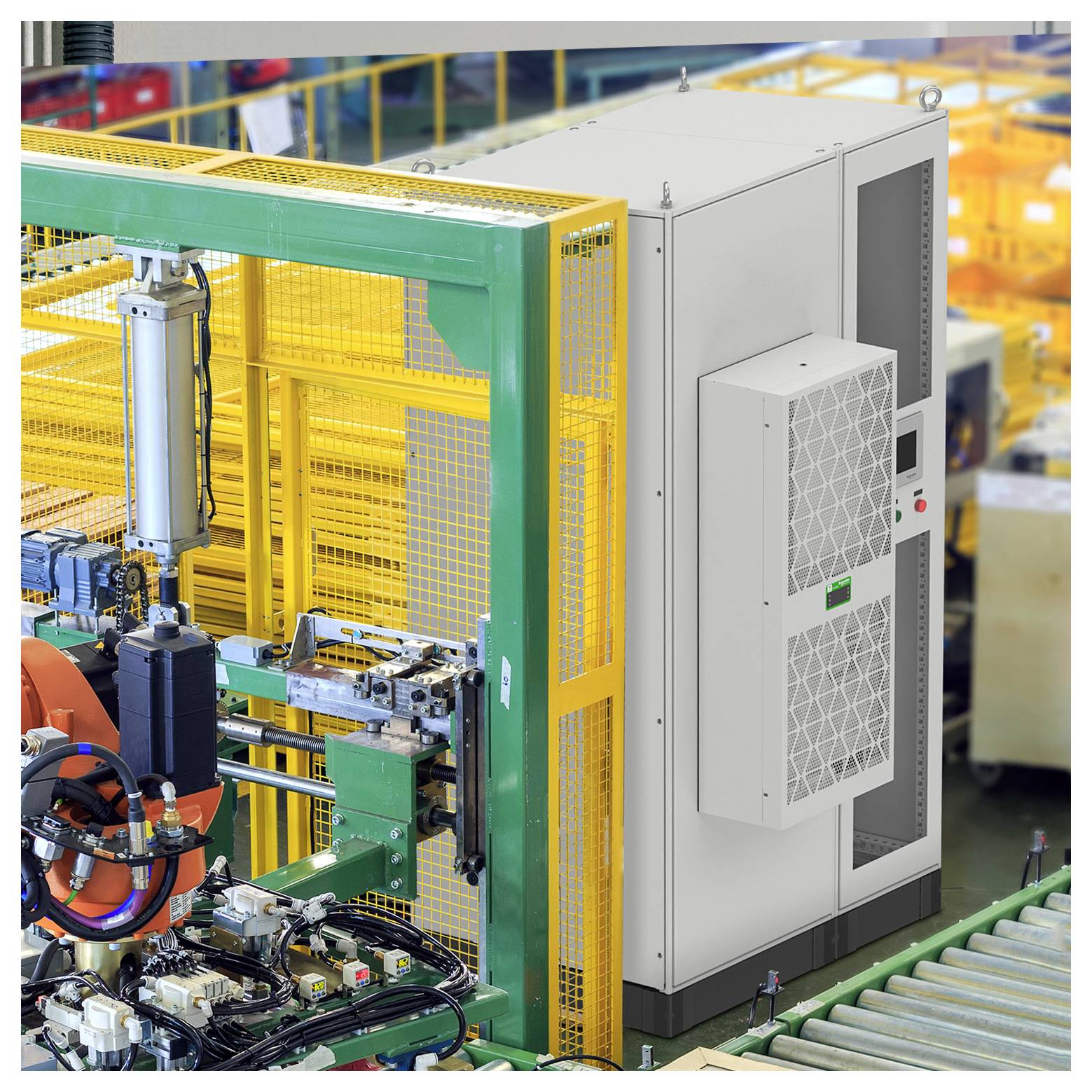

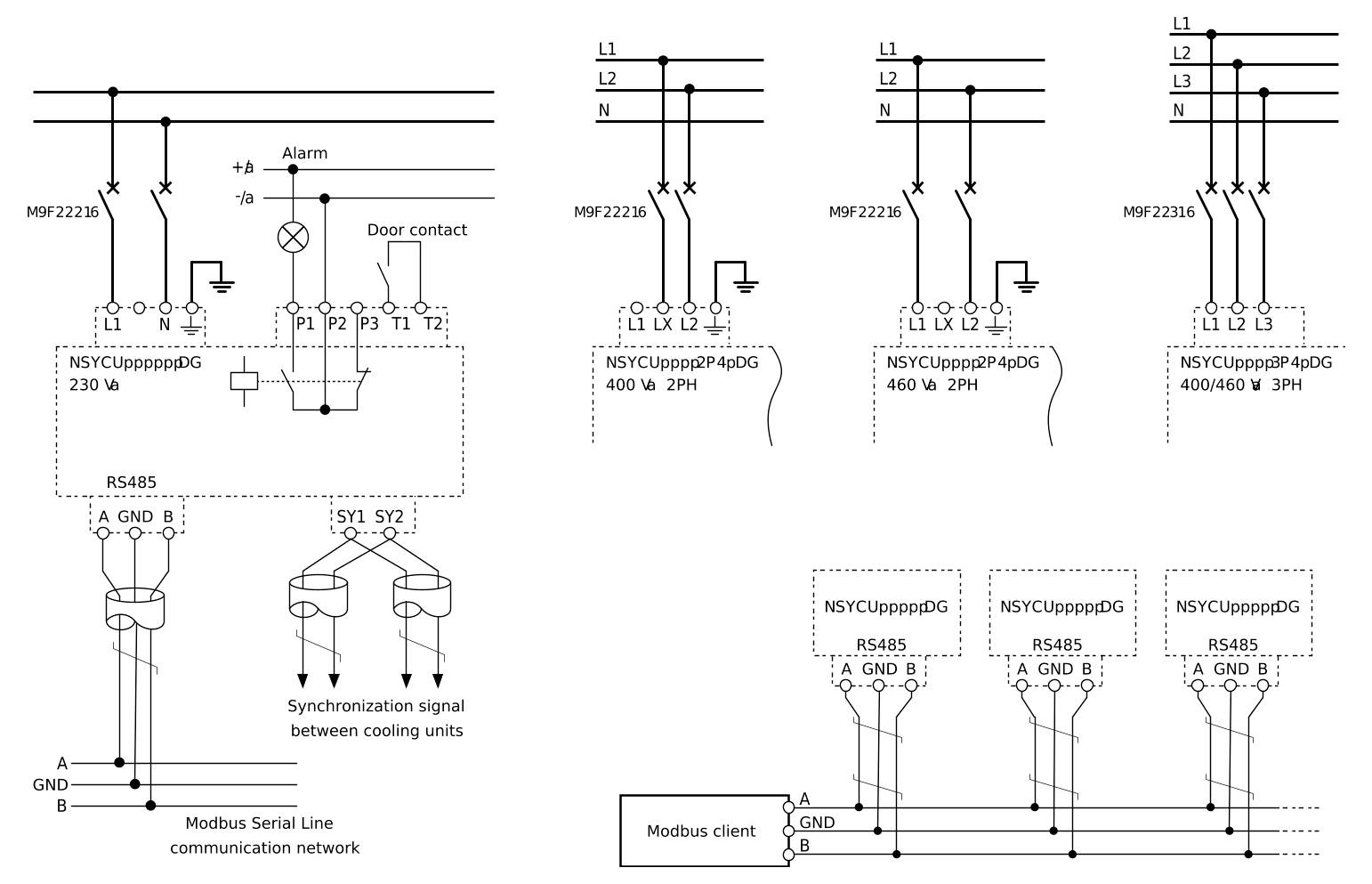

This new side mounted Schneider Electric cooling device is Ideal suitable for office and industrial buildings, especially for automation and control systems and distribution cabinets. It is intelligent, compact and reliable. Depending on the available space, it can be installed flush with the exterior wall of the control cabinet, or semi-flush or lying in the room. For worldwide use it is compliant with IEC14511 and UL60335-1 & UL60335-2-40. This cooling device is made of steel and offers an internal IP55. It has a cooling capacity L35-35 of 3200W according to EN 14511. It has a voltage of 380/460V, 50/60Hz, 3 phases. By means of the standard Modbus-interface the cooling device is 100% compatible with each SCADA-system. Remote alarms and operational data make the manufacturing process more reliable and reduce downtime, speed and simplify problem solving and extend the life of the electrical components. The new networked refrigerators are easy to design using the ProClima Web heat calculation tool - macros can be read into e.g. SEE Electrical from Etap. These tools allow you to select and optimize a heat management solution in minutes, and design a complete switchgear (with enclosures, equipment and thermal solutions) in 3D and 2D. In addition, Schneider Electric EcoStruxure apps and analyzes facilitate process monitoring with real data and action recommendations for more efficient operation and more efficient maintenance (preventive and predictive).
