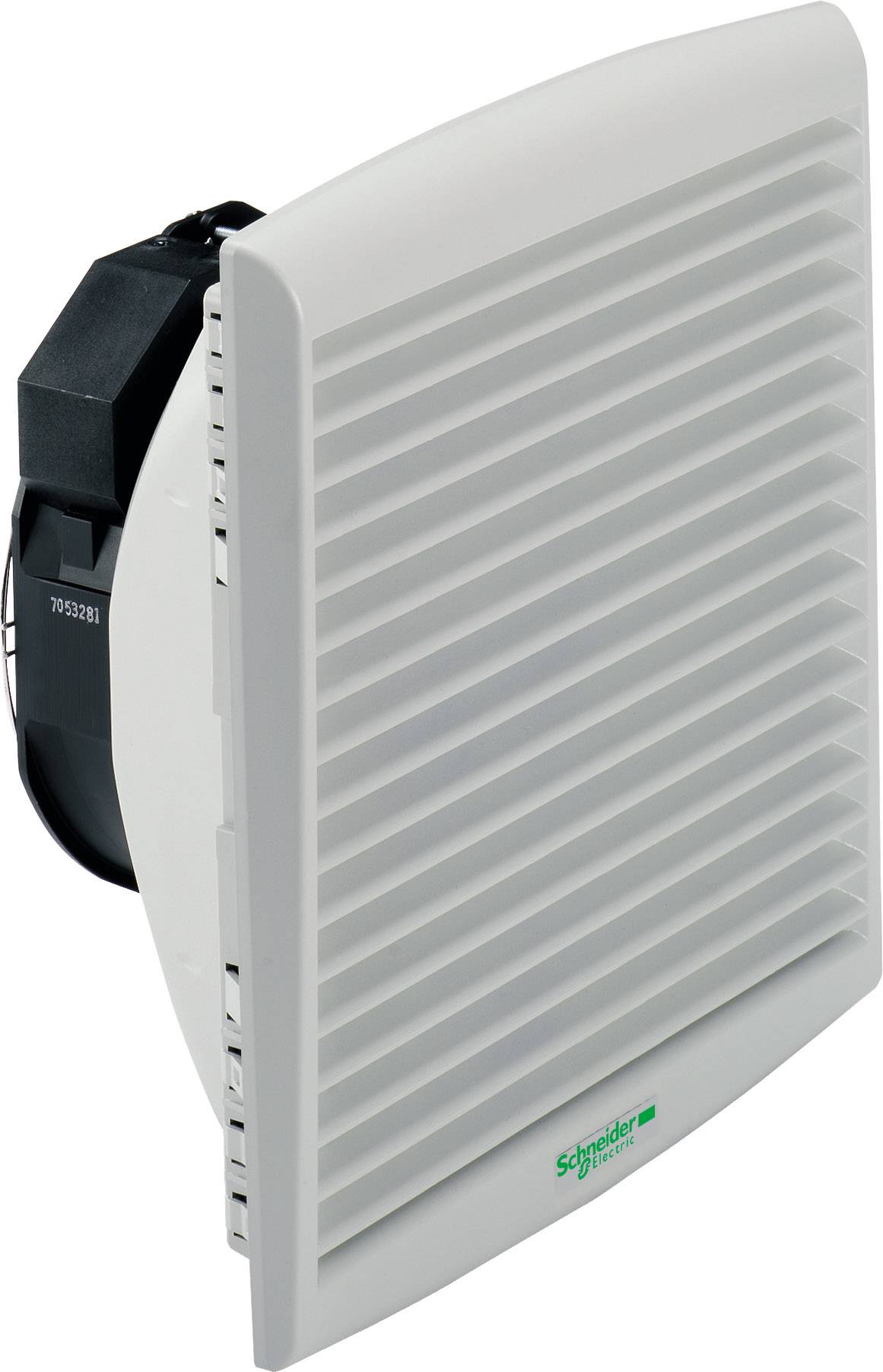

Schneider Electric NSYCVF300M48DPF Fan unit 48 V (W x H x D) 248 x 268 x 103.4 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan unit
Operating voltage
48 V
Noise emission (max.)
56 dB
Width
248 mm
Technical specifications
- Packaging type
Piece
- Product type
Fan unit
- Type
NSYCVF300M48DPF
- Features
incl. filter
- Operating voltage
48 V
- Noise emission (max.)
56 dB
- Air flow rate
262 m³/h
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP54
- Width
248 mm
- Height
268 mm
- Depth
103.4 mm
- Dim
(W x H x D) 248 x 268 x 103.4 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1866142 Schneider Electric NSYCVF300M48DPF Fan unit 48 V (W x H x D) 248 x 268 x 103.4 mm Piece 1 pc(s)
Description
Clima Sys-Lufter IP54, 300 m³/h, 48V DC, with output mesh grill and filter G2. Product Series: ClimaSys CV-Series: ClimaSys-Product Name: CV-product or component type: air ventilation filter type: Standard.
