Schneider Electric NSYTBP342912 PC casing 275 x 341 x 128 Polycarbonate (PC) Grey-white (RAL 7035) 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
PC casing
Material
Polycarbonate (PC)
IP rating
IP66
Width
275 mm
Technical specifications
- Packaging type
Piece
- Product type
PC casing
- Features
wallmount option
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey-white (RAL 7035)
- Width
275 mm
- Height
341 mm

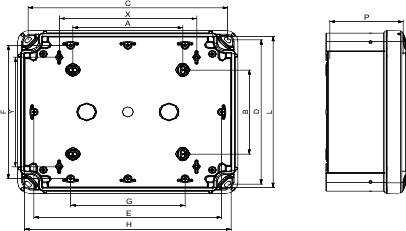

- Dimensions
Hohe: 341 mm - Breite: 291 mm - Tiefe: 128 mm - Innenhohe: 325 mm - Innenbreite: 275 mm - Innentiefe: 120 mm mm
- Weight
1.16 kg
- Content
1 pc(s)
- Type
NSYTBP342912
- Dim
(W x H x D) 275 x 341 x 128 mm
- Manufacturer part #
NSYTBP342912
- Depth
128 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1866430 Schneider Electric NSYTBP342912 PC casing 275 x 341 x 128 Polycarbonate (PC) Grey-white (RAL 7035) 1 pc(s) Piece
Description
PC-CAS. IP66 IK08 RAL 7035 In. H325B 275 D 120 Au?. H 341 B 291 D 128 undur. PC-cover. H20. Product Series: TeSys GF-Device Application: Multi-purpose-Height: 341 mm width: 291 mm depth: 128 mm Height: 325 mm Internal width: 275mm internal depth: 120 mm cabinet installation: wall mounting device structure: 1 x cover, 1 x housing, 4 x cover screw-type: One-piece molded shape-mounting the cover: plastic screws.
This text is machine translated.
This text is machine translated.
