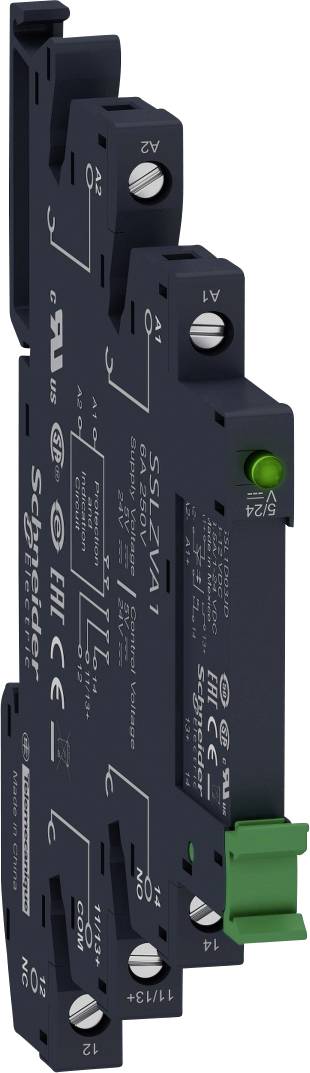

Image similar
Schneider Electric SSR SSL1D101BDPV 0.1 A Switching voltage (max.): 48 V DC DC circuit 30 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Product type
SSR
Control voltage (min.)
16 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
48 V DC
Technical specifications
- Number of mains phases: 1 phase
- Terminals - terminals: Flexible cable with cable end, 0.2-2.5 mm² (AWG 24-AWG 14); fixed cable with cable end, 0.2-2.5 mm² (AWG 24-AWG 14)
- Input impedance 3.43 kOhm
- Output type: Transistor output
- Overvoltage 60 V/DC
- Reaction time: 0.25 ms (on); 0.12 ms (off)
- Packaging type
Package
- Product type
SSR
- Type
SSL1D101BDPV
- Switching type
DC circuit
- Connection
Screws
- Control voltage (min.)
16 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
16 - 30 V DC
- Surge current (max.)
0.3 A
- Switching voltage (min.)
1 V DC
- Switching voltage (max.)
48 V DC
- Current load (max.)
0.1 A
- Output voltage (min.)
1 V DC
- Output voltage (max.)
48 V DC
- Max. output current
0.1 A
- Contact type
1 maker
- Min. temperature
-20 °C
- Max. temperature
+70 °C
IP20
- Width
6.2 mm
- Height
96.5 mm
- Depth
79.5 mm
- Weight
28.5 g
- Content
30 pc(s)
- UKCA
yes
