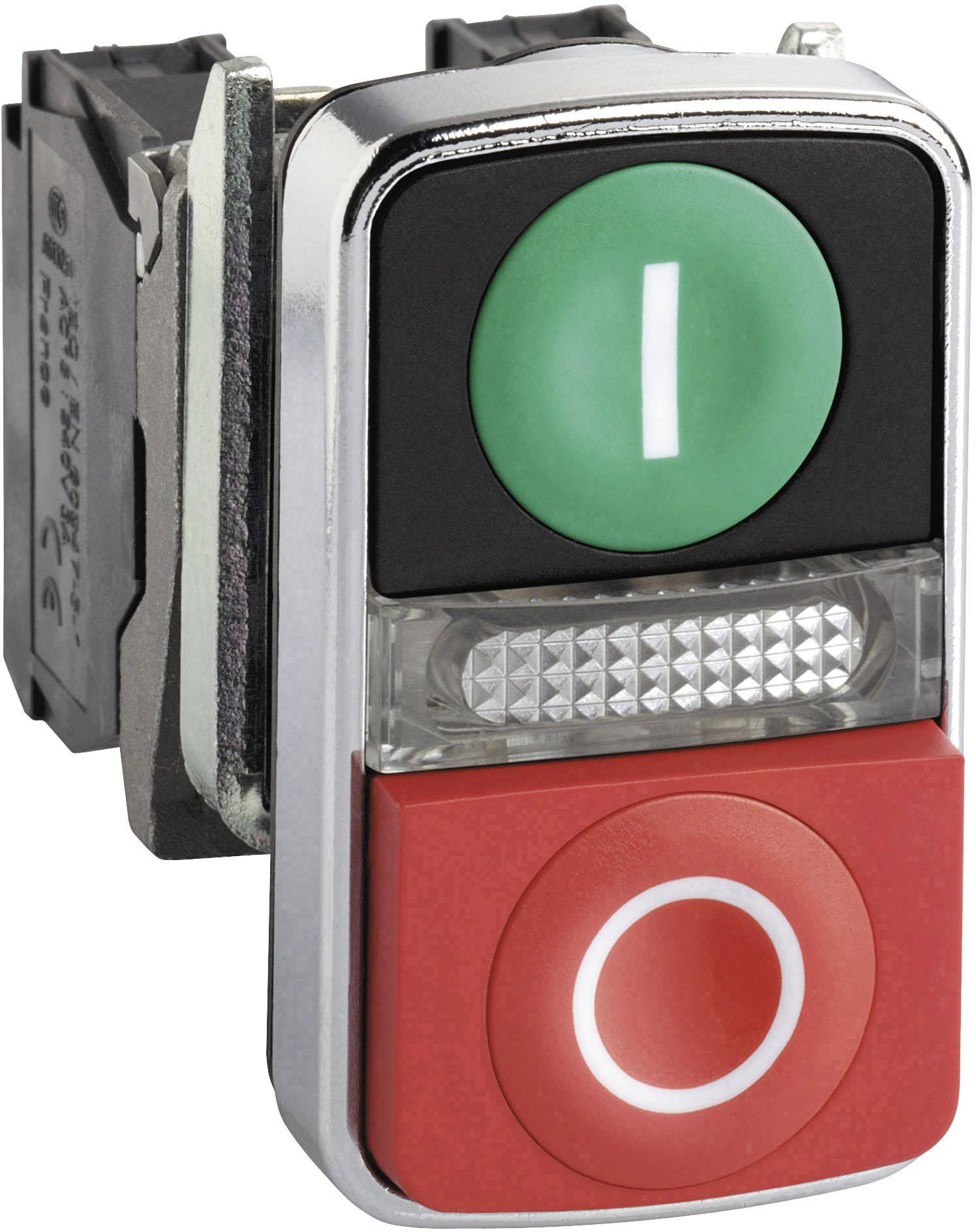

Schneider Electric XB4BW73731B5 XB4BW73731B5 Pushbutton 600 V 6 A momentary (Ø x H) 22 mm x 47 mm IP66, IP67, IP69, IP69
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Contact type
1 maker
1 breaker
Switching voltage
600 V
Switching current (max.)
6 A
Technical specifications
- Product type
Pushbutton
- Switch/button features
Recess mount
- Casing/button colour
Chrome
Green
Red
- Functions
momentary
- Lighting type
None
- Print motif
0/1
- Contact type
1 maker
1 breaker
- Material
Plastic
- Switching voltage
600 V
- Switching current (max.)
6 A
- Length
57 mm
- Width
30 mm
- Height
47 mm
- (Ø)
22 mm
- Recess diameter
22 mm
IP66
IP67
IP69
IP69K
- Content
1 pc(s)
- Dim
(Ø x H) 22 mm x 47 mm
- Type
XB4BW73731B5
- Weight
0.1365 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1982268 Schneider Electric XB4BW73731B5 XB4BW73731B5 Pushbutton 600 V 6 A momentary (Ø x H) 22 mm x 47 mm IP66, IP67, IP69, IP69
Description
Control and signaling devices made of metal, diameter 22mm. The control and signaling devices designed for industry combine simple installation with great flexibility and robust designs. The robust 3-point mounting with only one screw offers enormous security and saves assembly time.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
